The lamps do not turn off if:
•

You turn them on with the lamp
control.

•

Any door is open.

Illuminated Exit

The interior lamps and some exterior
lamps illuminate when all doors are closed,
you switch the ignition off and you remove
the key from the ignition.

The lamps turn off if all the doors remain
closed and:
•

25 seconds have elapsed.

•

You press the START/STOP button.

Battery Saver

If you leave the courtesy lamps, dome
lamps or headlamps on, the battery saver
shuts them off 10 minutes after you switch
the ignition off.

Accessory Mode Battery Saver for
Intelligent Access Keys

If you leave the ignition switched on, it
shuts off once it detects a certain amount
of battery drain, or after 45 minutes.

KEYLESS ENTRY

 (If Equipped)

SECURICODE™ KEYLESS ENTRY
KEYPAD

The keypad is near the driver window.  It
illuminates when touched.

Note:  If you enter your entry code too fast
on the keypad, the unlock function may not
work.  Enter your entry code again more
slowly.

E138637

You can use the keypad to do the
following:
•

Lock or unlock the doors.

•

Recall memory seat and mirror
positions.

•

Program and erase user codes.

•

Arm and disarm the anti-theft alarm.

You can operate the keypad with the
factory-set five-digit entry code. The code
is on the owner’s wallet card in the glove
box and is available from an authorized
dealer. You can also program up to five of
your own five-digit personal entry codes.

Programming a Personal Entry Code

1.

Enter the factory-set five-digit code.

2. Press 1·2 on the keypad within five

seconds.

3. Enter your personal five-digit code.

You must do this within five seconds
of completing step 2.

4. Press 1·2 on the keypad to save

personal code 1.

The doors lock then unlock to confirm that
programming was successful.

To program additional personal entry
codes, repeat steps 1 through 3, then for
step 4:
•

Press 3·4 to save personal code 2.

•

Press 5·6 to save personal code 3.

•

Press 7·8 to save personal code 4.

•

Press 9·0 to save personal code 5.

If your vehicle is fitted with MyFord Touch,
you can also program the system with a
personal entry code.  See Settings (page
455).

Hints:
•

Do not set a code that uses five of the
same number.

•

Do not use five numbers in sequential
order.

•

The factory-set code works even if you
have set your own personal code.

Erasing a Personal Code

1.

Enter the factory-set five-digit code.

2. Press and release 1·2 on the keypad

within five seconds.

3. Press and hold 1·2 for two seconds.

You must do this within five seconds
of completing Step 2.

All personal codes erase and only the
factory-set five-digit code works.

Anti-Scan Feature

The keypad goes into an anti-scan mode
if you enter the wrong code seven times.
This mode turns off the keypad for one
minute and the keypad lamp flashes.

The anti-scan feature turns off after:
•

One minute of keypad inactivity.

•

You press the unlock button on the
remote control.

•

You switch the ignition on.

•

You unlock your vehicle using
intelligent access.

Locking and Unlocking the Doors

Locking All Doors

Press and hold 7·8 and 9·0 simultaneously
with the driver door closed. You do not
need to enter the keypad code first.

Unlocking the Driver Door

Enter the factory-set or your personal
five-digit code.  You must press each
number within five seconds of each other.
The interior lamps illuminate.

Note: All doors unlock if you enable the
all-door unlocking mode.  See Locking and
Unlocking (page 63).

Unlocking All Doors

Enter the factory-set or your personal
five-digit code, then press 3·4 within five
seconds.

Displaying the Factory-Set Code

Note: You need to have two programmed
intelligent access keys for this procedure.

E195807

1

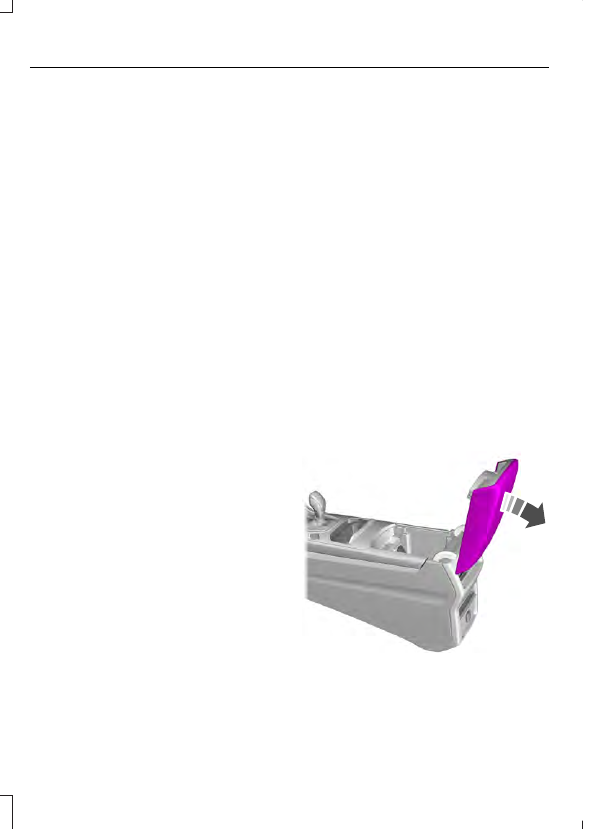

1.

Open the floor console storage
compartment lid.

E195808

2

2. With the buttons facing the rear of your

vehicle and the key ring up, place the
first intelligent access key into the
backup slot inside the center console.

3. Press the START/STOP button once

and wait a few seconds.

4. Press the START/STOP button again

and remove the key.

5. Insert the second programmed key into

the backup slot, then press the
START/STOP button.

The factory-set code appears in the
information display for a few seconds.

Note: The code may not display until after
any other warning messages first display.

MANUAL LIFTGATE

WARNINGS

It is extremely dangerous to ride in a
cargo area, inside or outside of a
vehicle. In a crash, people riding in

these areas are more likely to be seriously
injured or killed. Do not allow people to ride
in any area of your vehicle that is not
equipped with seats and seatbelts. Make
sure everyone in your vehicle is in a seat
and properly using a seatbelt. Failure to
follow this warning could result in serious
personal injury or death.

Make sure to close and latch the
liftgate to prevent drawing exhaust
fumes into your vehicle. This will also

prevent passengers and cargo from falling
out. If you must drive with the liftgate open,
keep the vents or windows open so outside
air comes into your vehicle. Failure to
follow this warning could result in serious
personal injury.

Note: Be careful when opening or closing
the liftgate in a garage or other enclosed
area to avoid damaging the liftgate.

Note: Do not hang anything, for example a
bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.

Note: Do not leave the liftgate open while
driving. This could damage the liftgate and
its components.

Opening the Liftgate

Manually

E138632

Press the button located in the top of the
liftgate pull cup handle to unlatch the
liftgate, and then pull on the outside
handle.

With the Remote Control

E138630

Press the button twice within
three seconds.

Closing the Liftgate

E155976

A handle is located inside the liftgate to
help with closing.
