Protected Components

Fuse Rating

Fuse or Relay

Number

Trailer tow stop lamp and direction indic-
ator lamps.

20A

2

48

Wiper motor.

30A

2

49

Not used.

—

50

Cutaway.

20A

2

51

Modified vehicle and stripped chassis run/
start relay coil.

10A

3

52

Anti-lock brake system run/start feed.

10A

3

53

Fuel pump relay coil.

10A

3

54

Not used.

—

55

Not used.

—

56

Trailer tow park lamp.

20A

3

57

Trailer tow back-up lamp.

15A

3

58

Not used.

—

59

Not used.

—

60

Not used.

—

61

Auxiliary switch #2 relay.

—

62

Trailer tow battery charge.

30A

2

63

Not used.

—

64

Power point 2 (glove box).

20A

2

65

Power point 3 (cutaway B+).

20A

2

66

Power point 1 (instrument panel).

20A

2

67

Modified vehicle.

50A

2

68

Not used.

—

69

Protected Components

Fuse Rating

Fuse or Relay

Number

Stripped chassis.

30A

2

70

Not used.

—

71

Cigarette lighter/power point.

20A

2

72

Not used.

—

73

Power seat.

30A

2

74

Vehicle power 1.

20A

3

75

Powertrain control module power.

Vehicle power 2.

20A

3

76

Powertrain control module emissions
related components.

Vehicle power 3.

10A

3

77

Powertrain control module general
components.

Vehicle power 4.

15A

3

78

Engine ignition coil relay coil.

Vehicle power 5.

10A

3

79

Transmission.

Cluster run/start (stripped chassis).

10A

3

80

Not used.

—

81

Not used.

—

82

Fuel pump diode.

—

83

Not used.

—

84

Auxiliary switch #1 relay.

—

85

1

Cartridge fuse

2

A1S fuse

3

Mini fuse

Passenger Compartment Fuse
Panel

WARNING

Always disconnect the battery before
servicing high current fuses.

Note: If your vehicle is equipped with dual
batteries, disconnecting the primary
under-hood battery does not remove power
from all circuits.

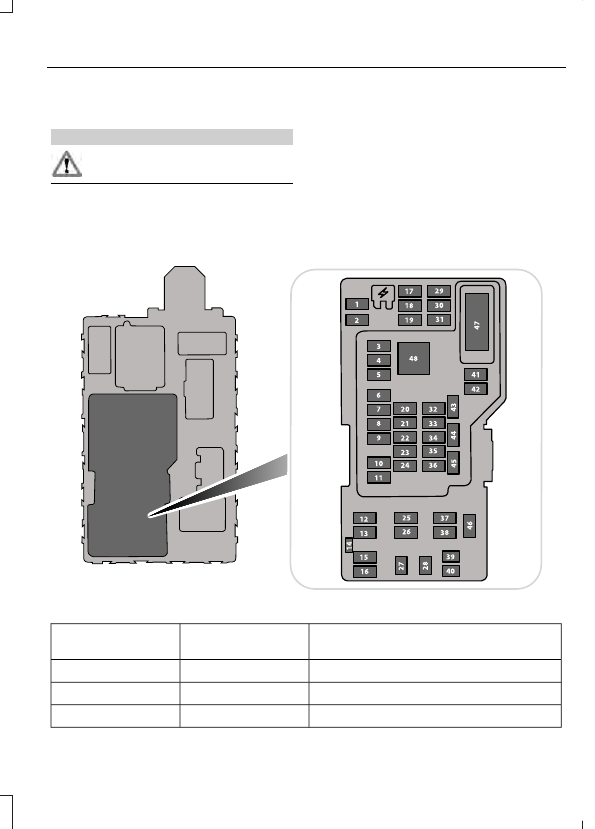

The fuse panel is located to the left of the
brake pedal and mounted onto the lower
left cowl panel. Remove the fuse panel
cover to access the fuses.

To remove a fuse, use the fuse puller tool
provided on the inside of the fuse panel
cover.

E194306

Protected Components

Fuse Rating

Fuse or Relay

Number

Inverter B+.

30A

1

Not used (spare).

15A

2

Not used (spare).

15A

3

Protected Components

Fuse Rating

Fuse or Relay

Number

Not used (spare).

30A

4

Passenger compartment fuse panel.

10A

5

Brake-shift interlock.

Direction indicators lamps.

20A

6

Hazard lamps.
Stop lamps.

Left-side headlamp low beam.

10A

7

Right-side headlamp low beam.

10A

8

Courtesy lamps.

15A

9

Switch illumination.

15A

10

Not used (spare).

10A

11

Not used (spare).

7.5A

12

Mirrors.

5A

13

SYNC

10A

14

Global positioning system module.

Not used (spare).

10A

15

Not used (spare).

15A

16

Door locks.

20A

17

Not used (spare).

20A

18

Not used (spare).

25A

19

Diagnostic connector (except stripped
chassis).

15A

20

Not used (spare).

15A

21

Parking lamps.

15A

22

License plate lamps.

Headlamp high beams.

15A

23

Horn (except stripped chassis).

20A

24

Demand lighting.

10A

25

Cluster (except stripped chassis).

10A

26
