MOTORCRAFT PARTS - 6.8L

Motorcraft Part number

Component

FA-1632

Air filter element.

FL-820-S

Oil filter.

BXT-65-650

Battery.

BXT-65-750

BXT-65-750

Battery (auxiliary).

SP-521

Spark plugs.

FT-187

Transmission fluid filter.

WW-2005

Windshield wiper blade.

We recommend Motorcraft replacement parts available at your Ford dealer or at
fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor
Company’s specifications and are engineered for your vehicle. Use of other parts may
impact vehicle performance, emissions and durability. Your warranty may be void for any
damage related to use of other parts.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.

For spark plug replacement, contact an authorized dealer. Replace the spark plugs at the
appropriate intervals.  See Scheduled Maintenance (page 272).

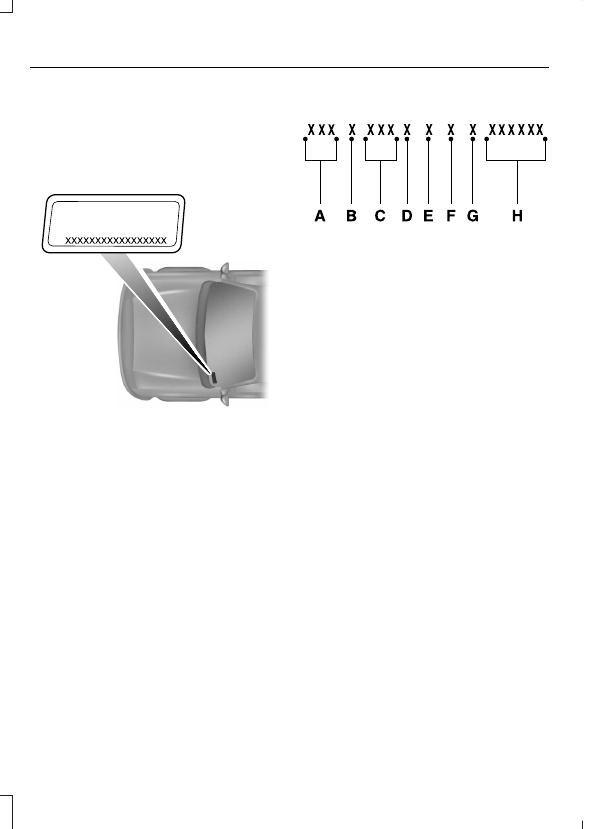

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is
located on the left-hand side of the
instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION
LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door latch,
next to the driver's seating position.

TRANSMISSION CODE
DESIGNATION

E167814

The transmission code is on the Safety
Compliance Certification Label.  The
following table shows the transmission
code along with the transmission
description.

Code

Description

P

Six-speed automatic transmission 6R140

CAPACITIES AND SPECIFICATIONS - 6.2L

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant under high pressure.
Only qualified personnel should service the air conditioning refrigerant system.
Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

7.0 qt (6.6 L)

Engine oil (with oil filter)

21.3 qt (20.2 L)

Engine coolant

30.7 qt (29.1 L)

Engine coolant - with auxiliary rear heat

Between MIN and MAX on brake fluid

reservoir

Brake fluid

Between MIN/MAX on power steering fluid

reservoir

Power steering fluid

17.4 qt (16.5 L)

1

Automatic transmission fluid

6.6 pt (3.1L)

2

Dana Limited Slip Axle fluid
M70FF (M267FF)
E-350

9.7 pt (4.6L)

2

Dana Limited Slip Axle fluid
M70HD (M273HD)
E-450

6.6 pt (3.1L)

2

Dana conventional axle fluid
M70FF (M267FF)
E-350

9.7 pt (4.6L)

2

Dana conventional axle fluid
M70HD (M273HD)
E-450

Fill as required

Windshield washer fluid

40 gal (151 L)

Fuel tank

55 gal (208 L)

Fuel tank
(Optional or E-Super Duty)

1.9 lb (0.85 kg)

A/C refrigerant
