Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
• Water puddle inside the lamp
• Large water droplets, drip marks or streaks present on the interior of

the lens

Take your vehicle to dealer for service if any of the above conditions of
unacceptable moisture are present.

Using the right bulbs

Replacement bulbs are specified in the chart below. Headlamp bulbs must
be marked with an authorized “D.O.T.” for North America and an “E” for
Europe to ensure lamp performance, light brightness and pattern and safe
visibility. The correct bulbs will not damage the lamp assembly or void the
lamp assembly warranty and will provide quality bulb burn time.

Function

Number of

bulbs

Trade number

Headlamps (aerodynamic)

H13/9008

Headlamps (sealed beam)

H6054

Park lamp with aerodynamic

3157A or 3157AK

Park lamp with sealed beam

3157K

Side marker with
aerodynamic

168

Side marker with sealed
beam

194

Back-up lamps

3156K or 3156

License plate lamp

168

Stop/tail/turn/side marker
lamp

3457K or 3357K

High-mount brakelamp

912

Cargo lamp

211-2

Dome lamp (standard)

912

Map/reading lamp

211-2

All replacement bulbs are clear in color except where noted.

To replace all instrument panel lights - see your authorized dealer

Lights

Replacing exterior bulbs

Check the operation of all bulbs frequently.

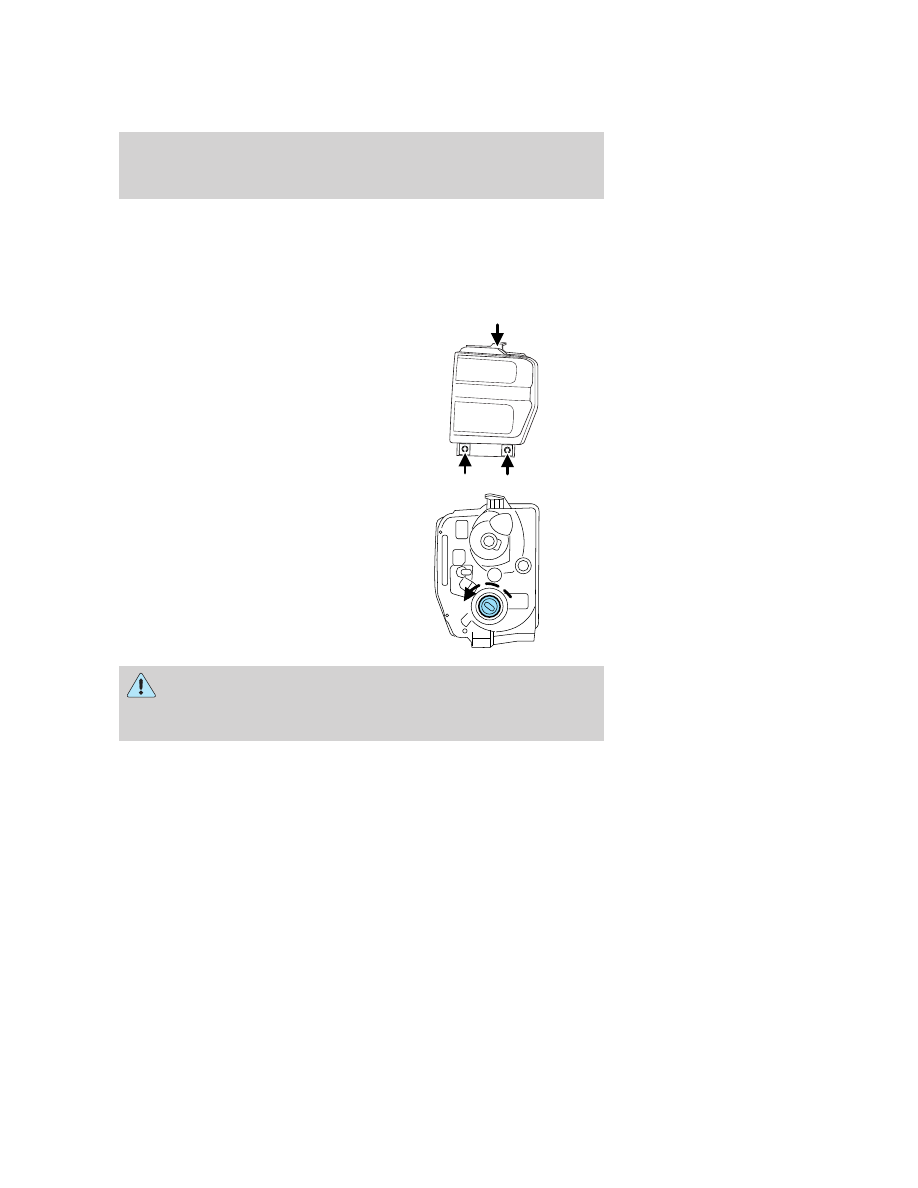

Replacing headlamp bulbs (aerodynamic)

1. Make sure the headlamp switch is in the off position and open the
hood.

2. Remove the three screws from
the top and bottom front of the
headlamp assembly and pull the
assembly straight out.

3. Disconnect the electrical
connector by squeezing the release
tab and pushing the connector
forward and then pulling it
rearward.

4. Remove the bulb assembly by
turning it counterclockwise and
pulling it straight out.

WARNING: Handle a halogen headlamp bulb carefully and keep
out of children’s reach. Grasp the bulb only by its plastic base

and do not touch the glass. The oil from your hand could cause the
bulb to break the next time the headlamps are operated.

Note: If the bulb is accidentally touched, it should be cleaned with
alcohol before being used.

To install the new bulb, follow the removal procedures in reverse order.

Lights

Replacing headlamps (sealed beam)

1. Make sure the headlamp switch is in the off position and open the
hood.

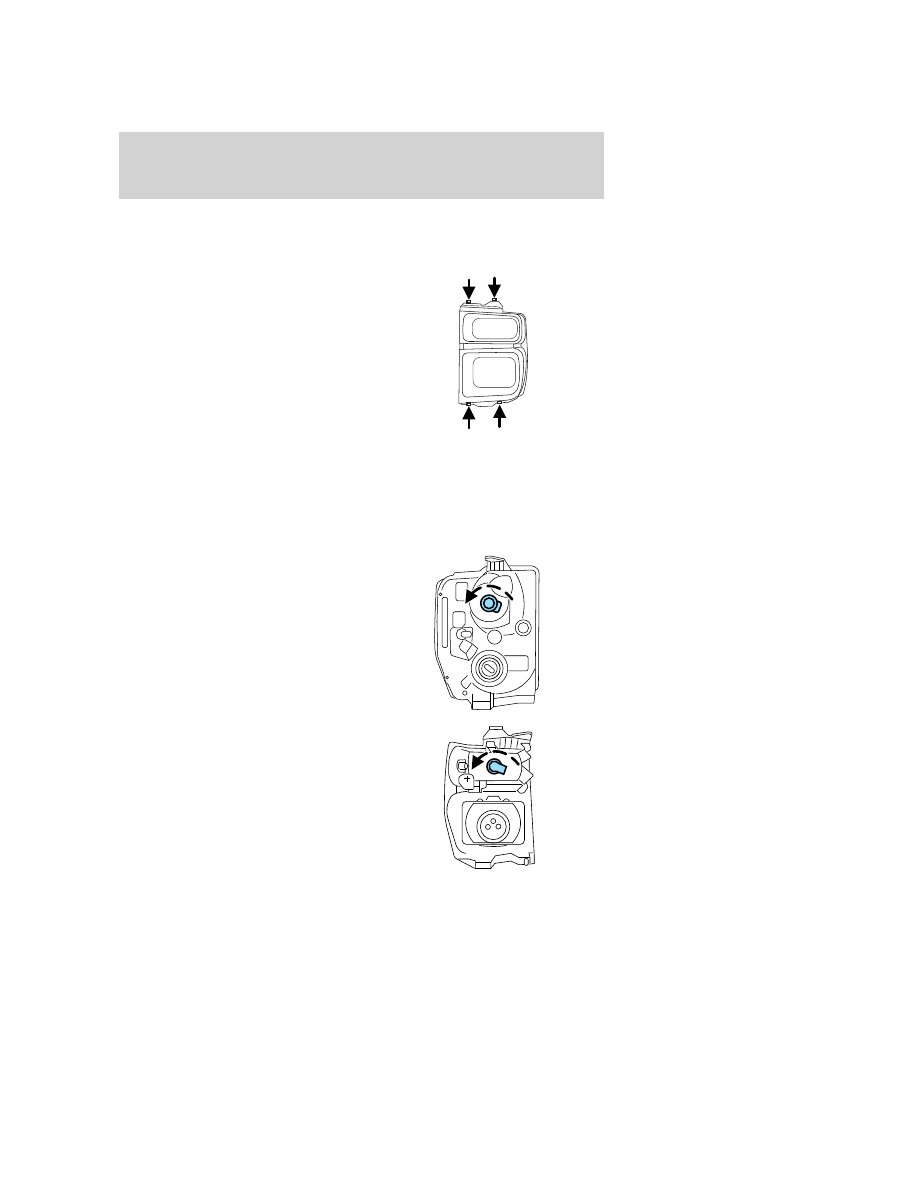

2. Remove the four screws from the
top and bottom front of the
headlamp assembly and carefully
remove the lamp/bezel.

3. Remove the four screws and the
retaining ring.

4. Disconnect the electrical
connector from the lamp and
remove the lamp.

To install the new lamp, follow the
removal procedures in reverse order.

Replacing front parking lamp/turn signal bulbs

1. Make sure the headlamp control is in the off position.

2. Remove the headlamp assembly, refer to Replacing headlamp bulbs
in this section.

Aerodynamic

Sealed beam

Lights

3. Rotate the bulb socket counterclockwise and remove.

4. Carefully pull the bulb straight out of the socket.

To complete installation, follow the removal procedures in reverse order.

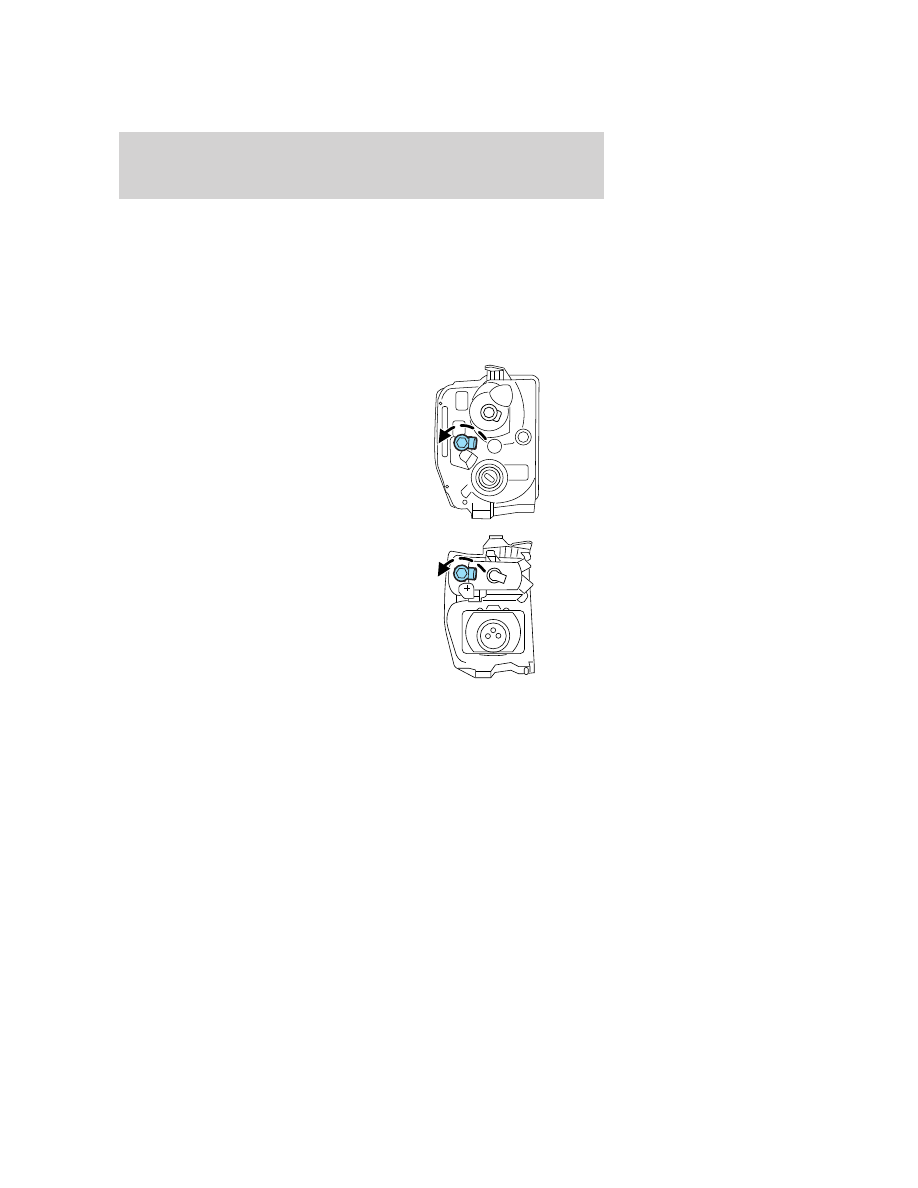

Replacing side marker bulbs

1. Make sure the headlamp control is in the off position.

2. Remove the headlamp assembly. Refer to Replacing headlamp bulbs
in this section.

Aerodynamic

Sealed beam

3. Rotate the bulb socket counterclockwise and remove.

4. Carefully pull the bulb straight out of the socket.

To complete installation, follow the removal procedures in reverse order.

Lights

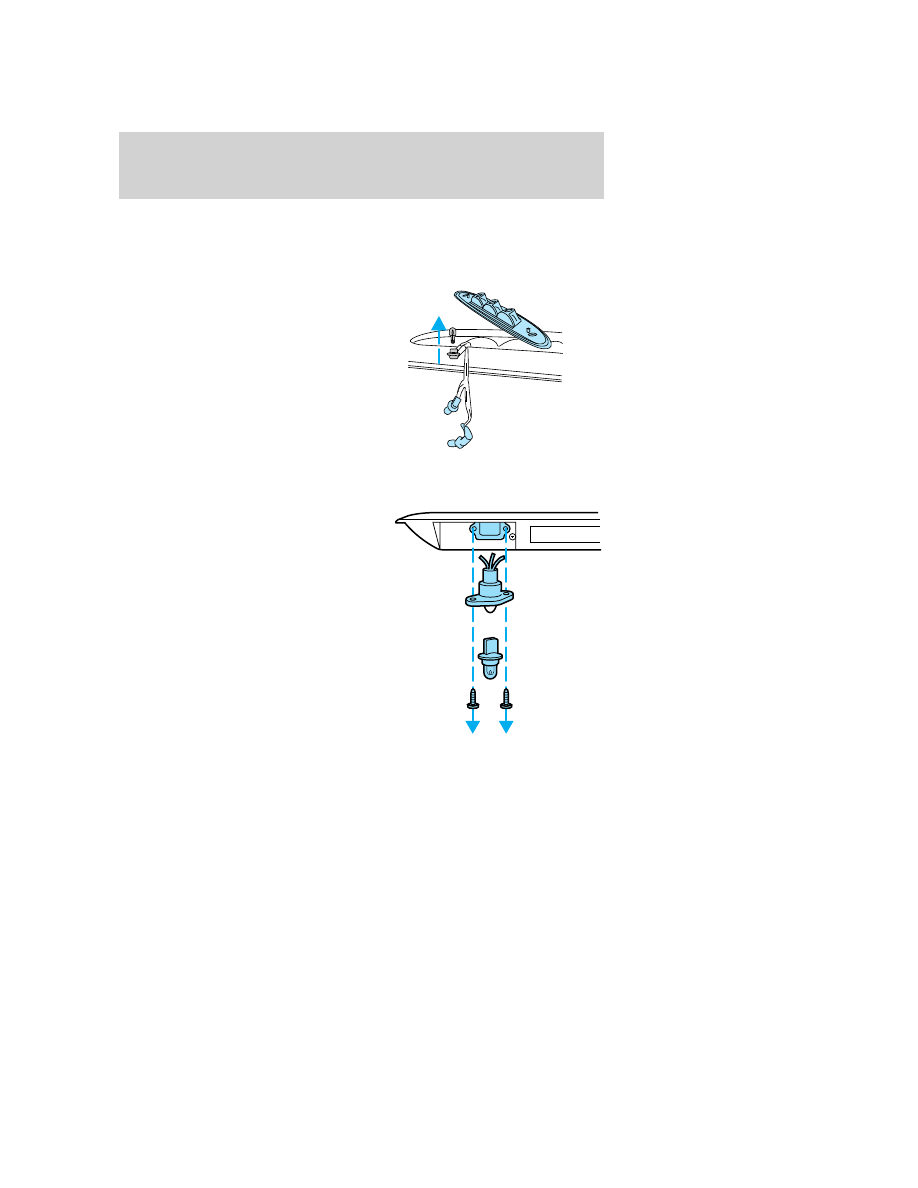

Replacing high-mount brakelamp bulbs

On vehicles without a rear headliner, the interior cargo lamp (if
equipped) will have to be removed from under the high-mount
brakelamp assembly located inside the vehicle. Then, do the following:

1. Remove the two screws from the
high-mount brakelamp assembly and
lift the lamp from the vehicle.

2. Remove the bulb socket from the
lamp assembly by turning
counterclockwise.

3. Carefully pull the bulb straight
out of the socket.

To install the new bulb, follow the removal procedure in reverse order.

Replacing license plate lamp bulbs

1. Turn the headlamp switch to the
off position.

2. Remove the two screws and the
license plate lamp assembly from
the rear door.

3. Remove bulb socket from lamp
assembly by turning
counterclockwise.

4. Pull the bulb out from socket and
push in the new bulb.

To install the new bulb, follow the removal procedures in reverse order.

Lights

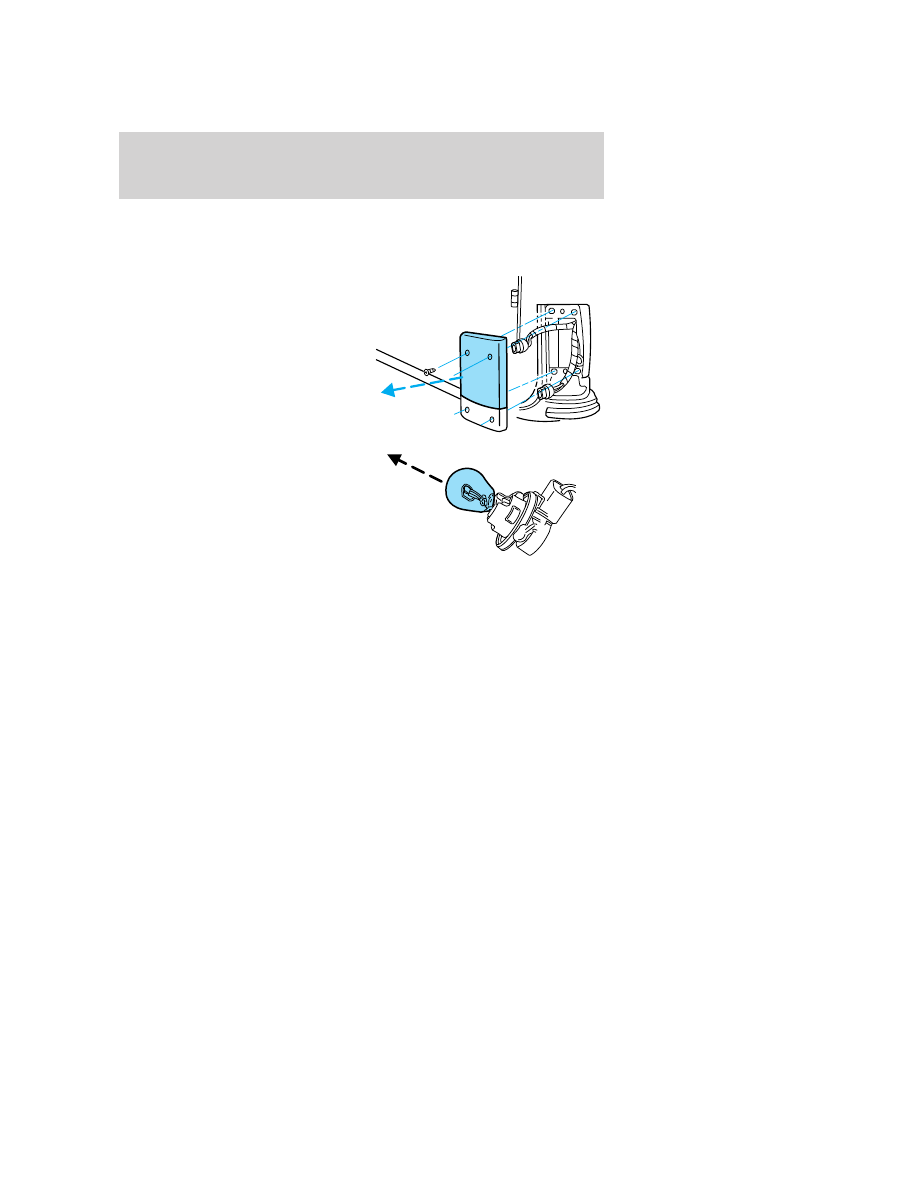

Replacing stop/turn/tail/side marker/backup lamp bulbs

The stop/turn/tail/side marker/backup lamp bulbs are located in the tail
lamp assembly. Follow the same steps to replace any of the bulbs:

1. Turn the headlamp switch to the
off position and then remove the
four screws and the lamp assembly
from vehicle.

2. Rotate bulb socket
counterclockwise and remove from
lamp assembly.

3. Carefully pull the bulb straight
out of the socket and push in the
new bulb.

To install the lamp, follow the removal procedures in reverse order.

Lights

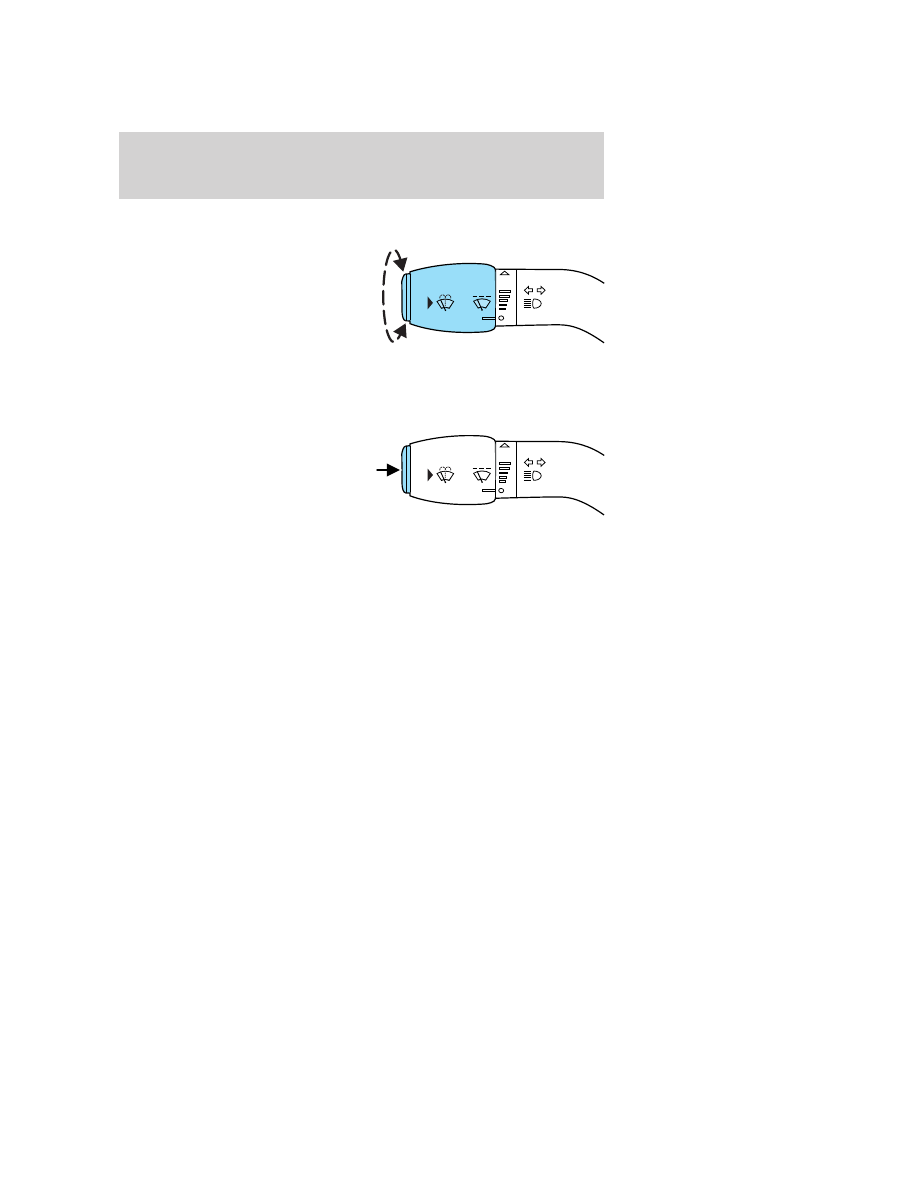

MULTI-FUNCTION LEVER

Windshield wiper: Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.

Windshield washer: Push the end
of the stalk:
• briefly: causes a single swipe of

the wipers without washer fluid.

• a quick push and hold: the wipers

will swipe three times with
washer fluid.

• a long push and hold: the wipers

and washer fluid will be activated
for up to ten seconds.

Courtesy wipe feature: One extra wipe will occur a few seconds after
washing the front window to clear any excess washer fluid remaining on
the windshield.

Note: Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.

Driver Controls

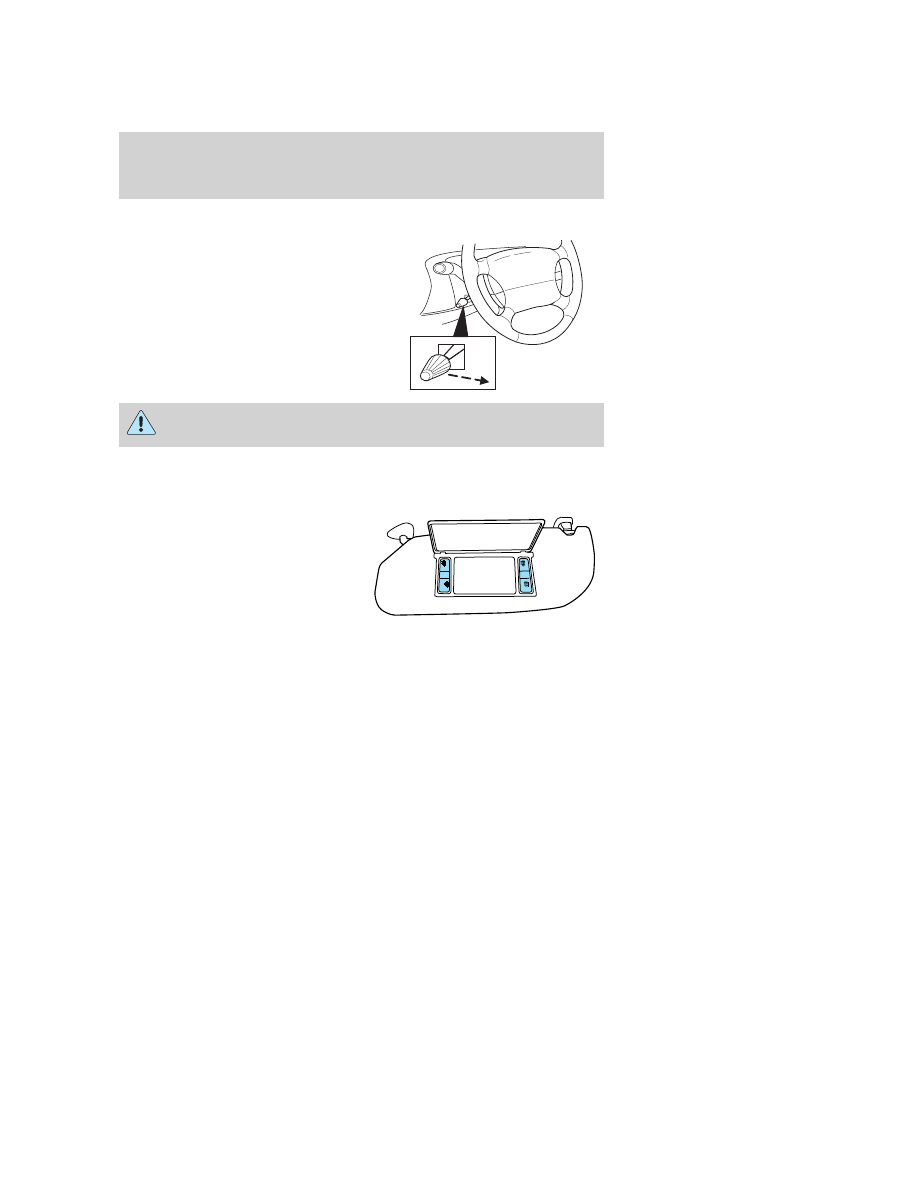

TILT STEERING WHEEL

To adjust the steering wheel:

1. Pull and hold the steering wheel
release control toward you.

2. Move the steering wheel up or
down until you find the desired
location.

3. Release the steering wheel
release control. This will lock the
steering wheel in position.

WARNING: Never adjust the steering wheel when the vehicle is
moving.

ILLUMINATED VISOR MIRROR (IF EQUIPPED)

Lift the mirror cover to turn on the
visor mirror lamp.

OVERHEAD CONSOLE (IF EQUIPPED)

The appearance of your vehicle’s overhead console will vary according to
your option package.

Driver Controls

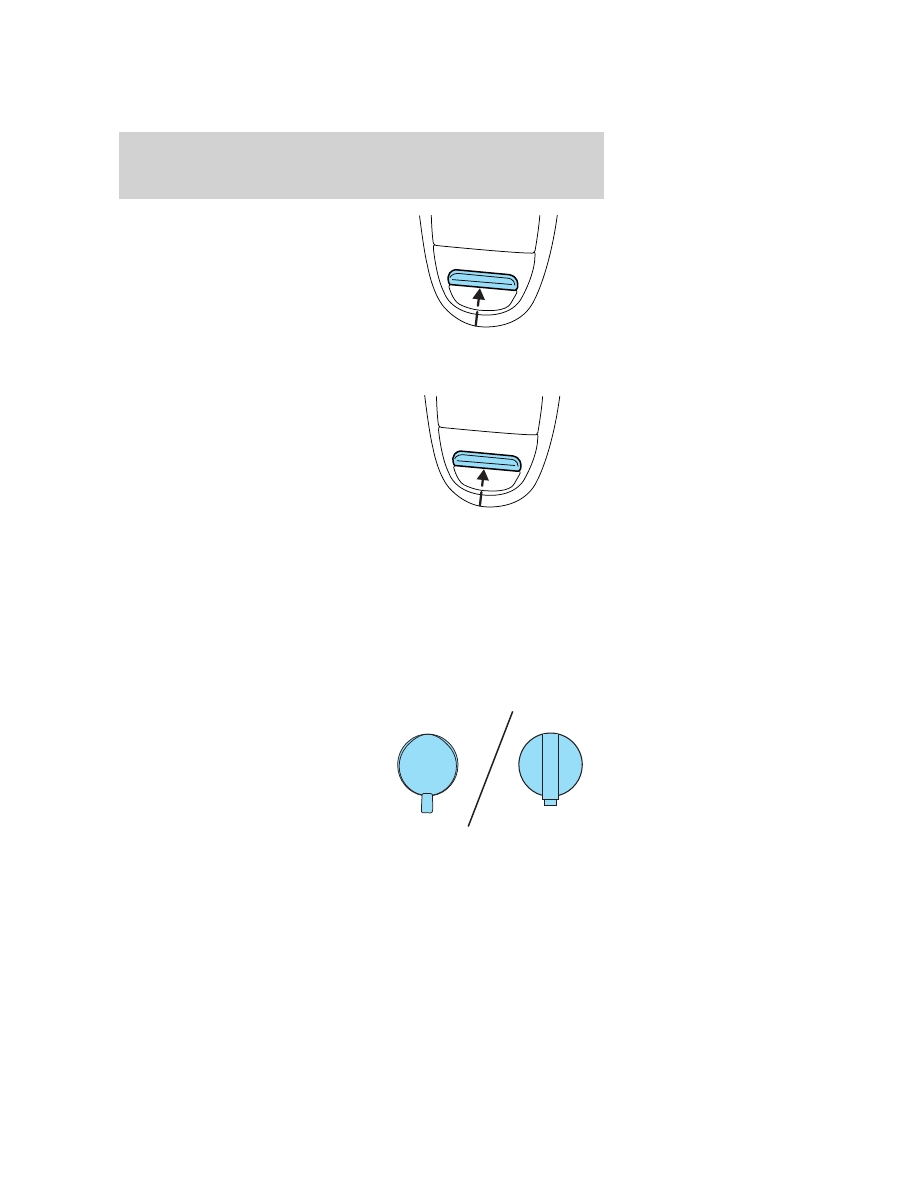

Storage compartment (if equipped)

Press the release on the door to
open the storage compartment.

The storage compartment may be
used to secure sunglasses or a
similar object.

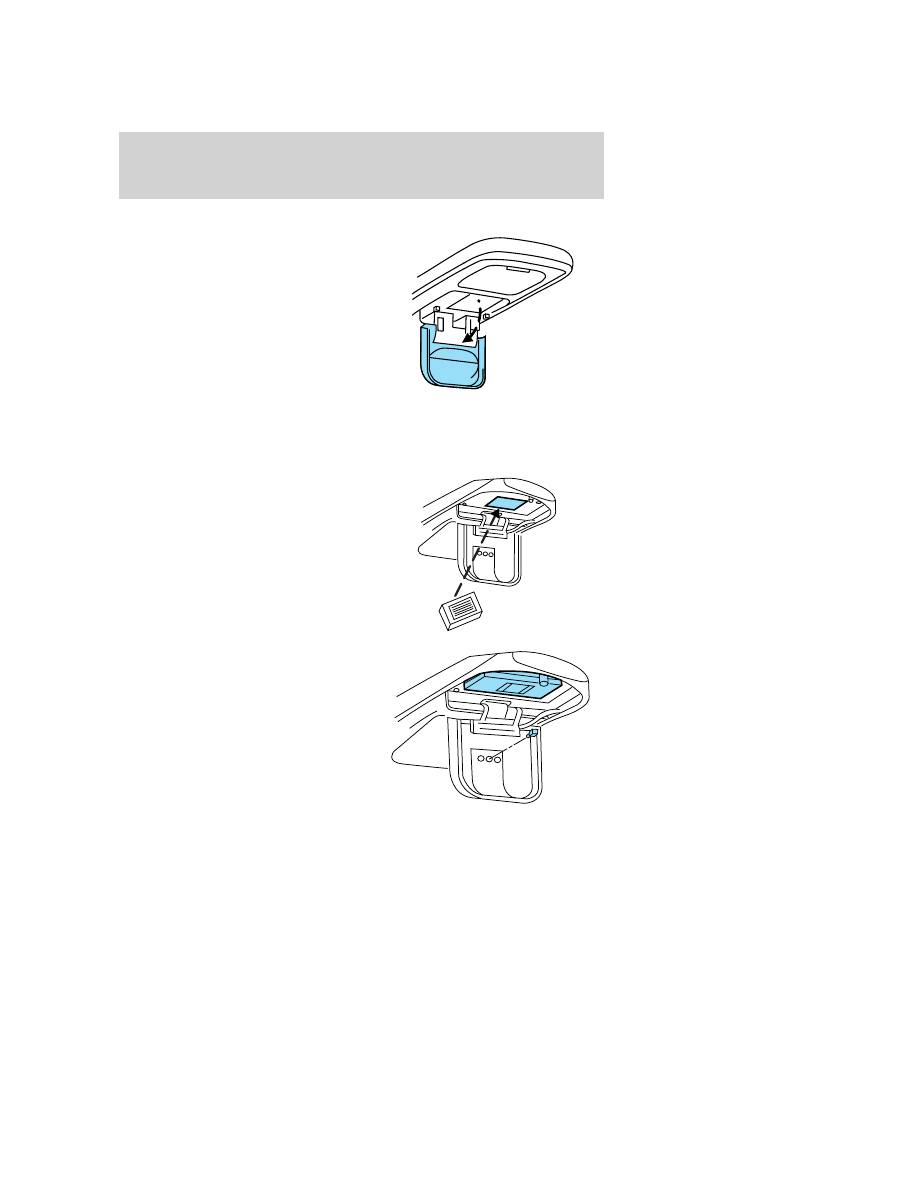

Installing a garage door opener (if equipped)

The storage compartment can be converted to accommodate a variety of
aftermarket garage door openers:

1. Place VELCRO

威 hook onto side of

aftermarket transmitter opposite of
actuator control.

2. Place the transmitter into storage
compartment, control down.

3. Place the provided height
adaptors onto the back of the
GARAGE control as needed.

4. Press the GARAGE control to
activate the transmitter.

Driver Controls

Electronic compass/temperature display (if equipped)

Outside air temperature

The outside temperature display is
contained in the overhead console.

The temperature display can be
turned off and on by pressing the
SELECT control on the overhead
console. The temperature can be
displayed in Centigrade or
Fahrenheit by pressing the SELECT
control.

If the outside temperature falls
below 38°F (3°C), the display will alternate from “ICE” to the outside
temperature at a two second rate for one minute.

Compass

The compass display is contained in the overhead console. The vehicle
heading is displayed as one of N, NE, E, SE, S, SW, W and NW.

The compass reading may be affected when you drive near large
buildings, bridges, power lines and powerful broadcast antenna. Magnetic
or metallic objects placed in or on the vehicle may also affect compass
accuracy. Adjustments may need to be made to the zone and calibration
of the compass.

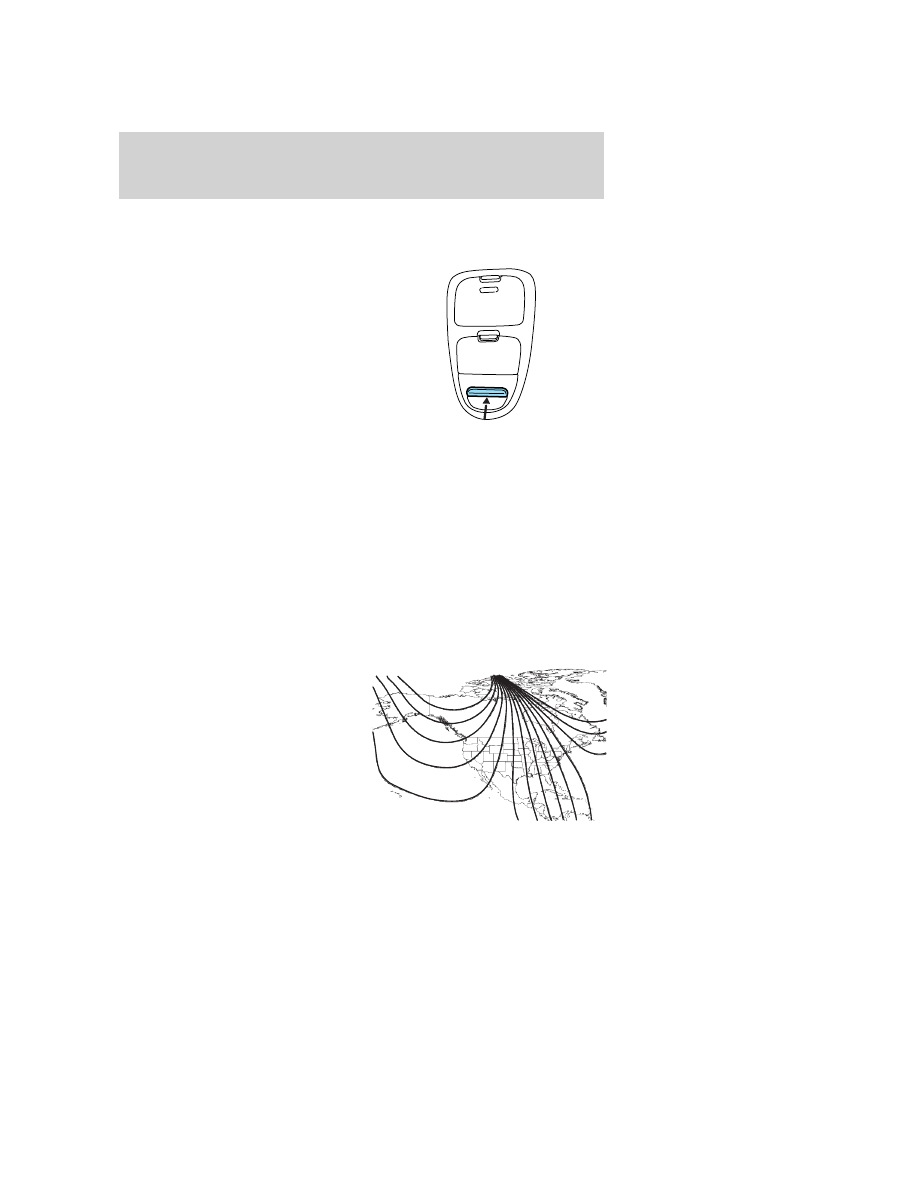

Compass zone adjustment

1. Determine which magnetic zone
you are in by referring to the zone
map.

2. Turn the ignition to the on
position.

73˚ NW

7 8 9 1011

Driver Controls

3. Press and hold the SELECT
control until VAR appears in the
display, then release. The display
should show the current zone
number.

4. Press the SELECT control until
the desired zone number appears.
The display will flash and then
return to normal operation. The zone is now updated.

Compass calibration adjustment

Perform this adjustment in an open
area free from steel structures and
high voltage lines:
• Press and hold the SELECT

control until CAL appears in the
display (approximately eight
seconds) and release.

• Drive the vehicle slowly (less

than 3 mph [5 km/h]) in circles until CAL indicator turns off in about
2–3 complete circles.

• The compass is now calibrated.

AUXILIARY POWER POINT (12VDC)

Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.

The auxiliary power point (equipped
with a cover or a cap plug) is
located on the instrument panel.

A second power point (if equipped)
is located behind the driver’s seat on
the upper trim panel.

A third power point (if equipped) is
located in the glove box.

Do not use the power point for operating the cigarette lighter element (if
equipped).

9 VAR

CAL

Driver Controls

To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer to Fuses and
relays in the Roadside Emergencies chapter for information on
checking and replacing fuses.

To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
• do not use the power point longer than necessary when the engine is

not running,

• do not leave battery chargers, video game adapters, computers and

other devices plugged in overnight or when the vehicle is parked for
extended periods.

Always keep the power point caps closed when not being used.

Cigar/Cigarette lighter (if equipped)

Do not plug optional electrical accessories into the cigarette lighter
socket.

Do not hold the lighter in with your hand while it is heating, this will
damage the lighter element and socket. The lighter will be released from
its heating position when it is ready to be used.

Note: Improper use of the lighter can cause damage not covered by your
warranty, and can result in fire or serious injury.

POWER WINDOWS

WARNING: Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may

seriously injure themselves.

WARNING: When closing the power windows, you should verify
they are free of obstructions and ensure that children and/or

pets are not in the proximity of the window openings.

Driver Controls

Press and pull the window switches
to open and close windows.
• Push down (to the first detent)

and hold the switch to open.

• Pull up (to the first detent) and

hold the switch to close.

One touch down

Allows the driver’s window to open
fully without holding the control
down. Push the switch completely
down to the second detent and
release quickly. The window will
open fully. Momentarily press the
switch to any position to stop the
window operation.

Accessory delay
With accessory delay, the window switches and radio may be used for up
to 10 minutes after the ignition switch is turned to the off position, or
until any door is opened.

INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror UP or DOWN and from SIDE to SIDE.

WARNING: Do not adjust the mirror while the vehicle is in
motion.

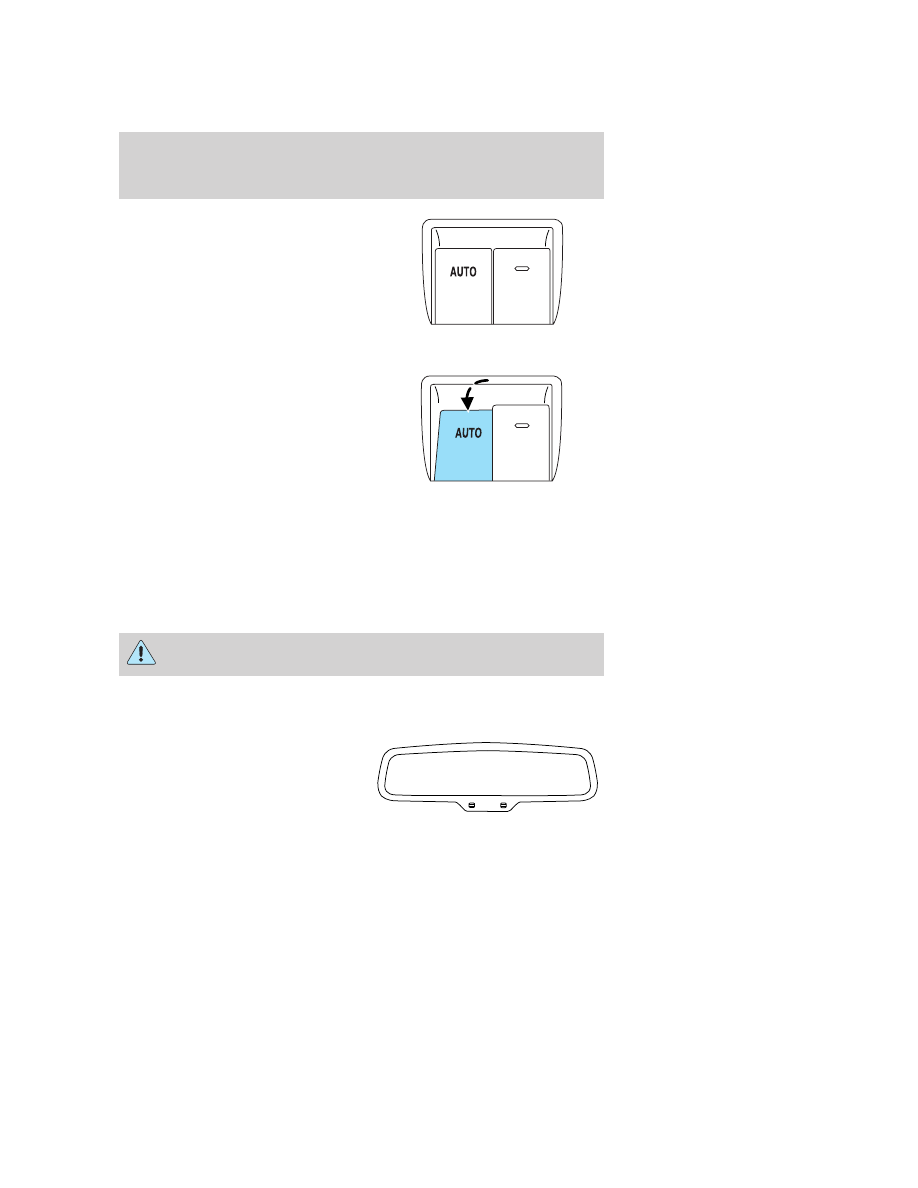

Automatic dimming interior rear view mirror (if equipped)

Your vehicle may be equipped with
an interior rear view mirror that has
an auto-dimming function. The
electronic day/night mirror will
change from the normal (high
reflective) state to the non-glare
(darkened) state when bright lights
(glare) reach the mirror. When the
mirror detects bright light from behind the vehicle, it will automatically
adjust (darken) to minimize glare.

Driver Controls

The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.

Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.

Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.

Note: If equipped with a reverse camera system, a video image will
display in the mirror or the Navigation system display (if equipped)
when the vehicle is put in R (Reverse). As you shift into any other gear
from R (Reverse), the image will remain for a few seconds and then turn
off. Refer to Reverse camera system in the Driving chapter.

EXTERIOR MIRRORS

Power side view mirrors (if equipped)

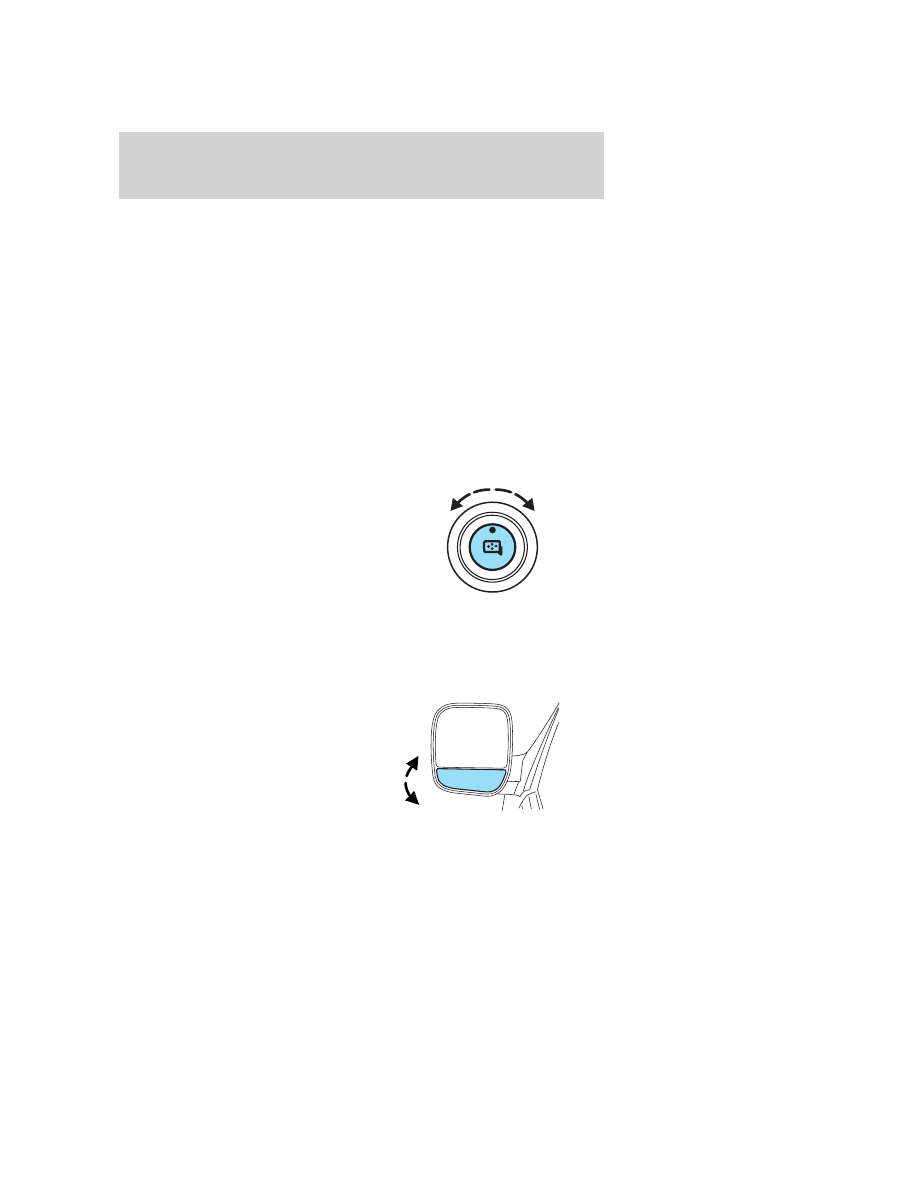

To adjust your mirrors:

1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.

2. Move the control in the direction
you wish to tilt the mirror.

3. Return to the center position to lock mirrors in place.

Spotter mirror (if equipped)

Note: New spotter mirrors may be stiff, requiring several cycles before
the spotter adjustment effort eases.

Spotter mirror on standard
mirror (if equipped)

The spotter mirror only can be tilted
from top to bottom. Move the lower
mirror manually up/down to increase
side and rear visibility. Apply
pressure only in the center of the
spotter mirror along the top or
bottom edges to adjust the tilt feature. Do not apply any force on the
left or right edges of the standard mirror spotter section, as this
may lead to a mirror fracture.

Driver Controls

Spotter mirror on telescoping
mirror (if equipped)

The spotter mirror has a swivel that
allows it to tilt up and down, and
also to tilt left and right to increase
side and rear visibility.

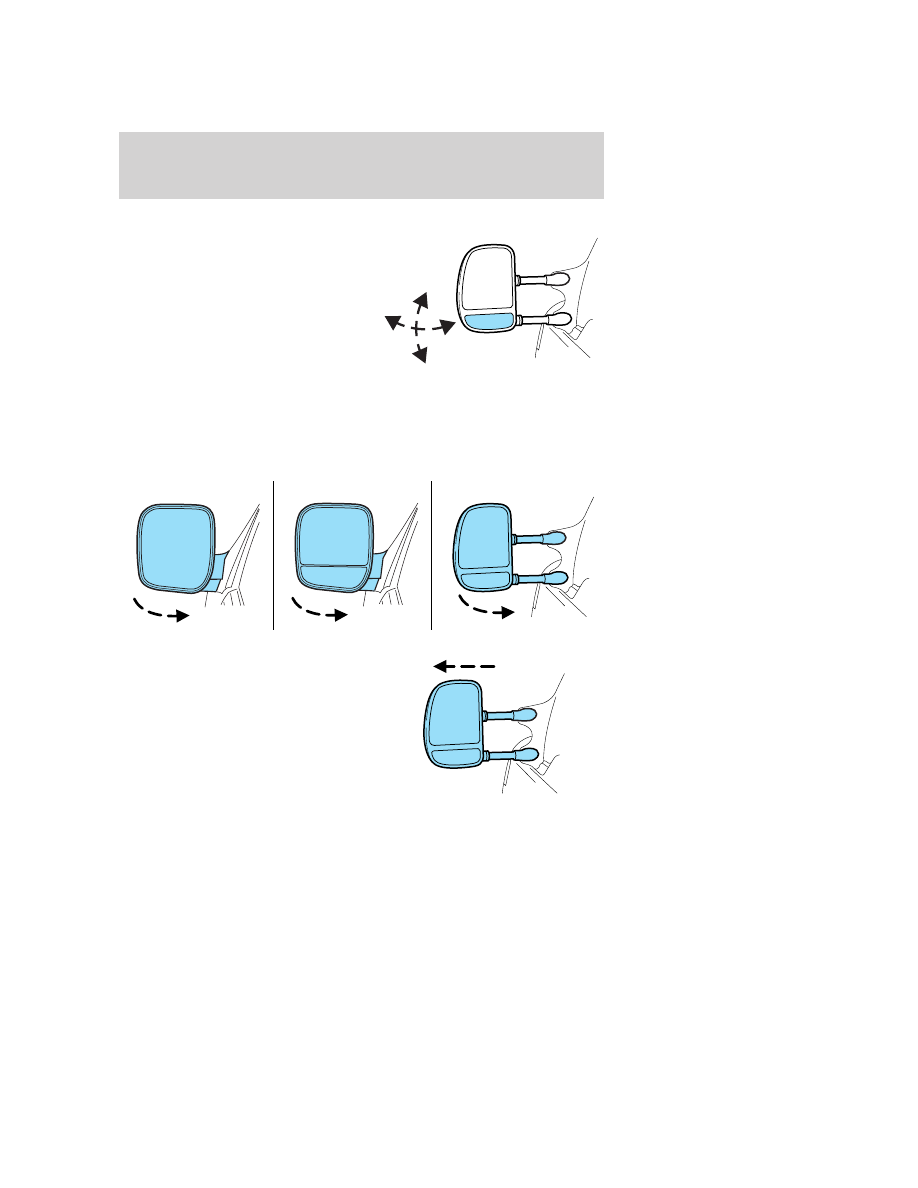

Fold-away mirrors

The mirrors can be manually folded forward or backwards for narrow
spaces like driving through an automatic car wash or backing out of a
garage with the trailer tow mirror.

The telescoping feature (if
equipped) allows the mirror to
extend approximately 3.15 inches
(80 mm). This feature is especially
useful to the driver when towing a
trailer.

Driver Controls

SPEED CONTROL (IF EQUIPPED)

With speed control set, you can maintain a set speed without keeping
your foot on the accelerator pedal.

WARNING: Do not use the speed control in heavy traffic or on
roads that are winding, slippery or unpaved.

Setting speed control

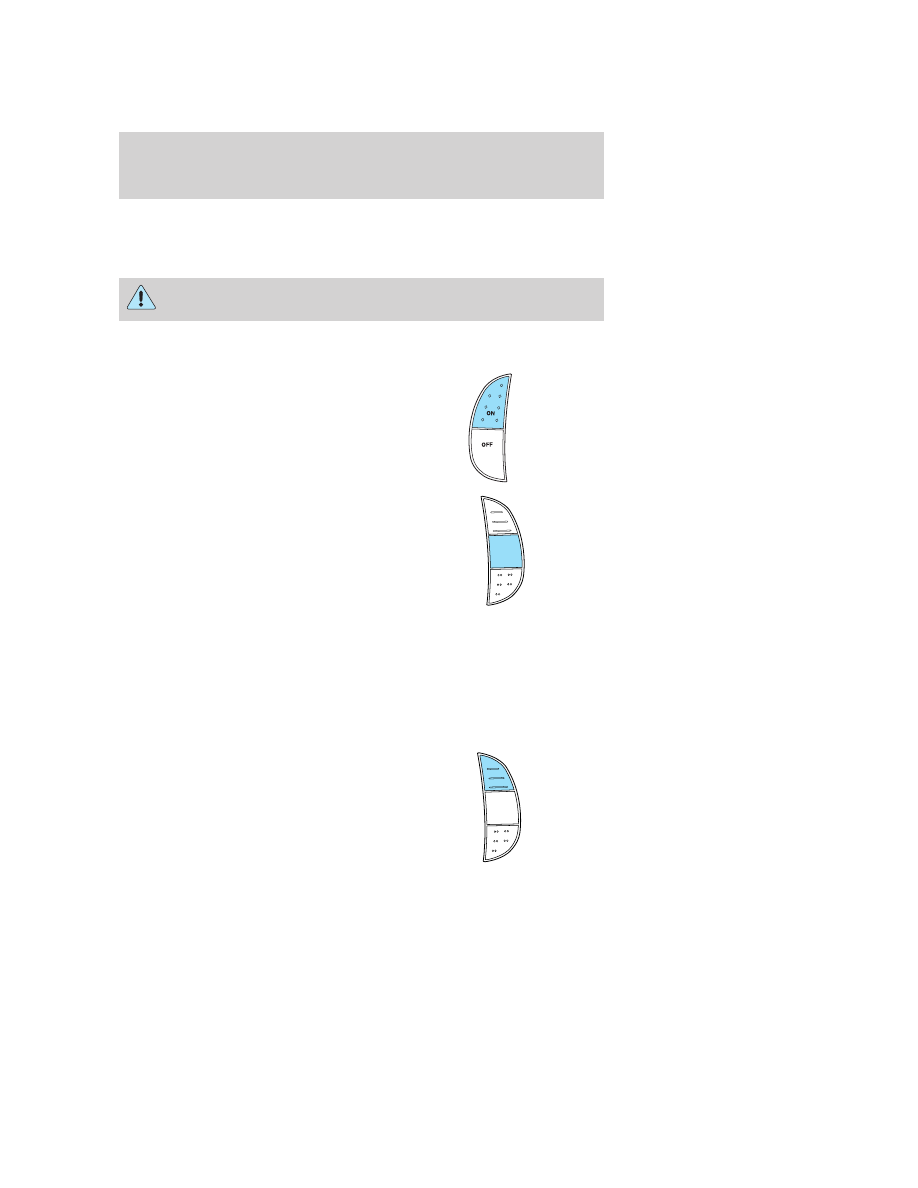

The controls for using your speed
control are located on the steering
wheel for your convenience.

1. Press the ON control and release
it.

2. Accelerate to the desired speed.

3. Press the SET ACCEL control
and release it.

4. Take your foot off the accelerator
pedal.

Note:
• Vehicle speed may vary

momentarily when driving up and
down a steep hill.

• If the vehicle speed increases above the set speed on a downhill, you

may want to apply the brakes to reduce the speed.

• If the vehicle speed decreases more than 10 mph (16 km/h) below

your set speed on an uphill, your speed control will disengage.

Resuming a set speed

Press the RES (resume) control and
release it. This will automatically
return the vehicle to the previously
set speed.

RES

SET

ACCEL

COAST

RES

SET

ACCEL

COAST

Driver Controls

Ford E-250 (2009 year). Manual - part 4
