Ford E-150 (2012 year). Manual - part 55
Fuse/Relay
Location
Fuse Amp
Rating
Protected Circuits
40
20A
Amplifier
41
15A
Radio, Switch illumination,
Reverse camera mirror, Automatic
dimming rear view mirror
42
10A
Upfitter switch
43
10A
Stripped chassis IP connector #1
44
10A
Trailer tow battery charge relay
45
5A
Wipers, Stripped chassis Engine
connector 3
46
7.5A
Passenger airbag deactivation
indicator (PADI)
47
30A circuit
breaker
Windows accessory delay
48
Relay
Delayed accessory

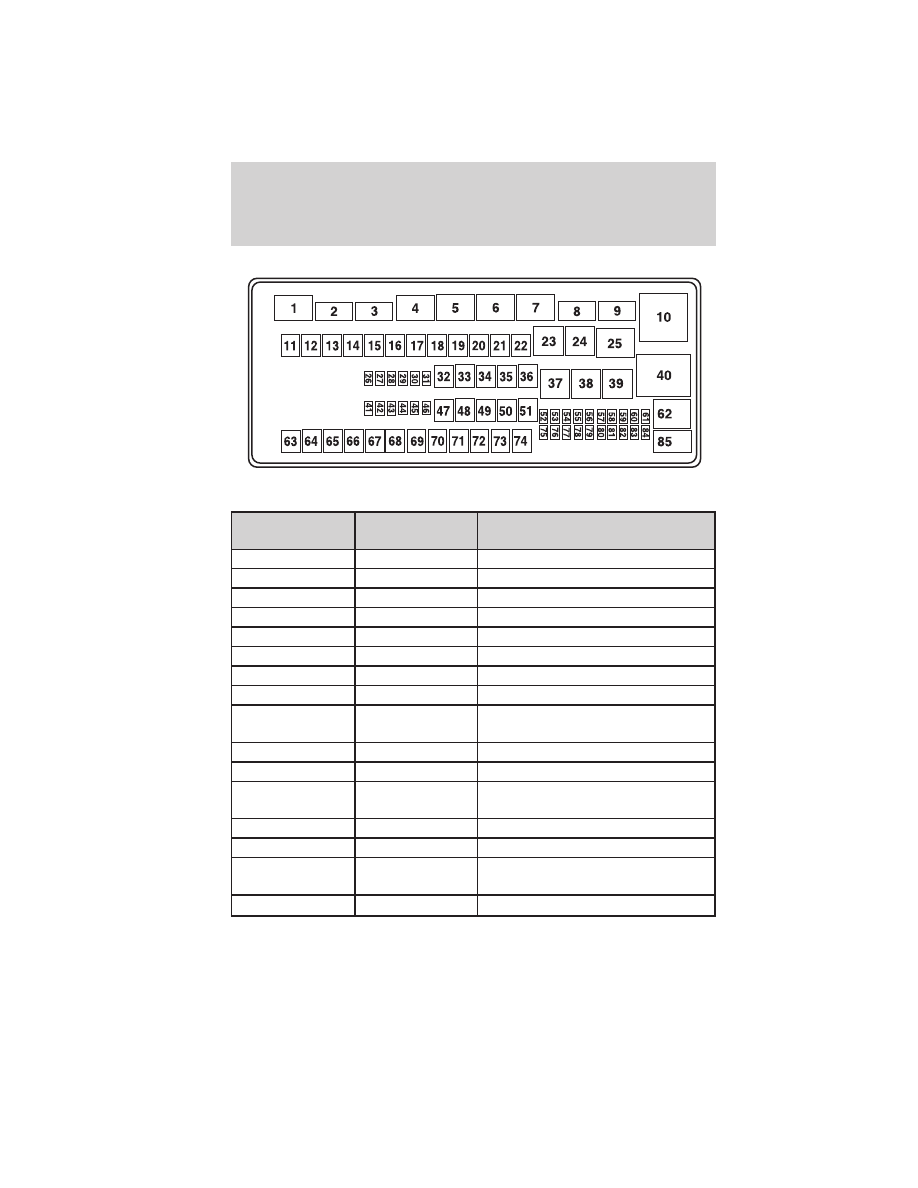

Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING: Always disconnect the battery before servicing high
current fuses.
WARNING: To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
If your vehicle is equipped with a dual battery, disconnecting the
primary under-hood battery DOES NOT remove power from all
circuits.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.
