Specification

Name

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance
Motor Vehicle Brake Fluid
PM-20

WSS-M2C938-A

Automatic transmission fluid (U.S.):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
XT-10-QLVC

WSS-M2C938-A

Automatic transmission fluid (Canada):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
CXT-10-LV12

WSS-M14P19-A

Windshield washer fluid (U.S.):
Motorcraft® Premium Windshield Wash Concentrate
with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSH-M17B19-A

A/C refrigerant (U.S.):
Motorcraft® R-134a Refrigerant
YN-19

WSH-M17B19-A

A/C refrigerant (Canada):
Motorcraft® R-134a Refrigerant
CYN-16-R

-

A/C refrigerant compressor oil:
Motorcraft® Electric A/C Compressor Oil
YN-32

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

-

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

If you use oil and fluids that do not meet
the defined specification and viscosity
grade, this may lead to:
•

Component damage which is not
covered by the vehicle warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Degraded brake performance.

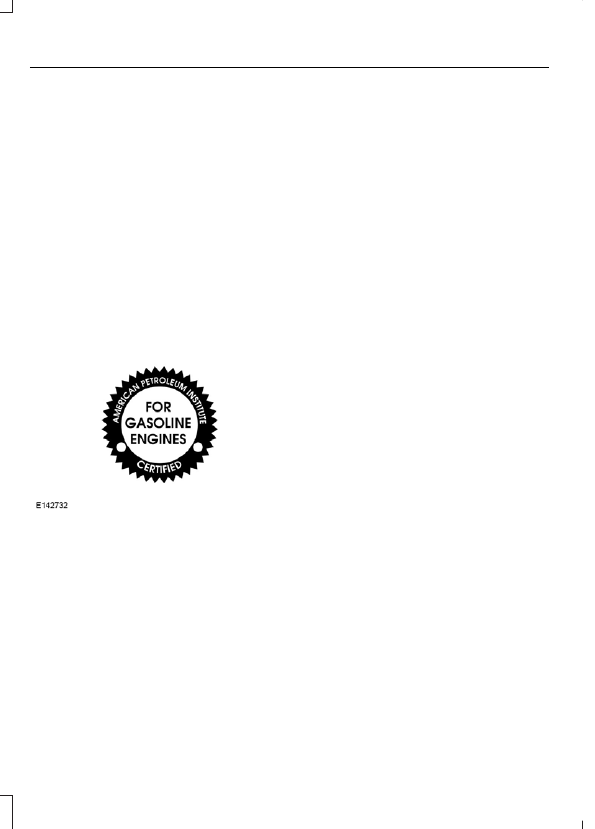

Motor oils of the recommended viscosity
grade that display the API Certification
Mark for gasoline engines are also
acceptable.  Do not use oil labeled with
API SN service category unless the label
also displays the API certification mark.

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by your vehicle warranty.

Note: Ford recommends using DOT 4 Low
Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid may cause degraded brake
performance and not meet the Ford
performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other
materials may result in brake system
damage and possible failure.

Note:  Automatic transmissions that require
MERCON® LV transmission fluid should
only use MERCON® LV transmission fluid.
The use of any other fluid may cause
transmission damage.

GENERAL INFORMATION

Radio Frequencies and Reception
Factors

AM and FM frequencies are established by
the Federal Communications Commission
(FCC) and the Canadian Radio and
Telecommunications Commission (CRTC).
Those frequencies are:
•

AM: 530, 540-1700, 1710 kHz

•

FM: 87.9-107.7, 107.9 MHz

Radio Reception Factors

The further you travel from an AM or FM station, the
weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating
tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

CD and CD Player Information

Note: CD units play commercially pressed
5 in (12 cm) audio compact discs only. Due
to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in
Ford CD players.

Note: Do not insert CDs with homemade
paper (adhesive) labels into the CD player
as the label may peel and cause the CD to
become jammed. You should use a
permanent felt tip marker rather than
adhesive labels on your homemade CDs.
Ballpoint pens may damage CDs. Please
contact an authorized dealer for further
information.

Note: Do not use any irregularly shaped
discs or discs with a scratch protection film
attached.

Always handle discs by their edges only.
Clean the disc with an approved CD
cleaner only.  Wipe it from the center of
the disc toward the edge.  Do not clean in
a circular motion.

Do not expose discs to direct sunlight or
heat sources for extended periods.

MP3 and WMA Track and Folder
Structure

Audio systems capable of recognizing and
playing MP3 and WMA individual tracks
and folder structures work as follows:
•

There are two different modes for MP3
and WMA disc playback: MP3 and
WMA track mode (system default) and
MP3 and WMA folder mode.

•

MP3 and WMA track mode ignores any
folder structure on the MP3 and WMA
disc. The player numbers each MP3
and WMA track on the disc (noted by
the MP3 or WMA file extension) from
T001 to a maximum of T255. The
maximum number of playable MP3 and
WMA files may be less depending on
the structure of the CD and exact
model of radio present.

•

MP3 and WMA folder mode represents
a folder structure consisting of one
level of folders. The CD player numbers
all MP3 and WMA tracks on the disc
(noted by the MP3 or WMA file
extension) and all folders containing
MP3 and WMA files, from F001 (folder)
T001 (track) to F253 T255.

•

Creating discs with only one level of
folders helps with navigation through
the disc files.

If you are burning your own MP3 and WMA
discs, it is important to understand how
the system reads the structures you create.
While various files may be present (files
with extensions other than MP3 and
WMA), only files with the MP3 and WMA
extension are played; other files are
ignored by the system. This enables you to
use the same MP3 and WMA disc for a
variety of tasks on your work computer,
home computer and your in-vehicle
system.

In track mode, the system displays and
plays the structure as if it were only one
level deep (all MP3 and WMA files play,
regardless of being in a specific folder). In
folder mode, the system only plays the
MP3 and WMA files in the current folder.

AUDIO UNIT - VEHICLES WITH:
AM/FM/CD/SYNC

WARNING

Driving while distracted can result in
loss of vehicle control, crash and
injury. We strongly recommend that

you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Note: Depending on your vehicle options,
your system may look different from what
you see here.
