BODY STYLING KITS

The distance between the underside of
your vehicle and the ground is less than
that of other models.  Drive with extreme
care to avoid damage to your vehicle.

TIRE SEALANT AND INFLATOR
KIT

Note: The temporary mobility kit contains
enough sealant compound in the canister
for one tire repair only. See an authorized
Ford dealer for replacement sealant
canisters.

The kit is located under the front-row
passenger seat. Loosen the Velcro strap
to access the kit.

The kit consists of an air compressor to
reinflate the tire and a canister of sealing
compound that will effectively seal most
punctures caused by nails or similar
objects. This kit provides a temporary tire
repair, allowing you to drive your vehicle
up to 120 mi (200 km) at a maximum
speed of 50 mph (80 km/h) to reach a tire
service location.

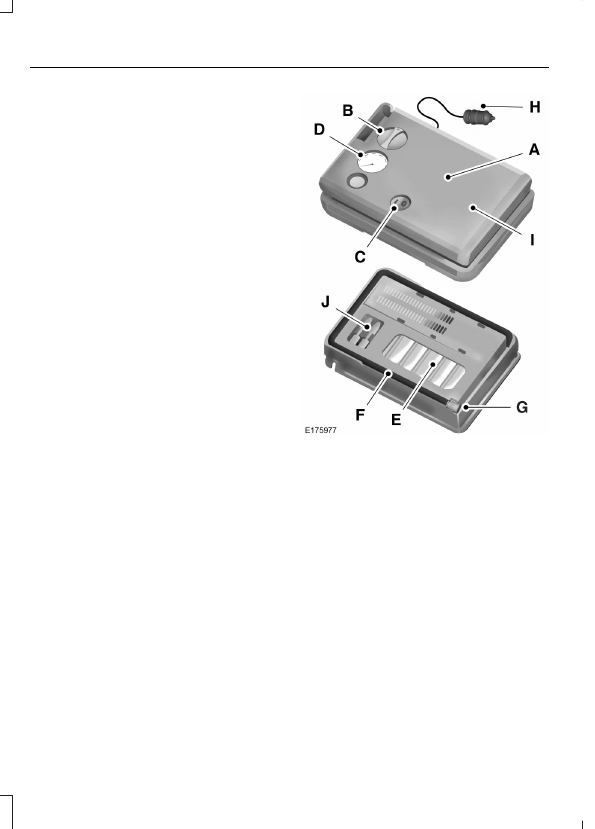

Air compressor (inside).

A

Selector switch.

B

On and off button.

C

Air pressure gauge.

D

Sealant bottle and canister.

E

Dual purpose hose: air and
repair.

F

Tire valve connector.

G

Accessory power plug.

H

Casing and housing.

I

Bike/raft/sports ball adapters.

J

General Information

WARNING

Failure to follow these guidelines
could result in an increased risk of
loss of vehicle control, injury or death.

Note: Make sure you regularly check the
expiry date on the sealant bottle.

Note: Do not use the kit if you have severely
damaged a tire. Only seal punctures located
within the tire tread with the kit.

Do not attempt to repair punctures larger
than ¼ inch (6 millimeters) or damage to
the tire's sidewall. The tire may not
completely seal.

Loss of air pressure may adversely affect
tire performance. For this reason:

Note: Do not drive the vehicle above
50 mph (80 km/h).

Note: Do not drive further than 120 mi
(200 km). Drive only to the closest
authorized Ford dealer or tire repair shop to
have your tire inspected.

•

Drive carefully and avoid abrupt
steering maneuvers.

•

Periodically monitor tire inflation
pressure in the affected tire; if the tire
is losing pressure, have the vehicle
towed.

•

Read the information in the Tips for
Use of the Kit section to make sure safe
operation of the kit and your vehicle.

Tips for Use of the Kit

To ensure safe operation of the kit:

•

Read all instructions and cautions fully.

•

Before operating the kit, make sure
your vehicle is safely off the road and
away from moving traffic. Switch on
the hazard lights.

•

Always set the parking brake to make
sure the vehicle does not move
unexpectedly.

•

Do not remove any foreign objects,
such as nails or screws, from the tire.

•

When using the kit, leave the engine
running (only if the vehicle is outdoors
or in a well-ventilated area) so the
compressor does not drain the
vehicle's battery.

•

Do not allow the compressor to
operate continuously for more than 15
minutes. This will help prevent the
compressor from overheating.

•

Never leave the kit unattended during
operation.

•

Sealant compound contains latex.
Those with latex sensitivities should
use appropriate precautions to avoid
an allergic reaction.

•

Keep the kit away from children.

•

Only use the kit when the ambient
temperature is between -22°F (-30°C)
and 158°F (70°C).

•

Only use the sealing compound before
the use-by date. The use-by date is on
a label on the sealant canister, which
you can see through the rectangular
viewing window on the bottom of the
compressor. Check the use-by date
regularly and replace the canister after
four years of non-use.

•

Do not store the kit unsecured inside
the passenger compartment of the
vehicle as it may cause injury during a
sudden stop or crash. Always store the
kit in its original location.

•

After sealant use, an authorized Ford
dealer must replace the tire pressure
monitoring system sensor and valve
stem on the wheel.

•

Operating the kit could cause an
electrical disturbance in radio, CD and
DVD player operation.

* When inflation only is required
for a tire or other objects, the
selector must be in the Air

position.

What to Do When a Tire Is
Punctured

Repair a tire puncture within the tire's tread
area in two stages with the kit.

•

In the first stage, inflate the tire with a
sealing compound and air. After you
inflate the tire, you will need to drive
the vehicle a short distance 4 mi
(6 km) to distribute the sealant in the
tire.

•

In the second stage, check the tire
pressure and adjust, if necessary, to the
vehicle's specified tire inflation
pressure.

First Stage: Inflating the Tire with
Sealing Compound and Air

WARNINGS

Do not stand directly over the kit
while inflating the tire. If you notice
any unusual bulges or deformations

in the tire's sidewall during inflation, stop
and call roadside assistance.

If the tire does not inflate to the
recommended tire pressure within
15 minutes, stop and call roadside

assistance.

Do not run the engine when
operating the air compressor unless
the vehicle is outdoors or in a

well-ventilated area.

Preparation: Park the vehicle in a safe, level
and secure area, away from moving traffic.

Switch the hazard lights on. Apply the
parking brake and switch the engine off.
Inspect the flat tire for visible damage.

Sealant compound contains latex. Use
appropriate precautions to avoid any
allergic reactions.

Do not remove any foreign object that has
pierced the tire. If a puncture is located in
the tire sidewall, stop and call roadside
assistance.

1.

Remove the valve cap from the tire
valve.

2. Unwrap the dual purpose hose (black

tube) from the back of the compressor
housing.

3. Fasten the hose to the tire valve by

turning the connector clockwise.
Tighten the connection securely.

4. Plug the power cable into the 12-volt

power point in the vehicle.
