Ford F150 Pickup. Instruction - part 726

2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150

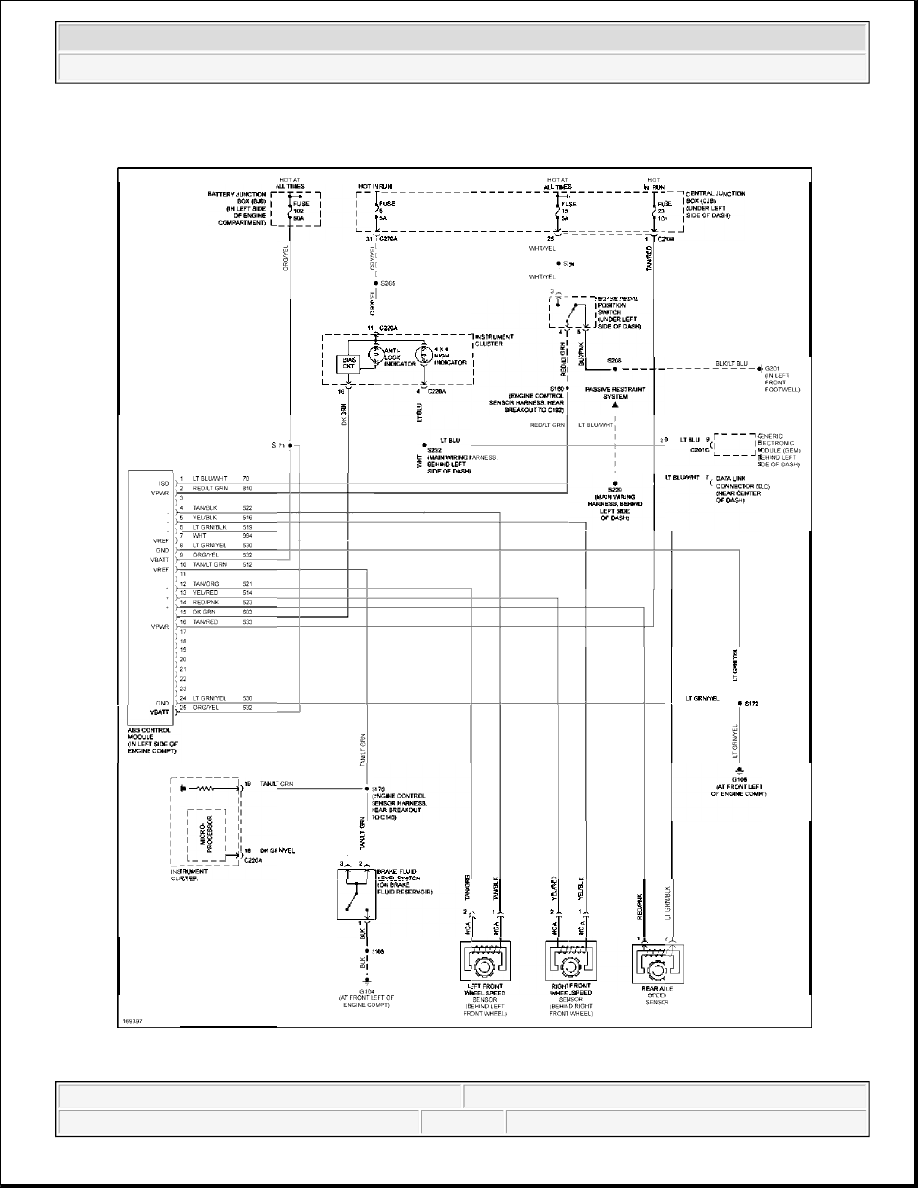

Fig. 3: Anti-lock Brakes Circuit

ANTI-THEFT

2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150

2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150

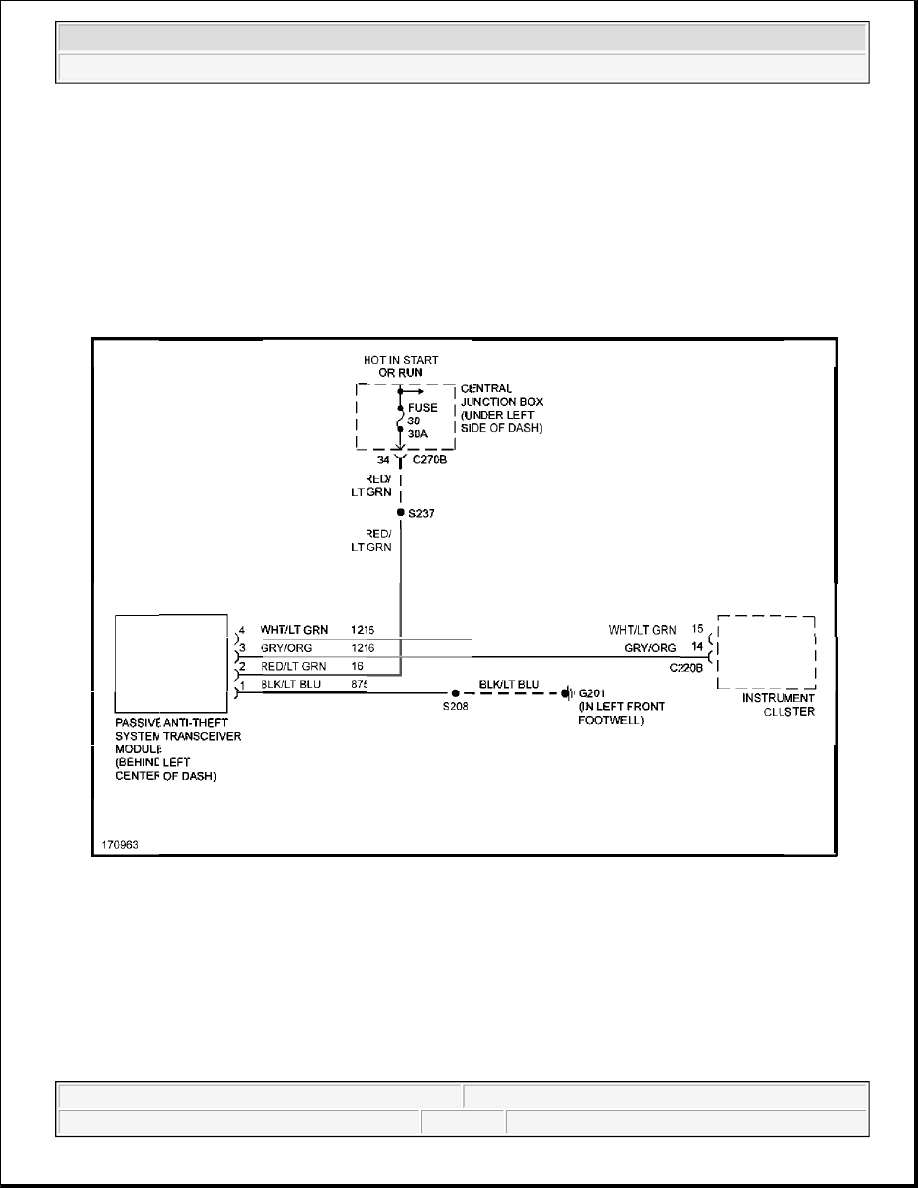

Fig. 4: Passive Anti-theft Circuit

2003 Ford Pickup F150

2003 SYSTEM WIRING DIAGRAMS Ford - Pickup F150
