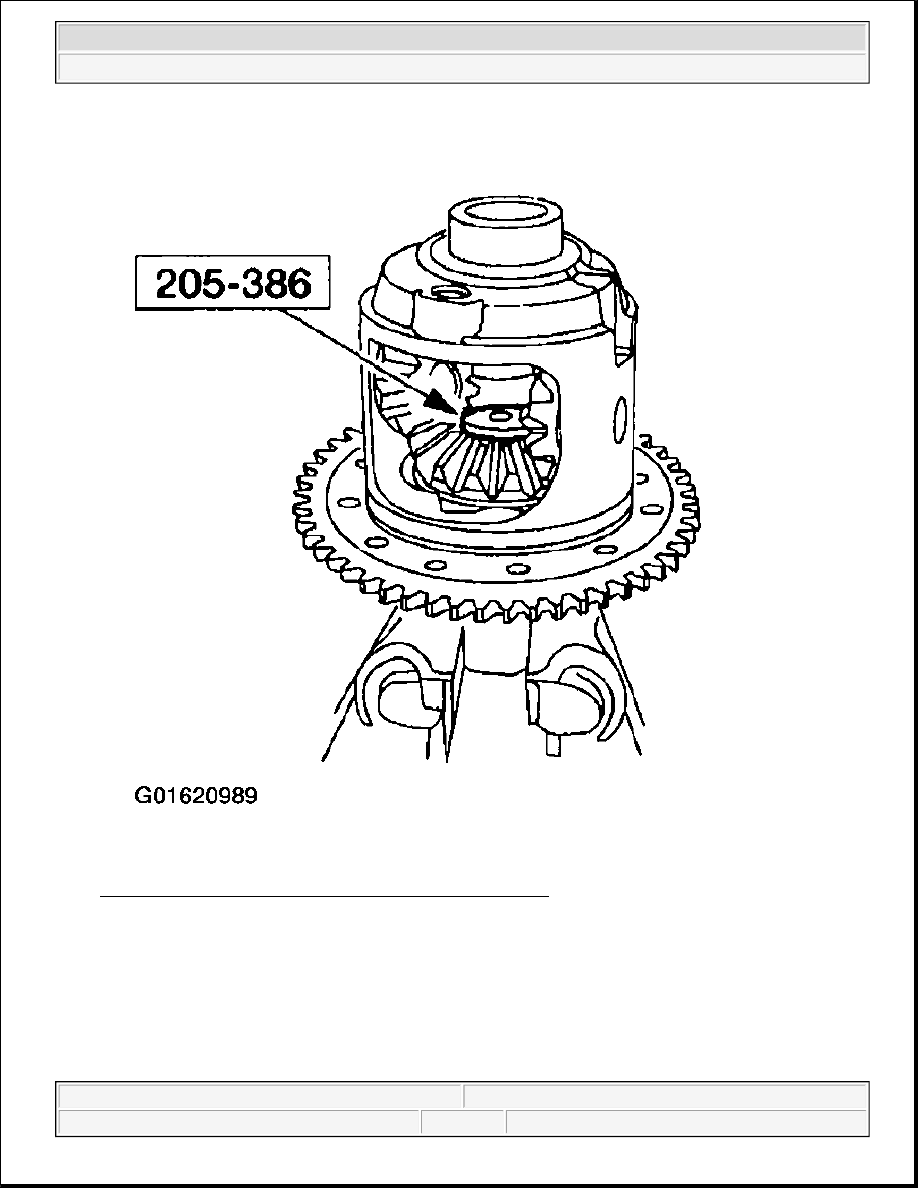

Fig. 145: Installing Special Tool In Bottom Side Gear Bore 5. Install the special tool in the bottom side gear bore. 6. Install the nut in the upper differential side gear (4236). Hold the nut in position while installing the hex screw. Tighten the hex-head screw until contact is made with the step plate.
2003 Ford Pickup F150 2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup
|
