Ford F150 Pickup. Instruction - part 627

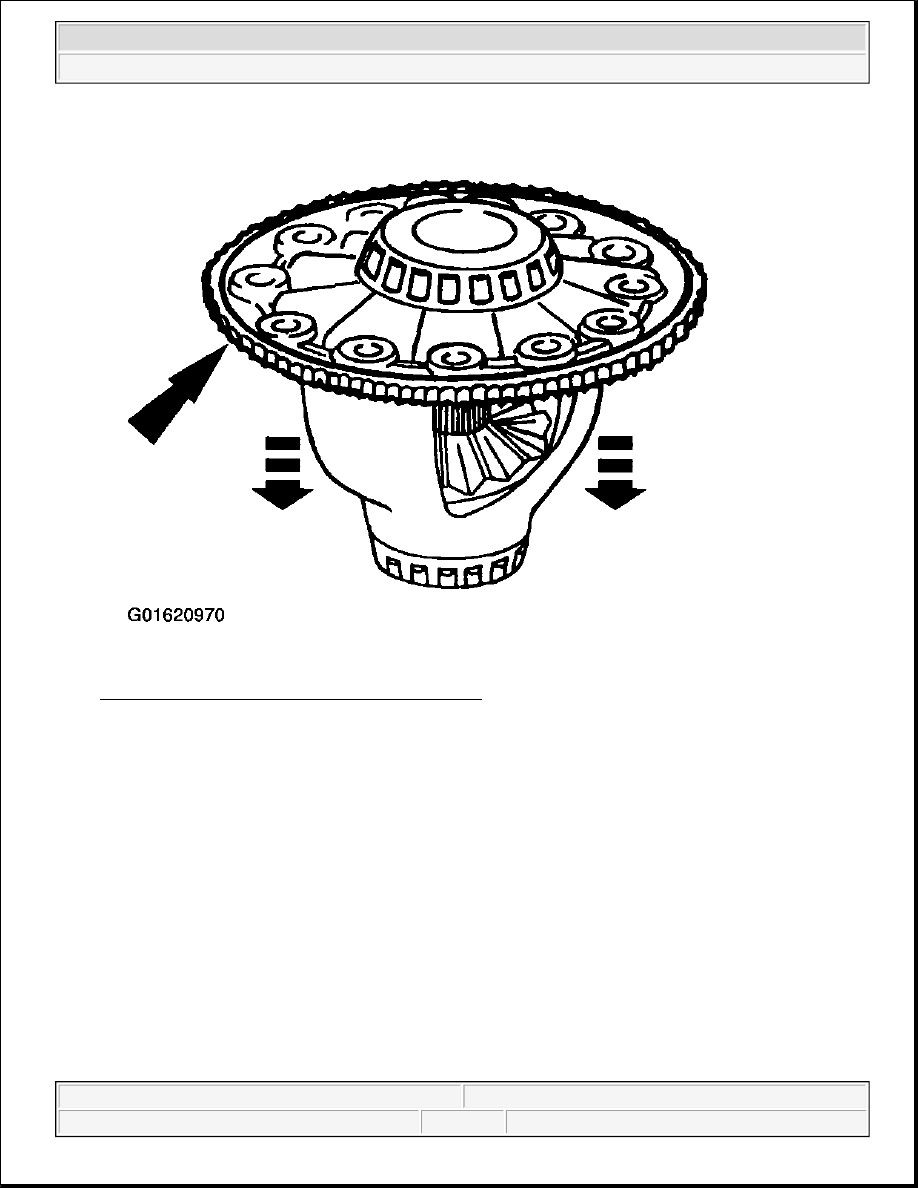

Fig. 126: Removing Anti-Lock Speed Sensor Ring
Courtesy of FORD MOTOR CO.

4. Remove the anti-lock speed sensor ring.

5. If required, remove the differential bearings (4221) with the special tools.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



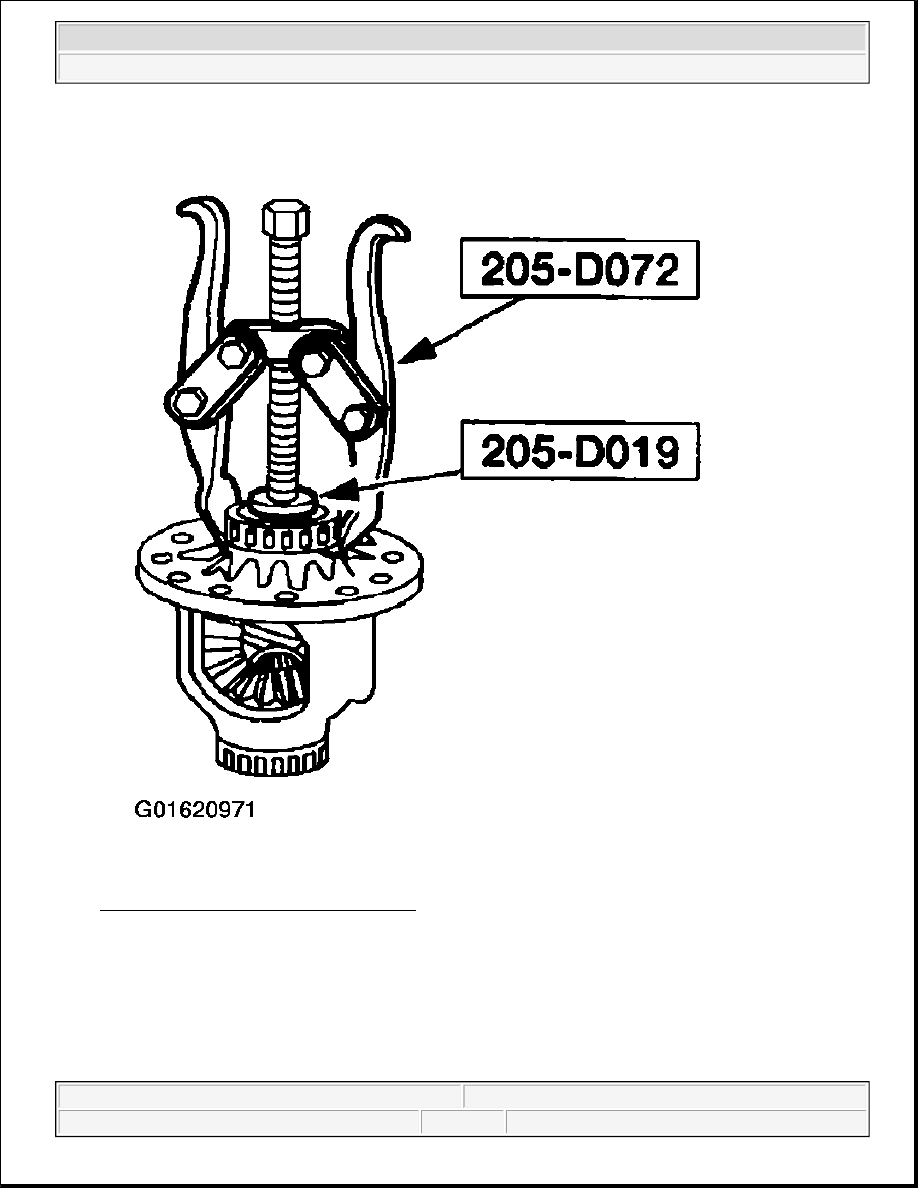

Fig. 127: Removing Differential Bearings
Courtesy of FORD MOTOR CO.

6. Remove the differential pinion shaft lock bolt and the differential pinion shaft (4211).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup



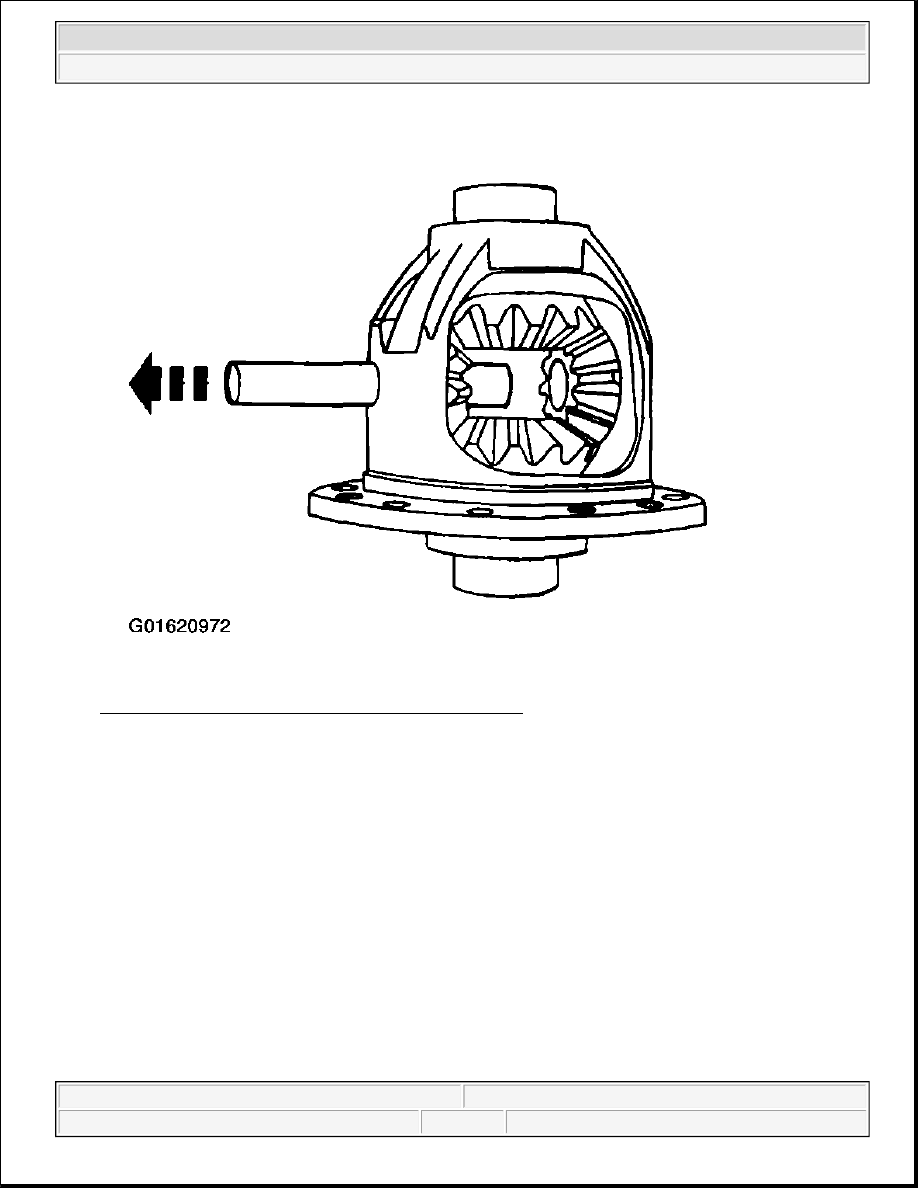

Fig. 128: Removing Differential Pinion Shaft Lock Bolt
Courtesy of FORD MOTOR CO.

7. Rotate and remove the differential pinion gears (4215) and differential pinion thrust washers (4230).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

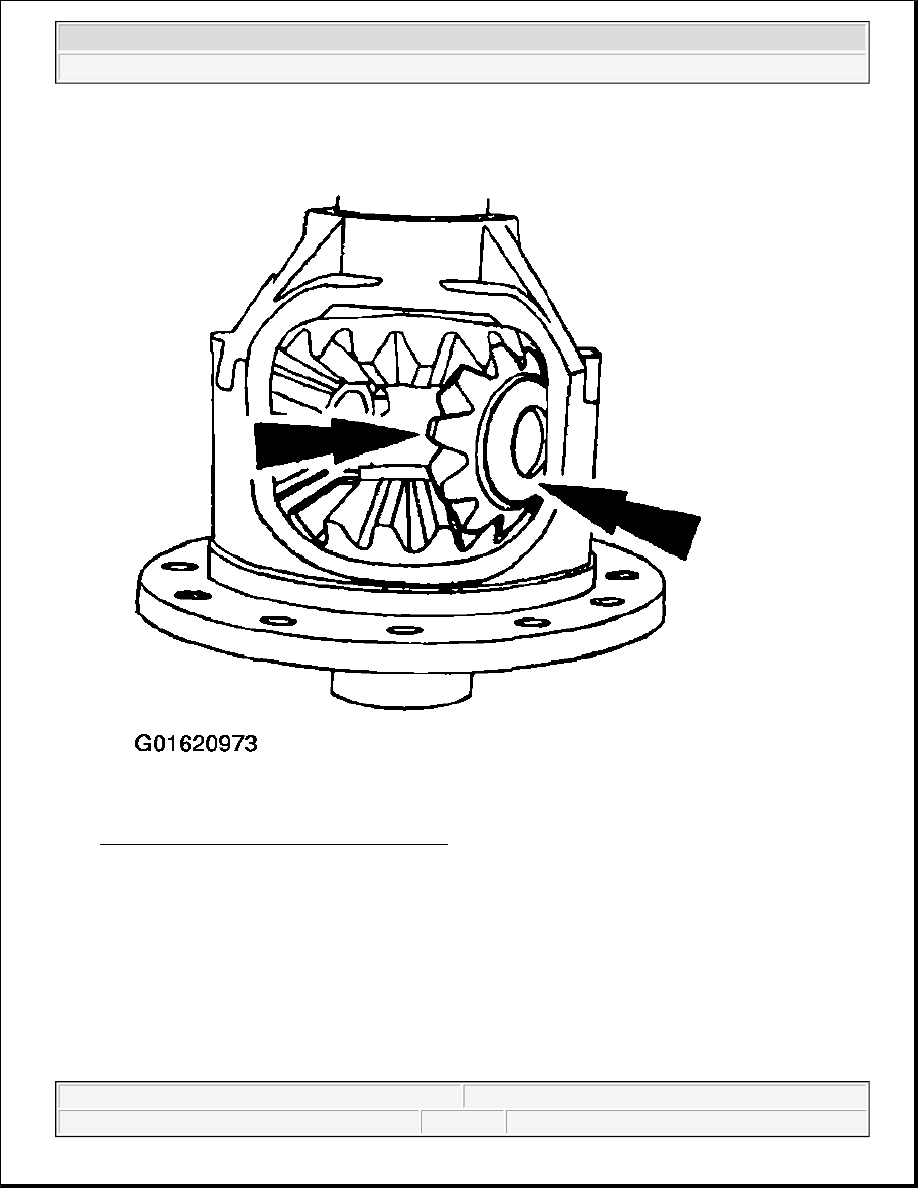

Fig. 129: Removing Differential Pinion Gears
Courtesy of FORD MOTOR CO.

8. Remove the differential side gears (4236) and the differential side gear thrust washers (4228).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup
