Ford F150 Pickup. Instruction - part 611

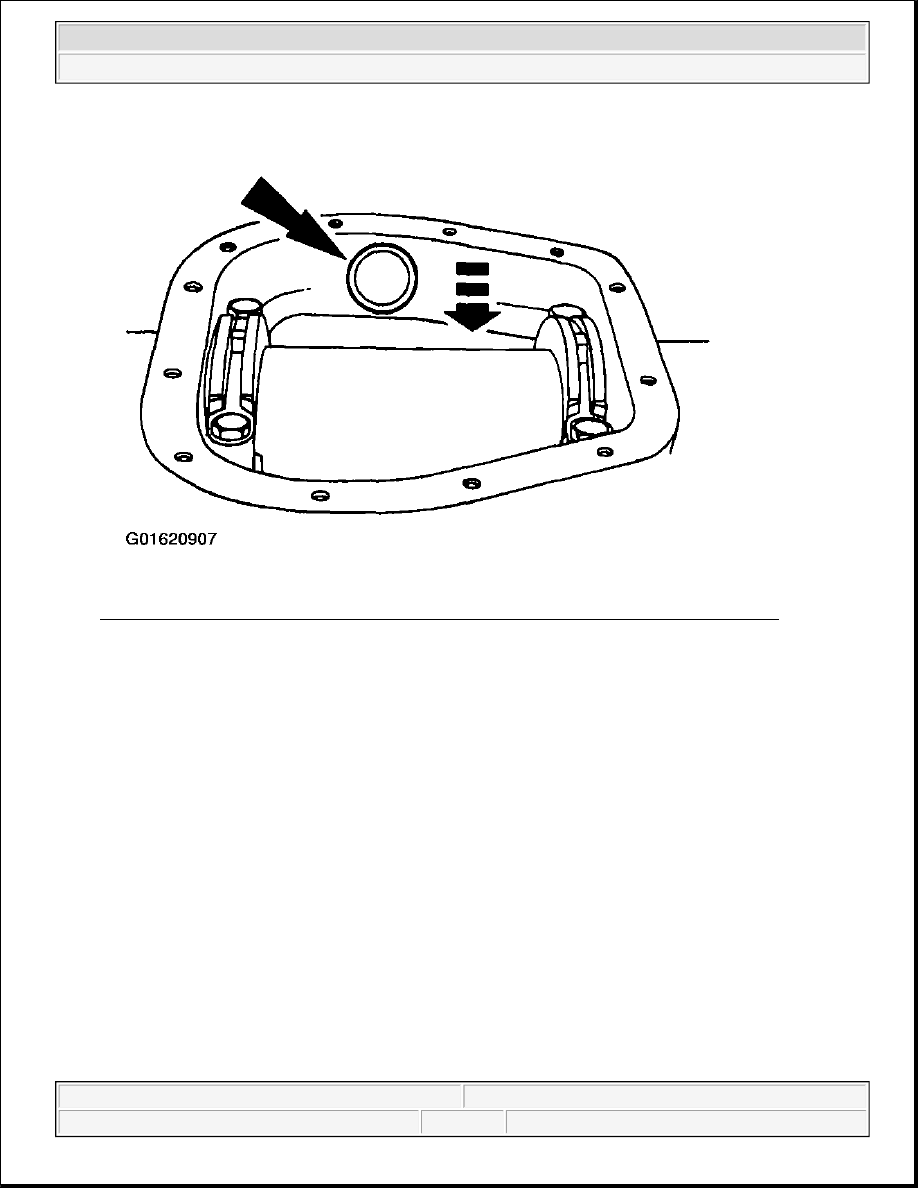

Fig. 63: Using A Drive Pinion Bearing Adjustment Shim As A Gauge For Shim Selection
Courtesy of FORD MOTOR CO.

10. Use a drive pinion bearing adjustment shim as a gauge for shim selection.

z

After the correct shim thickness has been determined, remove the special tools.

11. Using the special tools, press the pinion bearing and pinion shim until they are firmly seated on the

pinion.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

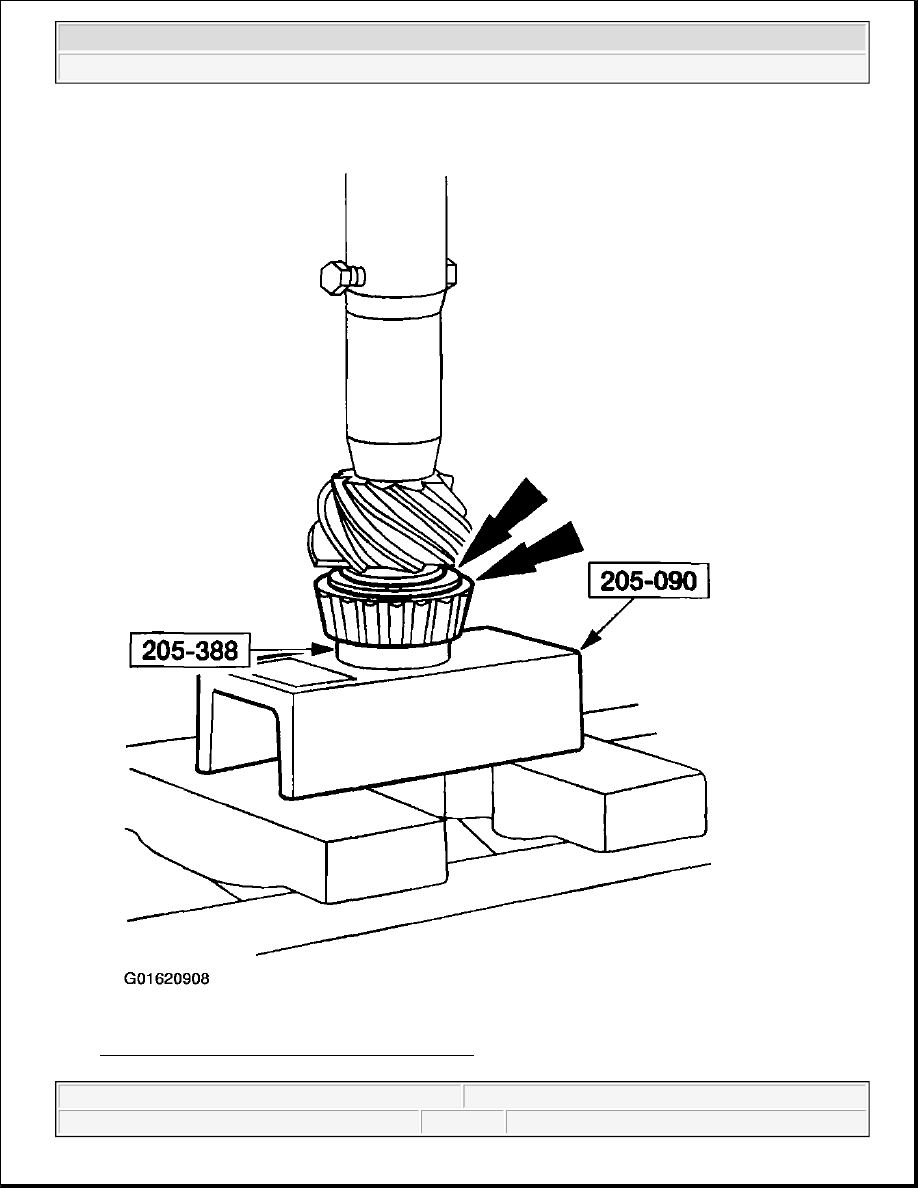

Fig. 64: Installing Pinion Bearing & Pinion Shim
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 9.75-inch - F150 Pickup

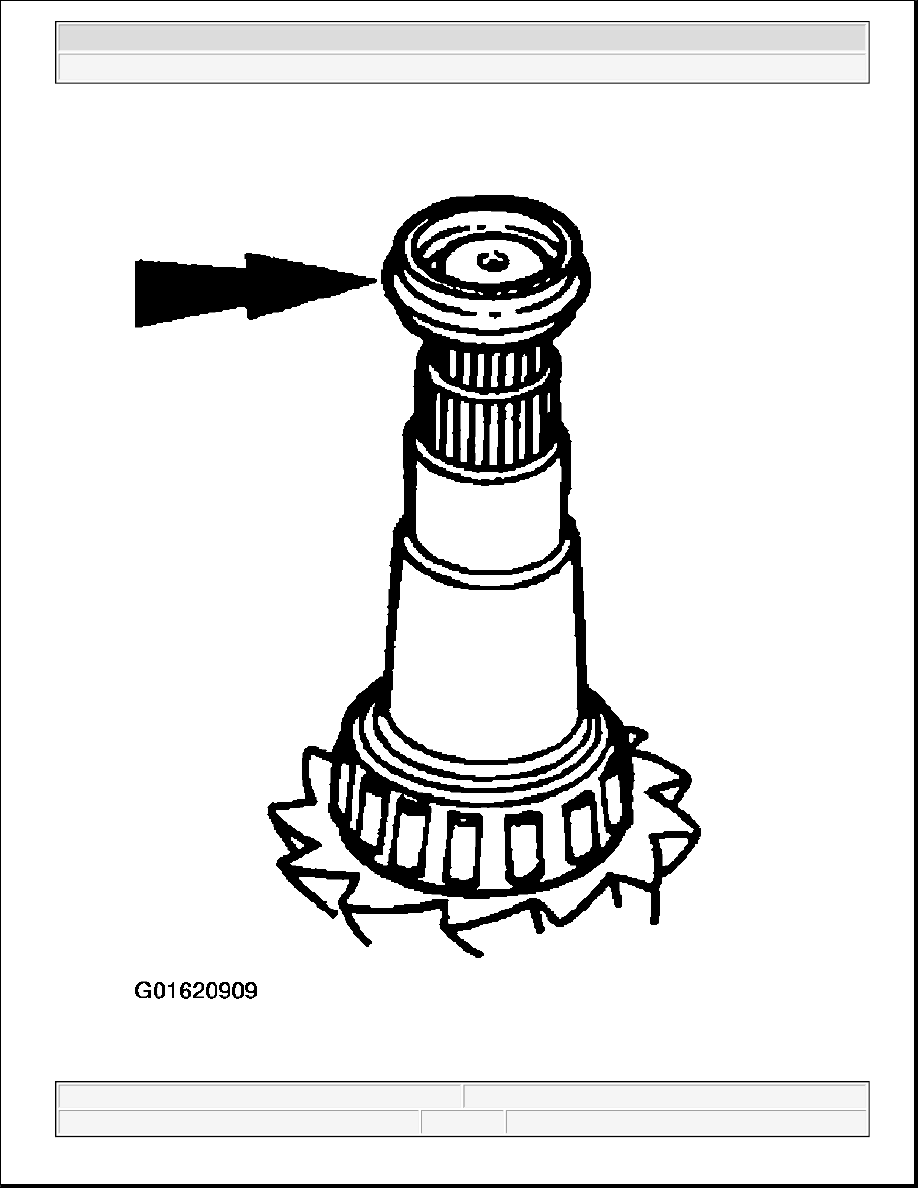

12. Place a new drive pinion collapsible spacer (4662) on the pinion shaft against the pinion stem shoulder.
