Ford F150 Pickup. Instruction - part 586

Fig. 141: Installing Differential Pinion Gears
Courtesy of FORD MOTOR CO.

5. Rotate the differential pinion gear to align with the differential pinion shaft bore.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



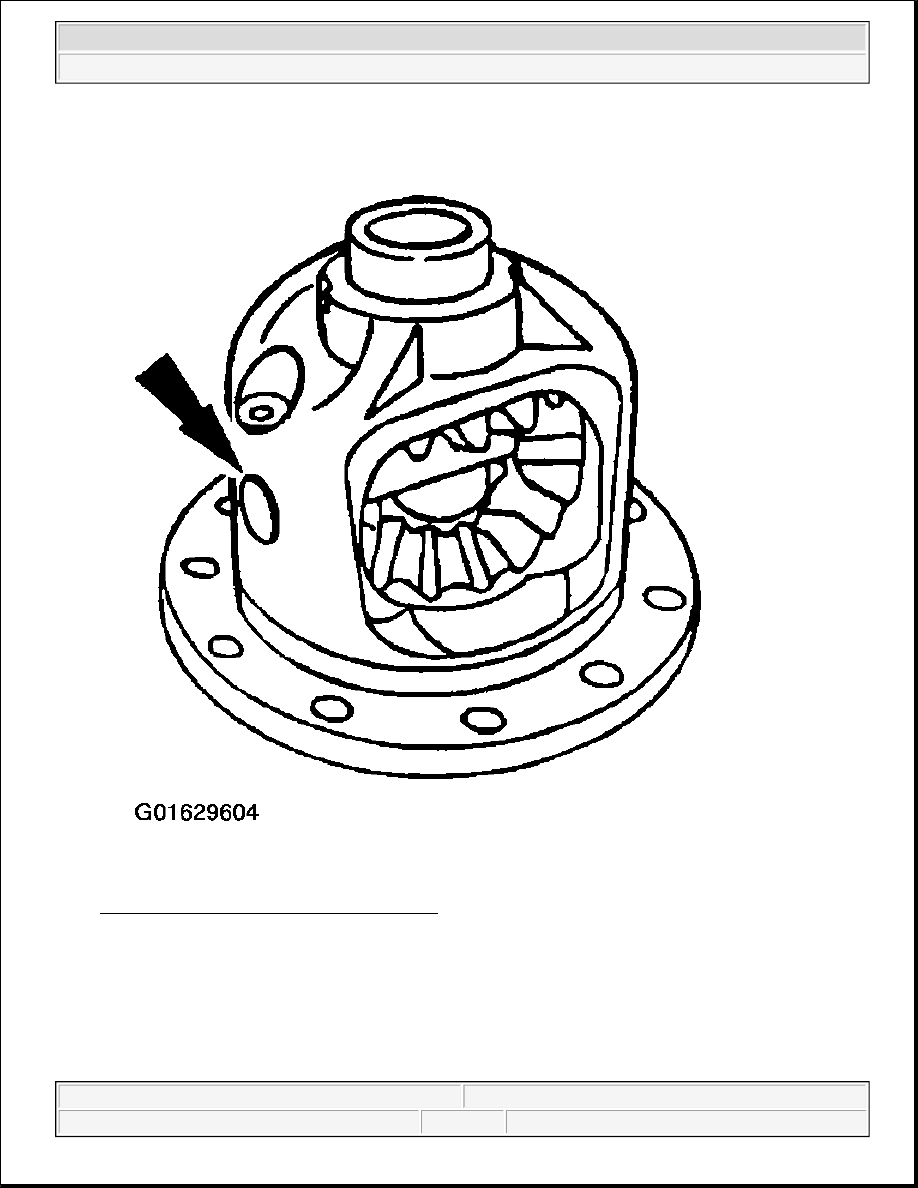

Fig. 142: Rotating Differential Pinion Gears
Courtesy of FORD MOTOR CO.

6. Insert the differential pinion shaft.

z

Align the hole in the differential pinion shaft with the hole in the differential case.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Fig. 143: Installing Differential Pinion Shaft
Courtesy of FORD MOTOR CO.

NOTE:

If a new pinion shaft lock bolt is unavailable, coat the threads with
threadlock prior to installation.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Fig. 144: Installing Differential Pinion Shaft Lock Bolt
Courtesy of FORD MOTOR CO.

7. Install a new differential pinion shaft lock bolt and tighten finger-tight.

8. Using the special tool, install the new differential bearings on the differential case.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup
