Fig. 105: Measuring Ring Gear Backlash
Courtesy of FORD MOTOR CO.

10. If a zero backlash condition occurs, add 0.51 mm (0.020 inch) to the RH side and subtract 0.51 mm

(0.020 inch) from the LH side to allow backlash indication. Check the backlash. Repeat step 9 .

11. To increase or decrease the backlash, remove the bearing caps and install a thicker shim or a thinner shim

as shown.

z

If the backlash is not within specification, correct by increasing the thickness of one differential
bearing shim and decreasing the thickness of the other differential bearing shim by the same
amount.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

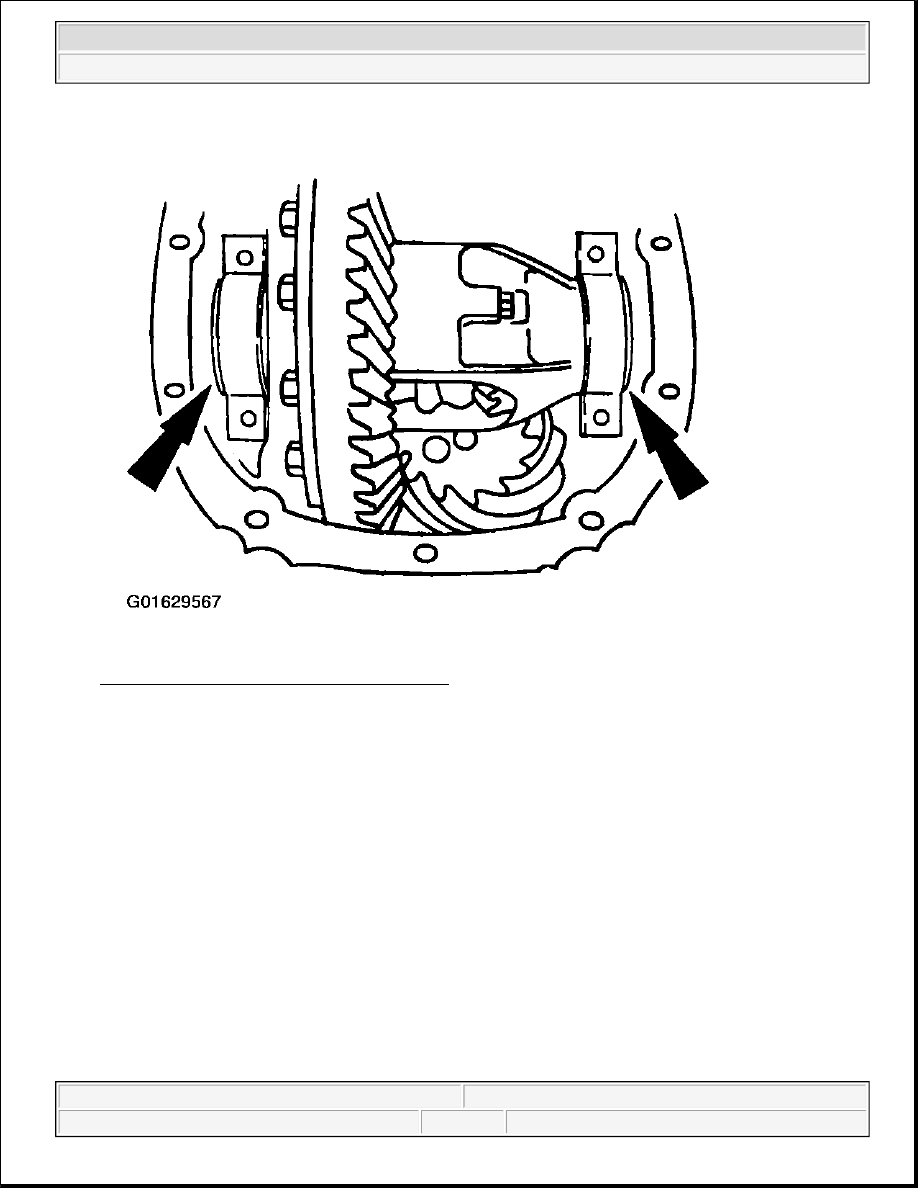

Fig. 106: Installing Thicker Or Thinner Shim
Courtesy of FORD MOTOR CO.

12. Rotate the differential several times to make sure the differential bearings are correctly seated.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Fig. 107: Rotating Differential To Ensure Correct Seating Of Differential Bearings
Courtesy of FORD MOTOR CO.

13. Using the special tool, recheck the backlash.

z

If the backlash is within specification, go to step 14 . If the backlash is not within specification,
repeat step 9 .



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

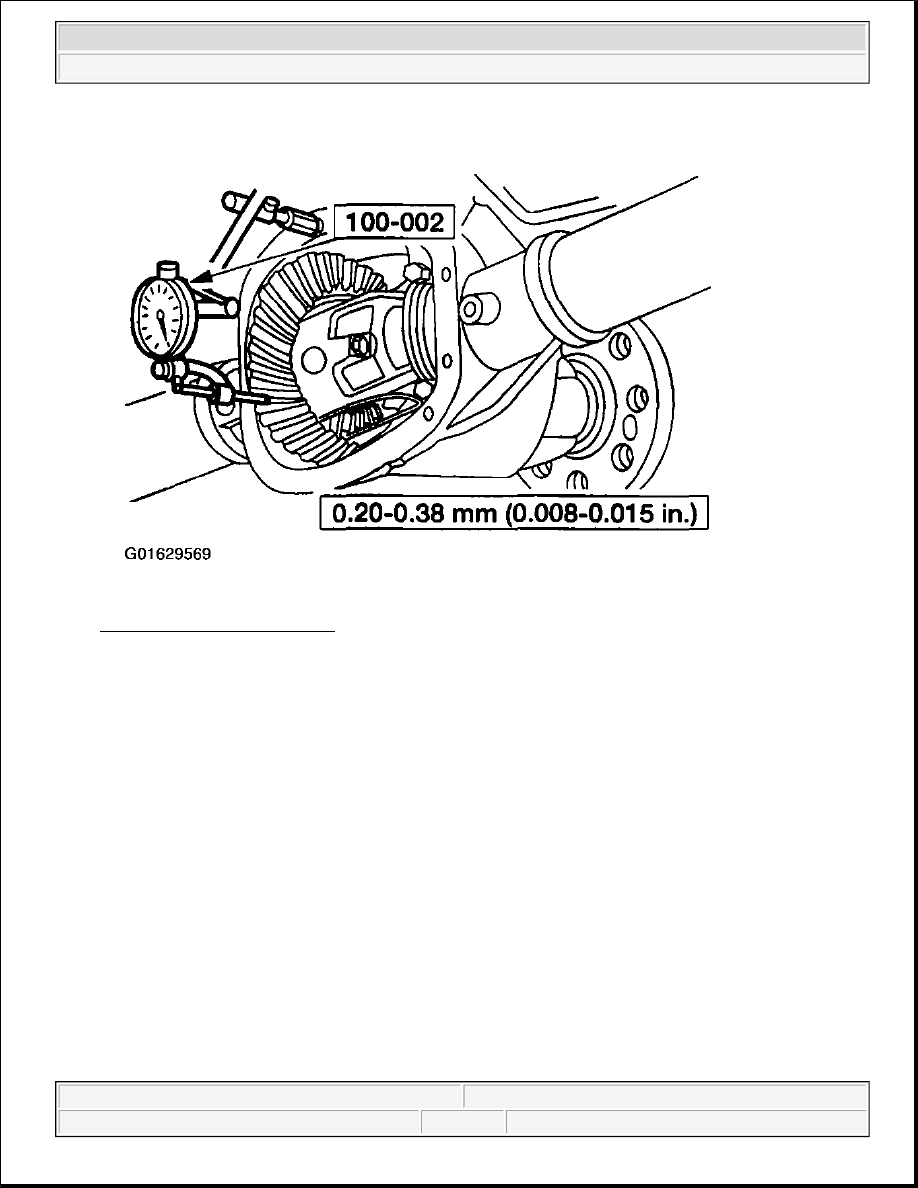

Fig. 108: Rechecking Backlash
Courtesy of FORD MOTOR CO.

14. Remove the bearing caps and bolts.

z

To establish differential bearing preload, increase both left and right shim sizes by the specification
shown in the illustration.

z

Using the special tool, make sure that the differential bearing shims are fully seated and the
assembly turns freely.
