Ford F150 Pickup. Instruction - part 567

Fig. 65: Special Tool Tightening Specification
Courtesy of FORD MOTOR CO.

5. Tighten the special tool to the specification shown.

NOTE:

This step duplicates final pinion bearing preload.

NOTE:

The special tool must be offset to obtain an accurate reading.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

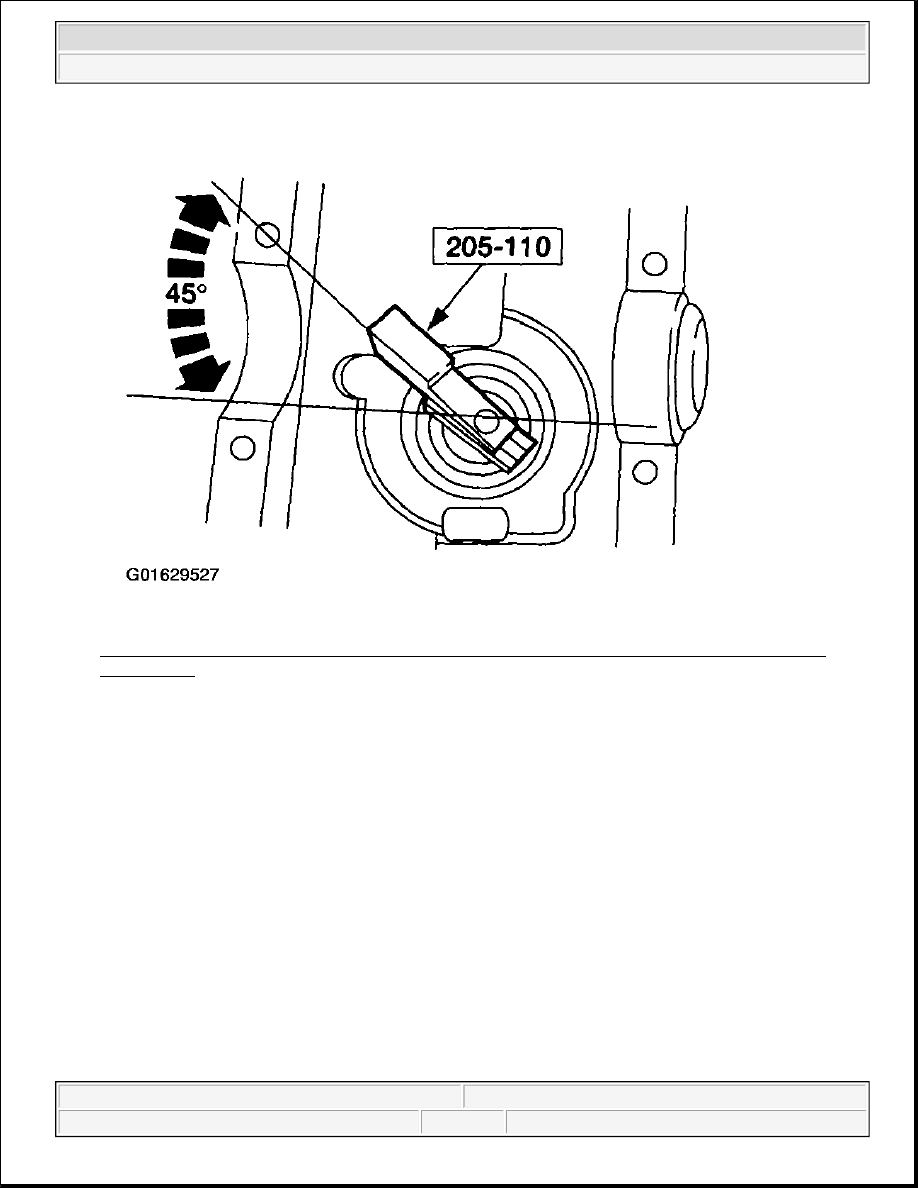

Fig. 66: Rotating Special Tool To Ensure Correct Seating Of Pinion Bearings & Positioning Of
Special Tool
Courtesy of FORD MOTOR CO.

6. Rotate the special tool several half-turns to make sure of correct seating of the pinion bearings and

position the special tool.

7. Install the special tool.

1. Position the special tool.

2. Install the differential side bearing caps.

3. Install the four differential side bearing cap bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

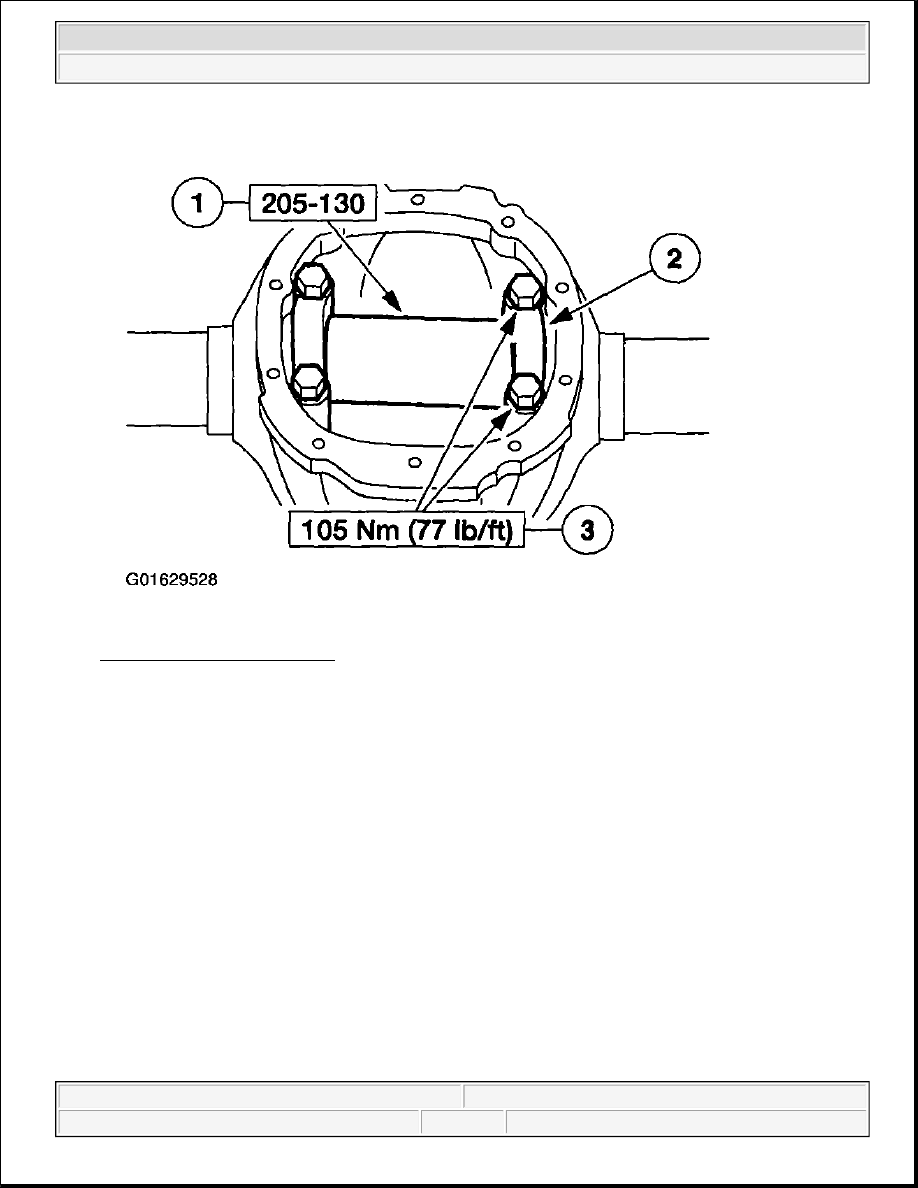

Fig. 67: Installing Special Tool
Courtesy of FORD MOTOR CO.

NOTE:

Drive pinion bearing adjustment shims must be flat and clean.

NOTE:

A slight drag should be felt for correct shim selection. Do not attempt to
force the pinion shim between the Gauge Block and the Gauge Tube. This
will minimize selection of a pinion shim thicker than required, which
results in a deep tooth contact in final assembly of integral rear axle
assemblies.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Fig. 68: Using Drive Pinion Bearing Adjustment Shim As A Gauge
Courtesy of FORD MOTOR CO.

8. Use a drive pinion bearing adjustment shim as a gauge for shim selection.

z

After the correct shim thickness has been determined, remove the Gauge Tube.

9. Using the special tool, press the pinion bearing and pinion shim until it is firmly seated on the pinion.
