Ford F150 Pickup. Instruction - part 548

Fig. 172: Installing Gauge Nut Over The Top & Base Stud
Courtesy of FORD MOTOR CO.

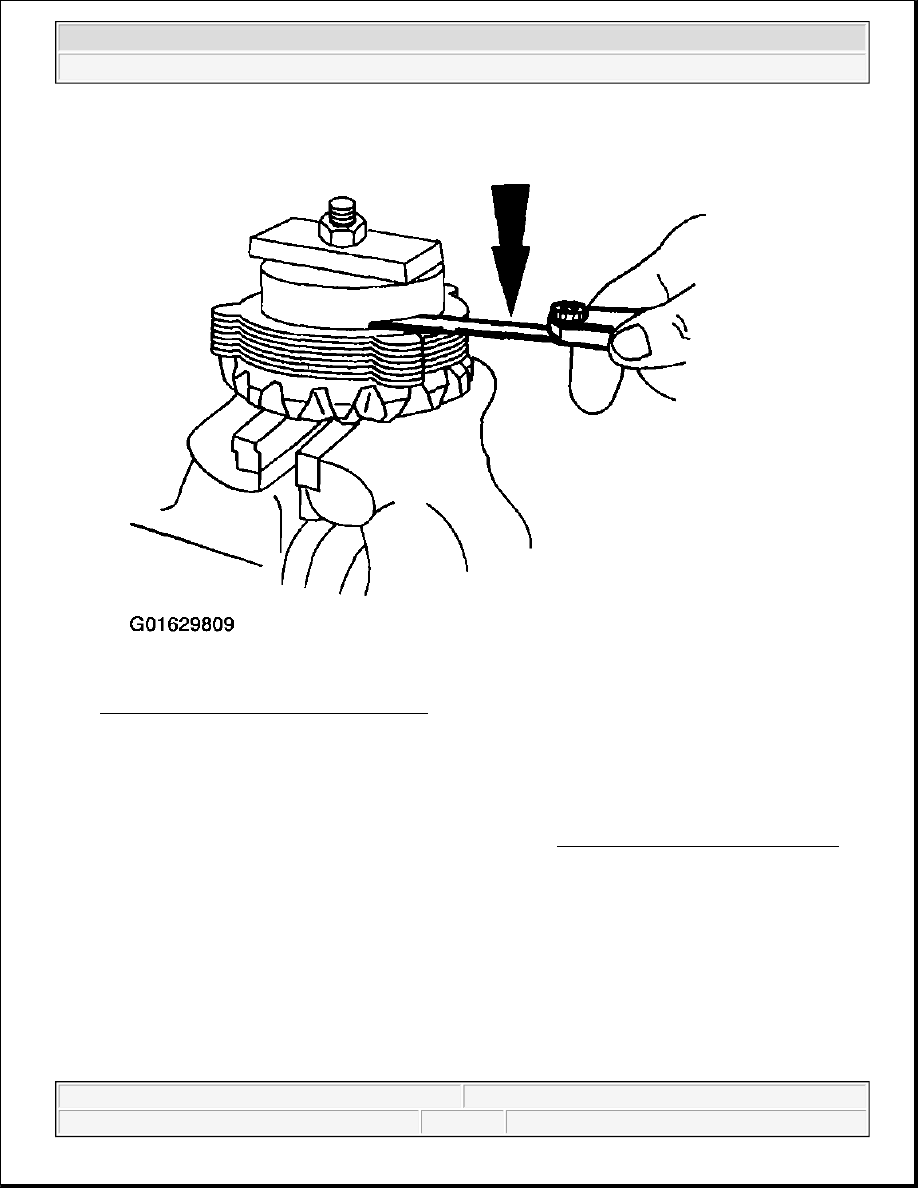

7. Use a Feeler Gauge and select the thickest blade that will enter between the tool and the differential

clutch pack. Subtract .010-inch from the reading to obtain the thickness of the new clutch shim. A
maximum of two shims may be used. Select the correct shim(s) size and remove the Traction-Lok Clutch
Gauge.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 173: Clutch Shim Specifications
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 174: Checking Clutch Shim Clearance
Courtesy of FORD MOTOR CO.

8. Place the shim and Belleville spring on the differential clutch pack.

z

The dished or concave side of the Belleville spring must face up and against the thrust face of the
differential case.

z

For additional information, refer to the exploded view in DESCRIPTION AND OPERATION .



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 175: Placing Shim & Belleville Spring On Differential Clutch Pack
Courtesy of FORD MOTOR CO.

9. Insert the differential clutch packs with shims and Belleville springs and differential side gears into the

differential case.

z

Hold the upper differential clutch pack and side gear assembly in place to prevent it from falling
out of the differential case.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup
