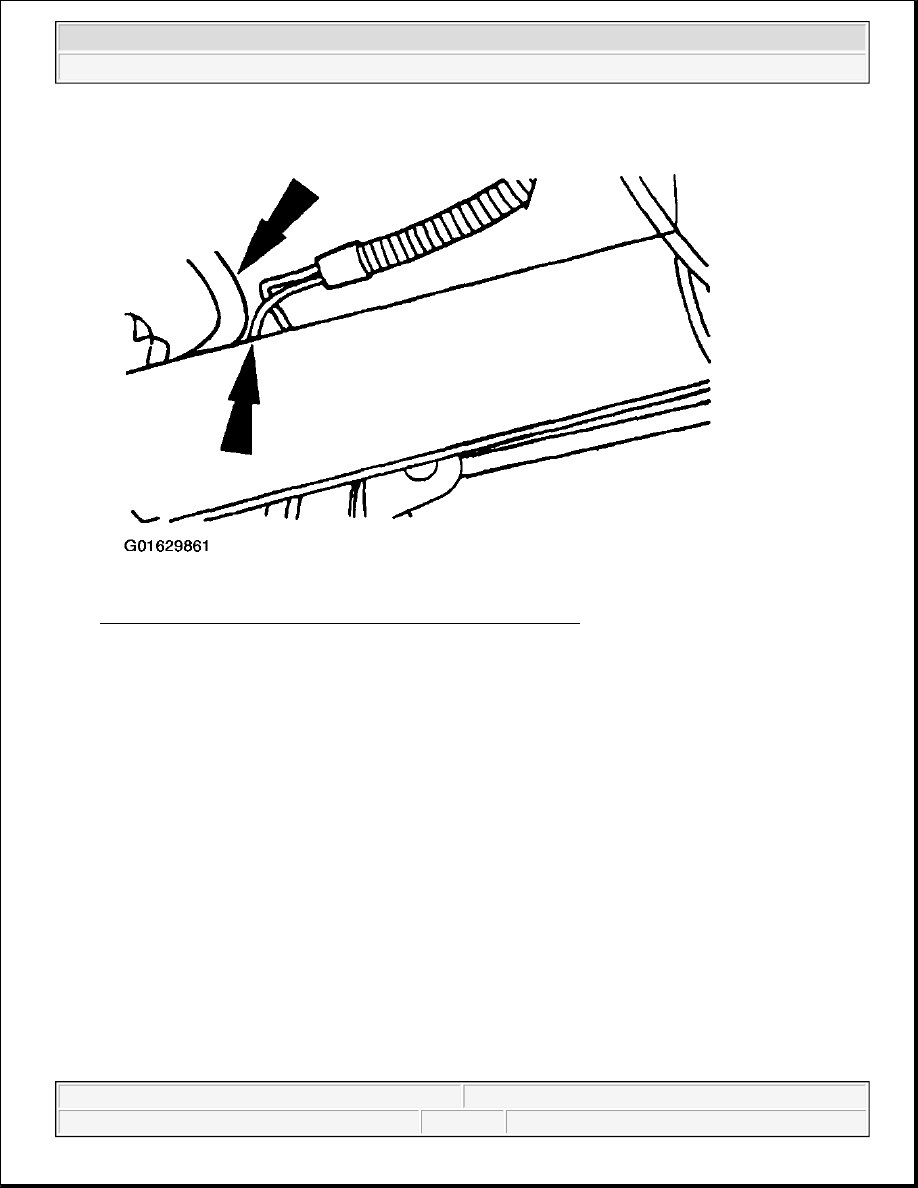

Fig. 44: Disconnecting Vacuum Lines & Front Axle Vent Tube
Courtesy of FORD MOTOR CO.

6. Use a high-lift jack to support the axle assembly.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

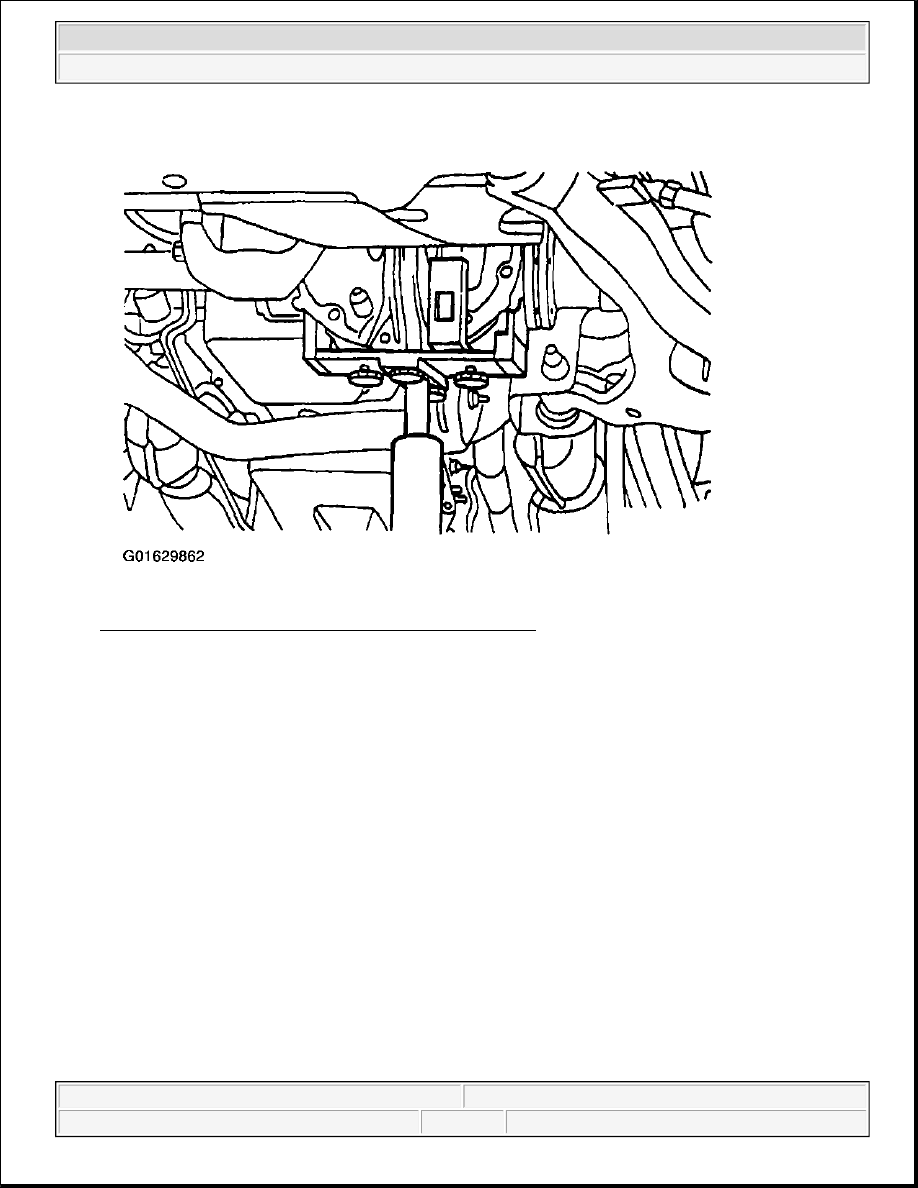

Fig. 45: Using High-Lift Jack To Support Axle Assembly
Courtesy of FORD MOTOR CO.

7. Remove the front differential support.

1. Remove the nut and bolt.

2. Remove the nuts and bolts.

3. Remove the front differential support.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

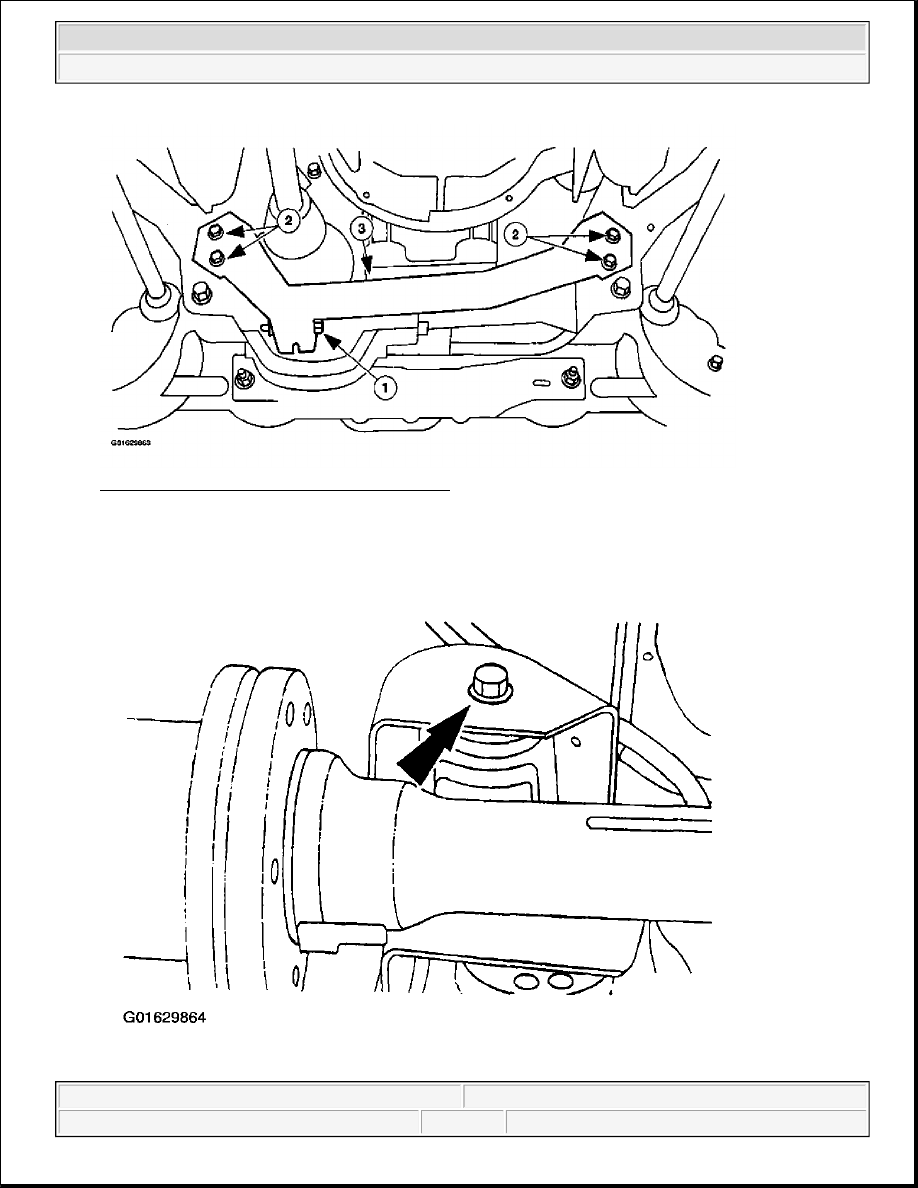

Fig. 46: Removing Front Differential Support
Courtesy of FORD MOTOR CO.

8. Remove the nut and bolt.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



Fig. 47: Removing Nut And Bolt
Courtesy of FORD MOTOR CO.

9. Remove the nut and bolt.

Fig. 48: Locating Bolt
Courtesy of FORD MOTOR CO.

10. Carefully lower the front drive axle assembly.

Installation

1. To install, reverse the removal procedure.

z

Refer to REMOVAL & INSTALLATION for halfshaft fastener tightening specifications.

z

Refer to SPECIFICATIONS for driveshaft fastener tightening specifications.
