Ford F150 Pickup. Instruction - part 405

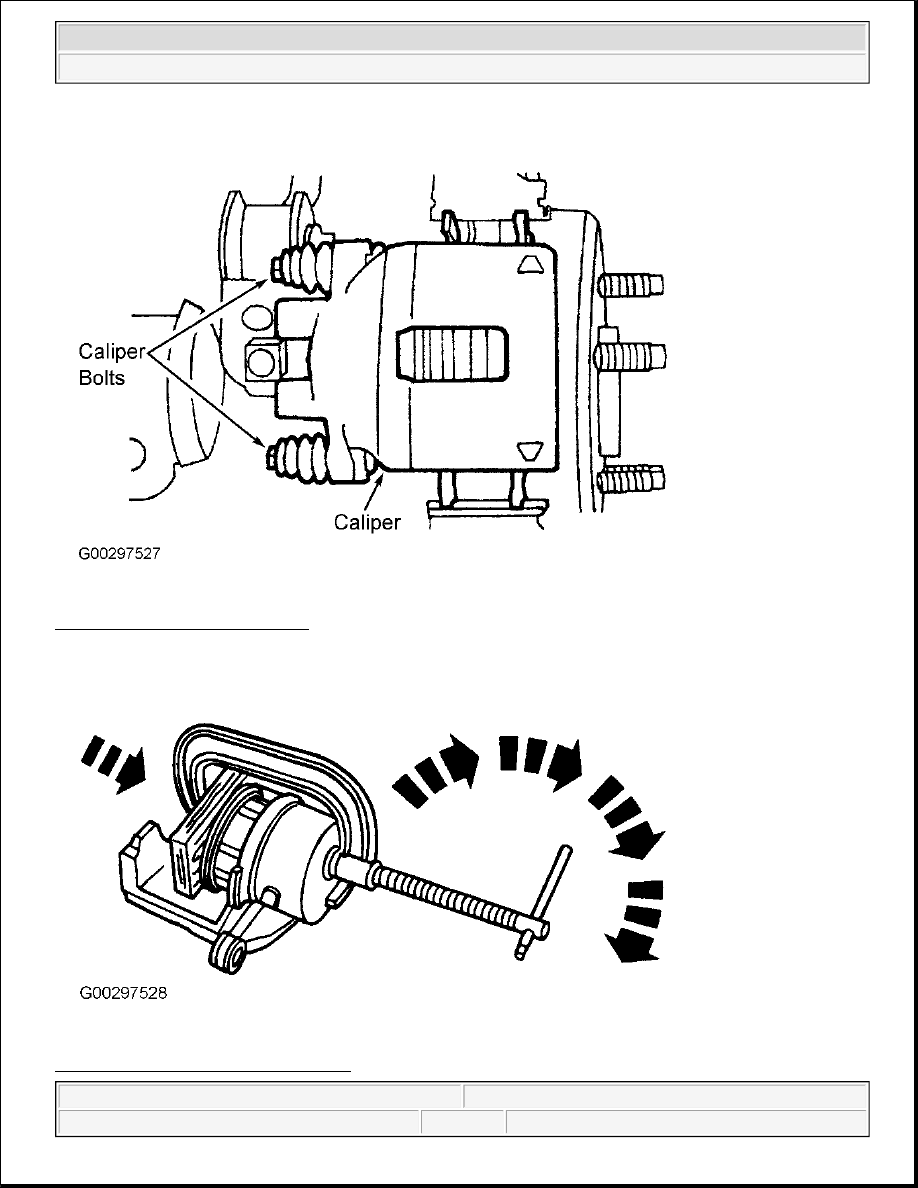

Fig. 83: Identifying Caliper Bolts
Courtesy of FORD MOTOR CO.

Fig. 84: Retracting Piston Into Caliper



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



Courtesy of FORD MOTOR CO.

Fig. 85: Identifying Caliper Slippers
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



MASTER CYLINDER

Removal & Installation

1. Disconnect the brake fluid level warning switch. See Fig. 86 .

2. If equipped with speed control, disconnect the brake pressure switch harness connector. See Fig. 87 .

3. Disconnect the two brake lines and plug the lines and the brake master cylinder ports.

4. On vehicles equipped with the Rear Anti-Lock Brake System (RABS), remove the RABS valve.

Disconnect the RABS valve harness connector. See Fig. 88 . Disconnect the 2 hydraulic lines and plug
them. Remove the two RABS valve nuts. Remove the RABS valve.

5. Remove the two brake master cylinder nuts. Remove the brake master cylinder.

6. To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE

SPECIFICATIONS . Bleed brakes. See BLEEDING BRAKE SYSTEM .

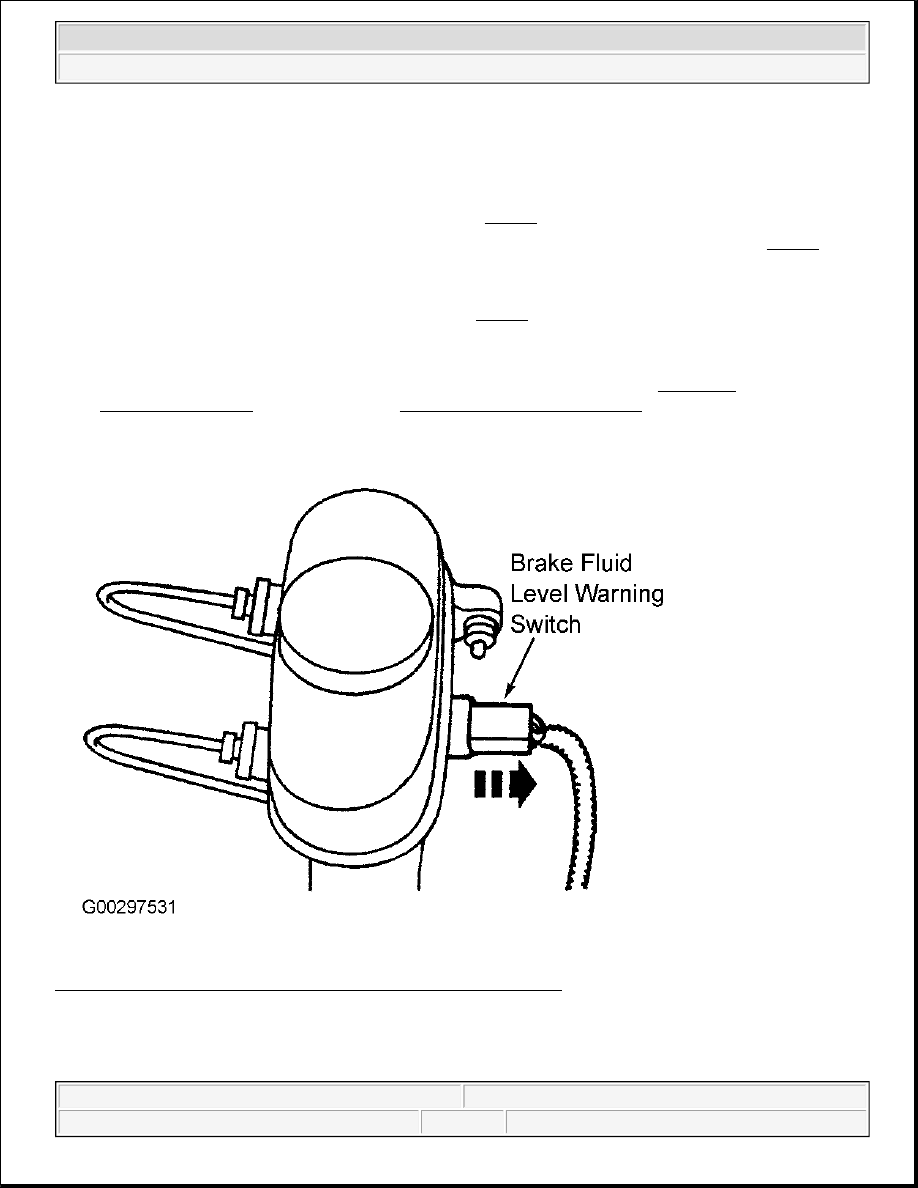

Fig. 86: Identifying Brake Fluid Level Warning Switch Connector
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup

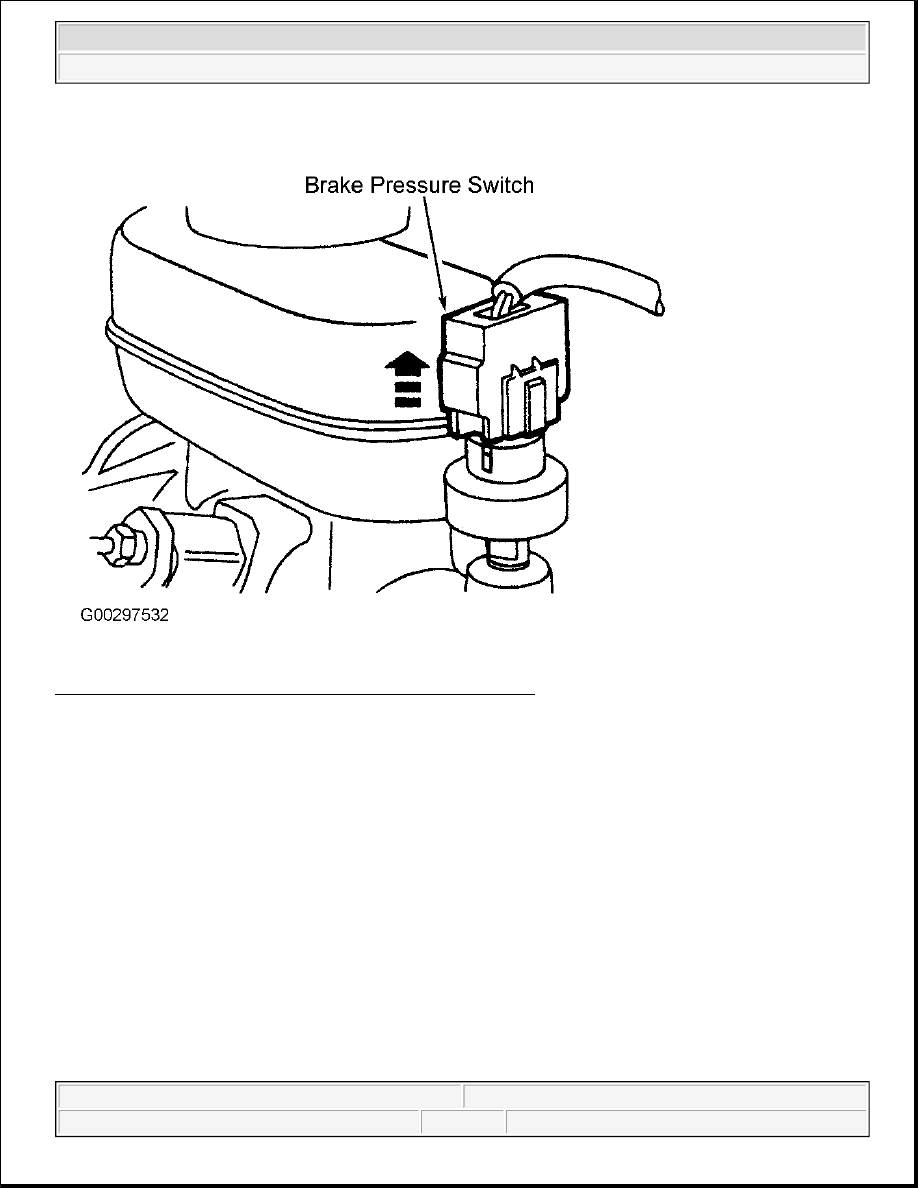

Fig. 87: Identifying Brake Pressure Switch Harness Connector
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup
