2. Disconnect the anti-lock brake control module electrical connector.

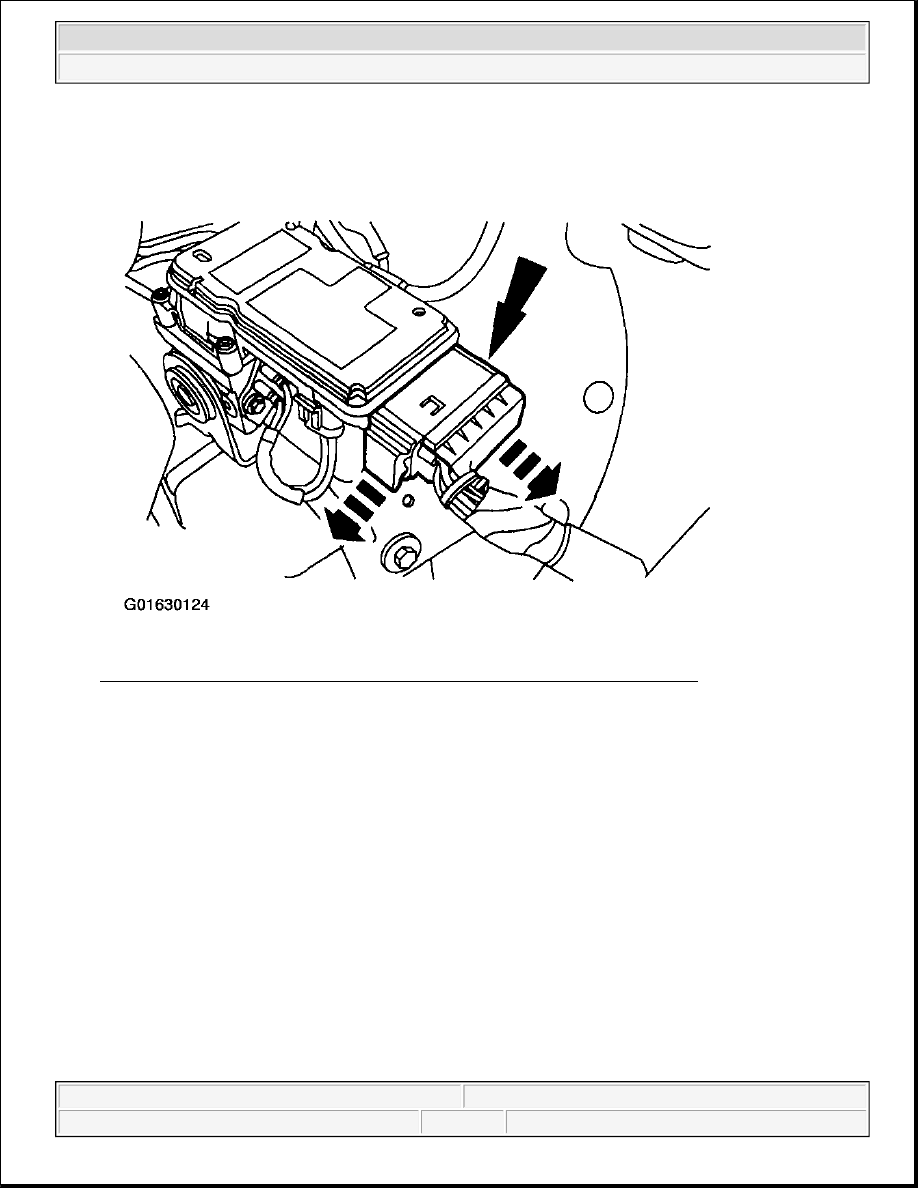

Fig. 51: Disconnecting Anti-Lock Brake Control Module Electrical Connector
Courtesy of FORD MOTOR CO.

3. Disconnect the pump motor electrical connector from the anti-lock brake control module.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup

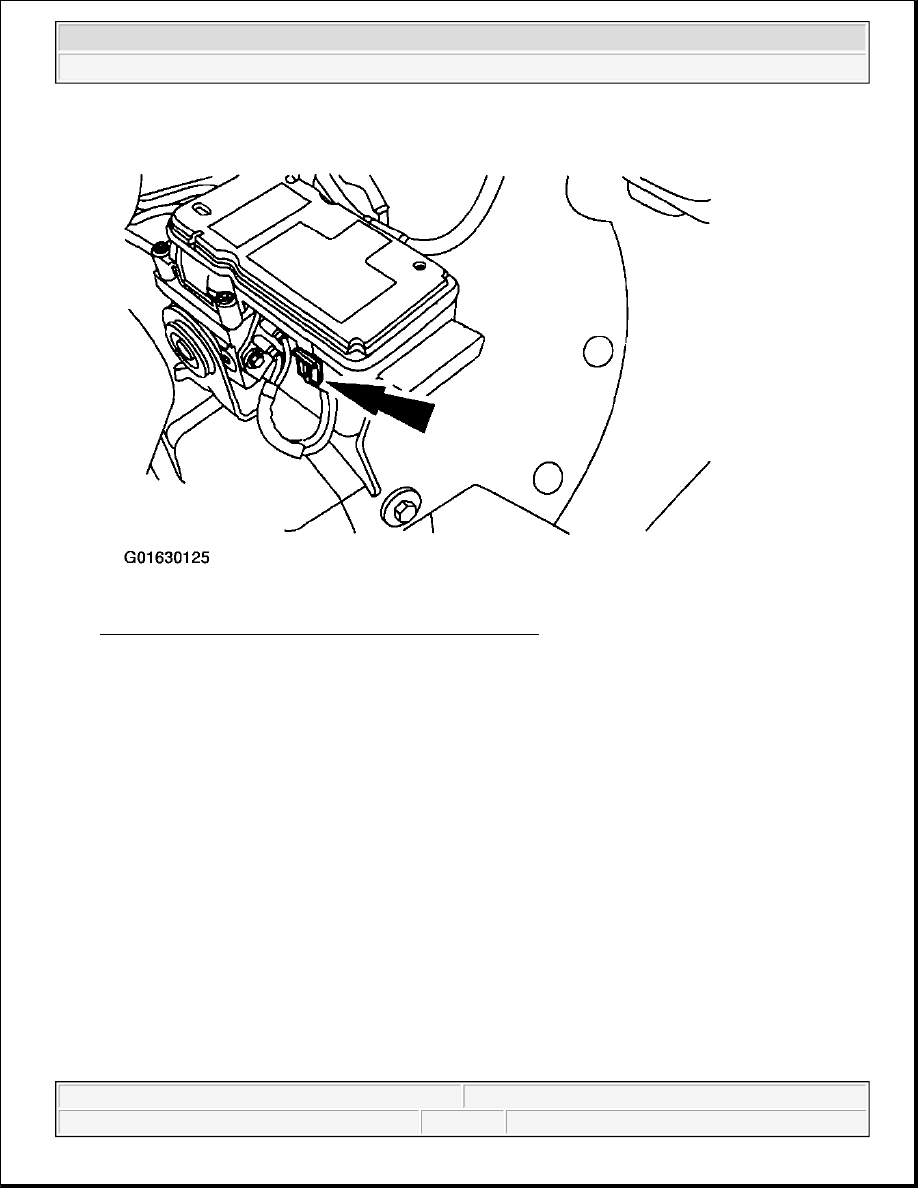

Fig. 52: Disconnecting Pump Motor Electrical Connector
Courtesy of FORD MOTOR CO.

4. Remove the screws and the anti-lock brake control module.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup



Fig. 53: Removing Anti-Lock Brake Control Module Screws
Courtesy of FORD MOTOR CO.

5. To install, reverse the removal procedure.

SENSOR - REAR

Removal & Installation

1. Raise and support vehicle. For additional information, refer to JACKING & HOISTING .

2. Remove the rear anti-lock brake sensor.

1. Disconnect the rear anti-lock brake sensor electrical connector.

2. Remove the bolt.

NOTE:

At the first key-on after a new ABS module is installed, use the NGS with
the service card to configure the module. For additional information, refer
to MODULE CONFIGURATION .

NOTE:

Clean off dirt and debris that may have collected around the rear anti-lock
brake sensor before removal.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup



3. Remove the rear anti-lock brake sensor.

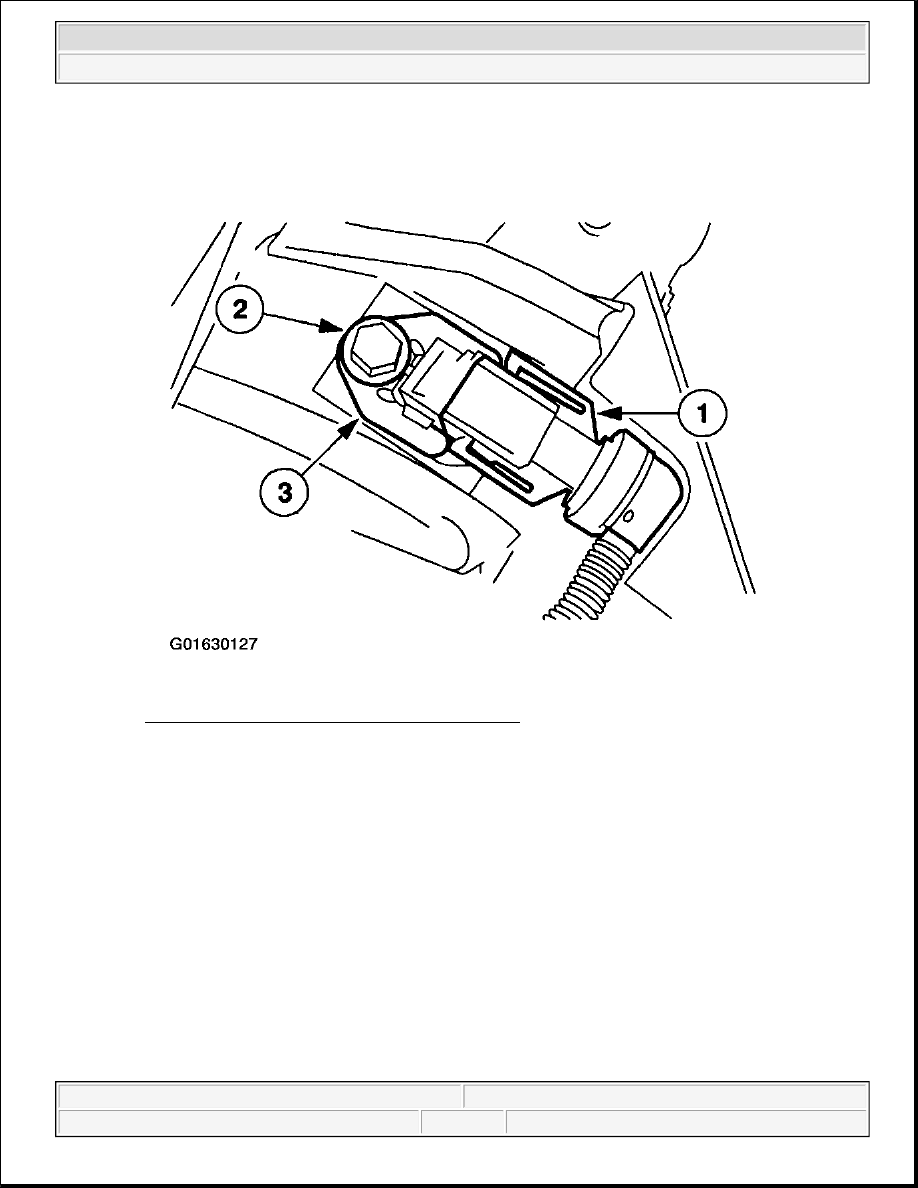

Fig. 54: Removing Rear Anti-Lock Brake Sensor
Courtesy of FORD MOTOR CO.

NOTE:

Thoroughly clean the mounting surface.

NOTE:

Inspect the anti-lock brake sensor O-ring for damage; lightly lubricate the
O-ring with SAE-75W-140 High Performance Rear Axle Lubricant F1TZ-
19580-B or equivalent meeting Ford specification WSL-M2C192-A.
