Fig. 27: Identifying Rubber Drain Tube Connected To Bleeder Screw
Courtesy of FORD MOTOR CO.

6. Continue bleeding the rear of the system, going in order from the LH rear bleeder screw to the RH front

disc brake caliper bleeder screw ending with the LH front disc brake caliper bleeder screw.

7. Close the bleeder tank valve. Remove the tank hose from the adapter, and remove the adapter.

HYDRAULIC LEAK CHECK

1. Make sure the brake master cylinder reservoir (2K478) is full.

2. Apply the brakes several times and make sure the brake pedal (2455) feel is not spongy. If necessary,

bleed the system. For additional information, refer to BLEEDING - SYSTEM.

3. If the reservoir level is dropping, inspect the brake components, fittings and lines to locate the source of

the leak.

NOTE:

Brake fluid is water soluble and it is possible that all evidence of fluid
leakage has been washed off if the vehicle has been operated in the rain or
snow.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Brake System - General Information - F150 Pickup



2003 BRAKES

Anti-Lock Control - 4-Wheel - F150 Pickup

SPECIFICATIONS

TORQUE SPECIFICATIONS

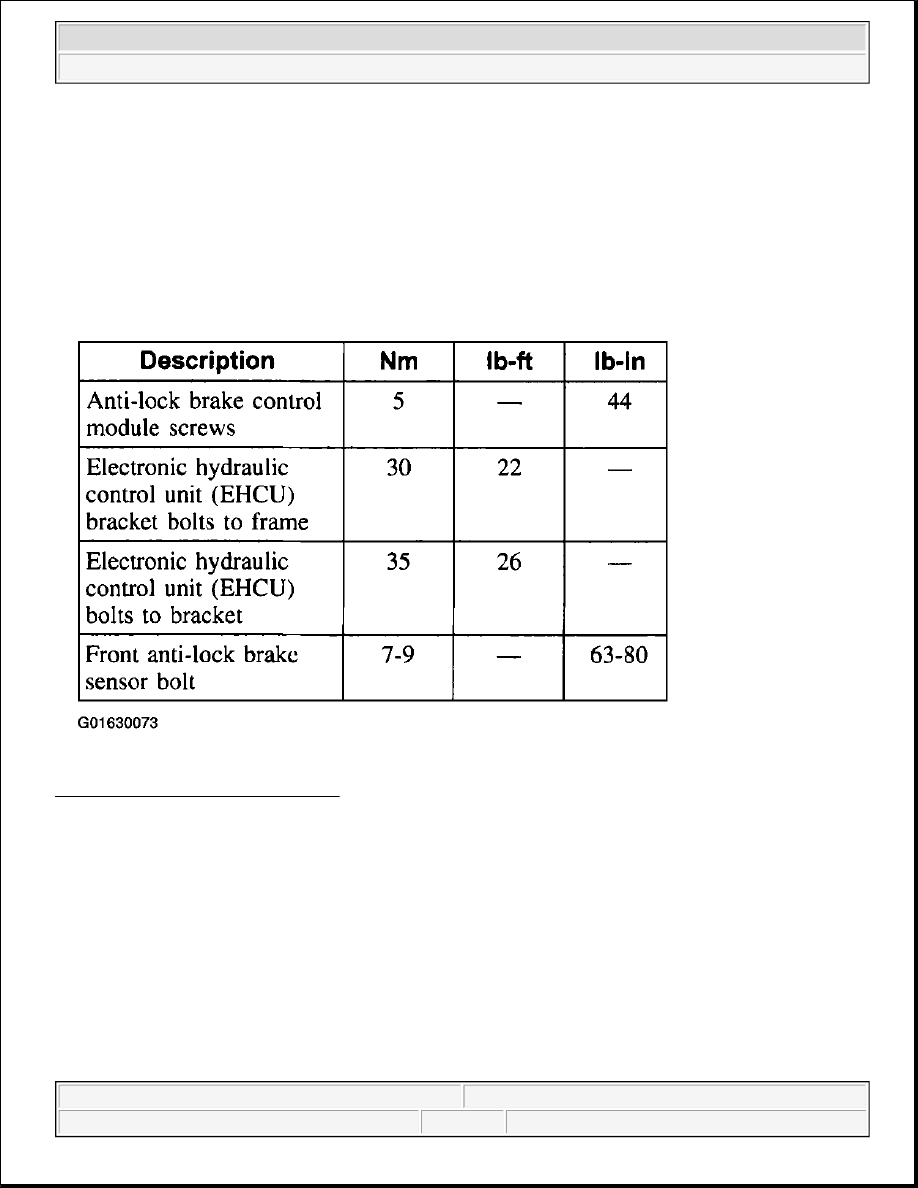

Fig. 1: Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup





2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup



Fig. 2: Torque Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.

DESCRIPTION & OPERATION

ANTI-LOCK CONTROL

The anti-lock control system consists of the following components:

z

anti-lock brake control module (2C065).

z

front anti-lock brake sensors (2C204).

z

front anti-lock brake sensor indicator (2C182).

z

Hydraulic Control Unit (HCU) (2C219).

z

rear anti-lock brake sensor (2L373).

z

rear anti-lock brake sensor indicator (2C189).

z

Yellow ABS warning light.

DIAGNOSIS & TESTING

ANTI-LOCK CONTROL



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup



Refer to ANTI-LOCK BRAKES .

SPECIAL TOOL(S)

Fig. 3: Anti-Lock Control Special Tools (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control - 4-Wheel - F150 Pickup
