Ford F150 Pickup. Instruction - part 284

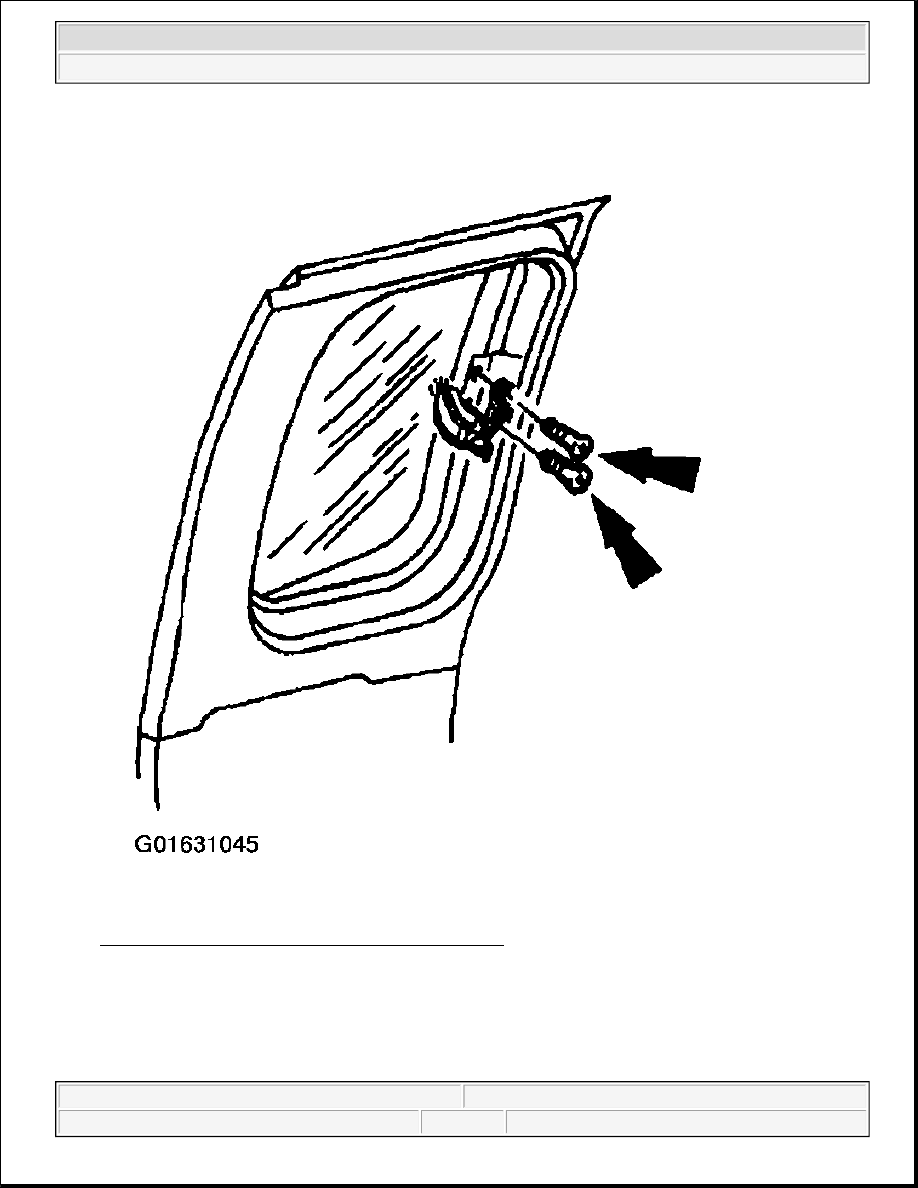

Fig. 59: Removing Rear Door Window Latch Screws
Courtesy of FORD MOTOR CO.

2. Remove the rear door window garnish.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



Fig. 60: Removing Rear Door Window Garnish
Courtesy of FORD MOTOR CO.

3. Remove the rear door window glass.

1. Remove the nuts.

2. Remove the rear door window glass.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup



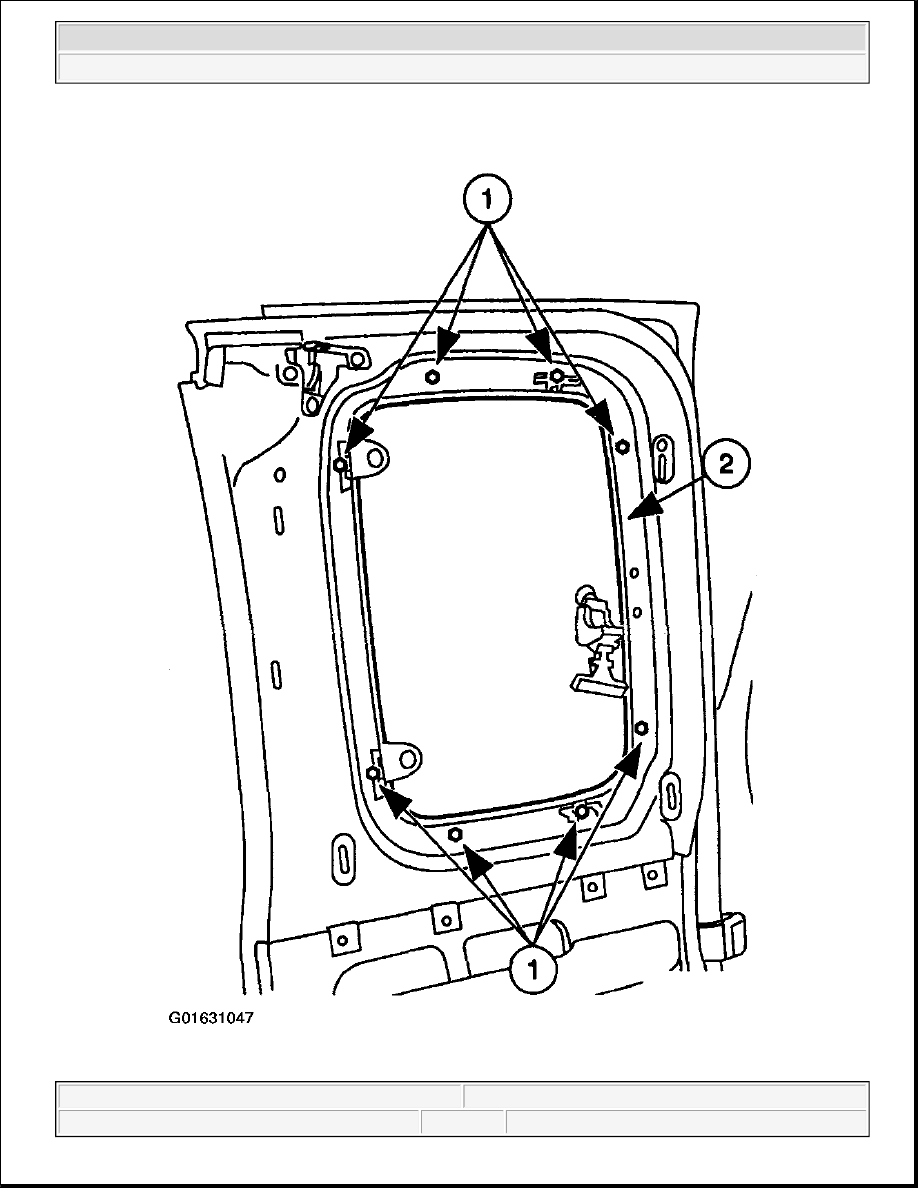

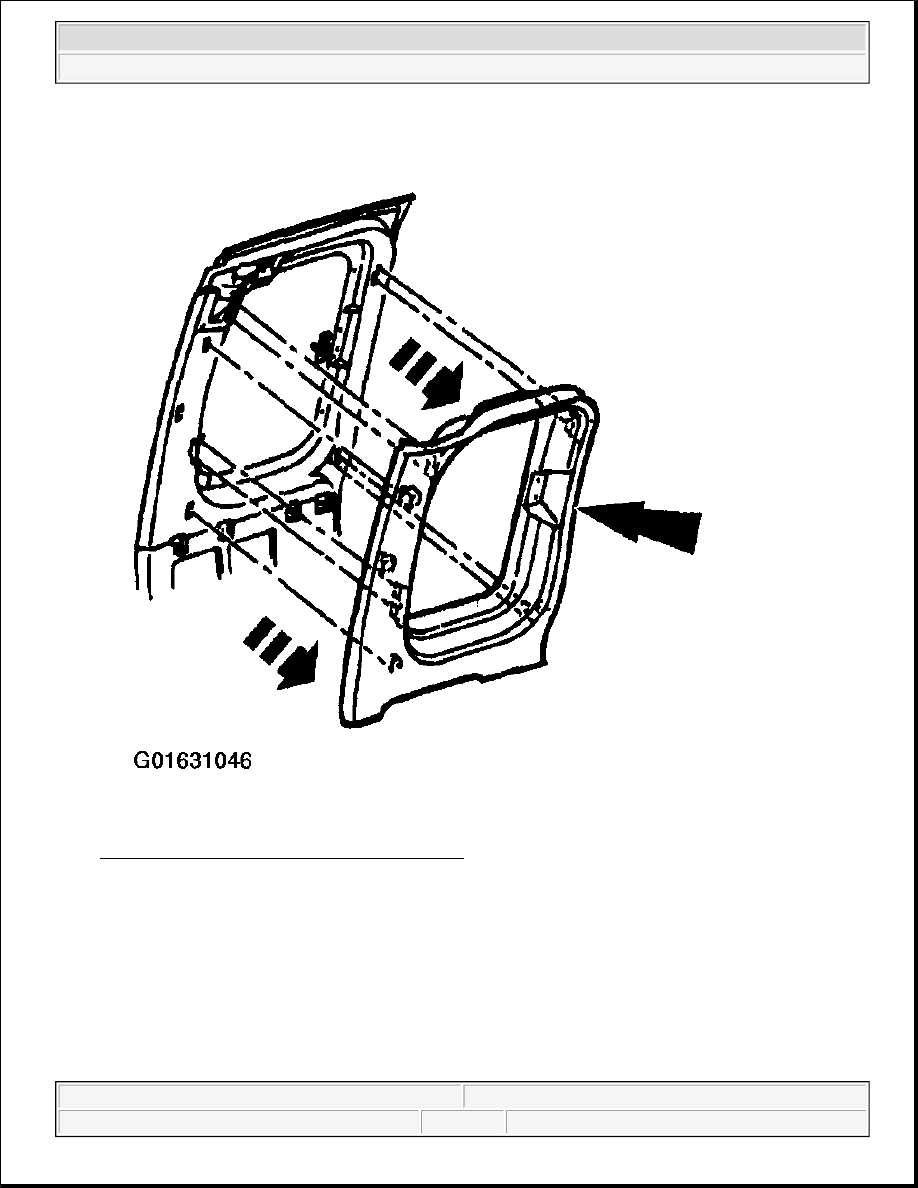

Fig. 61: Removing Rear Door Window Glass
Courtesy of FORD MOTOR CO.

4. Pry the window frame from the door.

5. Remove the excess foam butyl from the window frame.

6. Remove the excess foam butyl from the window, opening.

Installation

1. Apply 8 mm foam butyl, or equivalent meeting Ford specification WSB-M3G143-B to the rear window

frame.

z

Start at the bottom middle and work around the frame.

2. Install the rear window frame and glass.

1. Position the rear window frame and glass.

NOTE:

When applying foam butyl, leave a slight overlap at the bottom to allow for
drainage.

NOTE:

Loosely install all nuts before tightening.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup
