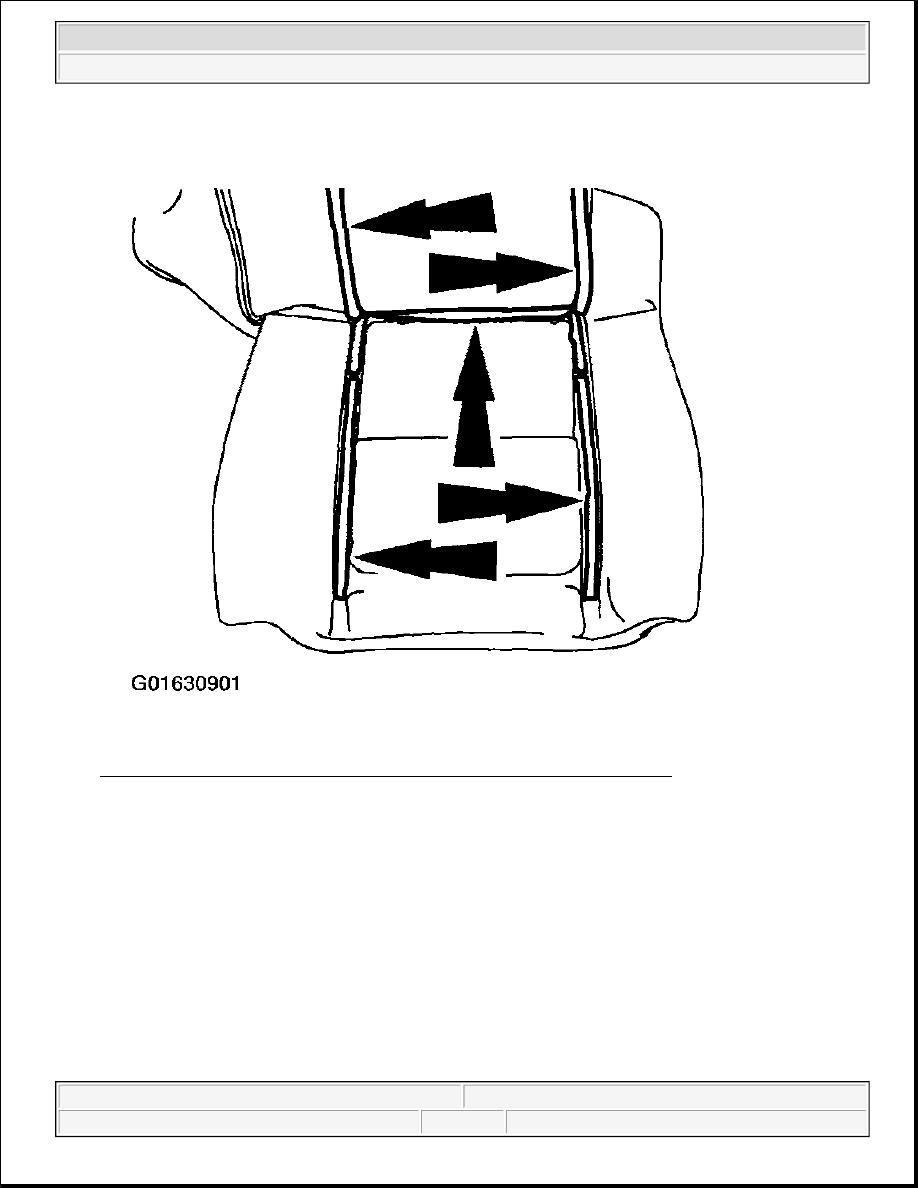

Fig. 297: Separating Seat Fabric From Cushion Hook And Loop Fasteners
Courtesy of FORD MOTOR CO.

8. Separate the seat fabric from the cushion hook and loop fasteners.

9. Remove the hog rings from the center of the seat trim cover. Remove the seat trim cover from the foam

pad.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

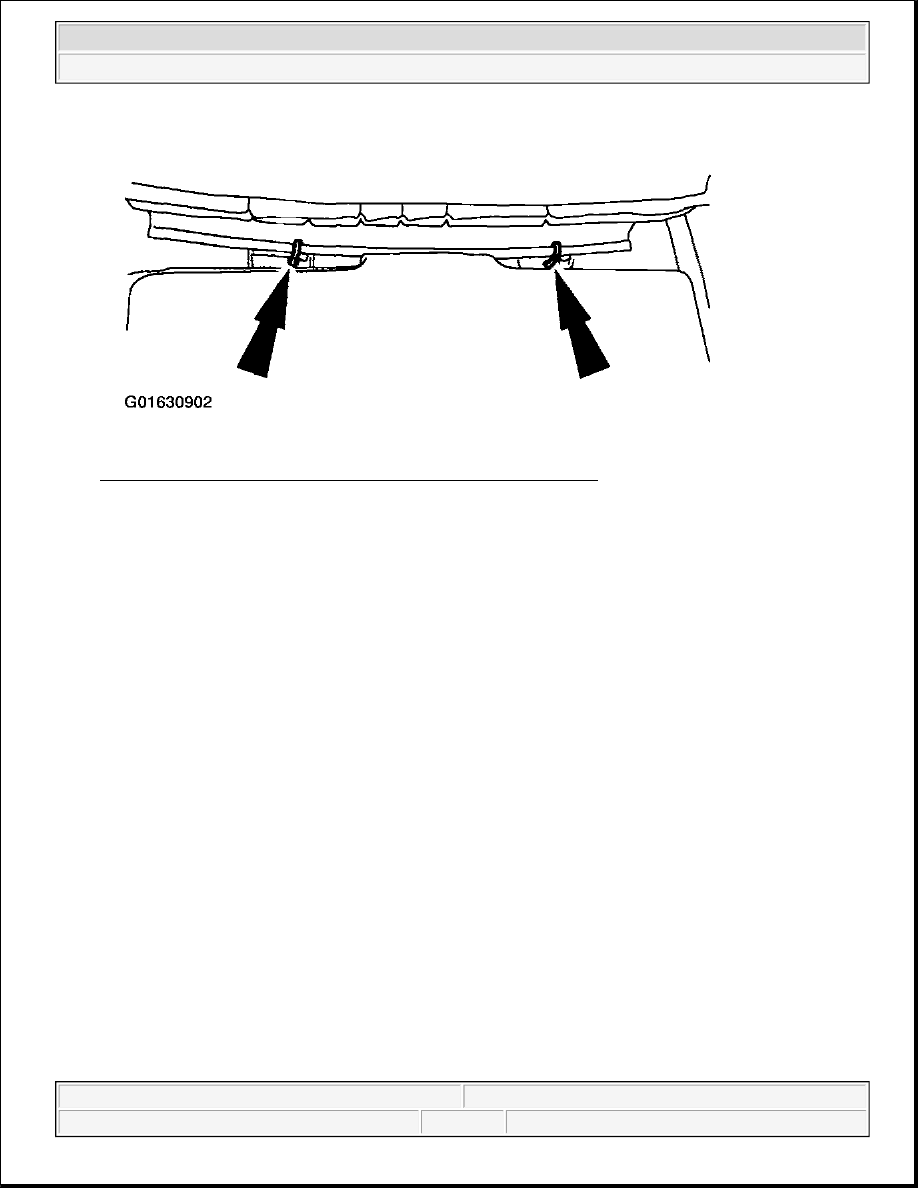

Fig. 298: Removing Hog Rings From Center Of Seat Trim Cover
Courtesy of FORD MOTOR CO.

Vehicles with heated seats

10. Remove the cushion heated seat element from the foam pad, if necessary.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

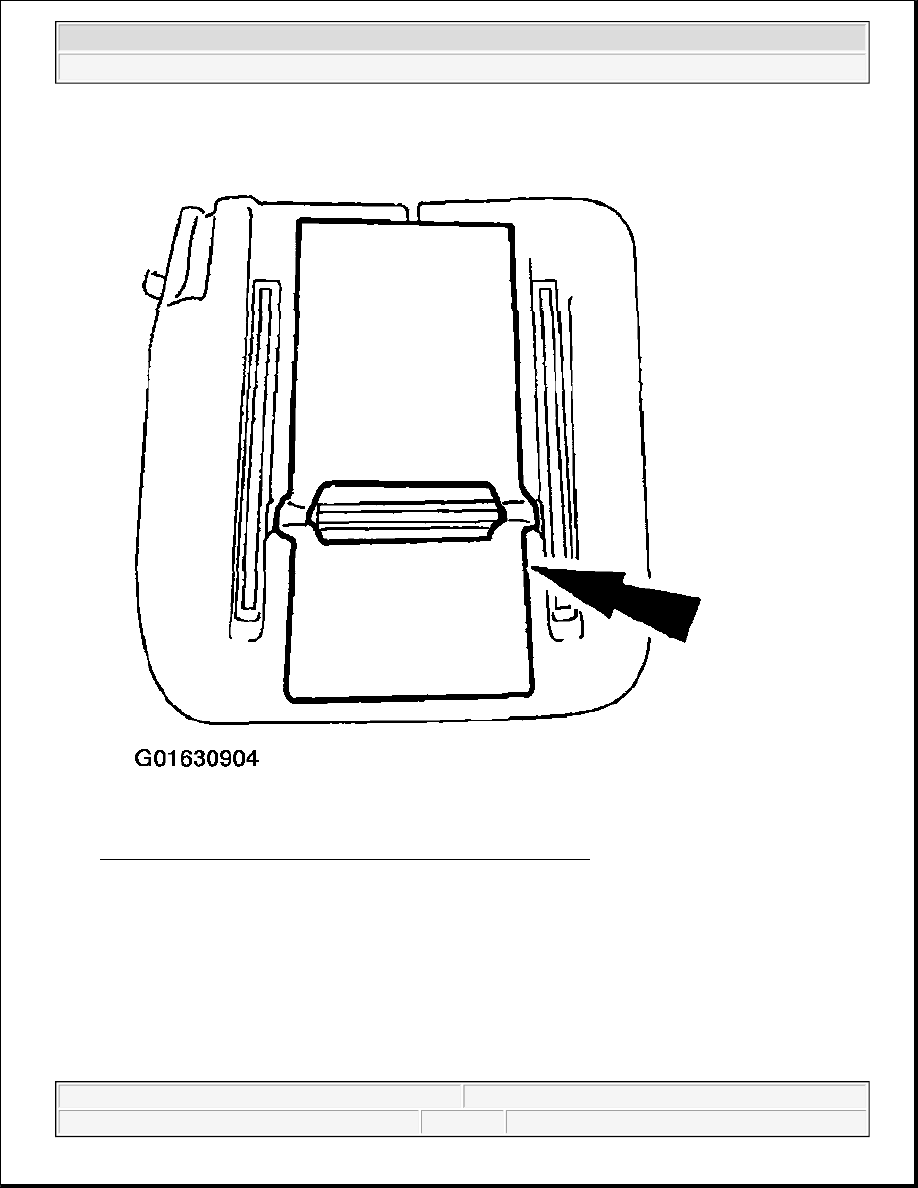

Fig. 299: Removing Cushion Heated Seat Element From Foam Pad
Courtesy of FORD MOTOR CO.

Assembly

Vehicles with heated seats

1. Install the cushion heated seat element on the foam pad, if necessary.

WARNING:

To reduce the risk of serious personal injury, read and follow all
warnings, cautions, and notes at the beginning of the disassembly
procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 300: Installing Cushion Heated Seat Element On Foam Pad
Courtesy of FORD MOTOR CO.

All vehicles

2. Position the seat trim cover on the foam pad. Install the hog rings in the center of the seat trim cover.
