Ford F150 Pickup. Instruction - part 237

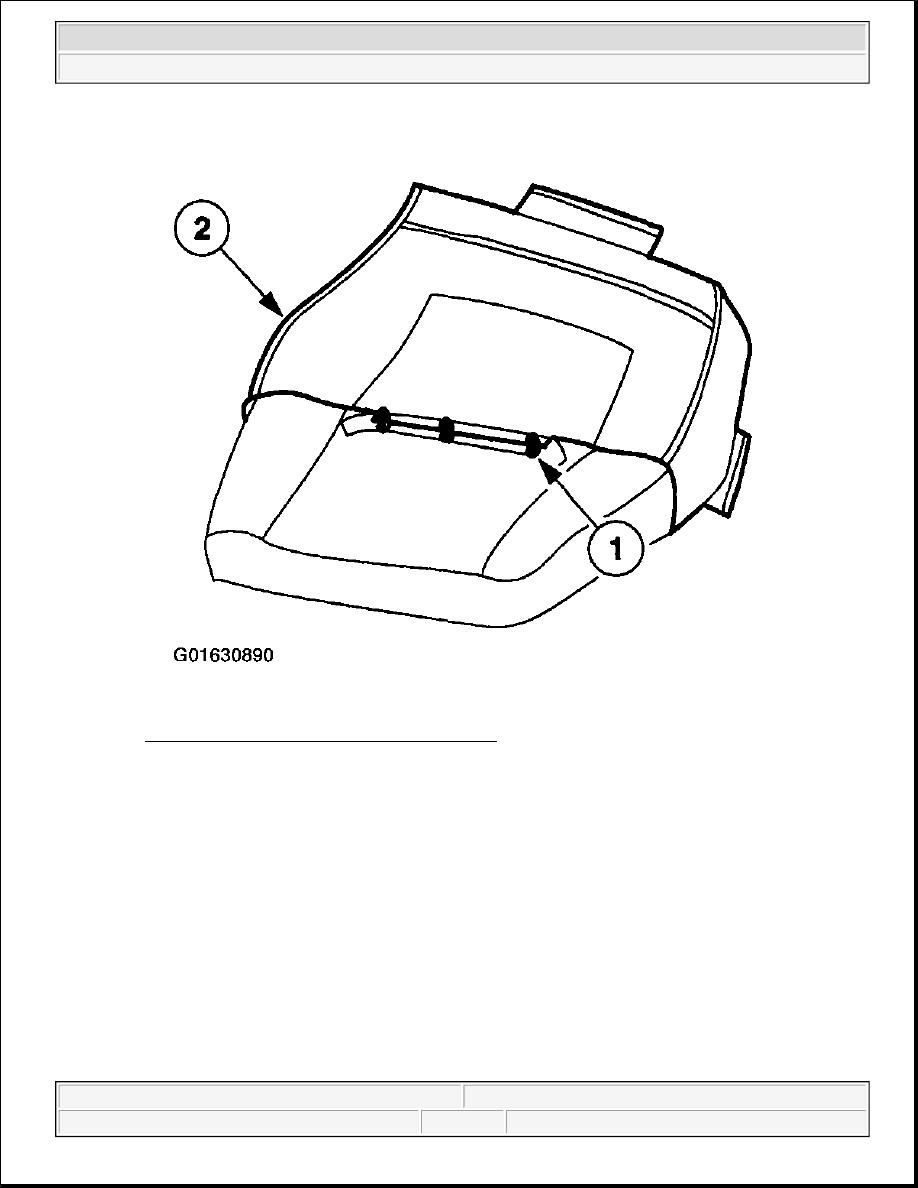

Fig. 286: Removing Seat Cushion Trim Cover
Courtesy of FORD MOTOR CO.

5. Remove the front seat cushion foam pin-type retainer.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

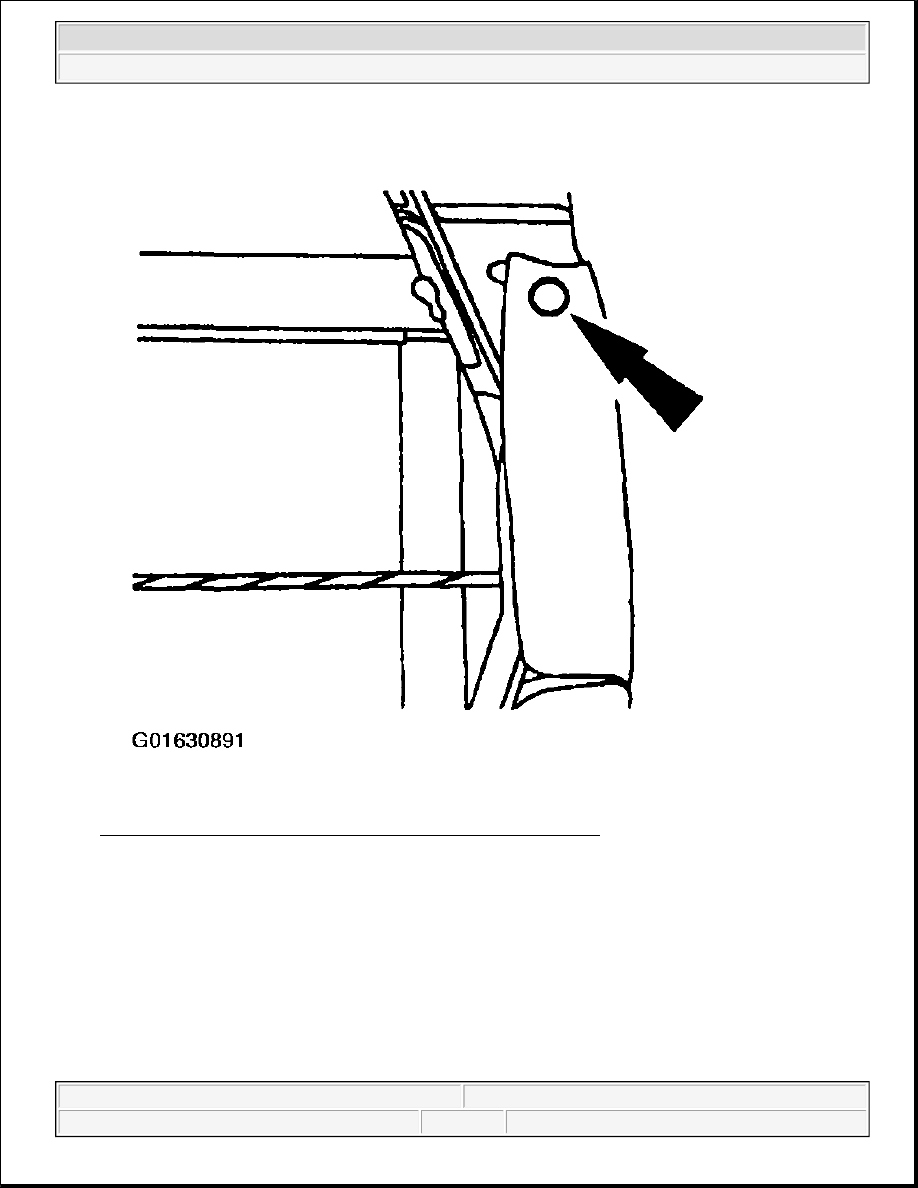

Fig. 287: Removing Front Seat Cushion Foam Pin-Type Retainer
Courtesy of FORD MOTOR CO.

6. Remove the front seat cushion foam from the front seat cushion frame (632A23).



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

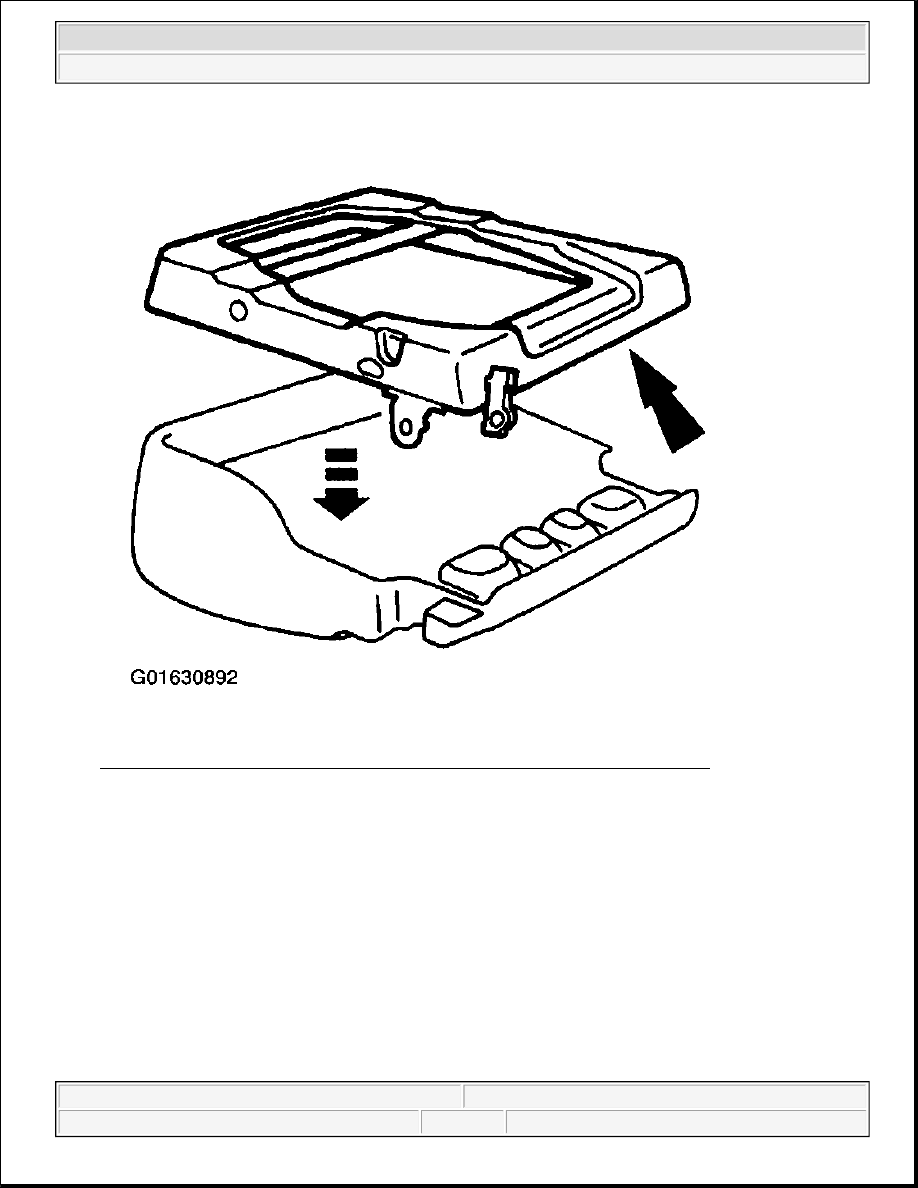

Fig. 288: Removing Front Seat Cushion Foam From Front Seat Cushion Frame
Courtesy of FORD MOTOR CO.

Assembly

1. Insert the front seat cushion frame into the front seat cushion foam.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Fig. 289: Inserting Front Seat Cushion Frame Into Front Seat Cushion Foam
Courtesy of FORD MOTOR CO.

2. Install the front seat cushion foam pin-type retainer.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
