Ford F150 Pickup. Instruction - part 1969

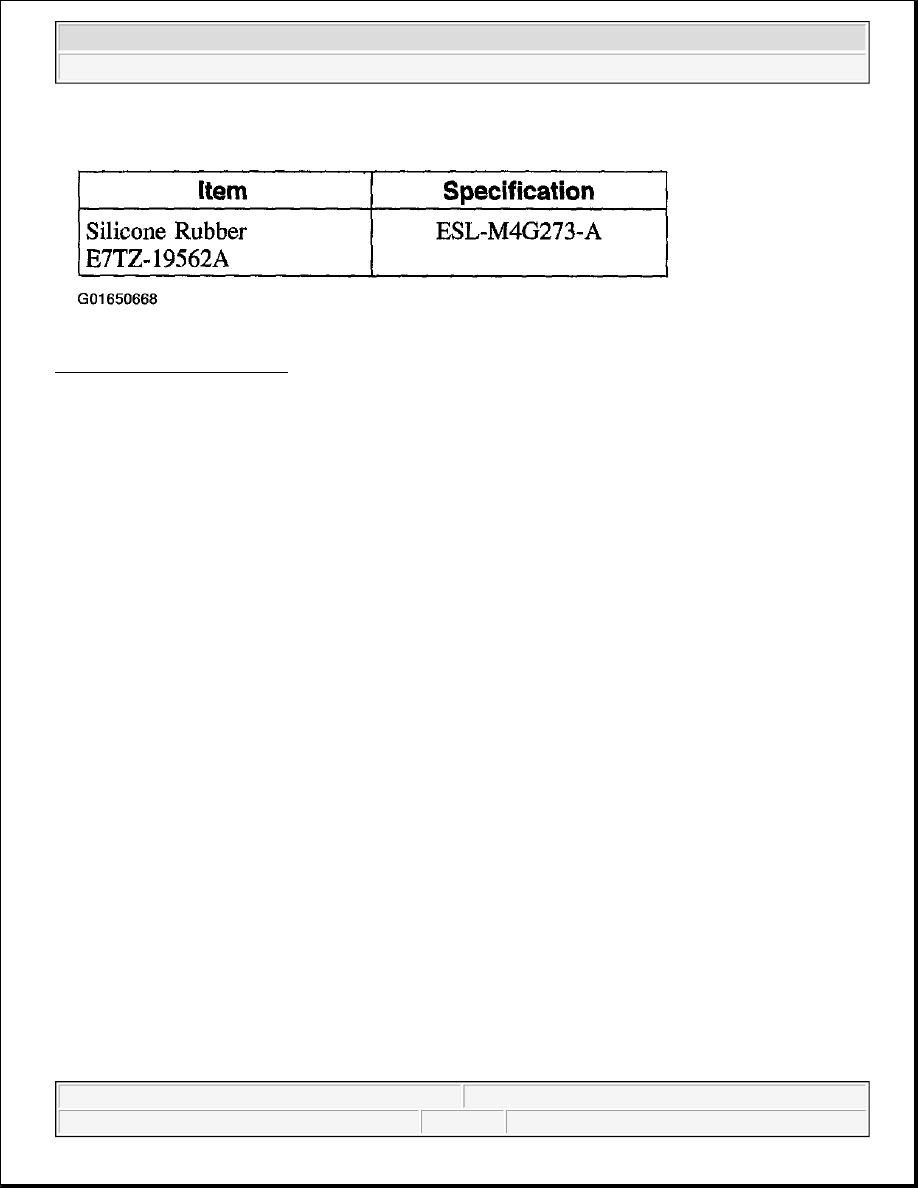

Fig. 35: Material Specification
Courtesy of FORD MOTOR CO.

Disassembly

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

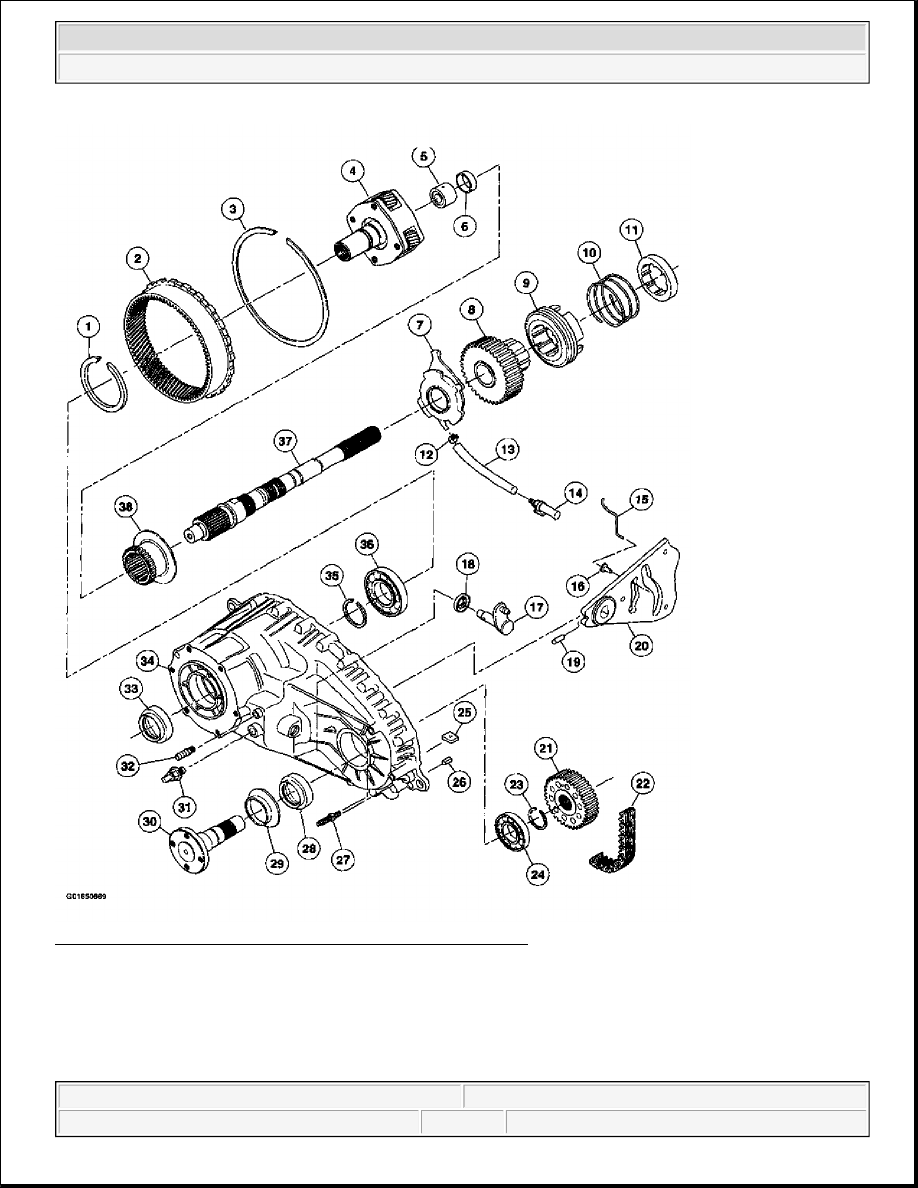

Fig. 36: Transfer Case Exploded View - Instruction Shift (1 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

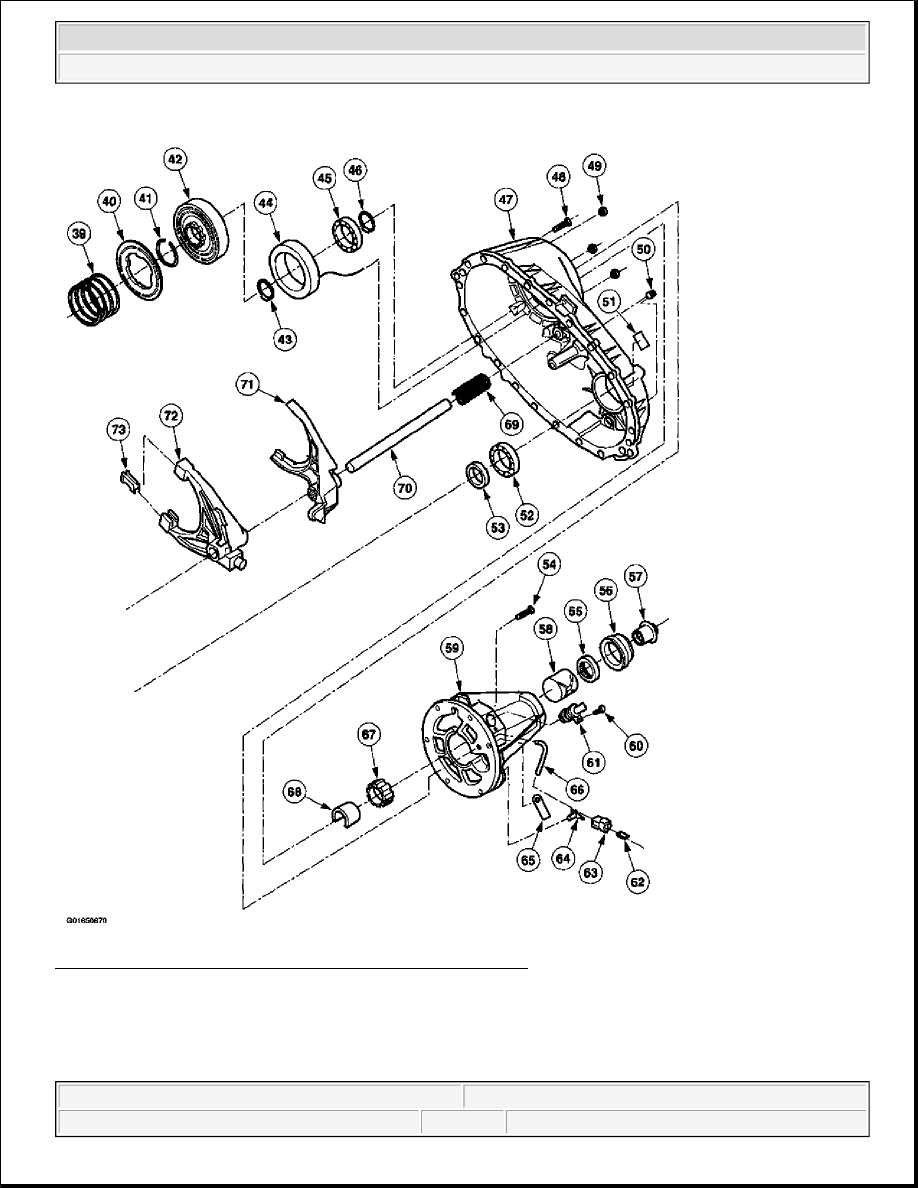

Fig. 37: Transfer Case Exploded View - Instruction Shift (2 Of 2)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup

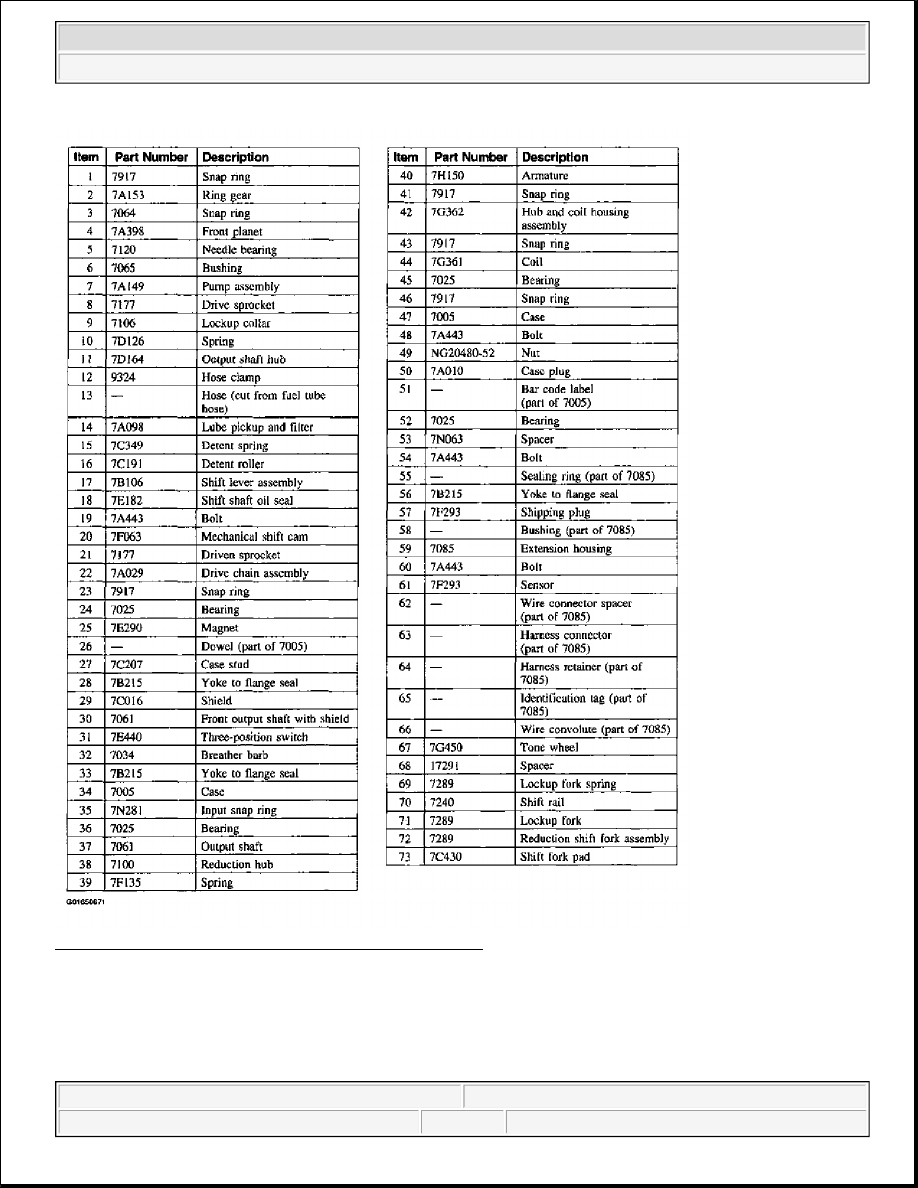

Fig. 38: Transfer Case - Instruction Shift Parts Description
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 TRANSMISSIONS Transfer Case - F150 Pickup
