Ford F150 Pickup. Instruction - part 1912

Fig. 191: Tightening Countershaft Locknut
Courtesy of FORD MOTOR CO.

43. Using the special tool, stake the output shaft locknut and the countershaft locknut.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



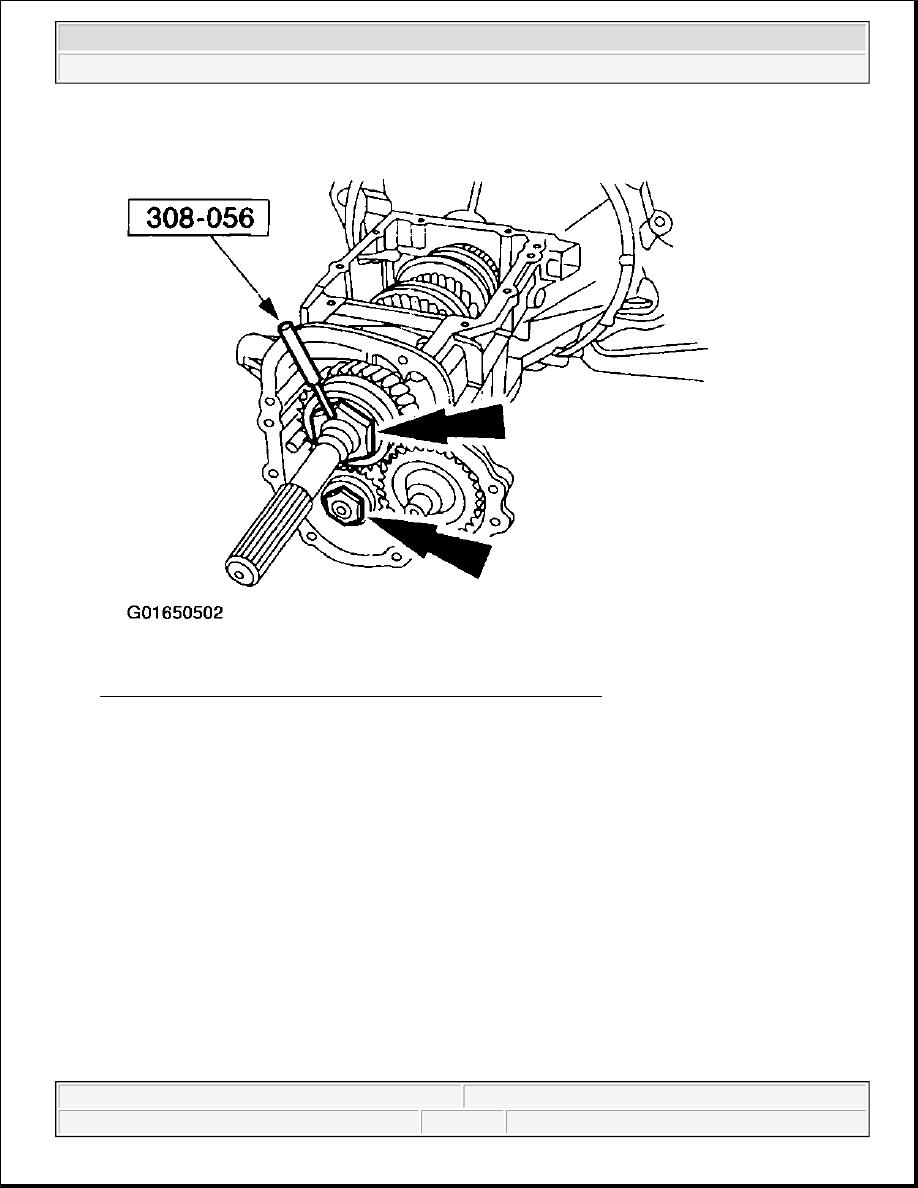

Fig. 192: Staking Output Shaft Locknut & Countershaft Locknut
Courtesy of FORD MOTOR CO.

44. Install the speedometer drive gear on 4x2 vehicles, or the Output Speed (OSS) tone ring on 4x4 vehicles.

1. Position the locating ball on the shaft, then install the speedometer drive gear.

2. Install the snap ring.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 193: Installing Speedometer Drive Gear, Or Output Speed (OSS) Tone Ring
Courtesy of FORD MOTOR CO.

45. Apply a small bead of silicone rubber to the extension housing mating surface.

46. Install the extension housing.

1. Position extension housing.

2. Install the bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 194: Installing Extension Housing
Courtesy of FORD MOTOR CO.

47. Using the special tool, install a new extension housing seal.
