Ford F150 Pickup. Instruction - part 189

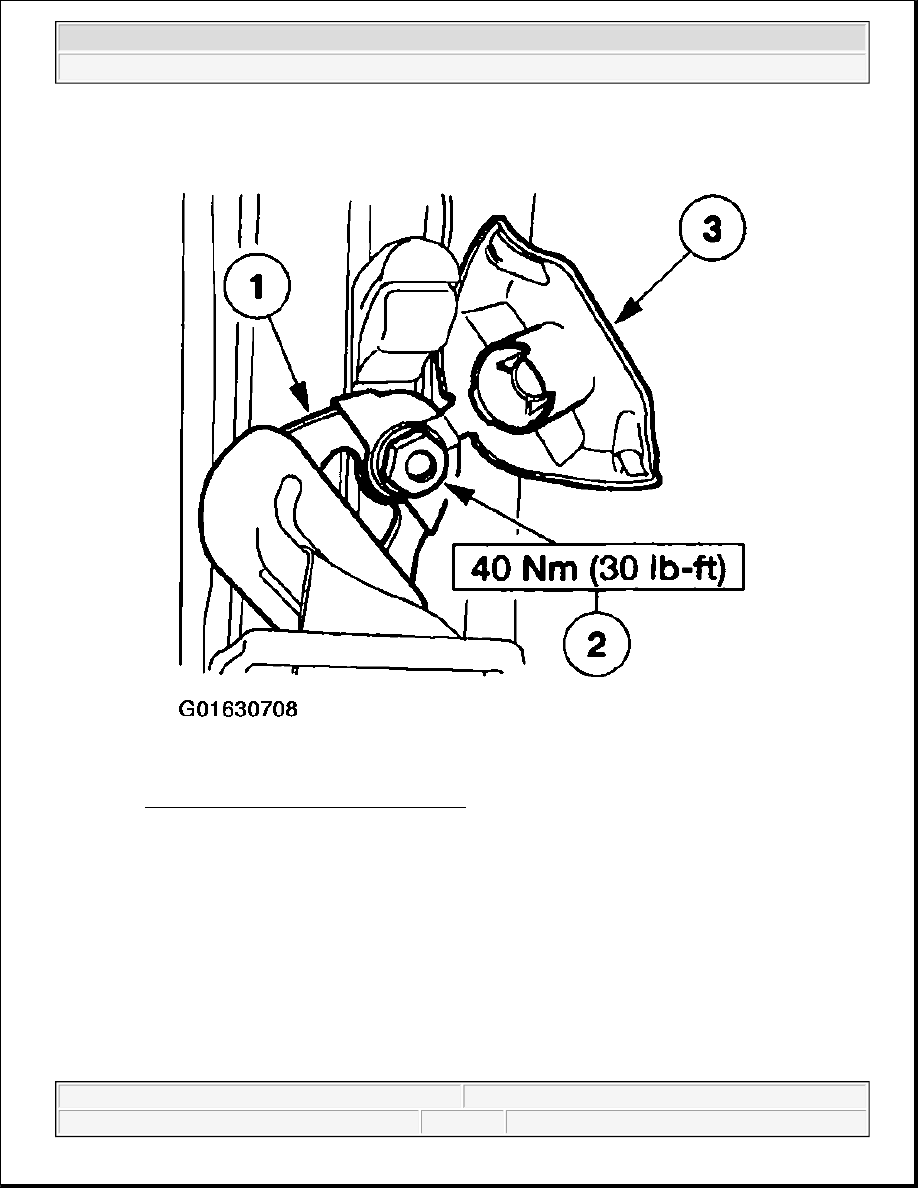

Fig. 104: Closing Safety Belt Guide Cover
Courtesy of FORD MOTOR CO.

3. Close the safety belt guide cover.

39. Remove the restraint system diagnostic tool from the passenger side safety belt retractor pretensioner

electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

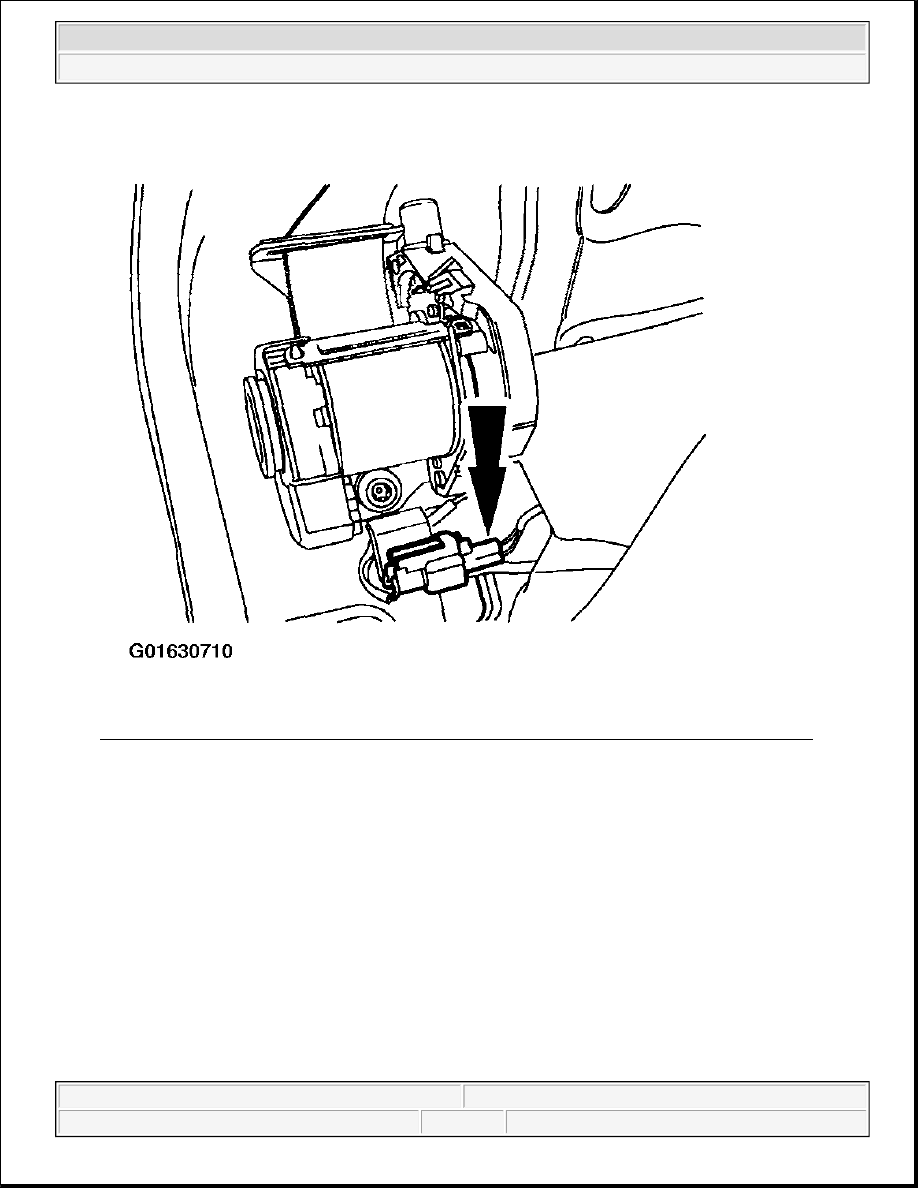

Fig. 105: Removing Restraint System Diagnostic Tool From Passenger Side Safety Belt
Courtesy of FORD MOTOR CO.

40. Connect the passenger side safety belt retractor pretensioner electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

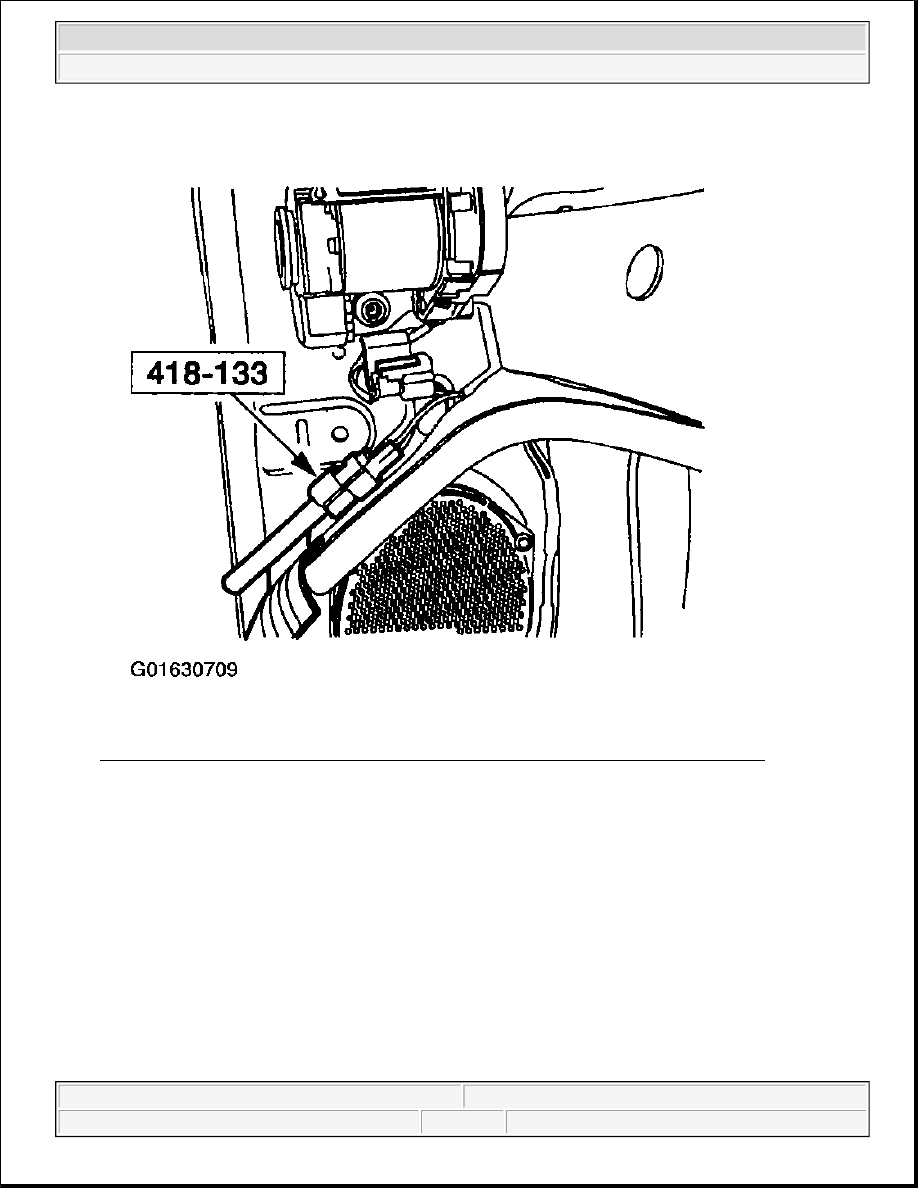

Fig. 106: Connecting Passenger Side Safety Belt Retractor Pretensioner Electrical Connector
Courtesy of FORD MOTOR CO.

41. Position the safety belt through the passenger side lower corner trim panel.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

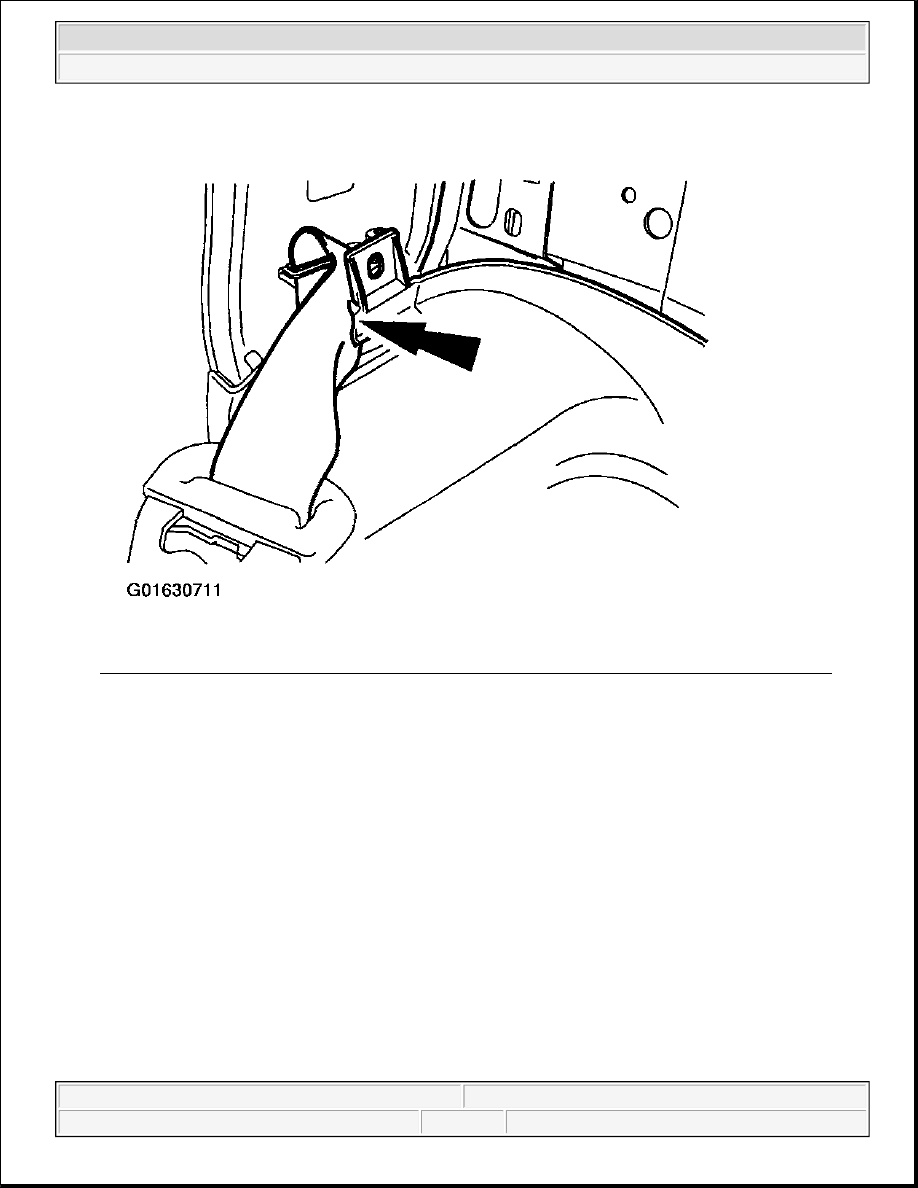

Fig. 107: identifying Position Of Safety Belt Through Passenger Side Lower Corner Trim Panel
Courtesy of FORD MOTOR CO.

42. Position the passenger side lower corner trim panel and push in near the door jamb, seating the retaining

clips. Install the three pin-type retainers.
