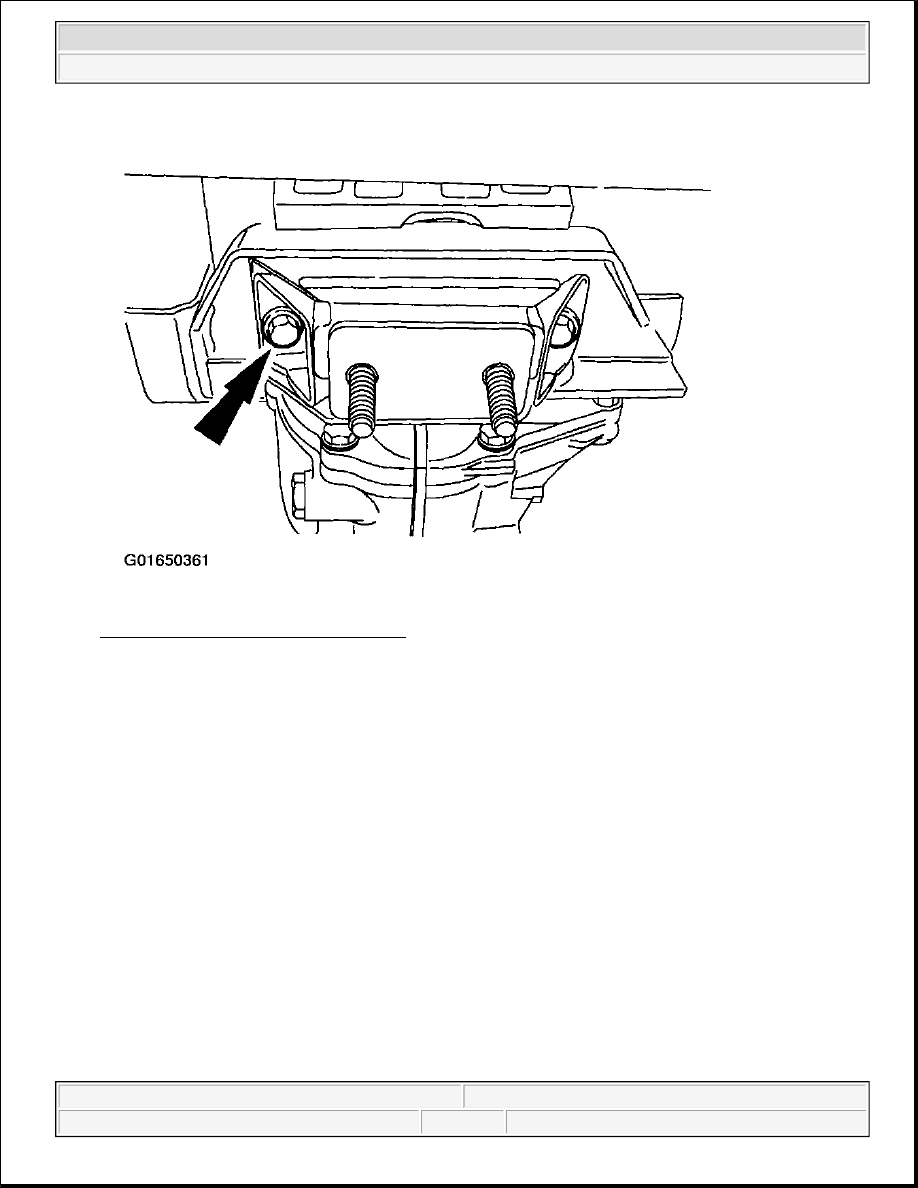

Fig. 51: Removing Transmission Mount
Courtesy of FORD MOTOR CO.

Four Wheel Drive Vehicles

24. Remove the bolt and disconnect the transfer case shift lever.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 52: Removing Transfer Case Shift Lever
Courtesy of FORD MOTOR CO.

All Vehicles

25. Remove the two engine oil pan-to-transmission bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 53: Removing Engine Oil Pan-To-Transmission Bolts
Courtesy of FORD MOTOR CO.

26. Remove the six engine-to-transmission bolts.

z

The upper bolt secures the fuel line bracket.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup



Fig. 54: Removing Engine-To-Transmission Bolts
Courtesy of FORD MOTOR CO.

27. Remove the muffler from the exhaust hanger brackets.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup
