Ford F150 Pickup. Instruction - part 1873

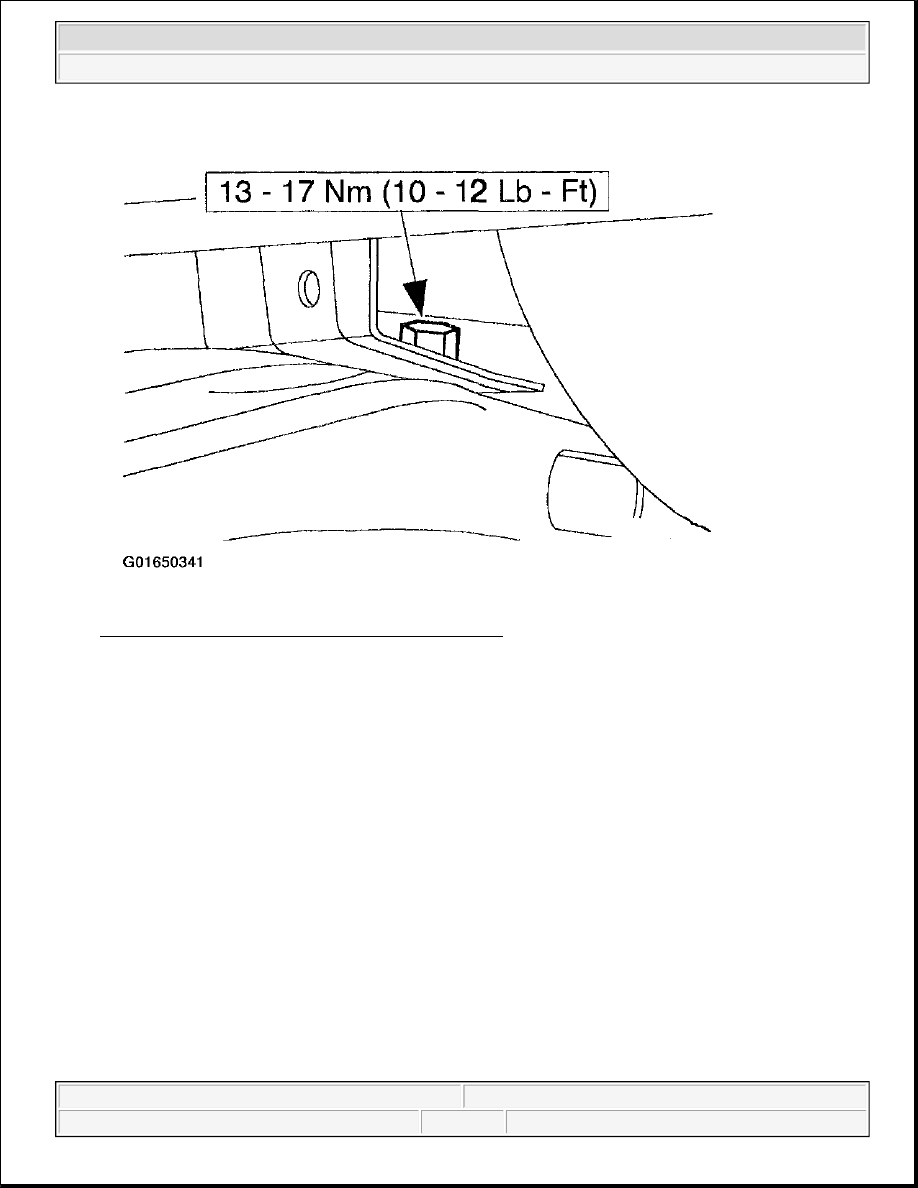

Fig. 31: Installing Heat Shield Bolts (One Each Side)
Courtesy of FORD MOTOR CO.

10. Remove the High-Lift Jack.

11. Install the transmission mount nuts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

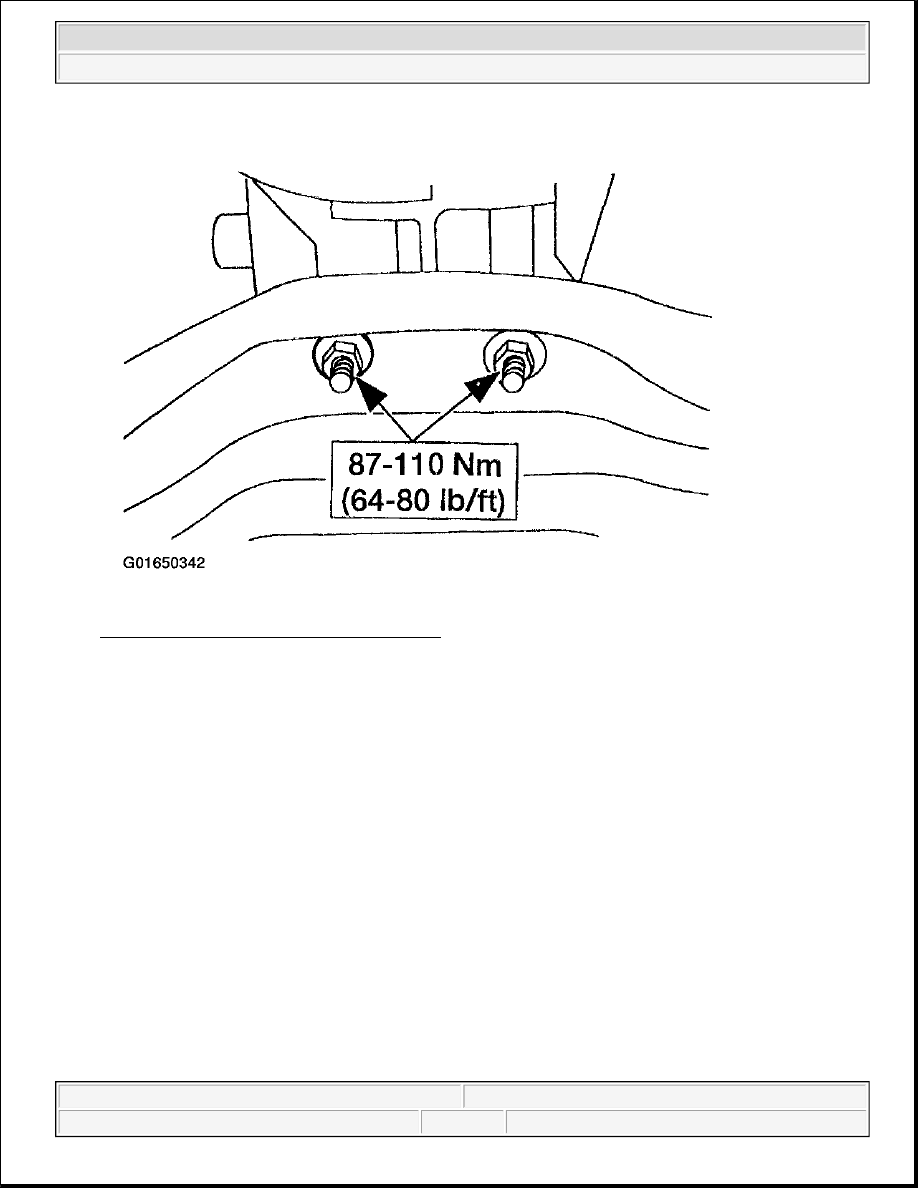

Fig. 32: Installing Transmission Mount Nuts
Courtesy of FORD MOTOR CO.

12. Install the VSS.

1. Install the VSS.

2. Install the bolt.

3. Connect the electrical connector.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

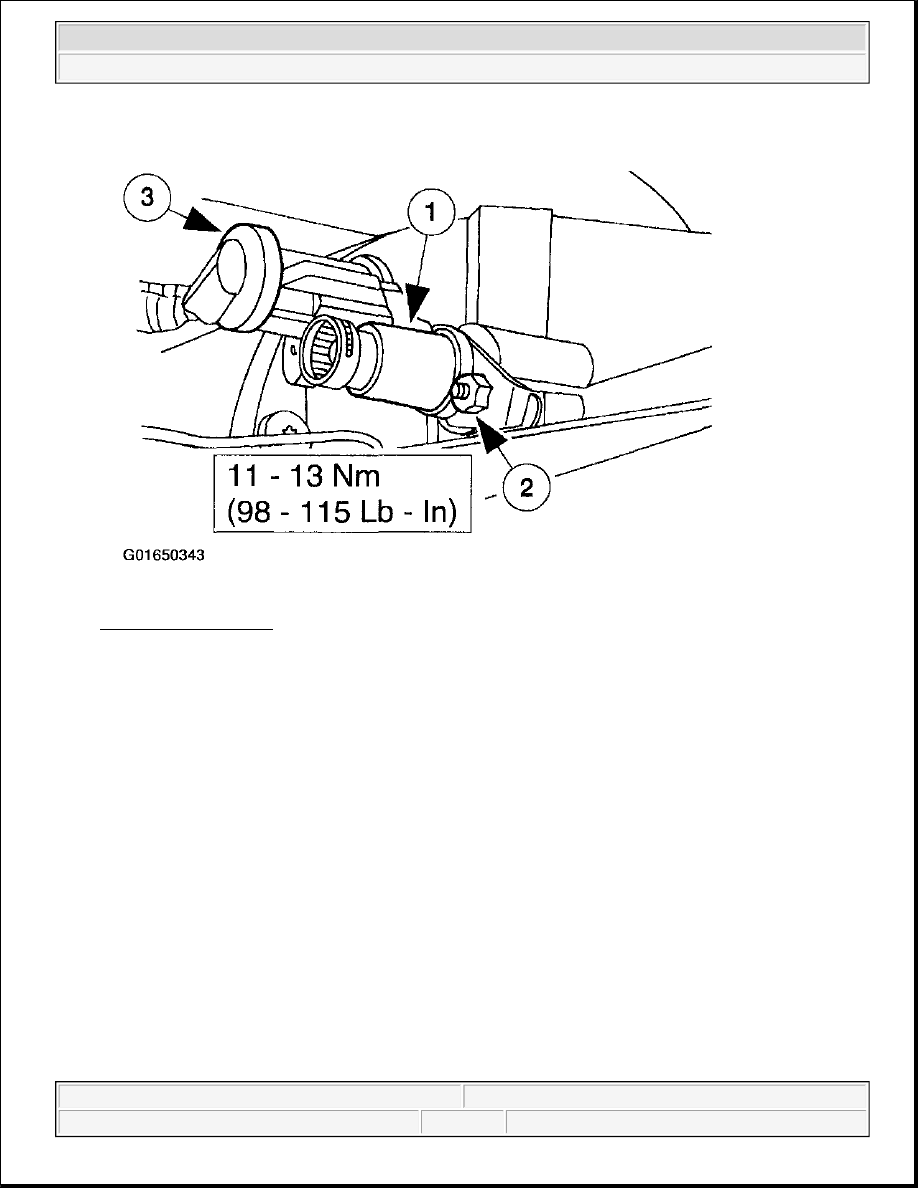

Fig. 33: Installing VSS
Courtesy of FORD MOTOR CO.

13. Install the rear driveshaft.

1. Position the rear driveshaft.

2. Install the bolts.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup

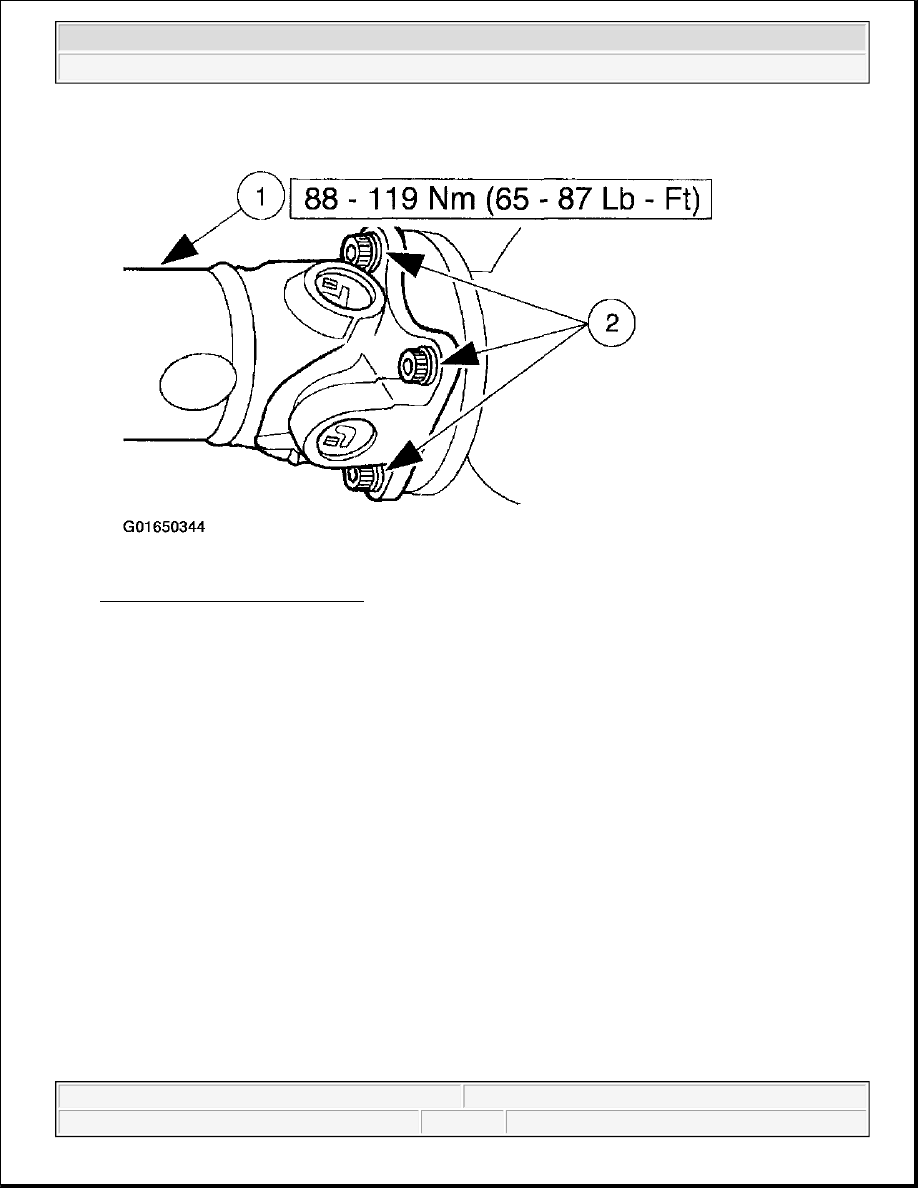

Fig. 34: Installing Rear Driveshaft
Courtesy of FORD MOTOR CO.

14. Fill (A) transmission with fluid until it reaches the bottom of the (B) fill port and install the (C) bolt.

z

Use Motorcraft MERCON Multi-Purpose Automatic Transmission Fluid XT-2-QDX or DDX or
equivalent Mercon Automatic Transmission Fluid.



2003 Ford Pickup F150

2003 TRANSMISSIONS Instruction Transmission - F150 Pickup
