Ford F150 Pickup. Instruction - part 184

Fig. 84: Closing Safety Belt Guide Cover
Courtesy of FORD MOTOR CO.

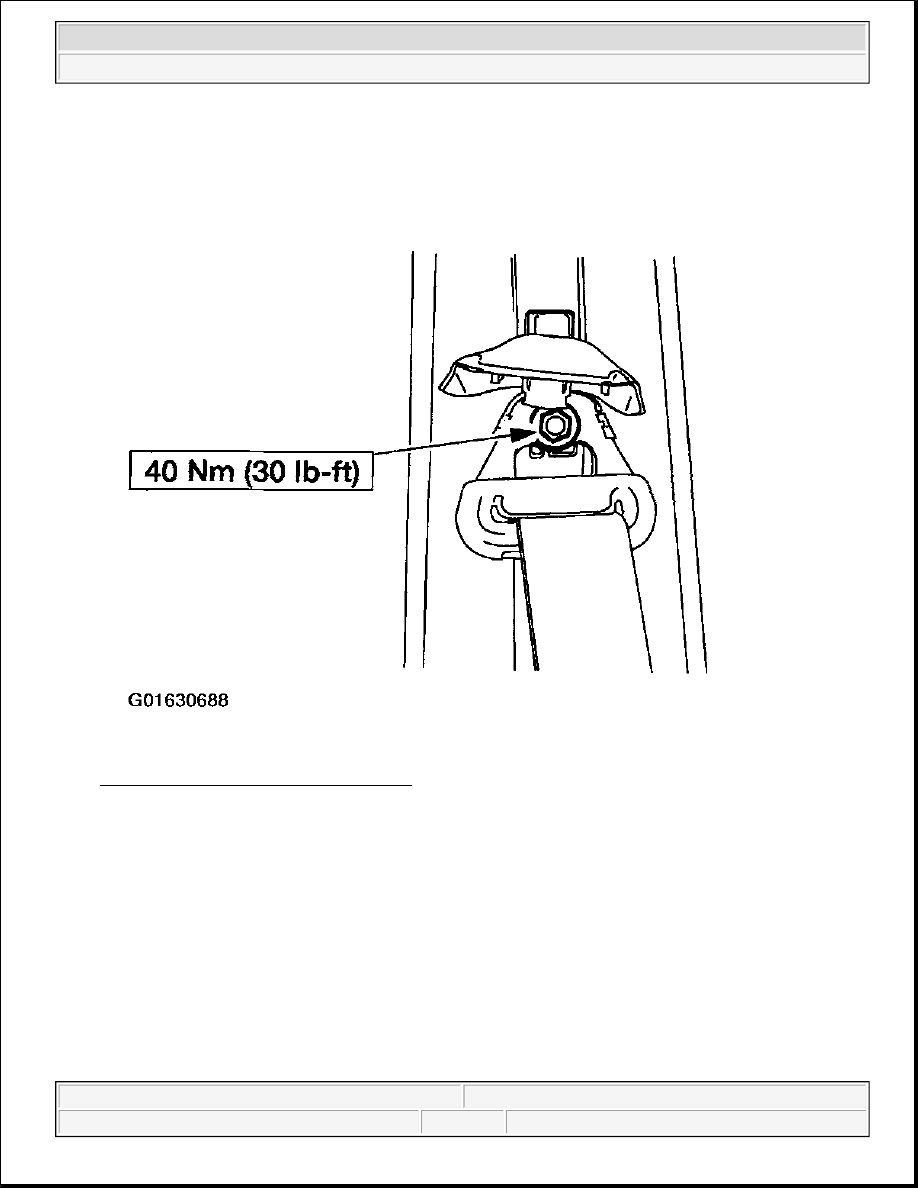

7. Position the safety belt guide. Install the nut. Close the safety belt guide cover.

8. Install the driver side rear scuff plate.

shoulder safety belt guide cover is damaged or if it does not remain
closed, install a new shoulder safety belt guide cover.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

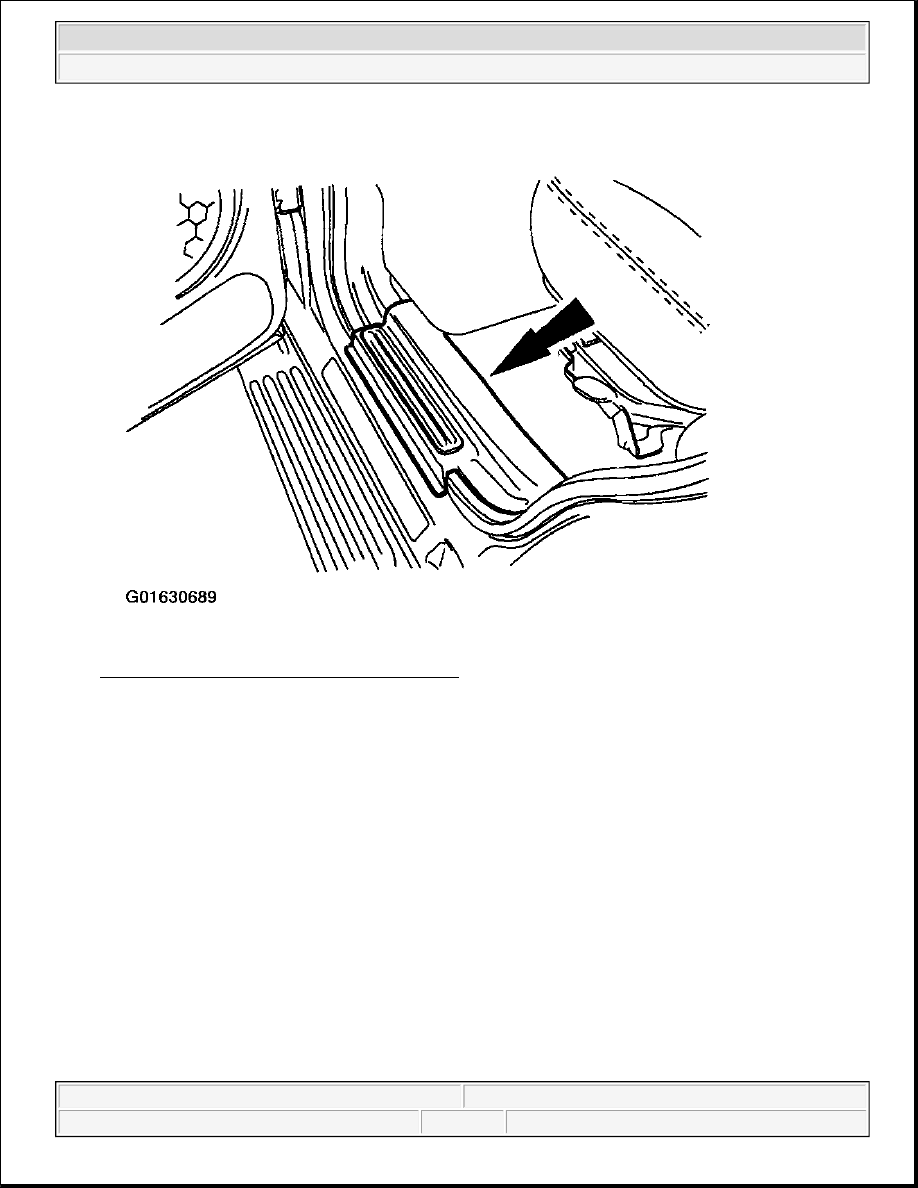

Fig. 85: Installing Driver Side Rear Scuff Plate
Courtesy of FORD MOTOR CO.

9. Install the driver side front scuff plate.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

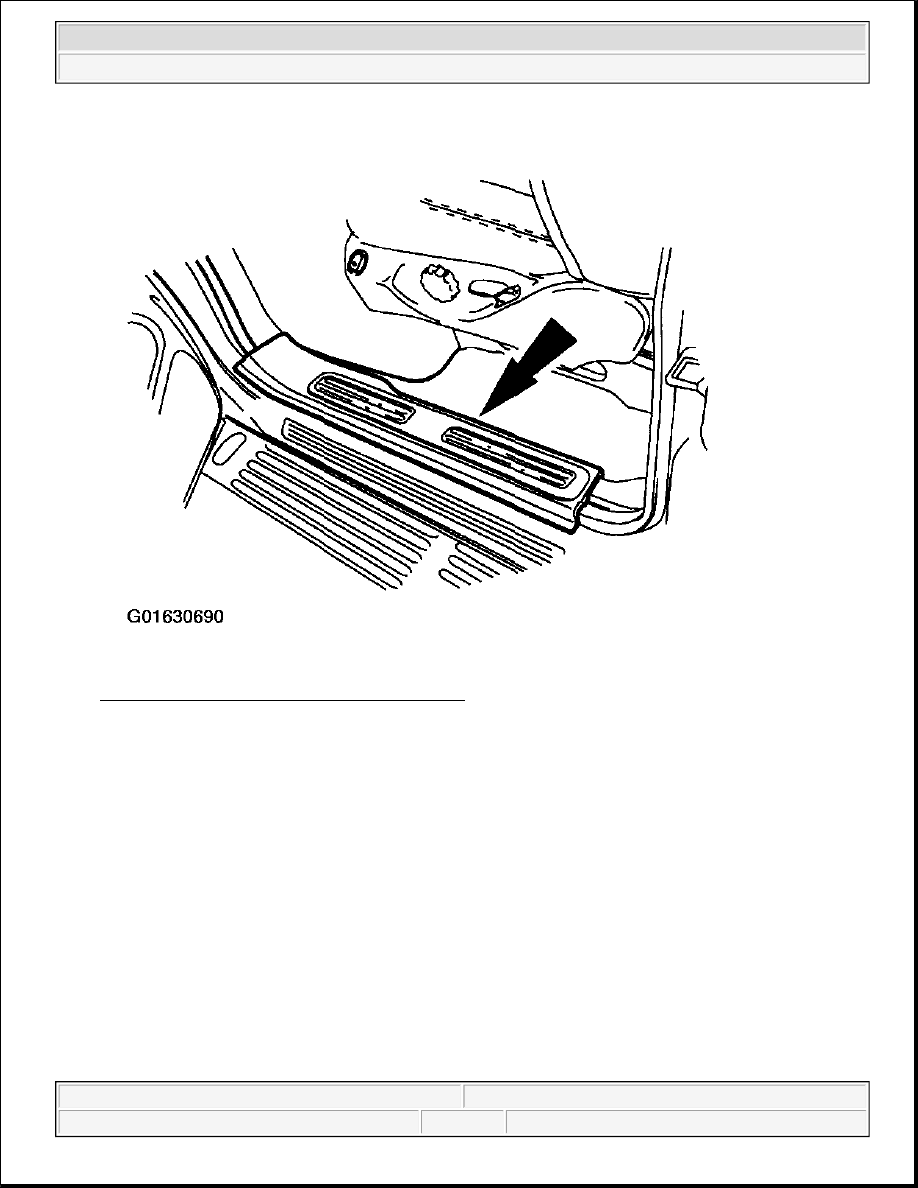

Fig. 86: Installing Driver Side Front Scuff Plate
Courtesy of FORD MOTOR CO.

10. Remove the restraint system diagnostic tool from the passenger side safety belt retractor pretensioner

electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

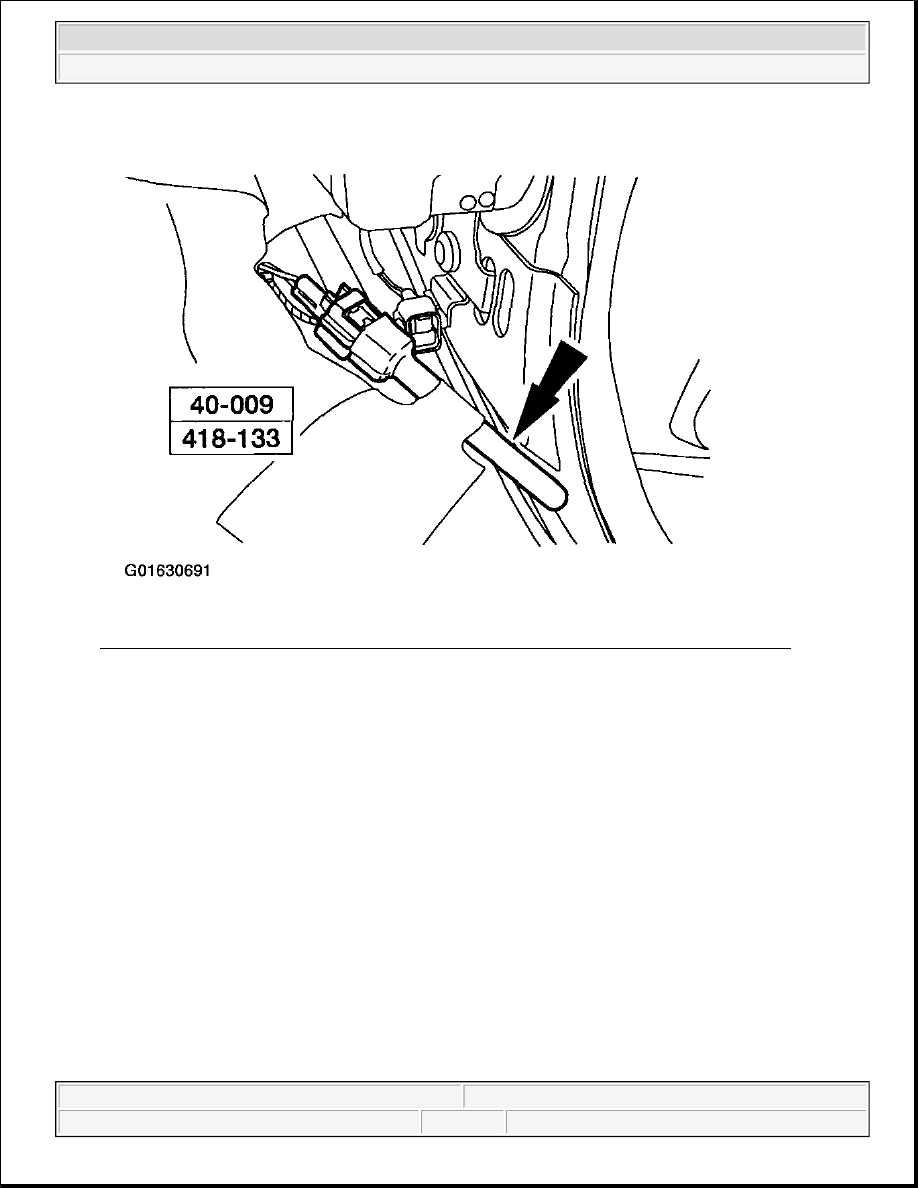

Fig. 87: Removing Restraint System Diagnostic Tool From The Passenger Side Safety Belt
Courtesy of FORD MOTOR CO.

11. Connect the passenger side safety belt retractor pretensioner electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
