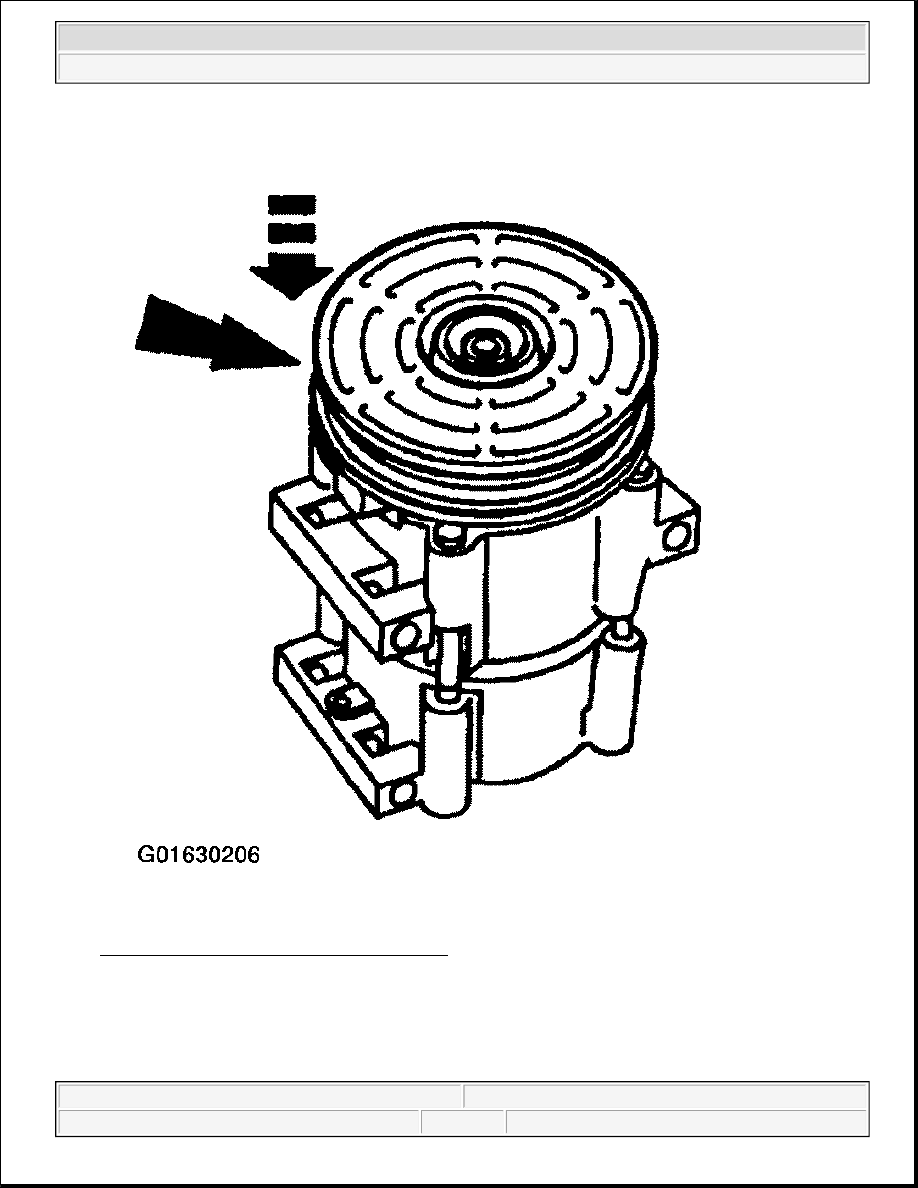

Fig. 32: View Of Installing A/C Clutch Pulley
Courtesy of FORD MOTOR CO.

3. Install the A/C clutch pulley.

4. Install the pulley snap ring with the bevel side out.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

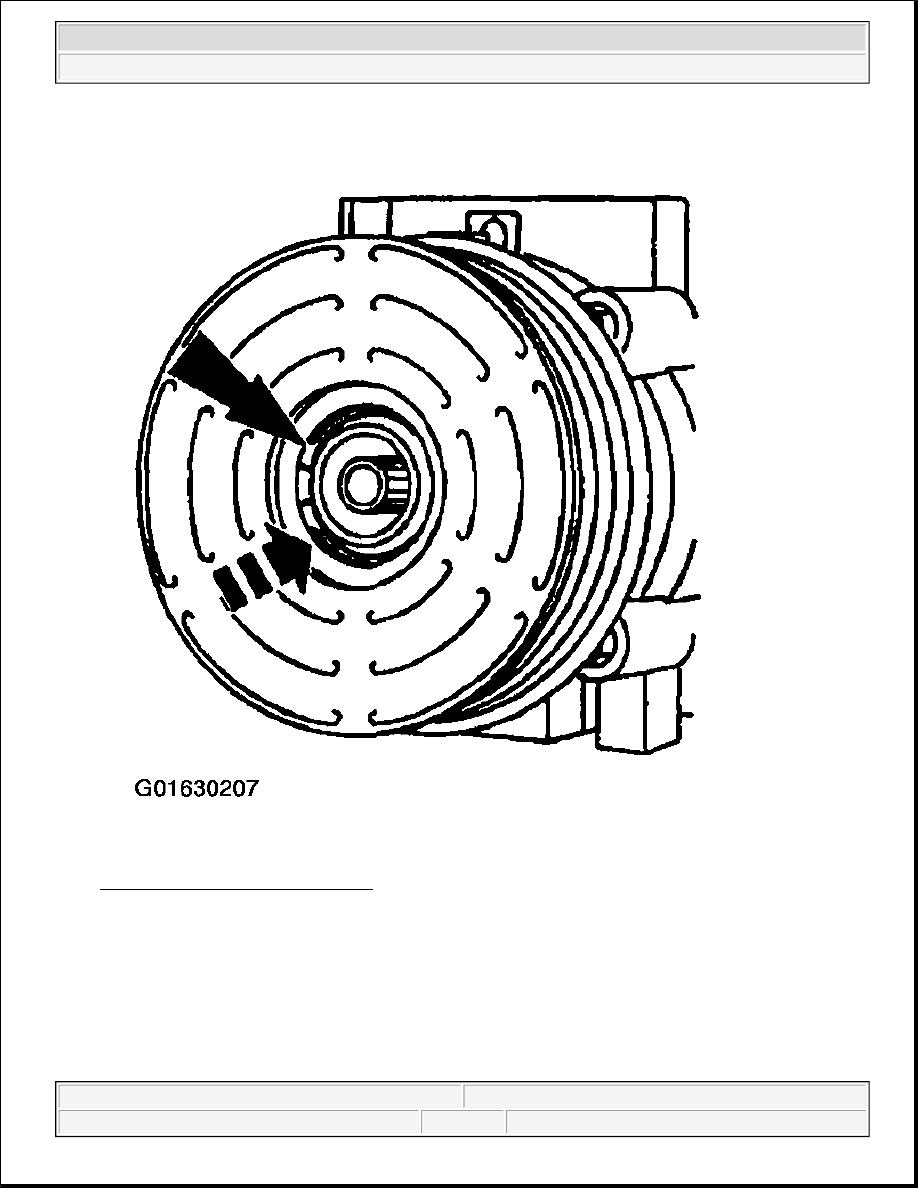

Fig. 33: Installing Pulley Snap Ring
Courtesy of FORD MOTOR CO.

5. Place one nominal thickness A/C clutch hub spacer inside the clutch hub spline opening.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

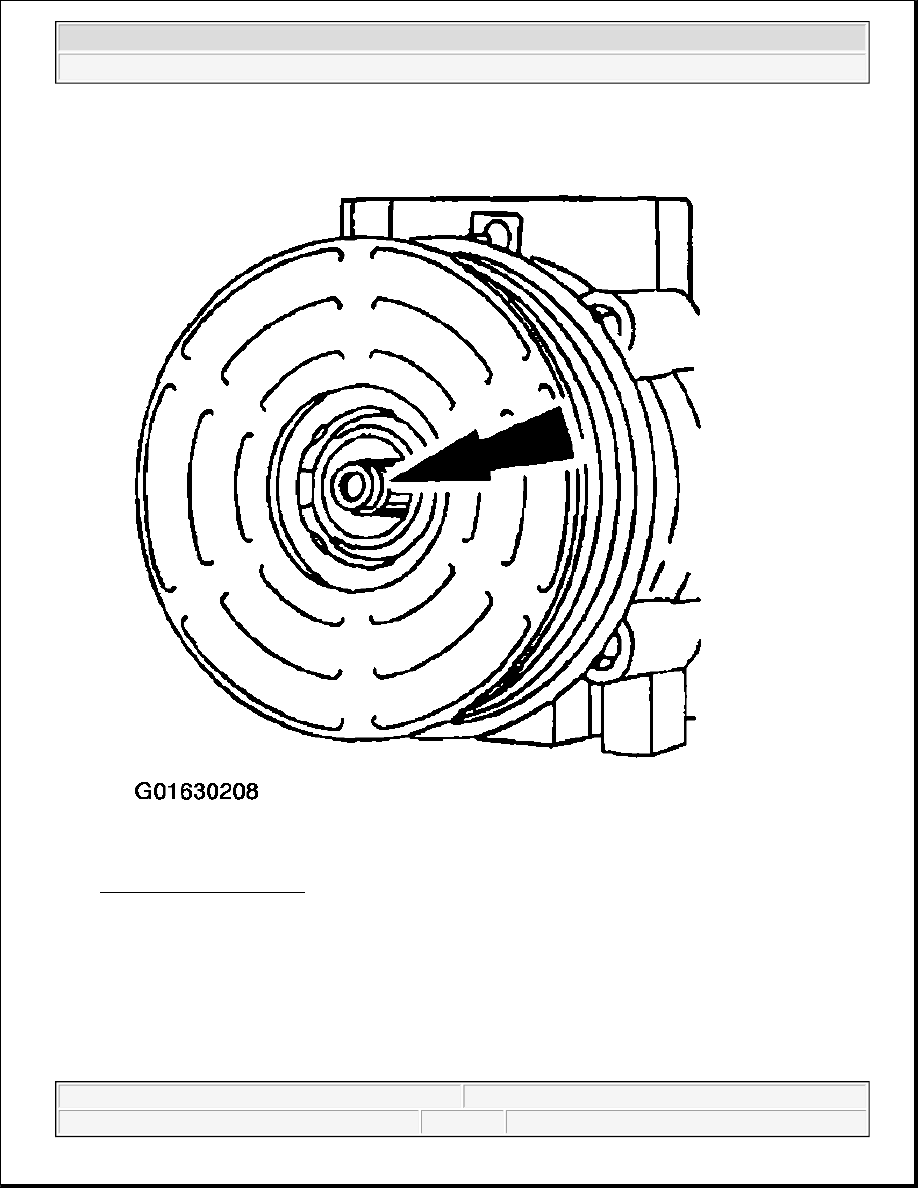

Fig. 34: Identifying Spacer
Courtesy of FORD MOTOR CO.

6. Install the A/C clutch.



2003 Ford Pickup F150

2003 HVAC Air Conditioning - F150 Pickup

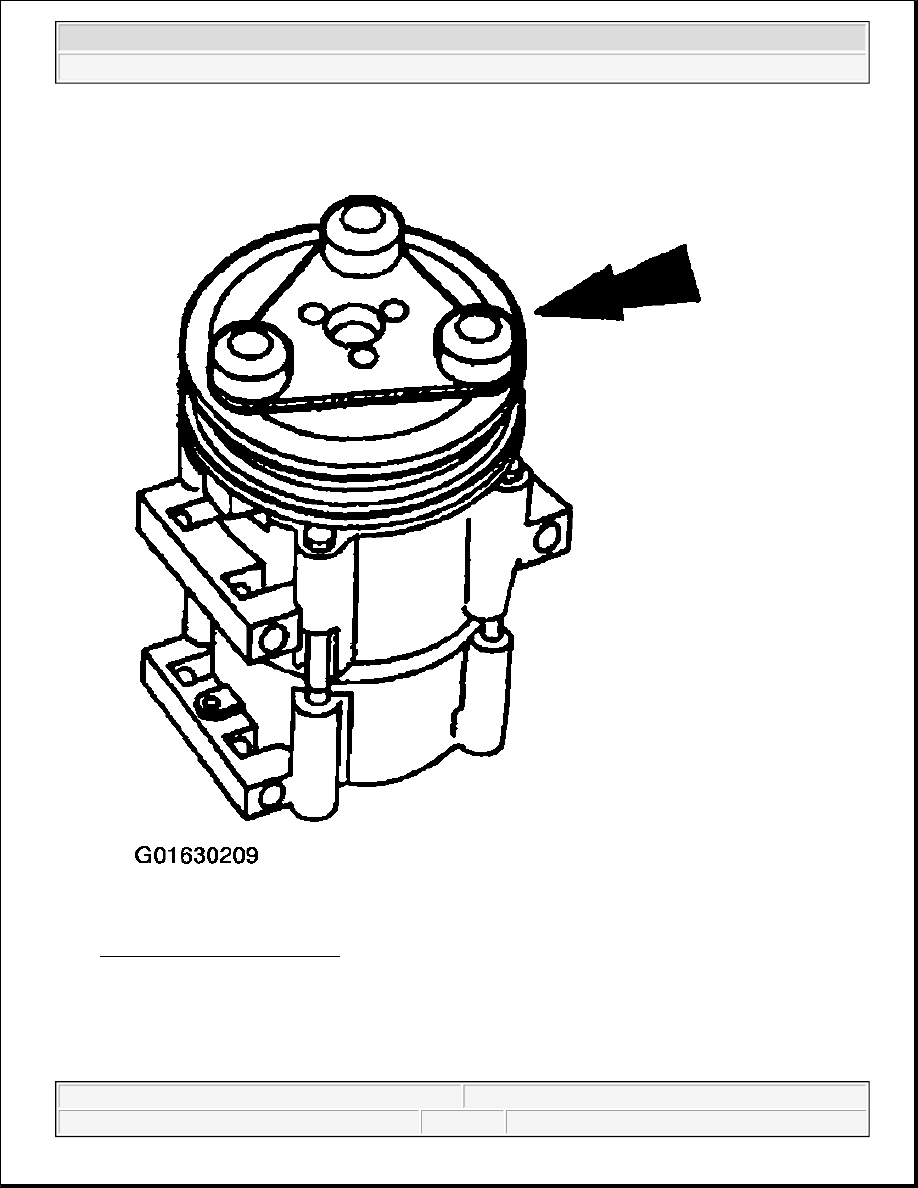

Fig. 35: Identifying A/C Clutch
Courtesy of FORD MOTOR CO.

7. Install the A/C clutch hub retaining bolt.
