Ford F150 Pickup. Instruction - part 159

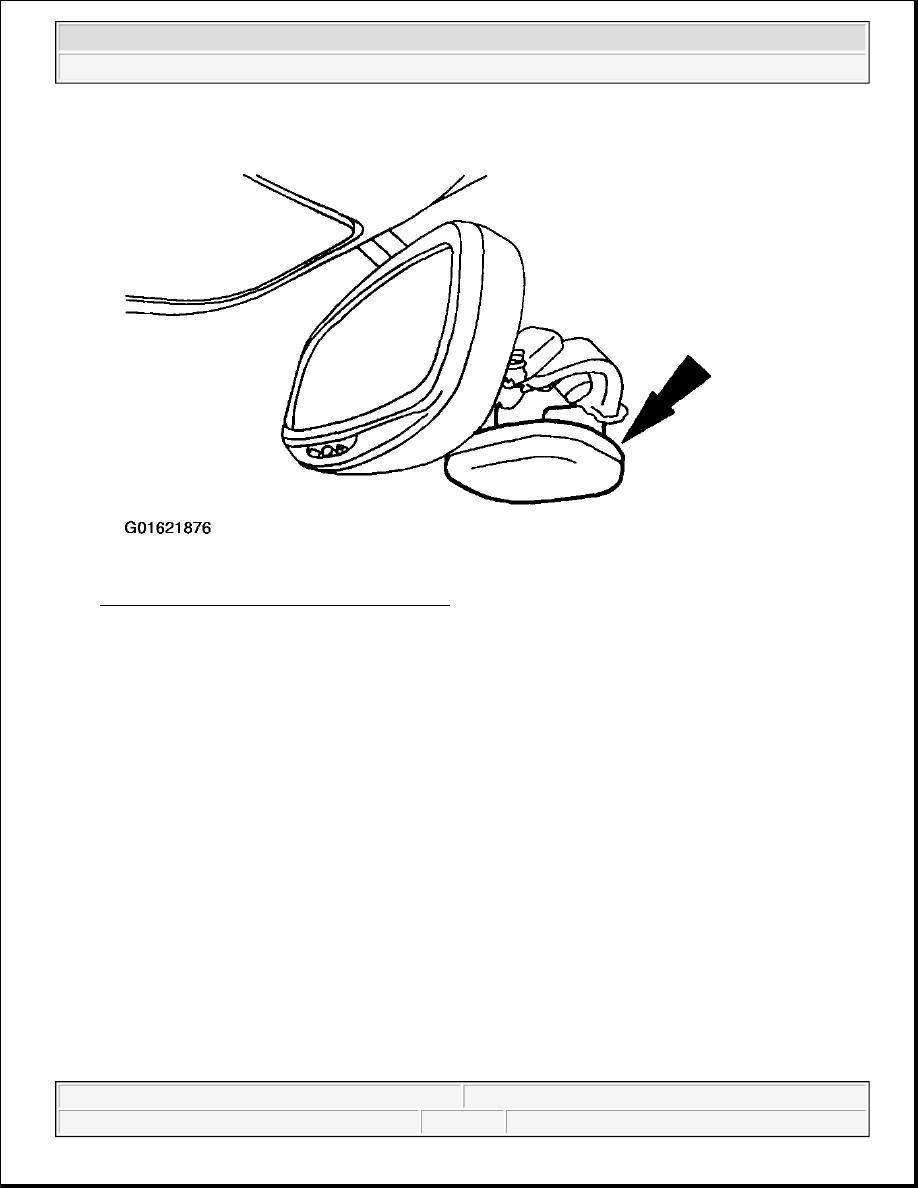

Fig. 43: Locating Position Electronic Compass Sensor
Courtesy of FORD MOTOR CO.

2. Remove the interior mirror.

z

Position the interior mirror in the full down position. Grasp the interior mirror and rotate, in a
downward and toward the windshield direction, until it is released from the interior mirror
windshield bracket.

Fig. 44: Removing Interior Mirror
Courtesy of FORD MOTOR CO.

Installation

1. Install the interior mirror.

1. Position the interior mirror on the windshield bracket.

2. Using the special tool, press the interior mirror in place until fully seated.

CAUTION: Do not use tools or other objects to pry the mount or interior mirror

away from the windshield. Use of tools can damage the interior
mirror/mount.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup



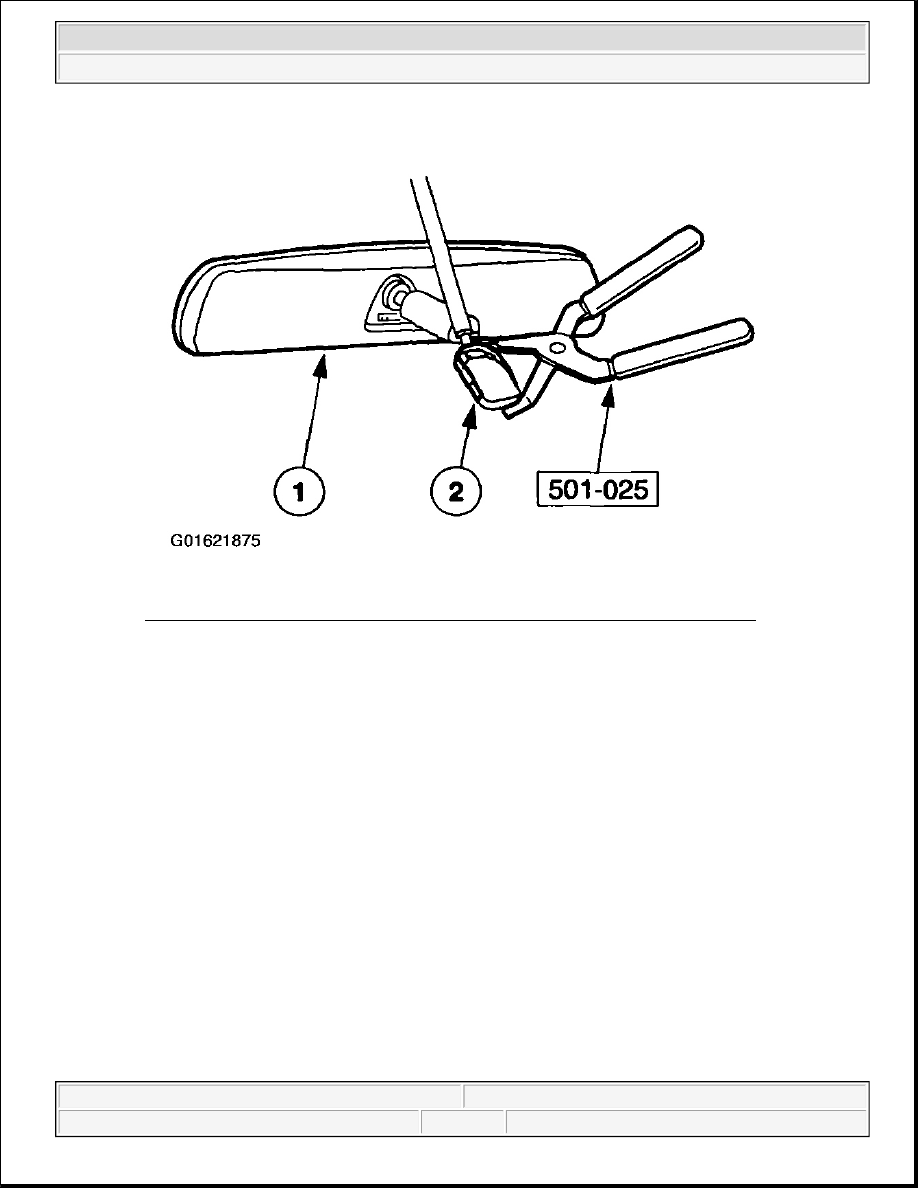

Fig. 45: Pressing Interior Mirror In Place Until Fully Seated Using Special Tool
Courtesy of FORD MOTOR CO.

2. If equipped, install the electronic compass sensor.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup



Fig. 46: Installing Electronic Compass Sensor
Courtesy of FORD MOTOR CO.

AUTO-DIMMING INTERIOR MIRROR

Removal

1. If equipped, position the electronic compass sensor aside.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup



Fig. 47: Locating Position Of Electronic Compass Sensor
Courtesy of FORD MOTOR CO.

2. Disconnect the auto-dimming interior mirror electrical connector.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Rear View Mirrors - F150 Pickup
