Ford F150 Pickup. Instruction - part 143

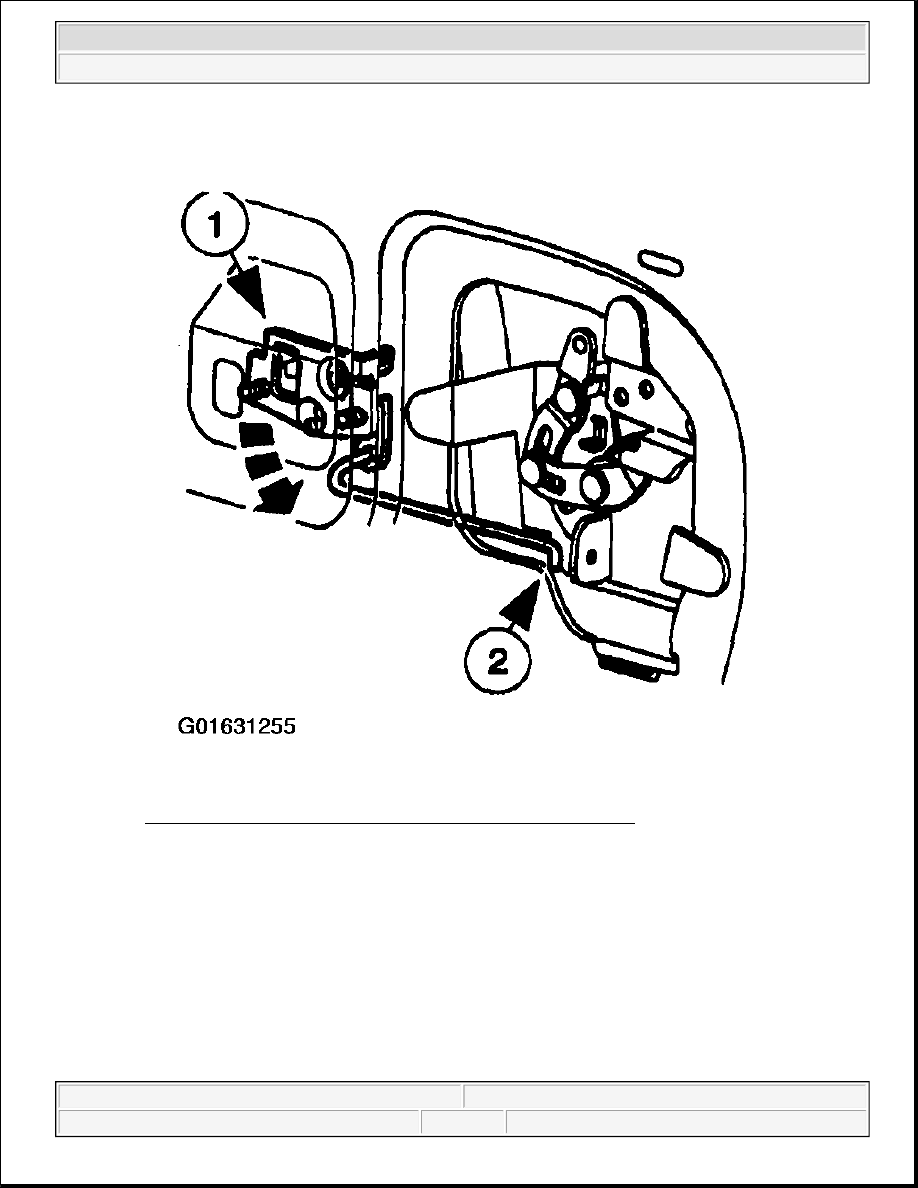

Fig. 127: Removing Rear Door Interior Handle Remote Control
Courtesy of FORD MOTOR CO.

Installation

1. To install, reverse the removal procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup

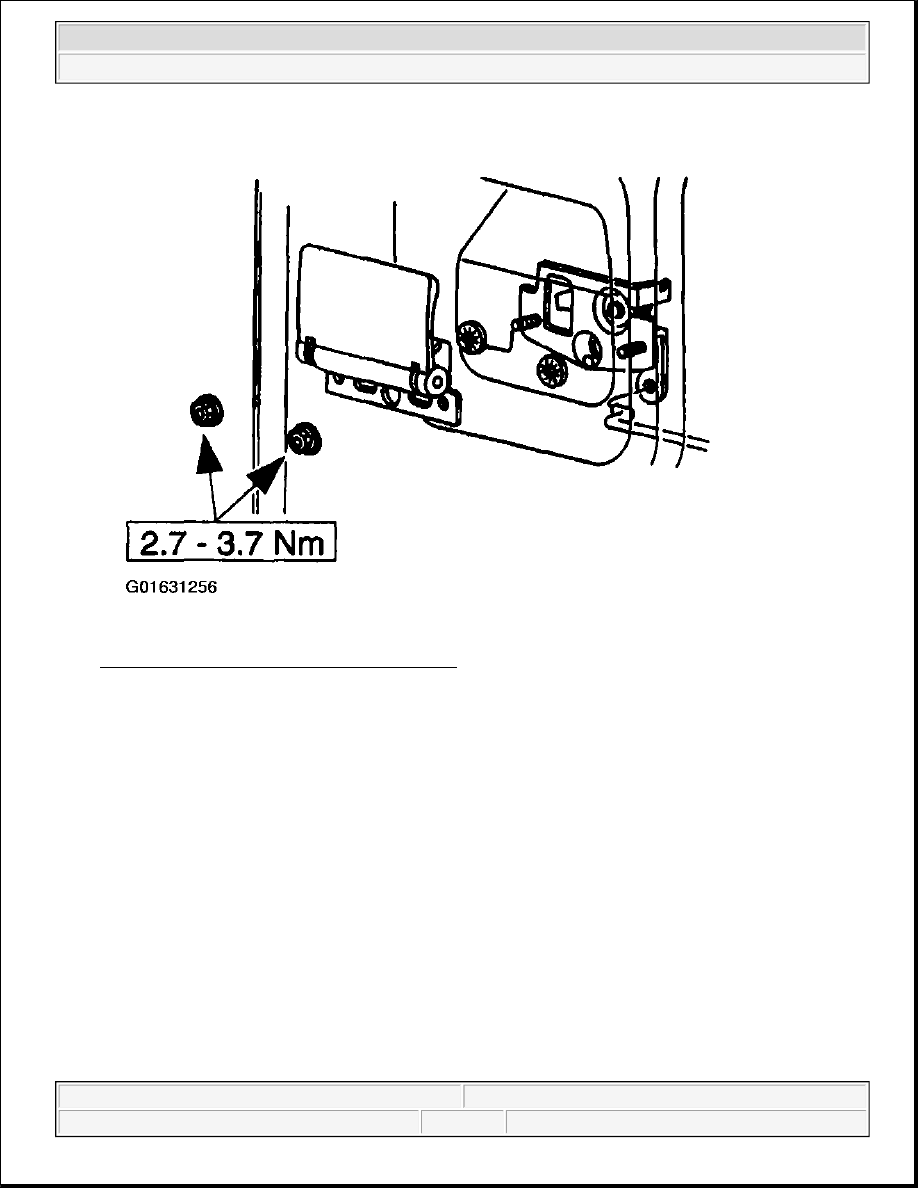

Fig. 128: Installing Interior Rear Door Handle
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup

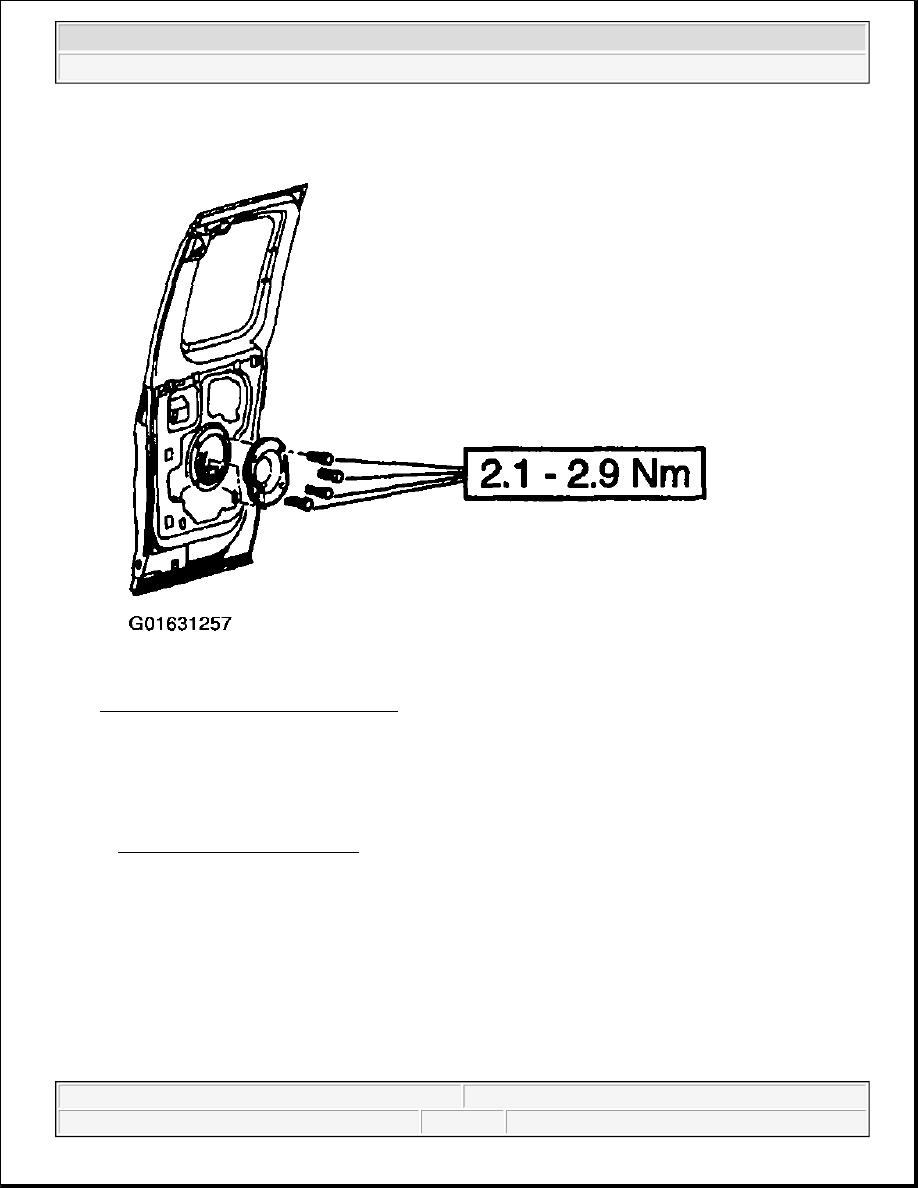

Fig. 129: Installing Rear Door Speaker
Courtesy of FORD MOTOR CO.

TAILGATE RELEASE HANDLE

Removal and Installation

Refer to Tailgate Latch Remote Control .

IGNITION LOCK CYLINDER - NON FUNCTIONAL

Removal and Installation

1. Disconnect the battery ground cable (14301) and wait at least one minute.

NOTE:

Make sure the front wheels are in the straight-ahead position.

WARNING:

To avoid the risk of serious personal injury, read and follow all



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



2. Deactivate the supplemental restraint system (SRS). Refer to DISABLING SYSTEM .

3. Remove the steering wheel assembly. Refer to WHEEL .

4. Twist off the cap from the ignition switch cylinder.

warnings, notes and instructions in the deactivation procedure.

WARNING:

To reduce the risk of serious personal injury, read and follow all
warnings, notes and instructions in the steering wheel removal and
installation procedure.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup
