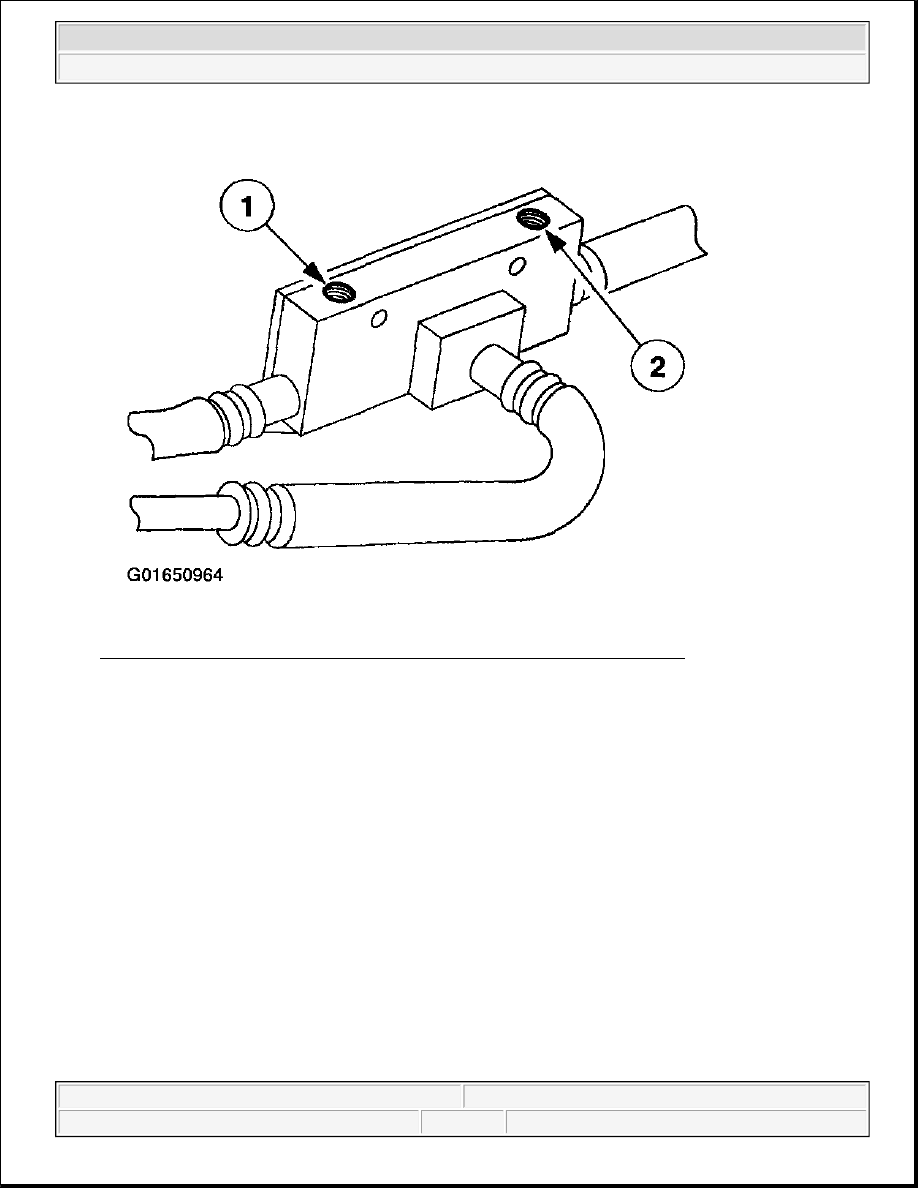

Fig. 56: Locating Adjustment Screw Holes On Top Of Tuning Tee Assembly
Courtesy of FORD MOTOR CO.

15. Turn the tuning tee adjustment screw identified in step 13 one complete turn clockwise and repeat steps

10 through 12.

16. Retrieve and compare the current graphed PCM PIDs O2S11 and O2S21 data with the previous data. If

the determined PCM O2S PID from the previous graphed data continues to have the longer high state
time, repeat steps 15 and 16.

17. If the determined PCM O2S PID from the previous graphed data now has a shorter high state time, turn

the corresponding tuning tee adjustment screw counterclockwise 1/2 turn and repeat steps 10 through 12.

18. Retrieve and compare the current recorded graphed PCM PIDs O2S11 and O2S21 data. If necessary,

continue to turn the same adjustment screw by 1/4 and 1/8 turn increments clockwise or counterclockwise
as described in step 14 repeating steps 10 through 12 with each adjustment until both O2S PIDs display
equal high state time.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System-General Information-Bi-Fuel - F150 Pickup



Fig. 57: O2S PIDs Display
Courtesy of FORD MOTOR CO.

19. When the retrieved PCM PIDs O2S11 and O2S21 data display equal high state time, the alternate fuel

system is correctly tuned and no further adjustment is required. Document the following information:
VIN, date, lead technician, assistant, O2S bank number adjusted, required number of turns to adjustment
screw (to nearest 1/8th turn).

20. Turn the ignition switch to the OFF position and remove the vacuum gauge and restore the intake vacuum

system.

21. Paint mark the tuning tee adjustment screw positions and seal the access hole with a manufacturers sensor

safe sealant. Cover and label the adjustment screw cavities indicating that the alternative fuel system
tuning procedure has been performed. Update all necessary vehicle inspection labels and placards.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System-General Information-Bi-Fuel - F150 Pickup



2003 GENERAL INFORMATION

Fuel System - General Information - Natural Gas - F150 Pickup

SPECIFICATIONS

TORQUE SPECIFICATIONS

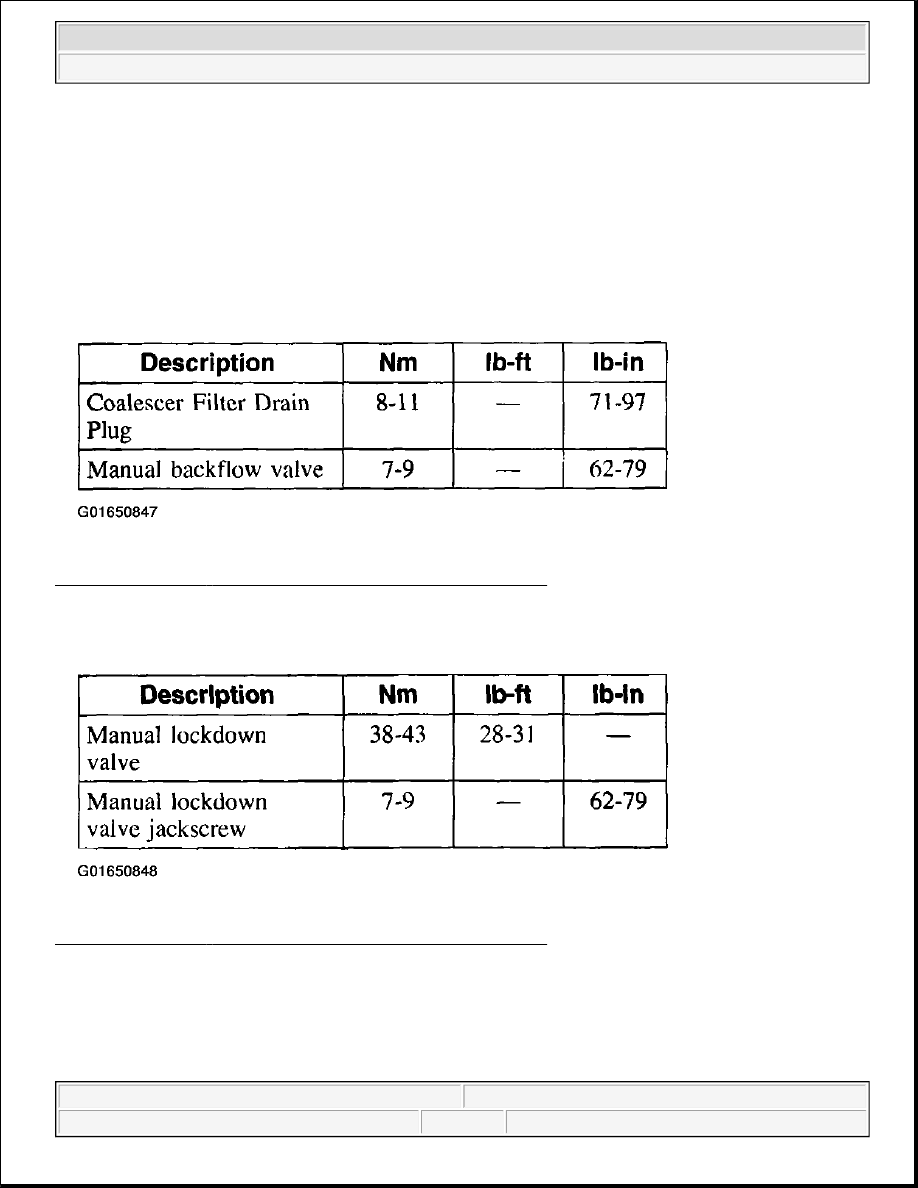

Fig. 1: Fuel System - Natural Gas Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.

Fig. 2: Fuel System - Natural Gas Torque Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.

DESCRIPTION & OPERATION

FUEL SYSTEM



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - Natural Gas - F150 Pickup





2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - Natural Gas - F150 Pickup



When repairing the fuel system, observe the following information:

z

All 5.4L CNG engines use a closed-type Positive Crankcase Ventilation (PCV) system and an exhaust
emission system to control engine emissions within government specifications.

z

To maintain the required exhaust emission levels, the fuel system must be kept in proper operating
condition.

z

The Natural Gas fuel system must be adjusted to specifications. Refer to SERVICE & ADJUSTMENT
SPECIFICATIONS .

z

Additional engine performance checks are required to keep the exhaust emissions at the specified
minimum pollutant level.

This article covers general procedures related directly to the fuel system.

Always refer to an appropriate Master Parts Catalog for parts usage and interchangeability before replacing any
component of the fuel system.

Coalescer/Filter

Natural gas vehicles are equipped with a coalescer/filter assembly. The coalescer/filter assembly separates,
filters and stores any contamination and moisture found in the fuel system, preventing moisture from entering
the engine.

WARNING:

Do not modify the system configuration or components, or replace
components with parts not specially designed for use with natural gas.
Ford Motor Company has specially designed the materials, components
and system configuration for the 5.4L F-250 natural gas vehicles, and
each particular system is precisely calibrated for efficient operation. The
use of different parts or materials can produce an untested configuration
that could result in fire or personal injury, or cause engine damage.

WARNING:

It is important that your natural gas vehicle be properly maintained by
ford natural gas trained personnel. If a problem occurs, it is important
that properly trained personnel diagnose the cause. If the problem relates
to the fuel system, proper part replacement is imperative to keep your
vehicle operating at normal performance. Natural gas components and
gasoline fuel components are not interchangeable. If your vehicle is not
serviced in accordance with natural gas-fueled vehicle procedures,
damage can occur and your warranty may be invalidated.

NOTE:

All standard production components and systems receive routine repair under
base warranty procedures.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - Natural Gas - F150 Pickup
