Ford F150 Pickup. Instruction - part 1012

4. Disconnect the water pump electrical connector.

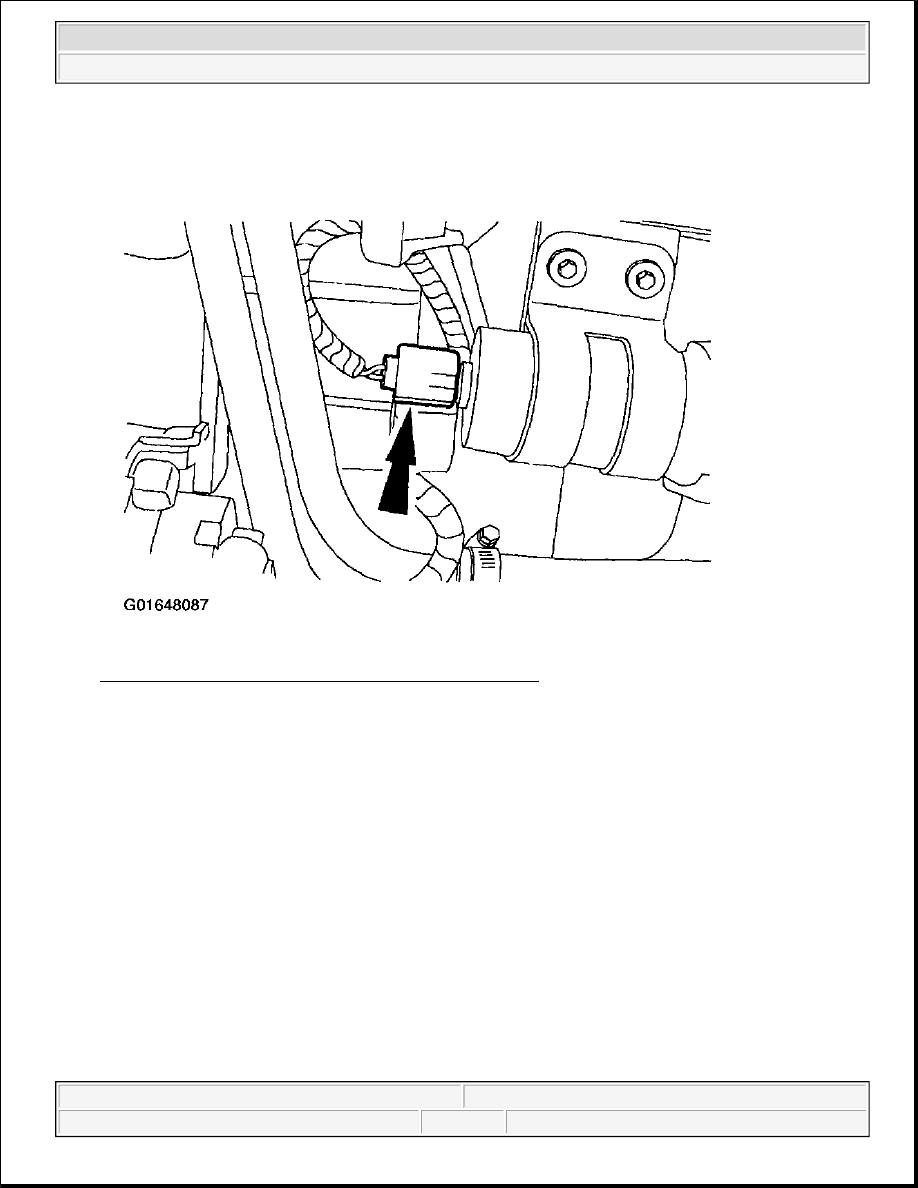

Fig. 11: Disconnecting Water Pump Electrical Connector
Courtesy of FORD MOTOR CO.

5. Disconnect the coolant hoses.



2003 Ford Pickup F150

2003 ENGINE Supercharger Cooling - F150 Pickup

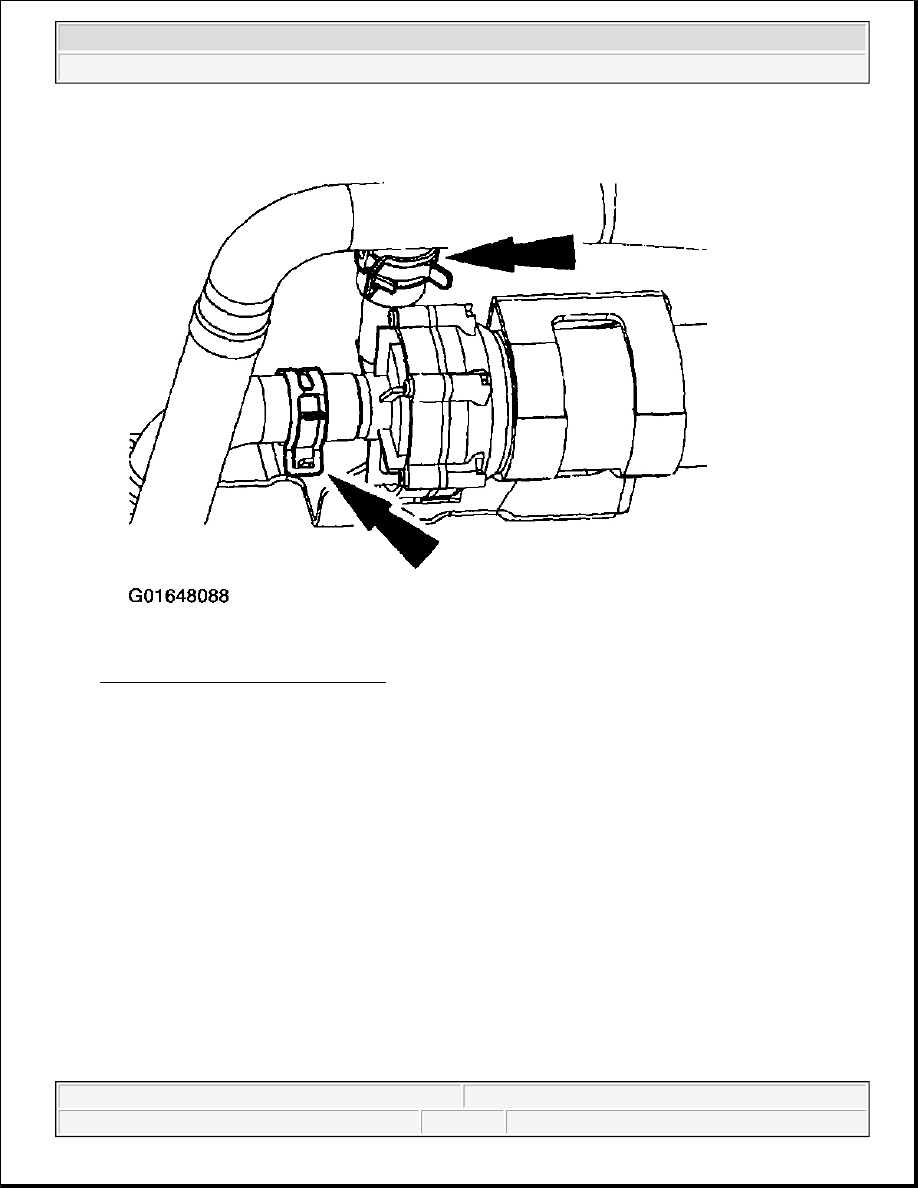

Fig. 12: Disconnecting Coolant Hoses
Courtesy of FORD MOTOR CO.

6. Remove the bolts and the water pump.



2003 Ford Pickup F150

2003 ENGINE Supercharger Cooling - F150 Pickup



Fig. 13: Removing Water Pump
Courtesy of FORD MOTOR CO.

7. To install, reverse the removal procedure.

RADIATOR

Removal & Installation

1. Drain the coolant. For additional information, refer to SUPERCHARGER COOLING SYSTEM

DRAINING, FILLING & BLEEDING .

NOTE:

RH is shown LH is similar.



2003 Ford Pickup F150

2003 ENGINE Supercharger Cooling - F150 Pickup

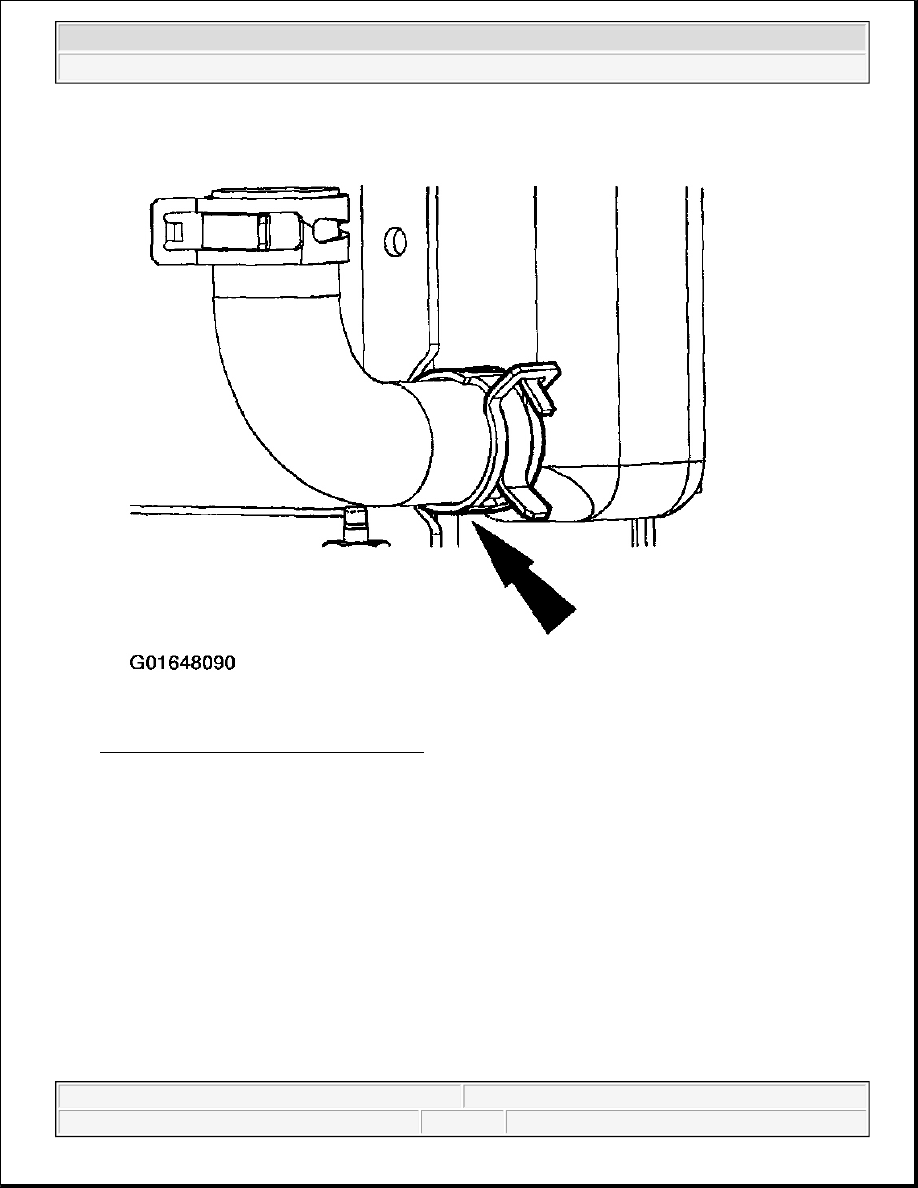

Fig. 14: Disconnecting Two Coolant Hoses
Courtesy of FORD MOTOR CO.

2. Disconnect the two coolant hoses.

3. Remove the bolts and the radiator.



2003 Ford Pickup F150

2003 ENGINE Supercharger Cooling - F150 Pickup
