Ford F150 Pickup. Instruction - part 19

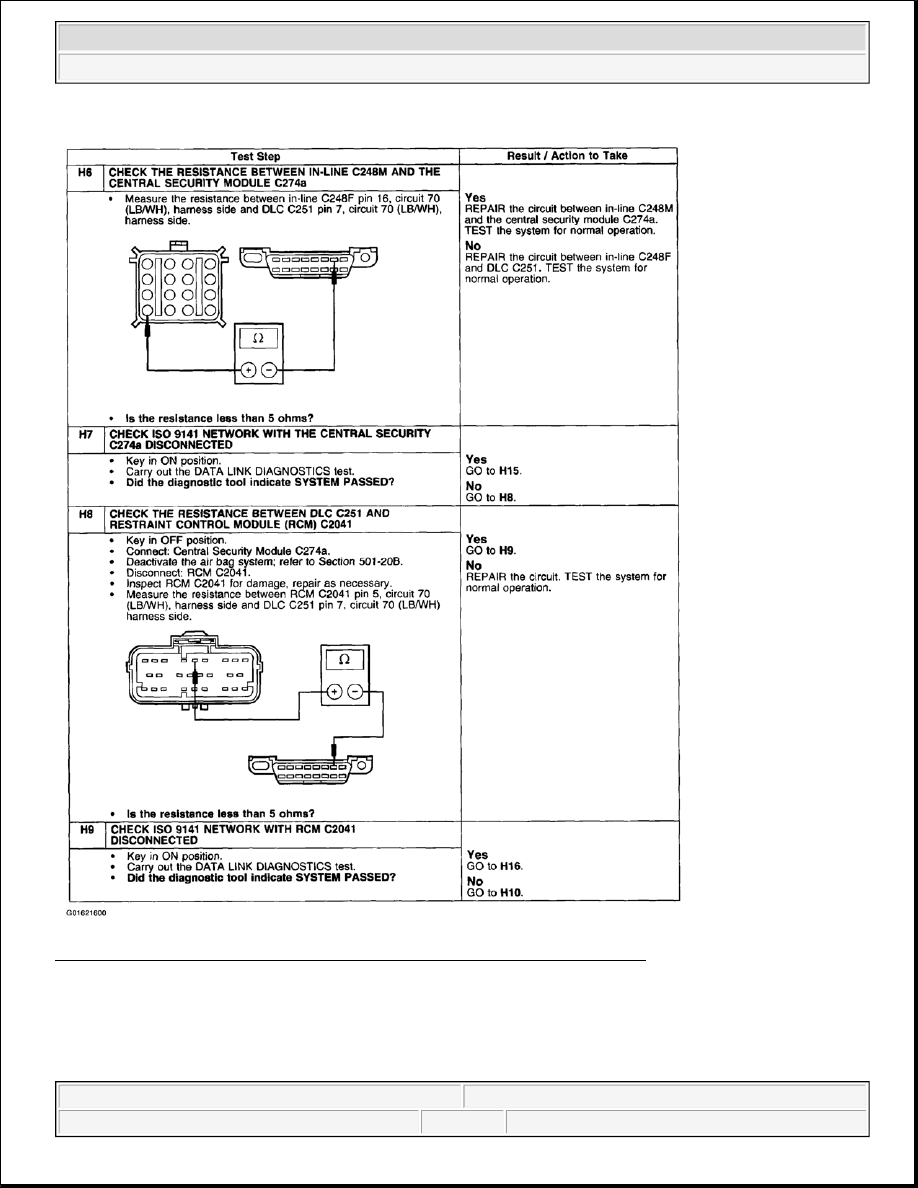

Fig. 23: Pinpoint Test H: No International Standards Organization (H6 - H9)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Module Communications Network - F150 Pickup

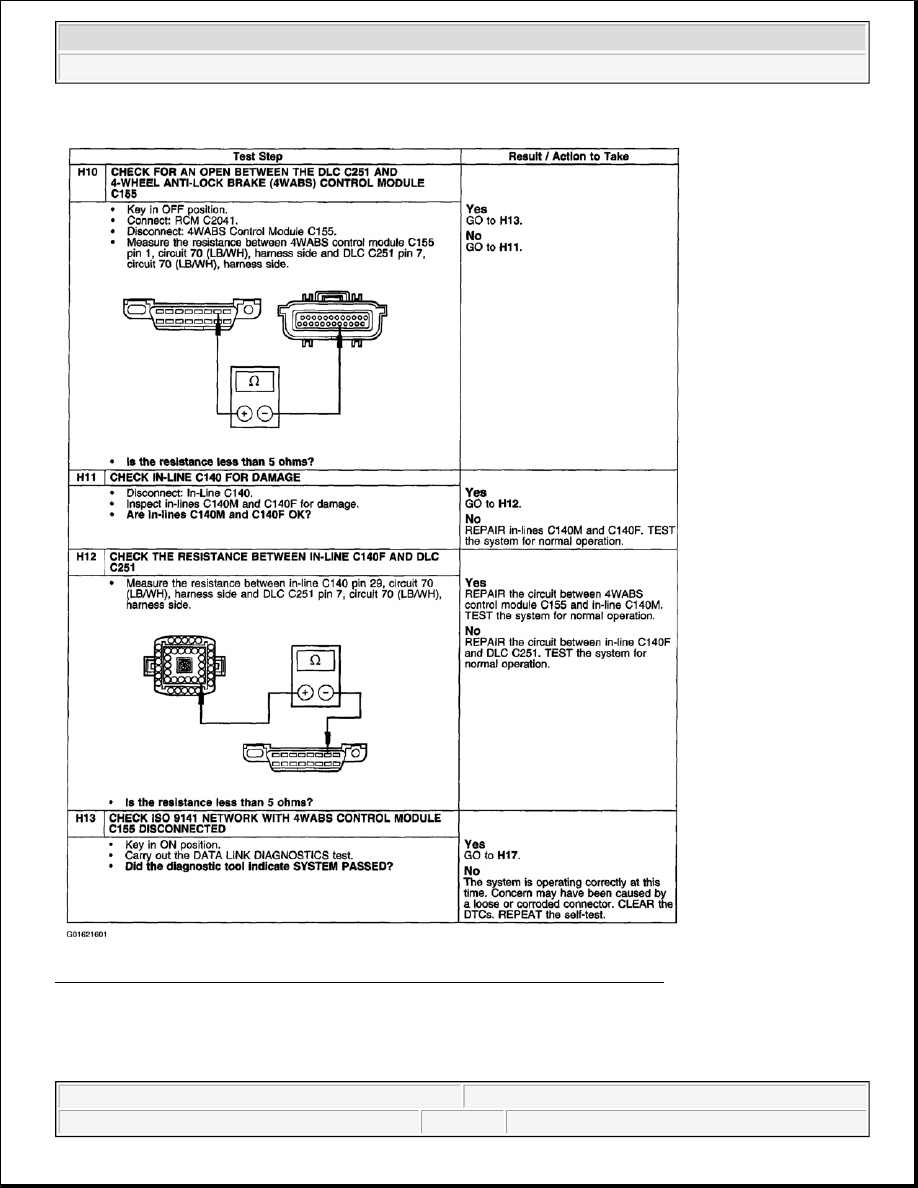

Fig. 24: Pinpoint Test H: No International Standards Organization (H10 - H13)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Module Communications Network - F150 Pickup

Fig. 25: Pinpoint Test H: No International Standards Organization (H14 - H17)
Courtesy of FORD MOTOR CO.

PINPOINT TEST I: NO STANDARD CORPORATE PROTOCOL

2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Module Communications Network - F150 Pickup

Fig. 26: Pinpoint Test I: No Standard Corporate Protocol (I1)
Courtesy of FORD MOTOR CO.

Fig. 27: Pinpoint Test I: No Standard Corporate Protocol (I1 - I4)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Module Communications Network - F150 Pickup
