Приборы и сигнализаторы

Правильное управление



Приборы и сигнализатор





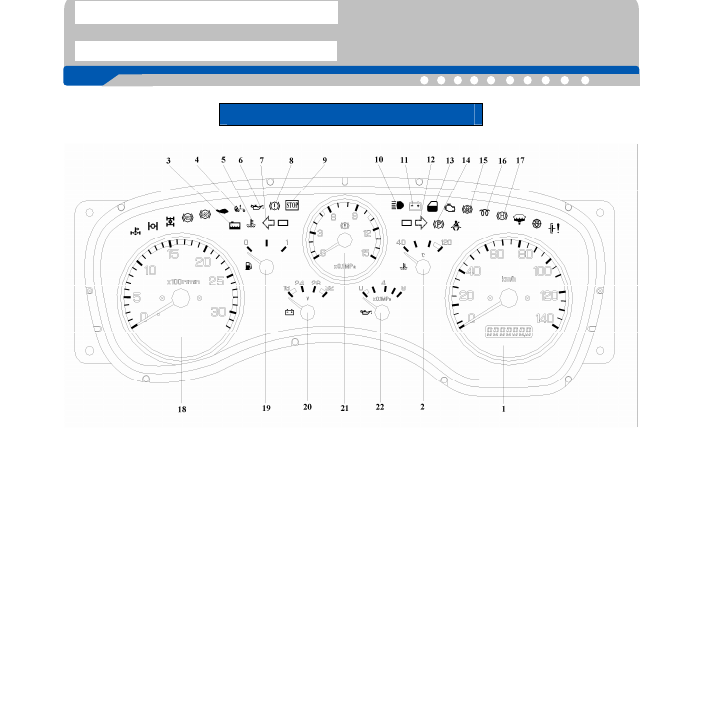

1-Спидометр 2-Указатель температуры воды 3-Сигнализатор-лампа недостаточного

уровня охлаждающей жидкости 4-Сигнализатор-лампа опрокидывания кабины

5-Сигнализатор-лампа температуры охлаждающей жидкости 6-Сигнализатор-лампа

давления моторного масла  7-Указатель левого поворота 8-Сигнализатор

неисправности тормозной системы 9-Указатель неисправности STOP 10-фара

дальнего света 11-Указатель заряда аккумулятора 12-Указатель правого поворота

13-Сигнализатор открытия двери 14-Указатель стояночного тормоза 15-Указатель

неисправности системы освещения 16-Указатель прогрева двигателя 17-Указатель

вспомогательного тормоза 18-Тахометр двигателя 19-Топливомер 20-Вольтметр

21-Барометр 22-Манометр машинного масла



- 16 -

Приборы и сигнализаторы

Правильное управление





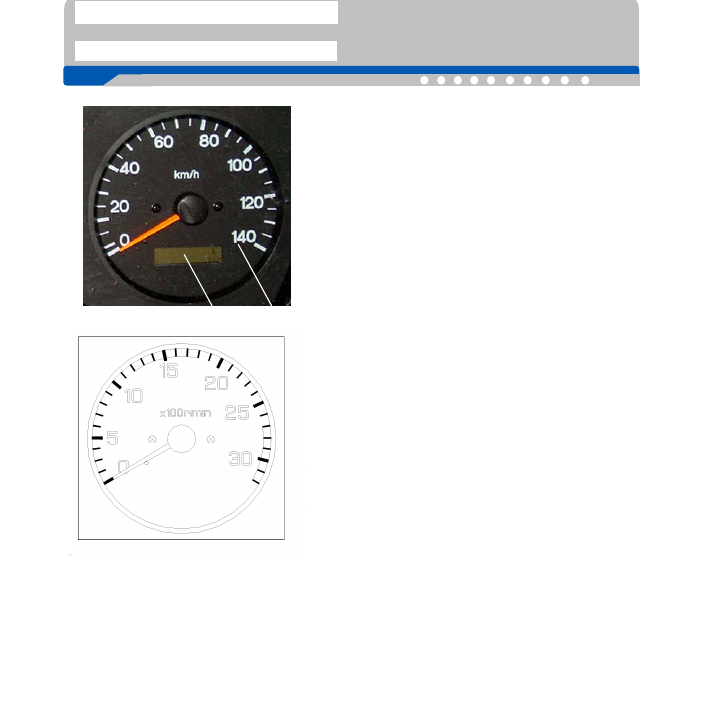

Спидометр

a- Указывает скорость движения автомобиля.

b-

Указывает

общий

километраж

накопляющего движения автомобиля.





Тахометр двигателя

►

Лучше  управлять  скоростью  оборотов  в
пределах 1,200~1,800 об/минn,  в  таких
пределах  скорости  оборотов  комплексные
характеристики двигателя наилучшие.

►

Скорость  оборотов  двигателя  превышает
2,700  обо/мин,  т.е.  в  красной  зоне  на
приборе,  это  означает,  что  скорость
оборотов

двигателя

превышает

предельную  скорость.  И  долгая  работа  с
такой

скоростью

будет

приводить

двигателя к поврежден

ию.
