DongFeng RICH. Service Manual

Pre-driving checks and adjustments 2-15

SEAT BELTS

Precautions on seat belt usage
Zhengzhou  NISSAN  strongly
encourages you and all of your
passengers  to  buckle  up  every
time you drive.
Your  chances  of  being  injured  in
an  accident  and  the  severity  of
injury  may  be  greatly  reduce  if
you  are  wearing  your  seat  belt
and it is properly adjusted.

Warning

●

Seat belts are designed to

bear upon the bony structure of
the  body,  and  should  be  worn
low  across  the  front  of  the
pelvis,  or  the  pelvis,  chest  and
shoulders,

applicable;

wearing  the  lap  section  of  the
belt  across  the  abdominal  area
must be avoided. Serious injury
can  occur  if  seat  belt  is  not
worn properly.

●

modifications

additions should be made

●

by the user which will

either prevent the seat belt
adjusting

devices

from

operating  to  remove  slack,  or
prevent  the  seat  belt  assembly
from  being  adjust  to  remove
slack.

●

Seat

belts

should

adjusted  as  firmly  as  possible,
consistent  with  comfort,  to
pro-vide  the  protection  for
which they have been designed.
A  slack  belt  will  greatly  reduce
the  protection  afforded  to  the
wearer. Care should be taken to
avoid  contamination  of  the
webbing with polishes, oils and
chemicals,

and

particularly

battery  acid.  Cleaning  may
safely be carried out using mild
soap  and  water.  The  belt
should  be  replaced  if  webbing
becomes  frayed,  contaminated
or damaged.

●

It is essential to replace the

entire assembly after it has
been worn in a severe impact

even if damage to the assembly
is not obvious.

●

Belts should not be worn

with straps twisted.

●

Each seat belt assembly

must only be used by one
occupant; it is dangerous to
put a belt around a child being
carried on the occupant

’s lap.

●

All seat belt assemblies

including

retractors

and

attaching hardware should be
inspected after any collision at
your Zhengzhou NISSAN dealer.
Zhengzhou

NISSAN

recommends  that  all  seat  belt
assemblies  in  use  during  a
collision be replaced unless the
collision  was  minor  and  the
belts  show  no  damage  and
continue  to  operate  properly.
Seat belt assemblies not in use
during  a  collision  should  also
be  inspected  and  replaced  if
either  damage  or  improper
operation is noted.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-16 Pre-driving checks and adjustments

Pregnant women
Zhengzhou NISSAN recommends
that  pregnant  women  use  seat
belts.  Contact  your  doctor  for
specific  recommendations.  The
lap belt should be worn snug and
positioned as low possible around
the hips, not the waist.

Injured persons
Zhengzhou NISSAN recommends
that  injured  persons  use  seat
belts,  depending  on  the  injury.
Check  with  your  doctor  for
specific recommendations.

SEAT BELT MAINTENANCE
To clean the seat belt webbings,
apply a mild soap solution or any
solution

recommended

for

cleaning  upholstery  or  carpets.
Then  brush  it,  wipe  with  a  cloth
and  allow  it  to  dry  in  the  shade.
Do  not  allow  the  seat  belts  to
retract  until  they  are  completely
dry.
If  dirt  builds  up  in  the  shoulder
belt guide of the seat belt anchors,
the  seat  belts  may  retract  slowly.
Wipe the shoulder belt guide with

a clean, dry cloth.
Periodically check to see that the
seat

belt

and

the

metal

components  such  as  buckles,
tongues,  retractors,  flexible  wires
and  anchors  work  properly.  If
loose  parts,  deterioration,  cuts  or
other  damage  on  the  webbing  is
found,  the  entire  belt  assembly
should be replaced.

3-Point Type With Retractor

Fastening The Belts
1

， Adjust the seat

Warning

●

The seatback should not

be  reclined  any  more  than
needed  for  comfort.  Seat  belts
are  most  effective  when  the
passenger  sits  well  back  and
straight up in the seat.

●

If the seatback is reclined,

the risk of sliding under the lap
belt and being injured is
increased.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Pre-driving checks and adjustments 2-17

， Slowly pull the seat belt out

of the retractor and insert the
tongue into the buckle until it
snaps.
The  retractor  is  designed  to
lock  during  a  sudden  stop  or
on  impact.  A  slow  pulling
motion  will  permit  the  belt  to
move,  and  allow  you  some
freedom  of  movement  in  the
seat.
3

， Position the lap belt portion

low on the hips as shown.
4

， Pull the shoulder belt portion

toward the retractor to take up
extra slack.

Warning

●

The seat belt should rest

on the middle of the shoulder.
It must not rest against the
neck.

●

Make sure that the seat belt

is not twisted in any way.

Unfastening the belts
To unfasten the belt, press the
button on the buckle. The seat
belt will automatically retract.

Checking seat belt operation
Your seat belt retractors are
designed to lock belt movement
by two separate methods:
1

， When the belt is pulled

quickly from the retractor.
2

， When the vehicle slows down

rapidly.
To  increase  your  confidence  in
the  belts,  check  the  operation
as  follows:  Grasp  the  shoulder
belt  and  pull  quickly  forward.
The  retractor  should  lock  and
restrict further belt movement.
If  the  retractor  does  not  lock
during  these  checks  or  if  you
have  any  question  about  belt
operation  see  your  Zhengzhou
NISSAN dealer.

2-Point Type Without Retractor
（If So Equipped）
Fastening the belts
1

， Insert the tongue into the

buckle until it snaps.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-18 Pre-driving checks and adjustments

， To lengthen, hold the tongue

at a right angle to the belt and pull
on the belt. To shorten, pull the
free end of the belt away from the
tongue then pull the belt clip to
take up the slack.

， Position the lap belt low on

the hips as illustrated.

Unfastening the belts
To unfasten the belt, press the
button on the buckle.
Fasten the seat belts when not in
use to prevent them from being
caught in the door.

PARKING BRAKE LEVER

To apply : pull the lever up.

To release: pull the lever up

slightly, push the button and lower

completely. Before driving, be

sure the parking brake warning

light goes out.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Pre-driving checks and adjustments 2-19

TILTING STEERING WHEEL

Push  the  lever  down  and  adjust
the  steering wheel  up  or  down  to
the  desired  position.  Push  the
lock  lever  up  securely  to  lock  the
steering wheel in place.

Warning

Do not adjust the steering
wheel while driving.

OUTSIDE MIRROR

Remote control type
Push the right or left end of the
switch to adjust the right or left
side mirror, then control the lever.

Warning

Check  the  position  of  all
mirrors  before  driving.  Altering
position  while  driving  could
distract your attention from the
driving operation.

REARVIEW MIRROR

The night position will reduce
glare from the headlights of
vehicles behind you at night.

Caution

Use the night position only
when necessary, because it
reduce rear view clarity.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2-20 Pre-driving checks and adjustments

REMOTE KEYLESS ENTRY

SYSTEM

（IF SO EQUIPPED）

With  the  remote  keyless  entry
system  you  could  lock/unlock  all
doors, active the panic alarm and
find the car from outside the car.
Be  sure  to  remove  the  key  from
the  vehicle  before  locking  the
doors and leaving it.

As many as four key fobs can be
used with one vehicle. For more
information

concerning

the

purchase and use of addition  key
fobs,  contact  your  Zhengzhou
NISSAN dealer.
The  key  fob  will  not  function
when:



The battery in the key fob is

dead.



The distance between the

key fob and vehicle is more than
8m.

Caution

●

Do not allow the key fob to

be wet.

●

Do not drop the key fob.

●

Do not strike the key fob

sharply to another object.

●

Do not place the key fob

for an extended period in an
area where temperature exceed

)

140

(

If a key fob is stolen, Zhengzhou
NISSAN recommends erasing the
ID code of that key fob. This will
prevent

the

key

fob

from

unauthorized  use  to  unlock  the
vehicle. For information regarding
the  erasing  procedure,  please
contact  your  Zhengzhou  NISSAN
dealer.

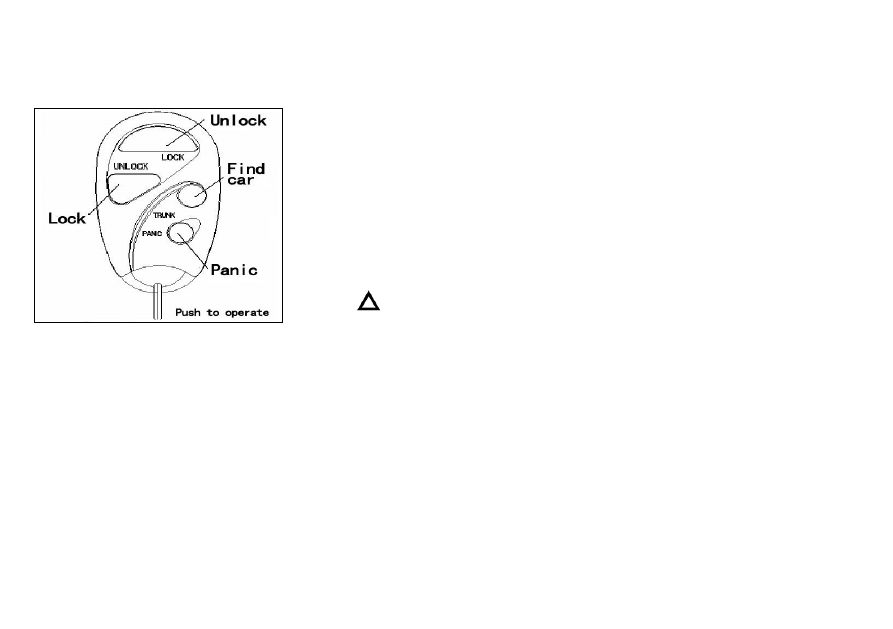

Locking door
1.  Remove the ignition key.
2.  Close all of the doors.
3.  Push the LOCK button on the
key fob.
4.  The  hazard  indicators  flash
twice, all of doors will lock.
5.  If you lock the doors with any
door  unclosed  well,  the  hazard
indicators  will  flash  three  times,
please  close  the  door  well  and
then lock it with the key fob.
Although  door  locking  with  carob
can  be  confirmed  by  looking  at
the  hazard  indicator,  always
check  to  be  sure  that  the  doors
are  properly  before  leaving  your
vehicle.
Unlocking door
1.  Push the UNLOCK button on
the key fob.
2.  The  hazard  indicators  flash
once and unlock all doors.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2 Heater, air conditioner and audio system

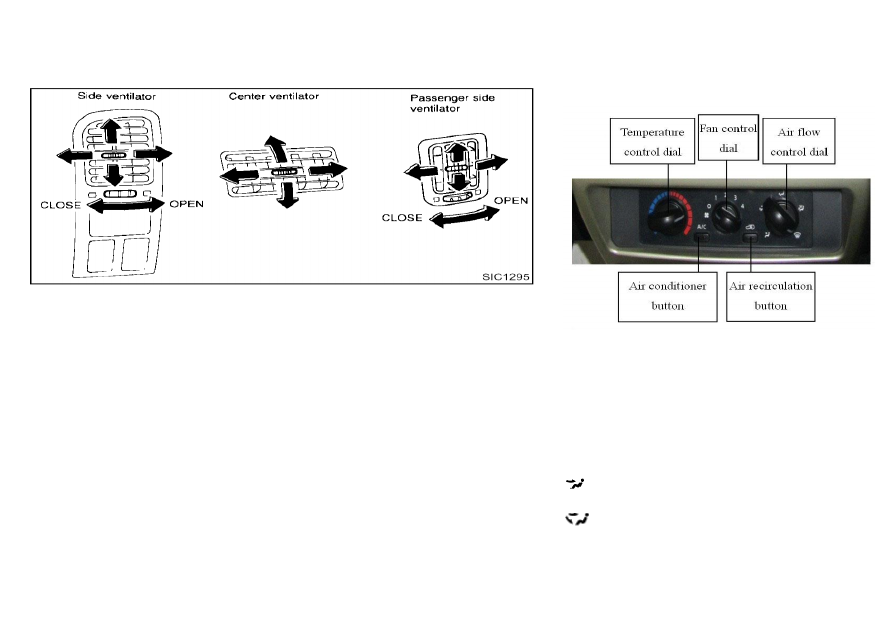

CENTER AND SIDE VENTS

Open or close (if so equipped),
and adjust the air flow direction of
the ventilators.

HEATER AND AIR
CONDITIONER

CONTROLS

Fan control lever/dia

This lever/dial turns the fan on
and off, and controls fan speed.

Air flow control lever/dial
This lever/dial allows you to select
the air flow outlets.

— Air flows from center and

side ventilators.

— Air flows from center and

side ventilators and foot outlets.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Heater, air conditioner and audio system

— Air flows mainly from foot

outlets.

— Air flows from defroster

outlets and foot outlets.

— Air flows mainly from

defroster outlets.
Temperature control lever/dial
This lever/dial allows you to adjust
the temperature of the outlet air.
(Except models without heater)

Air intake lever/Air recirculation
button

position/

button

off

position (Indicator goes out)
Outside air is drawn into the
passenger compartment.
Use this position for normal heater,
or air conditioner operation.
If dust is not raised in front of the
vehicle, this position is effective to
prevent dust entry.

position/

button

position (Indicator comes on)
Interior air is recirculated inside
the vehicle.

Move the air intake lever to this
position/push the”

” button to

the on position when driving on a
dust raised road or to avoid traffic
fumes.

WARNING:

Do not use in this position for long
periods  of  time  because  it  may
cause  the  interior  air  to  become
stuffy and the windows to fog up.
Air conditioner button (If so
equipped)
This  button  is  provided  only  for
vehicles with an air conditioner.

Start  the  engine,  move  the  fan
control lever/dial to the desired (1
to  4)  position  and  push  the  air
conditioner  button  to  turn  on  the
air conditioner. The indicator light
will  come  on  when  the  air
conditioner  is  on.  To  stop  the  air
conditioner, push the switch again
to return it to the original position.
The  air  conditioner  cooling
function  operates  only  when
the engine is running.

WARNING:

Positioning of the heating or air

conditioning controls should
not be done while driving, in
order that full attention may be
given to the driving operation.

HEATER OPERATION
Heating
This mode is used to direct hot air
from the floor outlets.

Move the air intake lever to
the”

” position, or push

the”

” button to the off

position for normal heating

Move the air control lever/dial
to the

position

Turn on the fan control
lever/dia

Move the temperature control
lever/dial

the

desired

position between the middle
and the “HOT” position

Ventilation
This mode directs outside air from
the side and center vents

Move the air intake lever to
the”

” position, or push

the”

” button to the off

position

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4 Heater, air conditioner and audio system

Move the air control lever/dial
to the”

”position

Turn on the fan control
lever/dial.

Move the temperature control
lever/dial

the

desired

position

Defrosting or defogging
This

mode

used

defrost/defog the windows

Move the air intake lever to
the”

” position, or push

the”

” button to the off

position

Move the air control lever/dial
to the”

” position

Turn on the fan control
lever/dial

Move the temperature control
lever/dial

the

desired

position between the middle
and the “HOT” position.

Push on the air conditioner
button. The indicator light will
come on

Bi-level heating
This mode directs outside air from
side and center vents and hot air

from the floor outlets

Move the air intake lever to
the”

” position, or push

the”

” button to the off

position.

Move the air control lever/dial
to the”

”position

Turn on the fan control
lever/dial.

Normally

move

the

temperature control lever/dial
to

the

midpoint between

"HOT" and "COLD"

Heating and defrosting
This mode heats the interior and
defogs the windshield

Move the air intake lever to
the”

” position, or push

the”

” button to the off

position

Move the air control lever/dial
to the”

”position

Turn on the fan control
lever/dial.

Move the temperature control
lever/dial

the

desired

position between the middle
and the “HOT” position

Operating tips
Clear  snow  and  ice  from  the
wiper blade and air inlet in front
of  the  windshield.  This  will
improve  heater  and  defroster
operation.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Heater, air conditioner and audio system

AIR CONDITIONER
OPERATION (If so
equipped)

Start  the  engine,  move  the  fan
control lever/dial to the desired (1
to  4)  position  and  push  in  the  air
conditioner  button  to  activate  the
air  conditioner.  When  the  air
conditioner  is  on,  cooling  and
dehumidifying  functions  will  be
added to the heater operation

The air conditioner cooling
function operates only when
the engine is running.

Cooling

This mode is used to cool and
dehumidify

Move the air intake lever to
the”

” position, or push

the”

” button to the off

position

Move the air control lever/dial
to the”

”position

Turn on the fan control
lever/dial.

Push on the air conditioner

button. The indicator light will
come on

Move the temperature control
lever/dial

the

desired

position.



For quick cooling, move the
air intake lever to the

“

”

position, or push the

“

”

button to the on position. Be
sure to return the air intake
lever to the

“

” position, or

push the

“

” button to the

off

position

for

normal

cooling

Dehumidified heating
This mode is used to heat and
dehumidify

Move the air intake lever to
the

“

” position, or push the

“

” button to the off

position

Move the air control lever/dial
to the

“

” position

Turn on the fan control
lever/dial.

Push on the air conditioner
button. The indicator light will
come on

Move the temperature control
lever/dial

the

desired

position

Dehumidified defrosting
This

mode

used

defrost/defog the windows and
dehumidify

Move the air intake lever to
the

“

” position, or push the

“

” button to the off

position

Move the air control lever/dial
to the

“

” position

Turn on the fan control
lever/dial

Push on the air conditioner
button. The indicator light will
come on.

Move the temperature control
lever/dial

the

desired

position

Operating tips



Keep windows and sun roof
closed

while

the

air

conditioner is in operation



After parking in the sun, drive
for two or three minutes with
the windows open to vent hot

-------------------------------------------------------------------------------------------------------------------------------------------------------------

6 Heater, air conditioner and audio system

air

from

the

passenger

compartment. Then, close
the windows. This will allow
the air conditioner to cool the
interior more quickly



The  air  conditioning  system
should be operated for about
ten  minutes  at  least  once  a
month,  especially  in  winter.
This helps prevent damage to
the  system  due  to  lack  of
lubrication.



If the coolant temperature
gauge exceeds the "HOT"
position,

turn

the

air

conditioner off. Have your

Vehicle

inspected

PARSKHODRO service center.
See "If your vehicle overheats" in
the “In case of emergency”
section for additional information

Servicing air conditioner
The  air  conditioning  system  in
your  NISSAN  vehicle  is  charged
with  a  new  refrigerant  designed
with the environment in mind

This new refrigerant will not
harm the earth’s ozone layer.

However it may contribute in a
small part to global warming

Special charging equipment and
lubricant

are

required

when

servicing

your

NISSAN

air

conditioner.

Using

improper

refrigerants  or  lubricants  will
cause  severe  damage  to  your  air
conditioning  system.  See  “Air
conditioning  system  refrigerant
an

d lubricant recommendations”

in the "Technical information"
section of this manual

PARSKHODRO service center
will be able to service your
environmentally

"friendly"

air

conditioning system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4-2

Starting and driving

BREAK-IN SCHEDULE

During the first 1600km,

follow  the  recommendations  for
the  future  reliability  and  economy
of  your  new  vehicle.  Failure  to
follow  these  recommendations
may results in vehicle damage or
shortened engine life.
Do not drive over the following
speed limits:

●

2-wheel drive models and

4×4

（2H position）

90km/h

●

4×4

（4H position）：

80km/h

●

4×4

（4L position）：

50km/h

Engine speed

：

DISTANCE
（km）

Weight

Speed
（rpm）

0~200

2000~3000

200~800

≤25％

2000~3500

800~1500

≤50％

2000~4000

1500~2000

≤75％

2000~4000

Avoid driving for long periods at
constant speed, either fast or
slow.

●

Do not accelerate hard in

top gear.

●

Avoid quick starts and full

acceleration.

●

Avoid hard stops as much

as possible.

●

Do not tow a trailer for the

first 800 km.

●

Change the engine oil and

oil filter at the first 500km

，

2000km

the

break-in

schedule

。

BEFORE STARTING THE
ENGINE

WARNING:

The  driving  characteristics  of
your  vehicle  can  be  changed
remarkably  by  any  additional
load and its distribution as well
as

adding

optional

equipment

(trailer

coupling,

roof  rack,  etc).  Your  driving
style  and  speed  have  to  be
adjusted accordingly especially
when  carrying  heavy  loads,
your  speed  must  be  reduced
adequately.

●

Make sure the area around

the vehicle is clear.

●

Check fluid levels such

engine  oil,  coolant,  brake  and
clutch  fluid,  window  washer
fluid  as  frequently  as  possible,
at least whenever you refuel.

●

Check to be sure that all

windows and light lenses are
clean.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

DongFeng RICH. Service Manual - part 4
