Steering System

ST

Table of Contents

Check .............................................................................................................. ST-1
Steering Wheel and Steering Column ............................................................ ST-2
Power Steering Hydraulic pressure System.................................................... ST-5
Steering gear ................................................................................................... ST-6
Trouble Analysis............................................................................................. ST-7

Steering System

ST-1

Steering System

Note:
Before disassembly, carefully clean the surface of the parts.
Please do the disassembly in a cleaning invironment to avoid dust or

any other filth enter the parts.

Put the removed parts in order and it may be convenient to reassem-

ble.

Clean the parts with nylon or soft paper.
Before checking or assembling, clean all the parts with liquid care-

fully.

You'd better apply a layer of transmission lubricant on the surface of

the parts before assembly. Apply a layer of vaseline on the surface of
hydraulic pressure parts and O-type oil seal.

Replaceall of the oil seal, spacer and O-ring. Avoid using the used

spacer, oil seal and O-ring when assembling. After assembly, you must
have a test run.

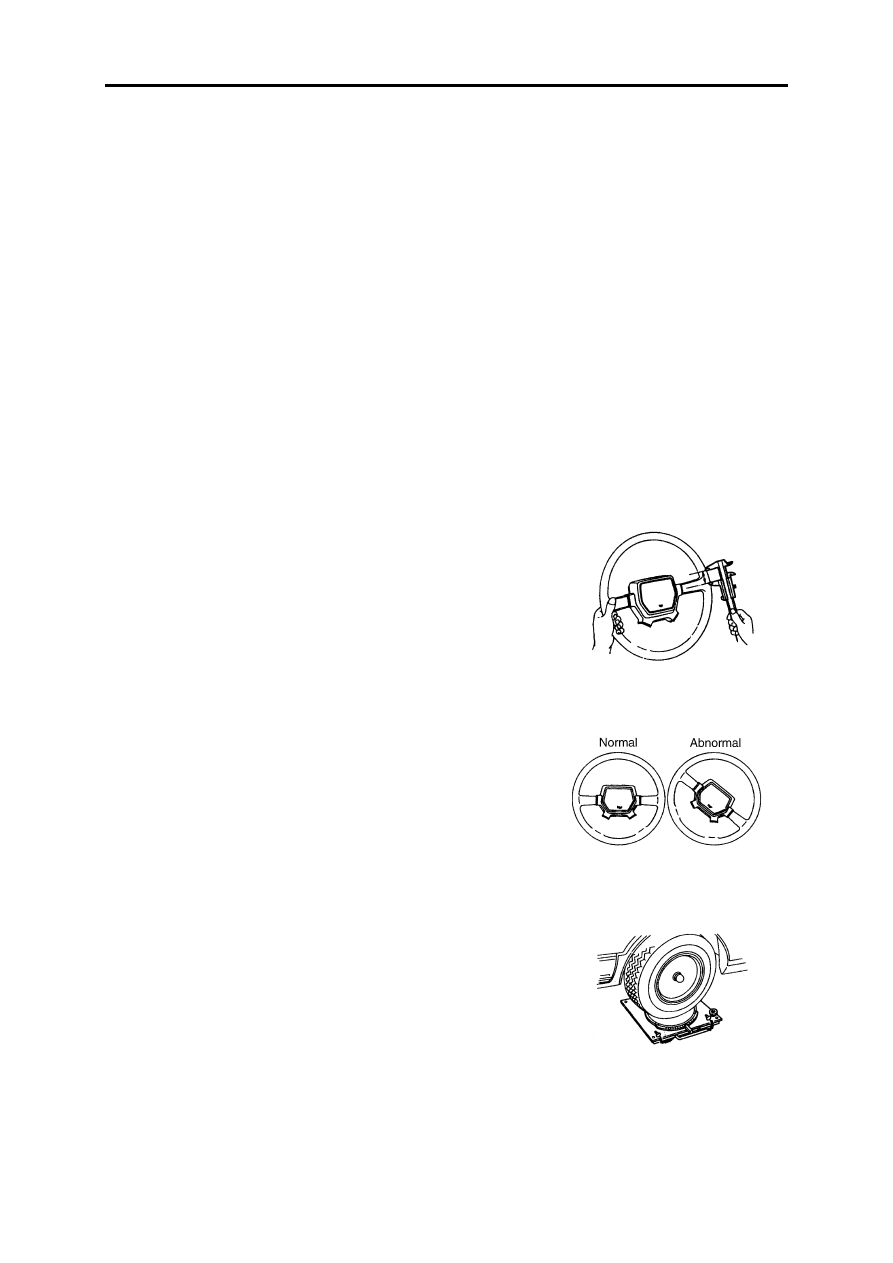

Check

Check the free travel of the steering wheel

Measure the free travel of the steering wheel when it is set on the cen-

ter.

                   Free travel                  ≤ 35mm

If the measured value isn't in this range, check the the steering gear

clearance and the ball pin.

Check the center position of the steering wheel

Correct the center position of the steering wheel before dismantling.

Check

When the vehicle is running straight, check to see if the steering

wheel is in the center position.

If not, disassemble the steering wheel and reassemble it.

Check the turning angle of the front wheel

Turn the steering wheel left and right to measure its maximum turn-

ing angle.

        Inner wheel                           38.5°± 30'

       Outer wheel                           29.5°

Steering System

ST-2

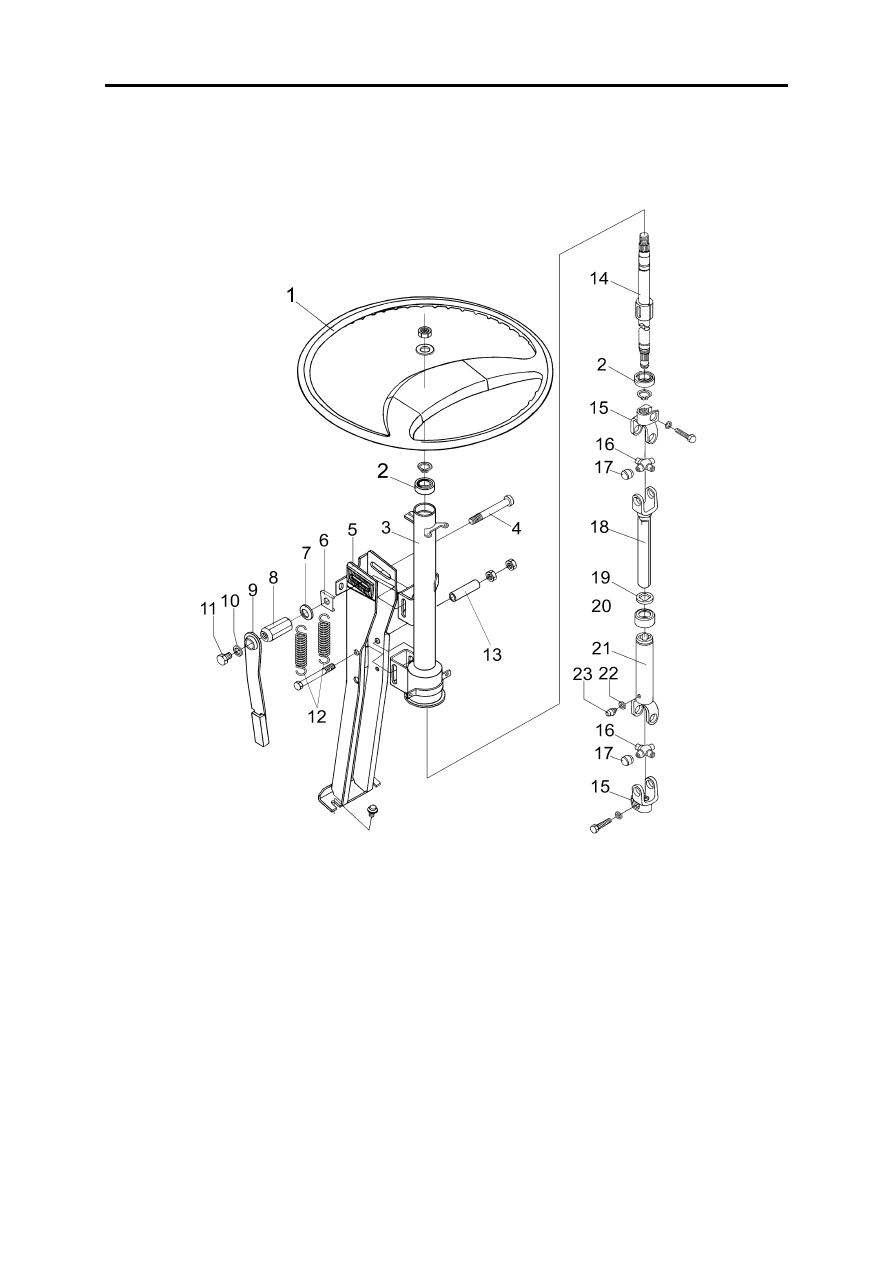

Steering Wheel and Steering Column

1.Steering wheel assy
2.Annular ball bearing with doubled sided sealing
ring
3.Steering column welding assy
4.Adjusting screw
5.Steering column bracket welding assy
6.Guiding fin
7.Saucer spring washer
8.Pressed nut
9.Adjustor wrench assy
10.Washer--fix wrench
11.Bolt--fix wrench

12.Return spring
13.Distance limit spacer sleeve
14.Steering shaft
15.Steering universal joint fork
16.Spider
17.Spider needle bearing assy
18.Steering universal joint fork with spline shaft
19.Oil sealing--sliding fork
20.Oil sealing cap--sliding fork
21.Steering sliding fork assy
22.Grease nipple shim--straight
23.Grease nipple--straight

Steering System

ST-3

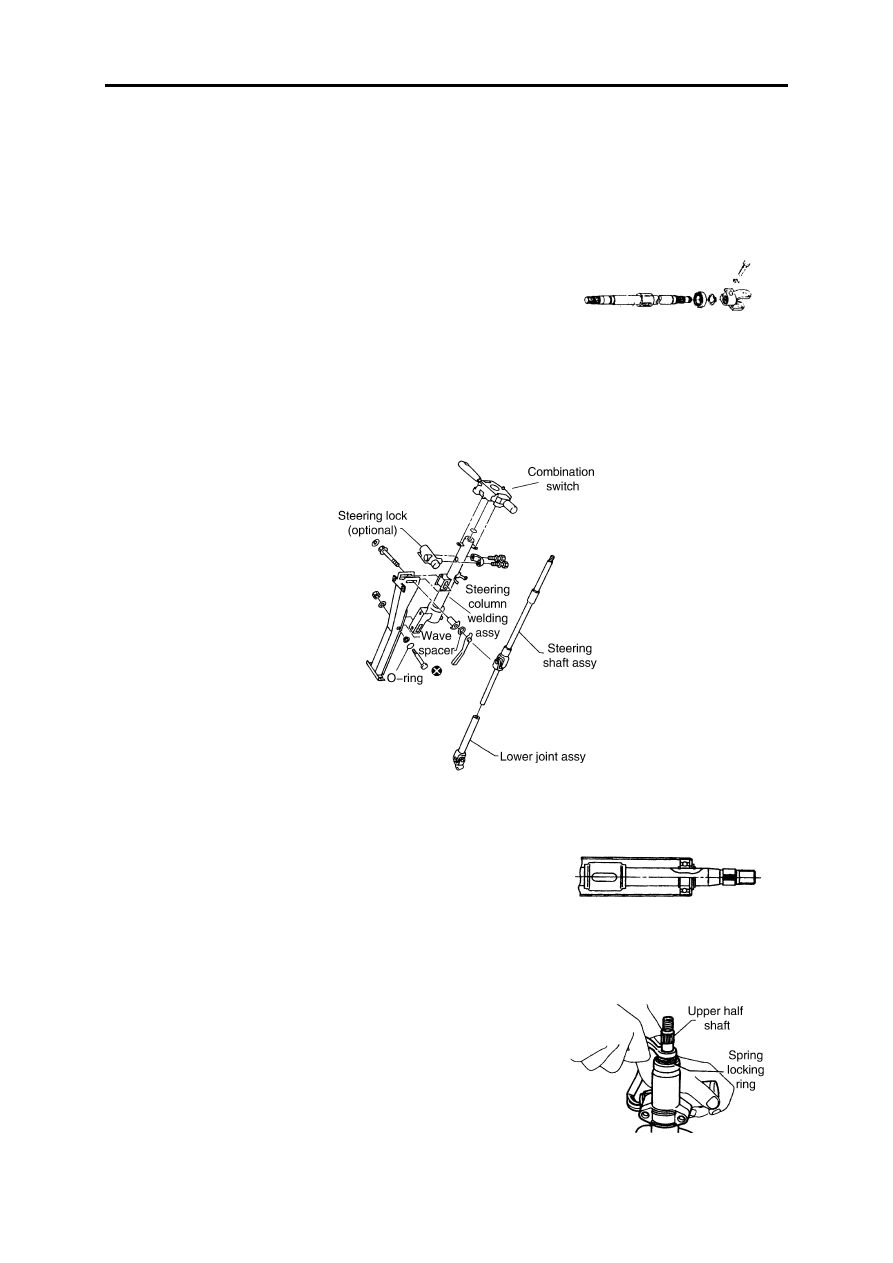

Steering column

When assembling the steering column, tighten the bolt and clip of the

lower supporter by hand first. then tighten the steering column under the
condition that the steering column is out of force.

When assemble the steering cross shaft, you must check if the locking

bolt and the sunk part is aligned.

Disassembly and Assembly

When do the disassembly and assembly, you have to unlock the

steering lock by key.

Assure the surface of the spring lock ring is under the shaft.

Before insert the shaft into the sleeve, first install the spring lock

ring.

Assemble the spring lock ring on the upper half shaft by special tool.
