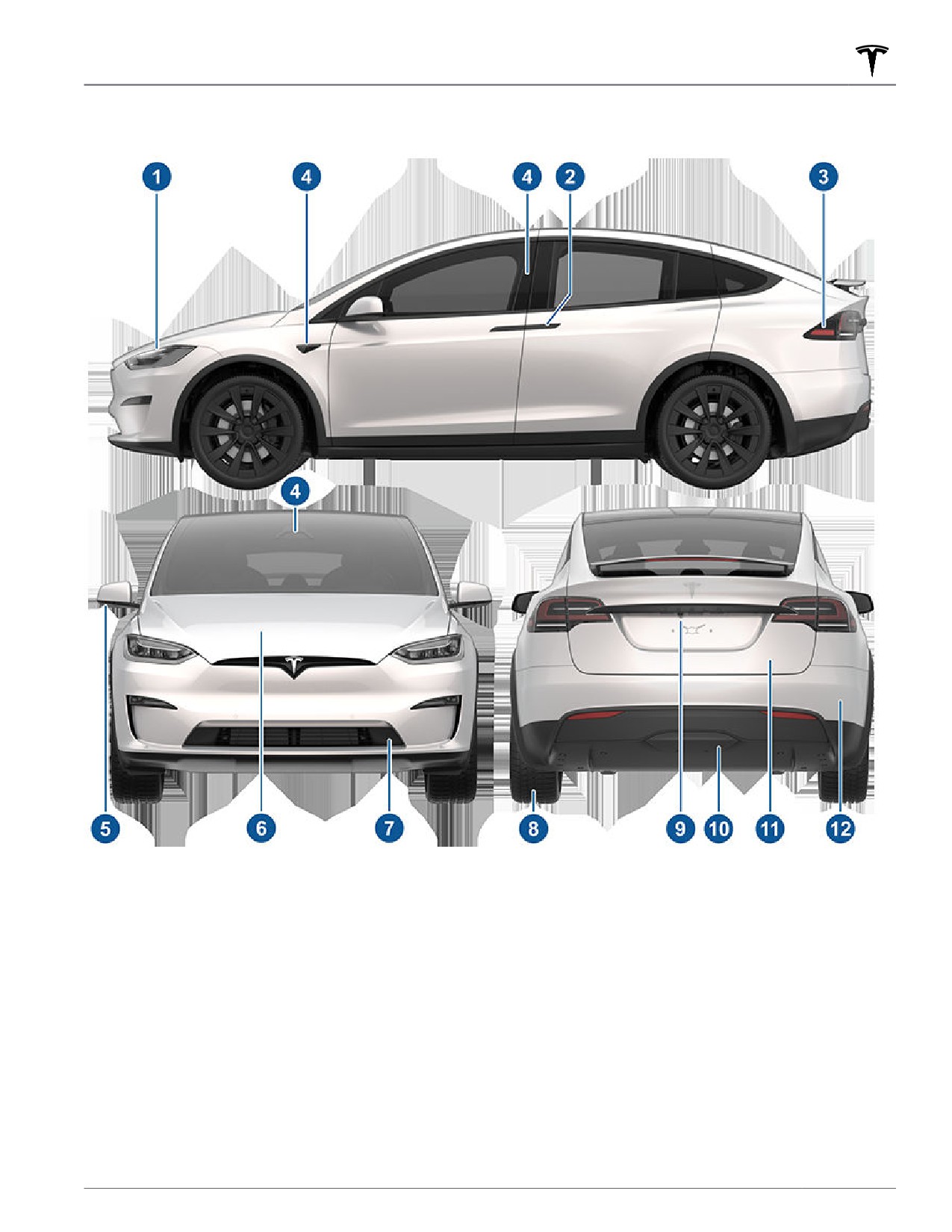

Exterior Overview
NOTE: Depending on market region, vehicle configuration, and options purchased, your vehicle may look slightly
different than described.
1. Exterior lights (Lights on page 66)
2. Door handles (Doors on page 16)
3. Charge port (Charging Instructions on page 182)
4. Autopilot cameras (About Autopilot on page 98)
5. Exterior mirrors (Mirrors on page 59)
6. Hood/Front trunk (Front Trunk on page 24)
7. Front/rear tow eye cover (Instructions for Transporters on page 222)
8. Wheels and tires (Wheels and Tires on page 214)
9. Rear view camera (Rear Facing Camera(s) on page 85 and About Autopilot on page 98)
10. Tow hitch cover (Towing and Accessories on page 87)
11. Rear trunk/liftgate (Rear Trunk on page 22)
Overview
3
Exterior Overview
12. Ultrasonic sensors (Park Assist on page 78 and About Autopilot on page 98)
4

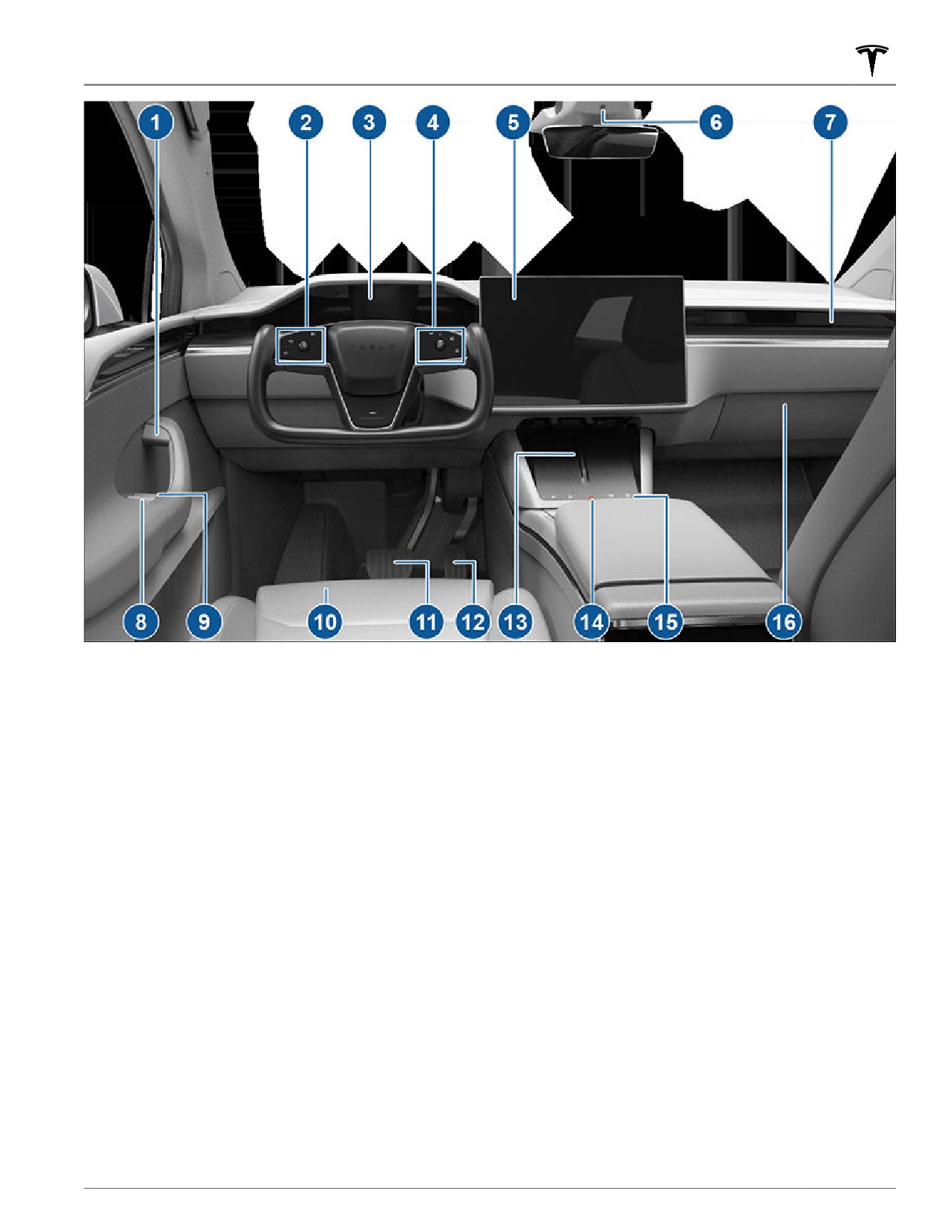

Interior Overview
1. Interior door handles (Doors on page 16)
2. Left steering yoke buttons
Left Scroll Button (Left Scroll Button on page 56)
High Beam Headlights (High Beam Headlights on page 66)
Turn Signals (Turn Signals on page 68)
3. Instrument panel (Instrument Panel on page 69)
4. Right steering yoke buttons
Right Scroll button to control Autopilot features (Right Scroll Button on page 57)
Horn (Horn on page 57)
Wipers (Wipers and Washers on page 73)
Voice Commands (Voice Commands on page 165)
5. Touchscreen (Touchscreen Overview on page 7)
6. Camera (Cabin Camera on page 135)
7. Cabin climate control (Climate Controls on page 142)
8. Power window switches (Opening and Closing on page 21)
9. Manual door release (Doors on page 16)
10. Seats (Front and Rear Seats on page 32)
11. Brake pedal (Braking and Stopping on page 74)
12. Accelerator pedal (Acceleration Modes on page 81)
13. Wireless phone chargers (Wireless Phone Chargers on page 29)
Overview
5
Interior Overview
14. Hazard warning lights (Hazard Warning Flashers on page 68)
15. Secondary drive mode selector (Shifting on page 63)
16. Glovebox (Glovebox on page 27)

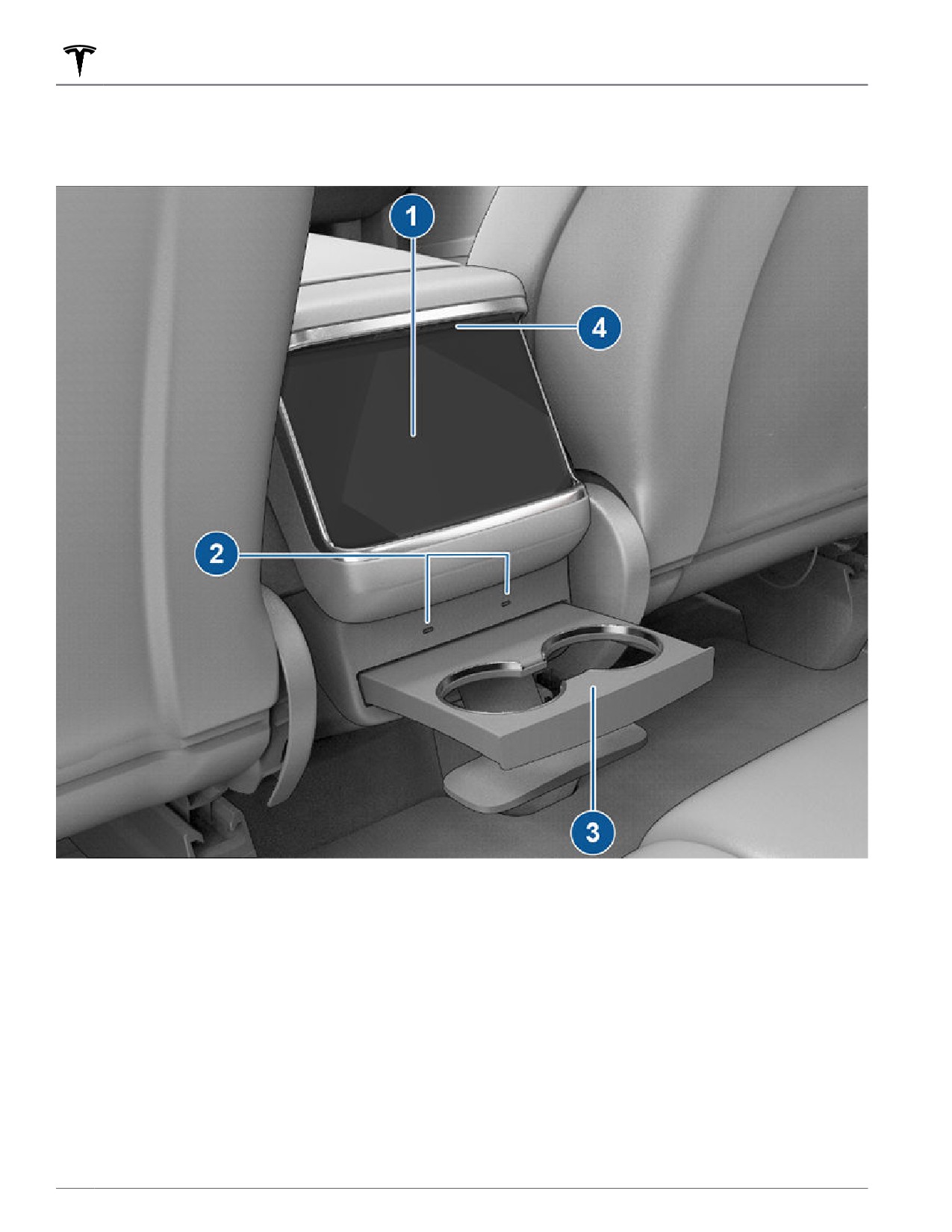

1. Rear touchscreen (Rear Touchscreen on page 9)
2. USB ports (USB Ports on page 27)
3. Rear cup holders (Interior Storage and Electronics on page 27)
4. Adjustable climate control vents (Climate Controls on page 142)
6
Touchscreen Overview
In addition to the instrument panel, Model X is equipped with a front and rear touchscreen.
touchscreen is referred to as the "rear touchscreen".
WARNING: Always pay attention to road and tra…c conditions when driving. To minimize driver distraction and
ensure the safety of vehicle occupants as well as other road users, avoid using the touchscreen to adjust
settings while the vehicle is in motion.
Use the touchscreen to control many features that, in traditional cars, are controlled using physical buttons (for
example, adjusting the cabin heating and air conditioning, headlights, etc.). You also use the touchscreen to control
media, navigate, use entertainment features, and customize Model X to suit your preferences. For hands-free access
to common touchscreen controls, use voice commands (see Voice Commands on page 165).
If the touchscreen is unresponsive or demonstrates unusual behavior, you can restart it (see Restarting the
Touchscreen on page 8).
NOTE: Illustrations are provided to improve conceptual understanding only. Depending on vehicle options, software
version, market region and regional and language settings, the details displayed on the screen will differ.

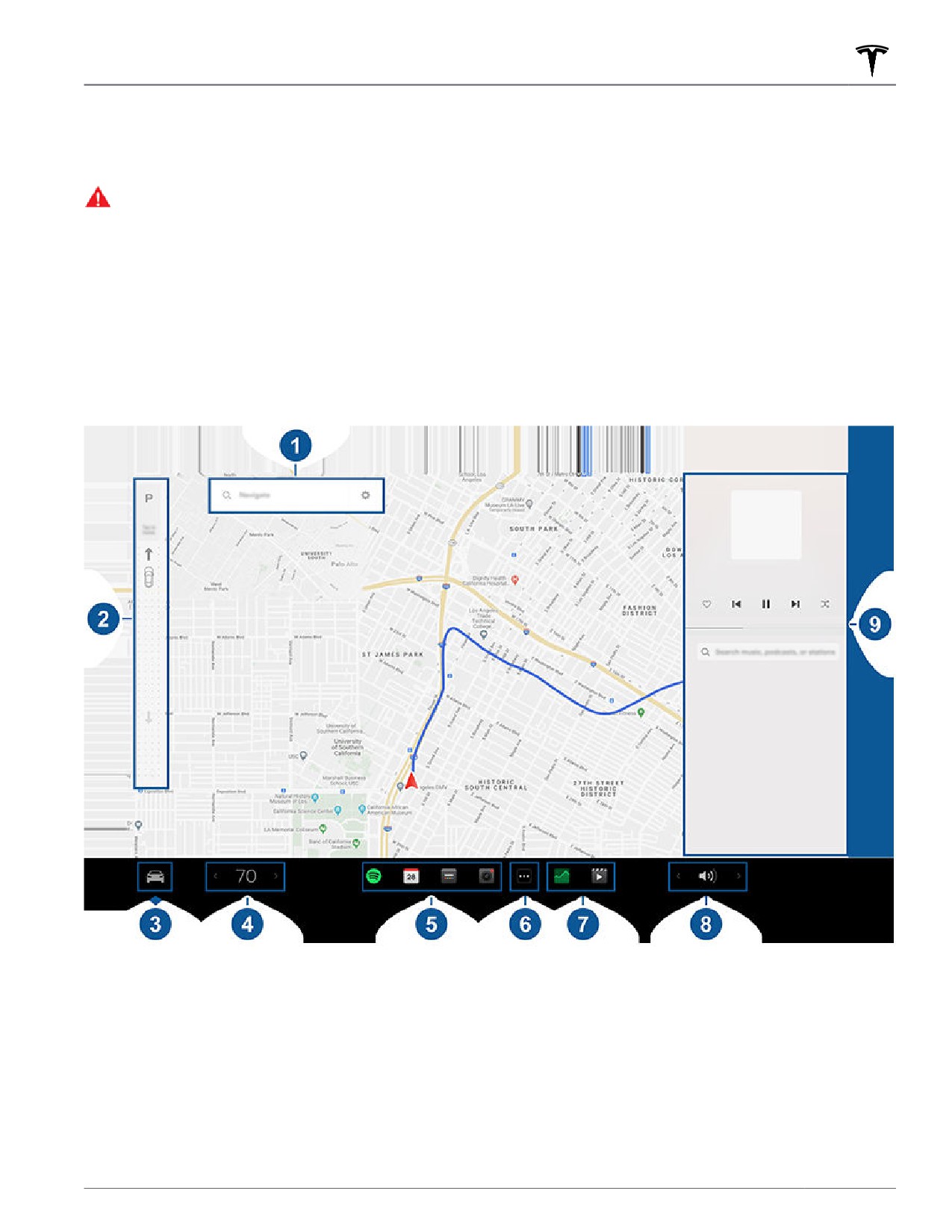

1. Navigation: Change the orientation of the map, find or navigate to a destination, and change navigation settings
(see Maps and Navigation on page 148).
2. Drive mode strip: Use to shift into Park, Reverse, Neutral, or Drive. The drive mode strip always displays on the
touchscreen when you touch Controls (see Shifting on page 63).
3. Controls: Control various features and adjust settings to customize your Model X (see Controls on page 136).
4. Climate controls (driver): Use the left and right arrows to decrease/increase cabin temperature. Touch Split on
the popup to display separate controls for the driver and passenger. Touch the temperature icon to customize
climate control settings (see Climate Controls on page 142). The passenger climate controls display when
temperature controls have been Split to provide separate controls for the driver and passenger.
Overview
7
Touchscreen Overview
5. My Apps: For one-touch access to frequently used apps and controls, you can choose what displays here. See
Customizing My Apps on page 8.
6. App Launcher: Touch the app launcher to open the app tray. Then touch any app to open it. The app you choose
displays on top of the map. To close an app, drag it downward.
NOTE: You cannot completely close Media Player. When you drag Media Player down, it displays Mini-Player
which allows you see what's playing, pause/play, and skip reverse/forward.
7. Recent App(s): Displays the most recently used app(s). The number of recent apps displayed here depends on
how many apps have been added to My Apps. If you add the maximum number of apps to My Apps, only the
most recent app displays.
8. Volume Control: Controls the volume of media player and phone calls (see Volume Controls on page 154). The
volume of navigation instructions is controlled separately (see Maps and Navigation on page 148).
9. Media Player: See Media on page 154.
Popup messages appear at the bottom of the touchscreen. For example, a seat belt reminder appears if a seat belt is
unfastened in an occupied seat, an alert appears to notify you of an incoming phone call, a text message appears
(when applicable), and voice commands appear when in use. If applicable, touch options from these popup
messages (for example, accept/decline a phone call, choose an option from the headlight menu, etc.). To dismiss a
popup message, swipe it downward.
The bottom of the touchscreen may also display the following:
Displays the status of the front passenger airbag (see Airbags on page 48).
WARNING: When the center display is tilting,
Customizing My Apps
ensure that there are no objects (such as your
fingers or jewelry) between the screen and
For one-touch access to commonly used apps and
instrument panel to reduce the risk of injury or
controls, you can customize what displays in the My
damage.
Apps area on the touchscreen's bottom bar:
1. Enter customization mode by touching and holding
Restarting the Touchscreen
any app or control in the My Apps area. If this area is
empty, touch the App Launcher.
You can restart your touchscreen if it is unresponsive or
demonstrates unusual behavior.
2. Simply drag any app or control from the app tray
onto the My Apps area in the bottom bar.
NOTE: To ensure the safety of occupants as well as
NOTE: Seat heaters selected from the app tray
other road users, restart the touchscreen only when the
appear next to the temperature, instead of in the My
vehicle is in Park.
Apps area.
1. Shift into Park.
NOTE: Controls (for example, defrosters and seat
2. Hold down both scroll buttons on the steering yoke
heaters) appear in the app tray only when you enter
until the touchscreen turns black.
customization mode by touching and holding an app.
NOTE: When you've added the maximum number of
apps or controls to My Apps, adding an additional app
removes the rightmost app.
NOTE: Remove an app or control from the My Apps area
by touching and holding, then touching its associated
"X".
Tilt the Touchscreen (if equipped)
To tilt the touchscreen, navigate to Controls, then touch
the display icon to choose the desired position.
8
Touchscreen Overview
3. After a few seconds, the Tesla logo appears. Wait
NOTE: Adjusting the media and volume controls also
approximately 30 seconds for the touchscreen to
adjusts the front cabin settings.
restart. If the touchscreen is still unresponsive or
You can lock the rear touchscreen by touching Controls
demonstrating unusual behavior after a few minutes,
> Display > Lock Rear Display. Locking the rear display
try power cycling the vehicle (if possible). See Power
stops any media and video apps from playing, and all
Cycling the Vehicle on page 61.
touches are ignored until you use this setting to unlock
it.
NOTE: Restarting the touchscreen also activates the
drive mode selector on the center console.
NOTE: Restarting the touchscreen using the scroll
buttons does not power Model X off and on.
Rear Touchscreen
The rear touchscreen provides rear passengers with
access to:
1. Temperature: Touch the arrows to decrease/increase
cabin temperature.
NOTE: You can also use the front touchscreen to
adjust climate settings in the rear cabin (see
Adjusting Climate Control Settings on page 142).
2. Power: Touch to turn the rear climate control system
on or off.
3. Rear fan: Touch to turn the rear fan on or off, to
adjust fan speed and control the direction of air flow
from the rear vents (see Adjusting the Front and Rear
Vents on page 145).
4. Seat heaters: Control rear seat heaters.
5. Media: Play, pause, skip or rewind through the
currently playing song (see Media on page 154).
6. Video: Access video streaming services.
7. Auto: If Auto is enabled and a passenger is detected,
the set temperature is maintained for the rear cabin.
NOTE: Enable Sync on the rear tab of the front
touchscreen's climate controls to set both the front
and back cabin temperatures.
8. Volume: Touch to adjust the volume.
Overview
9
Keys
Three Types of Keys
Your phone's general Bluetooth settings are
enabled.
Model X supports three types of keys:
Bluetooth is enabled within your phone's settings
for the Tesla mobile app. For example, on your
Phone key - You can set up your personal phone as a
phone, navigate to Settings, choose the Tesla
"phone key" that communicates with Model X using
mobile app, and ensure the Bluetooth setting is
Bluetooth. A phone key supports automatic locking
turned on.
and unlocking.
Access to your location is enabled. Open the Tesla
Key card - Tesla provides a key card that
mobile app in your phone's settings and select
communicates with Model X using short range radio-
Location > Always. For the best experience, keep
frequency identification (RFID) signals. The key card
the mobile app running in the background.
is used to "authenticate" phone keys to work with
Allow Mobile Access is enabled on the vehicle
Model X and to add or remove other key cards,
touchscreen (Controls > Safety > Allow Mobile
phone keys, or key fobs. Unlike the phone key and
Access).
key fob, the key card does not support automatic
locking and unlocking. In situations where your phone
NOTE: Model X communicates with your phone using
key has a dead battery, or is lost or stolen, use your
Bluetooth. Keep in mind that your phone must have
key card to unlock, drive, and lock Model X.
enough battery power to run Bluetooth and that
many phones disable Bluetooth when the battery is
Key fob - The key fob (if equipped) allows you to
low.
press buttons to open the front and rear trunks, and
unlock, lock, and drive Model X. The key fob also
4. While sitting inside the vehicle with a key card handy,
supports automatic locking and unlocking, if available
open the Tesla mobile app and touch Set Up Phone
in your region (see Passive Locking and Unlocking on
Key on the main screen, or navigate to Security > Set
page 13) and can be used as a backup to your
Up Phone Key. Follow the prompts on the mobile app
phone key.
and vehicle touchscreen to set up your phone key.
Model X supports a total of 19 keys, which can include
To view a list of keys that can currently access Model X,
phone keys, key cards, and up to four key fobs.
or to remove a phone key, touch Controls > Locks (see
Managing Keys on page 14).
CAUTION: Remember to bring a key with you
when you drive. Although you can drive Model X
Model X can connect to three phone keys
away from its key, you will be unable to power it
simultaneously. Therefore, if more than three phone keys
back on after it powers off.
are detected and you want to authenticate or pair a
different phone, move the other connected phone key(s)
Phone Key
out of range or turn off its Bluetooth setting.
Once a phone has been authenticated, it no longer
Using your phone as a key is a convenient way to access
your Model X. As you approach, your phone's Bluetooth
requires an internet connection to be used as a phone
signal is detected and doors unlock when you press a
key for Model X. However, to use the phone hands-free,
door handle. Likewise, when you exit and walk away with
access your phone's contacts, play media from it, etc.,
the phone key, doors automatically lock (provided the
you must also pair it and connect it as a Bluetooth
device (see Pairing a Bluetooth Phone on page 160).
Walk-Away Door Lock feature is turned on; see Walk-
Away Door Lock on page 19).
Key Card
Before you can use a phone to access Model X, follow
these steps to authenticate it:
Tesla provides you with two Model X key cards,
designed to fit in your wallet.
1. Download the Tesla mobile app to your phone.
2. Log into the Tesla mobile app using your Tesla
To use a key card to unlock or lock Model X, position the
account username and password.
card as shown and tap it against the card reader located
approximately one third the way up of the driver's side
NOTE: You must remain logged in to your Tesla
door pillar. When Model X detects the key card, the
account to use your phone to access Model X.
exterior lights flash, the mirrors unfold or fold (if Fold
NOTE: If multiple vehicles are linked to your Tesla
Mirrors is on), the horn sounds (if Lock Confirmation
account, you must ensure that the vehicle you want
Sound is on), and the doors unlock or lock.
the mobile app to access is currently selected on the
NOTE: You may need to physically touch the wireless
mobile app.
phone charger or driver's side door pillar with the key
card, and you may need to hold it against the
3. Ensure:
transmitter for one or two seconds.
10
Keys
Once inside, power up Model X by pressing the brake
pedal within two minutes of scanning the key card (see
1. Trunk
Starting and Powering Off on page 61). If you wait
Double-click to open or close the rear trunk.
longer than two minutes, you must re-authenticate by
placing the key card near the card reader located in the
If equipped with a powered liftgate, double-click
wireless phone charger on the center console. When
to unlatch the rear trunk. You can also single-click
your key card is detected, your two minute
to stop the liftgate when it is moving.
authentication period restarts.
Hold the button down for one to two seconds to
open the charge port door.
2. Lock/Unlock All
Single-click to lock all doors and rear trunk.
Hazard warning lights flash once.
NOTE: If a door or the rear trunk is open, hazard
warning lights flash three times and doors do not
lock. But you can enable a single-click to both
close all doors (and rear trunk) and lock them, by
turning on the Close All with Key Fob setting
(touch Controls > Locks > Close All with Key
Fob). By default, this setting is turned off and you
must triple-click the button to close and lock all
doors.
Double-click to unlock. Hazard warning lights flash
twice.
NOTE: If Automatic Doors is enabled (touch
NOTE: If enabled, Walk-Away Door Lock (see Walk-
Controls > Locks > Automatic Doors), doors
Away Door Lock on page 19) operates only when you
unlock and the driver's door opens as you
walk away using a phone key or passive key fob. When
approach Model X. A subsequent double-click
you walk away carrying your key card, Model X does not
opens the passenger front door.
automatically unlock/lock.
3. Front trunk
Key Fob
Double-click to unlatch the front trunk.
You can quickly familiarize yourself with the key fob by
4. Falcon wing doors
thinking of it as a miniature version of Model X, with the
Tesla badge representing the front. The key has buttons
Double-click to open/close the associated falcon
that feel like softer areas on the surface.
wing door.
Opening and Closing
11
Keys
Single-click to stop movement of the associated
falcon wing door. Subsequently double-clicking
reverses movement of the falcon wing door. For
example if the door was opening, it closes, and
vice versa.
NOTE: Falcon wing doors are designed to proactively
detect obstacles that prevent the doors from moving
when an obstacle is detected.
WARNING: Model X falcon wing doors have
several sensors to detect the presence of an object
in the door's path. In most cases, when an object is
detected, the door stops moving. However, the
sensors are unable to detect all areas under all
circumstances, particularly when closing,
Therefore, you must monitor the movement of
falcon wing doors to ensure the door's path of
movement is free of obstacles, staying prepared at
all times to proactively intervene to stop the door
from contacting an object (including a person).
Failure to do so can cause serious damage or
bodily injury.
Once inside, power up Model X by pressing the brake
pedal within two minutes of pressing the unlock button
To drive the vehicle, scan the key fob on the phone
on the key fob (see Starting and Powering Off on page
charger.
61). If you wait longer than two minutes, you must
press the unlock button again, or place the key fob near
1. Place it at the top of the left phone charger, against
the card reader located in the lower half of the left
the center divider.
wireless phone charger, facing downward, on the center
console. When your key fob is detected, the two minute
2. Point the front of the key fob to the left.
authentication period restarts.
3. Swipe downwards.
When approaching or leaving Model X carrying the key
fob, you do not need to point the key fob at Model X as
you press a button, but you must be within operating
range.
Radio equipment on a similar frequency can affect the
key. If this happens, move the key at least one foot
(30 cm) away from other electronic devices (phones,
laptops, etc.).
In the event that the key fob's battery is dead, you can
still use it. To unlock the vehicle, scan the key fob on the
card reader located on the driver's side door pillar (like
the key card).
Instructions for changing the battery are provided in
Replacing the Key Fob Battery on page 13.
NOTE: You can use the same key fob with multiple
Model X vehicles provided you authenticate it (see
Managing Keys on page 14). However, key fob works
with only one Model X at a time. Therefore, to use a key
fob for a different Model X, touch its flat side against the
card reader on the driver's side door pillar.
NOTE: Model X supports up to four different key fobs.
12
Keys
CAUTION: Protect the key from impact, high
temperatures, and damage from liquids. Avoid
contact with solvents, waxes, and abrasive
cleaners.
Passive Locking and Unlocking
Locking and unlocking Model X with your key fob is
conveniently hands-free. Although you must be carrying
a paired key fob, there is no need to use it. Model X has
sensors around the vehicle that can recognize the
presence of a key fob within a range of approximately
six feet (two meters). Therefore, you can keep your key
fob in your pocket or purse and press the door handle to
unlock and extend the handle. When carrying your key
NOTE: If a lanyard is attached to the key, you can
fob with you, you can also open the trunk without
release the bottom cover by placing your thumb
having to use the key by pressing the liftgate's exterior
against the "X" on the bottom cover, then firmly
switch. If Walk-Away Door Lock is enabled, Model X
pulling the lanyard toward you (hence pushing the
automatically locks when you exit and the key fob is no
key off of its cover). You can also pry the cover off by
longer in range (see Walk-Away Door Lock on page
placing a small flat-bladed tool, a fingernail, or the
19). Passive locking and unlocking is automatically
Tesla-provided tool against the lanyard cord.
enabled when you pair your key fob to Model X.
2. Remove the battery by lifting it away from the
Although you can use the same key fob with multiple
retaining clips.
vehicles, it can only be paired to one vehicle at a time.
To activate a paired key fob to a different vehicle, touch
the flat side onto the driver's side door pillar and click
any button on the key fob to confirm.
NOTE: For increased security, passive locking and
unlocking disables after being stationary for five minutes
while within vehicle range when the vehicle is not in use
(for example, you are standing outside your vehicle). In
this situation, you must shake or press a button on the
key fob to re-enable passive locking and unlocking.
Replacing the Key Fob Battery
Under normal use, the key fob has a battery that lasts
for up to one year, depending on key fob version and
selected vehicle settings. When the battery is low, a
message displays on the touchscreen.
To replace the key fob battery:
3. While avoiding touching the battery's flat surfaces,
insert the new battery (type CR2354) with the ‘+
1. With the key fob placed button side down on a soft
side facing up.
surface, release the bottom cover, using a small flat-
NOTE: Wipe the battery clean before fitting and
bladed tool.
avoid touching the battery's flat surfaces. Finger
marks on the flat surfaces of the battery can reduce
battery life.
CAUTION: The battery should press against the
spring on the positive contact. Do not place the
battery on top of the contact and force it down
vertically. Doing so may damage the contact.
Opening and Closing
13
Keys
Model X supports up to 19 keys. When you reach this
limit, you must delete a key before adding a new one.
NOTE: You can use the same key for more than one
Model X. This prevents you from having to deal with
multiple keys when you switch vehicles. If you customize
the name of an authenticated key card or key fob on one
Model X (by touching the pencil icon), any other
Model X to which the key card or key fob is
authenticated also displays the changed name.
Adding and Removing Keys
To add a new key card or key fob:
NOTE: When adding a key fob, ensure it is at room
temperature. Pairing a key fob that is very cold can be
unsuccessful.
1. On the touchscreen, touch Controls > Locks then
touch + in the Keys section.
2. Scan your new key card or key fob on the card reader
located on the wireless phone charger. To scan the
NOTE: CR2354 batteries can be purchased from any
key fob:
retailer that sells batteries.
Place it at the top of the left phone charger,
4. Holding the bottom cover at an angle, align the tabs
against the center divider.
on the cover with the corresponding slots on the key
Point the front of the key fob to the left.
fob, then press the cover firmly onto the key fob until
it snaps into place.
Swipe downwards (as shown in the image).
When you hear a chime and the new key is
5. Test that the key fob works by unlocking and locking
recognized, remove it from the card reader.
Model X.
WARNING: Key fob batteries contain a chemical
burn hazard and should not be ingested. The key
fob contains a coin cell battery. If the coin cell
battery is swallowed, it can cause severe internal
burns within two hours and can lead to death.
Keep new and used batteries away from children. If
the battery compartment does not close securely,
stop using the product and keep it away from
children. If you think batteries might have been
swallowed or placed inside any part of the body,
seek immediate medical attention.
Attaching a Lanyard
To attach a lanyard, release the bottom cover as
described above. Place the lanyard over the pin located
3. Scan a key card or key fob that has already been
between the slots on the widest side of the key fob. Re-
paired to the vehicle to confirm new key pairing.
align the cover and snap into place.
4. When complete, the key list includes the new key.
Touch the associated pencil icon to customize the
Managing Keys
name of the key.
To display a list of all keys (phone keys, key cards, and
Removing a key:
key fobs) that can access your Model X, touch Controls
> Locks. An icon displays next to each key to indicate
When you no longer want a key to access Model X (for
whether the key is a phone key, key card, or key fob. Use
example, you lost your phone or key card, etc.), follow
this list to manage keys that have access to your
these steps to remove it.
Model X. To add or delete keys, see Adding and
Removing Keys on page 14.
14
Keys
1. On the touchscreen, touch Controls > Locks.
2. In the key list, find the key that you would like to
delete and touch its associated trash icon.
3. When prompted, scan an authenticated key card or
key fob on the card reader to confirm the deletion.
When complete, the key list no longer includes the
deleted key.
NOTE: Model X requires at least one authenticated key
card or key fob at all times. If only one key card remains
on the key list, you cannot delete it.
Opening and Closing
15
Doors
Opening and Closing Front Doors
from Outside
Model X doors are electrically powered. When you
approach Model X carrying a key, the doors
automatically unlock. The front doors open when you
press the door handle.
You can also set the driver's door to open automatically
upon your approach. The door partially opens (between
20° and 45° depending on obstacles detected by
sensors). Touch Controls > Locks > Automatic Doors. If
this setting is on, you can also open the driver's door by
double-clicking the key fob's lock/unlock button. A
subsequent double-click opens the front passenger
door.
You can also specify that you want to unlock only the
driver's door when you shift into Park by touching
Controls > Locks > Driver Door Unlock Mode.
You can also use the touchscreen to open and close
NOTE: See Cold Weather Best Practices on page 96
doors when inside Model X. Touch (Controls > Locks),
for information on opening the doors in cold weather.
then choose the door you want to open or close. In
CAUTION: The front doors may not fully open or
addition, when you press the brake pedal, the driver's
close automatically when parked on a very steep
door automatically closes.
hill. Never rely on Model X to fully open or close
the doors for you when parked on a steep hill.
Opening and Closing Falcon Wing
To close doors from the outside, you can:
Doors
• Manually push them shut.
Model X has falcon wing doors that easily open and
close by pressing a button, using a key fob, using the
• Single-click or triple-click the key fob's lock/unlock
mobile app, or touching the associated icon on the
button (if the Close All with Key Fob setting is on,
touchscreen. The falcon wing doors are equipped with
only a single click is needed to close all doors and
several sensors that detect the presence of people and
trunks—a triple-click is needed if the setting is off).
objects and, if an object is detected, the door stops
moving. Based on detected objects, the doors may
NOTE: Powered doors stop moving if an obstacle is
adjust their outward and upward movement in an
detected.
attempt to avoid contacting the object. For example, if
WARNING: Before allowing an automated feature
an object is detected above Model X, the door's
to open or close a front door (rather than doing so
movement may extend further outward but lower,
manually), it is important to check that the area
whereas if an object is detected beside the door, the
around the door is free of obstacles (such as
door may extend outward much less.
people and objects). You must proactively monitor
the door's movement to ensure that it does not
WARNING: It is important to keep your hands clear
contact a person or object. Failure to do so can
of the falcon wing door frames at all times.
result in damage or serious injury.
Proactively check the door frame area prior to
closing, and monitor the movement of the door
during closing to ensure that it does not come into
Opening Front Doors from Interior
contact with a person or object. Failure to do so
can result in damage or serious injury.
To open a front door while sitting inside, press the
button located at the top of the interior door handle and
push the door open.
16
Doors
WARNING: Before opening or closing a falcon
wing door, it is important to check that the area
around the door is free of obstacles (people and
objects). Although the doors have many sensors, it
can not detect all objects at all times, particularly
when moving. At any given moment, there may be
areas near the door that are not in the detection
zone. Therefore, when opening or closing a falcon
wing door, you and your passengers must stand
away from the door as it is moving, while
proactively monitoring the door's movement and
being prepared to take corrective action at any
time. To stop a door from moving, single-click the
falcon wing door button on the key fob, press the
switch on the door or door pillar, or touch the
If a falcon wing door or the front trunk is left open when
button on the touchscreen.
you attempt to shift out of Park, the touchscreen
displays a notification requiring you to confirm your
To open a falcon wing door from outside Model X, press
intent to drive. The falcon wing door automatically
the door handle or double-press the falcon wing door
closes when your driving speed reaches 10 mph
button on the key fob (see Keys on page 10).
(16 km/h). In addition, your vehicle speed is limited if
you choose to keep the front trunk open while driving. It
To open a falcon wing door from inside Model X, press
is your responsibility to ensure doors and trunks are
the switch located on the driver's side door pillar, or, on
properly closed before driving.
the touchscreenm, touch the associated door icon
(Controls > Locks):
NOTE: To prevent children from opening falcon wing
doors using the interior switch, turn on child-protection
NOTE: Falcon wing doors open only when Model X is
locks using the touchscreen (Controls > Locks > Child
stationary.
Locks). See Child Locks on page 20.
NOTE: You can configure Model X to open the falcon
wing doors to a lower height setting by using the
touchscreen (Controls > Locks > Falcon Door Height).
NOTE: If a falcon wing door detects an obstacle while
closing, it reverses a few inches before it stops moving.
WARNING: Whenever a front door is partially open
(approximately 20°) as you are opening or closing
the associated falcon wing door, you MUST keep
your hands (or any object) away from the opening
edge of the front door. When a falcon wing door
passes by a partially opened front door, the
distance between the two doors is very narrow.
Objects, such as hands or fingers, placed in this
NOTE: If Model X is locked, using the switch (illustrated
area, are not detected by sensors and can
above) the first time unlocks the associated door. Using
therefore become pinched between the doors. To
it a second time opens it.
avoid bodily injury, it is a good practice to keep
your hands away from the front door whenever
CAUTION: Remove accumulation of snow or ice
you are opening or closing a falcon wing door.
before opening a falcon wing door. Snow can get
inside Model X and ice can prevent the door from
opening. In situations where water or snow has
accumulated on the glass on top of the falcon
wing door, Tesla recommends using the
touchscreen or switch on the door pillar (instead
of the external door handle or key fob) to slowly
open the falcon wing door for the first few inches
(cm). Opening the falcon wing door slowly for the
first few inches (cm) mitigates the scenario of
water, snow, etc. from entering the vehicle.
To close a falcon wing door, press the button located on
the inside of the door. You can also use the key fob (see
Key Fob on page 11), use the switch on the door pillar
(illustrated above), or touch the associated door icon on
the touchscreen (Controls > Close).
Opening and Closing
17
Doors
CAUTION: In rainy weather, leaving a falcon wing
Opening Interior Doors with No
open while opening the liftgate can result in rain
water falling from the liftgate into the rear seating
Power
area.
To open a front door in the unlikely situation when
WARNING: When opening or closing a falcon wing
Model X has no power, pull up the manual door release
door, it is important to proactively monitor the
located in front of the window switches.
movement of the door to ensure that it does not
come into contact with a person or object. Failure
to do so can cause serious damage or injury.
Obstacle Detection
A falcon wing door stops moving when one of its many
sensors detects an obstacle, or when the door senses
resistance because it has made contact with an object.
The touchscreen displays a warning. In these cases,
provided it is appropriate to continue opening or closing
the falcon wing door, you can override obstacle
detection by pressing and holding the switch located on
the door pillar, or touching and holding the associated
door icon on the touchscreen.
When Model X detects a low ceiling (for example, in a
garage), it opens the falcon wing doors (and trunk) to a
lower height, even if no obstacle is detected. You can
override this height and open the doors higher by
touching the associated door icon on the touchscreen
(Controls). The touchscreen displays a message asking
CAUTION: Manual door releases are designed to
you if you always want to open the doors to the higher
be used only in situations when Model X has no
height at this location, and saves your choice. The next
power. When the vehicle has power, use the button
time you open the falcon wing doors at this location,
located at the top of the interior door handle.
Model X opens them to the height you saved.
To open the falcon wing doors, carefully remove the
WARNING: Before overriding a falcon wing door's
speaker grille from the door and pull the mechanical
default opening height, visually inspect the area to
release cable down and towards the front of the vehicle.
ensure adequate clearance between the door and
After the latch is released, manually lift up the door.
the detected object.
WARNING: Applying adhesive products such as
wraps, stickers, rubber coating, etc. on the outside
of the falcon wing doors can affect the sensors’
ability to detect obstacles properly.
Calibration
If the falcon wing doors lose calibration, the main
Controls window on the touchscreen displays a
Calibration Required message. To calibrate the doors,
first ensure that both doors have plenty of space to
open and close and are clear of passengers, objects, etc.
Touch Controls > Service > Calibrate Doors, then press
and hold the Calibrate button until calibration is
complete. During calibration, the lower door opens all
the way out (requiring extra space on the side of Model
X), the upper door moves all the way down, and then
the lower door closes.
18
Doors
WARNING: The pop actuator will attempt to
Front Door Reset
retract back into the door almost immediately
after the door handle is pressed or pulled. The
Since your Model X does not have traditional door
pop actuator retracts gently, but will not release
handles that you can pull from the outside, it is
automatically if something gets caught.
equipped with pop actuators (sometimes referred to as
"ice breakers") that are used to assist in opening the
front doors in cases where resistance is detected, such
WARNING: As with all mechanical and moving
as ice buildup in cold weather. The pop actuator is
parts on the vehicle, never put body parts in, or
located just above the front door latch and extends as
near, moving components. Make sure children are
necessary to open the front door. Once the front door
monitored when opening and closing doors.
opens slightly, the pop actuator gently retracts back into
Interacting with moving components, including the
the door.
pop actuator, can cause serious damage or bodily
injury.
Interior Locking and Unlocking
While sitting inside Model X, you can lock and unlock all
doors and trunks by touching the lock icon in Controls.
The icon changes to indicate whether
doors are locked or unlocked.
Driver Door Unlock Mode
Enabling Controls > Locks > Driver Door Unlock Mode
only unlocks the driver door when you first unlock
Model X.
If the pop actuator is unable to retract because it is
stuck to or caught on something, the pop actuator can
be extended manually to extract the object by
Walk-Away Door Lock
performing the following:
Doors and trunks can automatically lock when you walk
1. Carefully close the door latch using a pen,
away carrying your phone key or paired key fob. To turn
screwdriver, or comparable tool (never use a finger or
this feature on or off, touch Controls > Locks > Walk-
body part and avoid damaging the paint); Model X
Away Door Lock.
will detect this as though the door is closed.
When the doors lock, the exterior lights flash once and
the mirrors fold (if Fold Mirrors is on). To also hear a
confirmation sound when Model X locks, touch Controls
> Locks > Lock Confirmation Sound.
Model X does not automatically lock if:
• You check the Exclude Home checkbox and Model X
is parked at the location you have designated as
Home. For details on how to designate a location as
Home, see Home, Work, and Favorite Destinations on
page 150.
• A phone key or paired key fob is detected inside
Model X.
• A door or trunk is not fully closed.
2. Make sure Model X is unlocked, then press the
exterior door handle or pull the interior door handle
• The phone key's Bluetooth setting is turned off.
to reset the latch and extend the pop actuator.
• Key fob or phone key remains within range for five
3. As the pop actuator extends out from the door,
minutes after all doors have been closed.
quickly extract the object.
Opening and Closing
19
Doors
NOTE: It is ultimately your responsibility to ensure your
vehicle is locked, even when Walk-Away Door Lock is
enabled.
Drive Away Locking
Model X automatically locks all doors (including the
trunks) when your driving speed exceeds 5 mph
(8 km/h).
Child Locks
Model X has child locks on the rear doors to prevent
them from being opened using the interior release
buttons. On the touchscreen, touch Controls > Locks >
Child Lock. You can choose Both to engage the child
lock on both rear doors, or you can choose Left or Right
to engage it on just a specific door.
WARNING: It is recommended that you turn on
child locks when children are seated in the rear
seats.
Unlock on Park
When you stop Model X and engage Park, you can
choose to unlock all doors. To turn this feature on or off,
touch Controls > Locks > Unlock on Park.
20
Windows
Opening and Closing
Locking Rear Windows
Press down on a switch to lower the associated window.
To prevent passengers from using the rear window
Window switches operate at two levels:
switches, touch Controls > Locks > Window Lock. To
unlock the rear windows, touch Window Lock again.
• To lower a window fully, press the switch all the way
down and immediately release.
WARNING: To ensure safety, it is recommended
that you lock the rear window switches whenever
• To lower a window partially, press the switch gently
children are seated in the rear seats.
and release when the window is where you want it.
WARNING: Never leave children unattended in
Model X.
Similarly, pull a switch to raise the associated window:
• To raise a window fully, pull the switch all the way up
and immediately release.
• To raise a window partially, pull the switch gently and
release when the window is where you want it.
If a window is left open unintentionally, Model X can
send a notification to the mobile app (touch Controls >
Locks > Car Left Open Notification, then choose Doors
& Windows).
You can also enable Close Windows on Lock by
touching Controls > Locks > Close Windows on Lock.
When enabled, your vehicle automatically closes the
windows when Model X locks.
NOTE: See Cold Weather Best Practices on page 96
for information on preparing windows for cold weather.
CAUTION: To avoid damage, windows
automatically lower slightly when you open or
close a door. If you manually raise a window when
the door is open, ensure it is slightly lowered
before closing the door.
WARNING: Before closing a window, it is the
driver’s responsibility to ensure that all occupants,
especially children, do not have any body parts
extended through the window’s opening. Failure to
do so can cause serious injury.
Opening and Closing
21
Rear Trunk
NOTE: In emergency situations, you can override an
Opening
open or close command by grasping the liftgate to stop
it in place.
To open the rear trunk, ensure Model X is in Park, then
do one of the following:
If Model X detects a low ceiling (for example, in a
garage), it opens the liftgate (and falcon wing doors) to
• Touch Controls > Trunk on the touchscreen.
a lower height, even if no obstacle is detected. You can
override this height by manually lifting it higher. When
• Double-click the rear trunk button on the key fob.
doing so, the touchscreen prompts you to choose if you
• Touch the rear trunk button on the mobile app.
always want the trunk to open to this higher position at
• Press the switch located under the liftgate's exterior
this location, and saves your choice. If you choose to do
handle (a valid key must be detected).
so, the next time you open the liftgate at this location,
Model X opens it to the saved height.
CAUTION: Before opening the liftgate in an
WARNING: Before opening or closing the liftgate,
enclosed area (such as a garage), ensure the
check the surrounding area (for people and
opening height of the liftgate is properly adjusted
objects). Although the liftgate can detect
to avoid low-hanging ceilings or objects (see
obstacles, it cannot detect all objects at all times.
Adjusting Liftgate Opening Height on page 22).
Do not rely on the liftgate to sense an obstruction
when opening or closing. You must proactively
Model X must be unlocked or detect a key before you
monitor the liftgate to ensure that it does not
can use the switch to open the liftgate.
come into contact with a person or object. Failure
to do so may result in damage or injury.
Adjusting Liftgate Opening Height
You can adjust the opening height of the liftgate to
make it easier to reach or to avoid low-hanging ceilings
or objects (for example, a garage door or light):
1. Open the trunk, then manually lower or raise the
liftgate to the desired opening height.
2. Press and hold the button on the underside of the
liftgate for three seconds until you hear a
confirmation chime.
The instrument panel informs you when a door or trunk
is open.
To stop a liftgate while it is moving, single-click the rear
trunk button on the key fob. Then, when you double-
click the rear trunk button, it moves again, but in the
opposite direction (provided it was not almost entirely
open or closed when you stopped it). For example, if
3. Confirm that you have set it to the desired height by
you single-click to stop the liftgate while opening, when
closing the liftgate, then reopening it.
you double-click, it closes.
22
Rear Trunk
CAUTION: Depending on configuration (such as
suspension height or wheel selection), your
vehicle's liftgate can open up to approximately 8
feet (2.5 meters) high. Adjust the liftgate height to
prevent it from coming into contact with low
ceilings or other objects.
Closing
To close the liftgate, do one of the following:
• Touch Controls > Trunk.
• Double-click the rear trunk button on the key fob.
• Press the switch located on the underside of the
liftgate
If the liftgate senses an obstruction when closing, it
stops moving and chimes two times. Remove the
obstruction and try closing it again.
Accessing the Cargo Area
Secure all cargo before moving Model X, and place
heavy cargo in the upper trunk compartment.
To access the cargo area inside the rear trunk, push
down on the ridged portion of the handle of the cargo
cover and then pull up. You can then adjust the position
of the cargo cover or completely remove it.
The cargo weight should be distributed as evenly as
possible between the front and rear trunks.
CAUTION: Never load more than 176 lbs (80 kg) in
the lower tub compartment of the rear trunk or
more than 397 lbs (180 kg) on the upper floor.
Doing so can cause damage.
WARNING: When loading cargo, always consider
the vehicle's Gross Vehicle Weight Rating (GVWR)
(see Vehicle Loading on page 207). The GVWR is
the maximum allowable total mass of the vehicle
including all passengers, fluids, and cargo.
Opening and Closing
23
Front Trunk
Opening
3. Carefully try to lift the front edge of the hood to
ensure that it is fully closed.
To open the front trunk, ensure Model X is in Park, and
then do one of the following before pulling the hood
open:
• Touch Controls > Frunk on the touchscreen.
• Double-click the front trunk button on the key fob.
• Touch the front trunk button in the mobile app.
The instrument panel displays when a door, trunk, or
liftgate is open.
WARNING: Before opening or closing the hood, it
is important to check that the area around the
hood is free of obstacles (people and objects).
Failure to do so may result in damage or serious
injury.
If a falcon wing door or the front trunk is left open when
The cargo weight should be distributed as evenly as
you attempt to shift out of Park, a notification requiring
possible between the front and rear trunks.
you to confirm your intent to drive appears on the
touchscreen. The falcon wing doors may automatically
CAUTION: Never load more than 110 lbs (50 kg) in
close once you begin to accelerate. In addition, your
the front trunk. Doing so can cause damage.
vehicle speed is limited if you choose to keep the front
trunk open while driving. It is your responsibility to
WARNING: When loading cargo, always consider
ensure doors and trunks are properly closed before
the vehicle's Gross Vehicle Weight Rating (GVWR)
driving.
(see Vehicle Loading on page 207). The GVWR is
the maximum allowable total mass of the vehicle
CAUTION: To prevent damage:
including all passengers, fluids, and cargo.
• Apply pressure only to the green areas shown.
Closing
Applying pressure to the red areas can cause
damage.
The Model X hood is not heavy enough to latch under its
• Do not close the hood with one hand. Doing so
own weight and applying pressure on the front edge or
applies concentrated force in one area and can
center of the hood can cause damage.
result in a dent or crease.
To properly close the hood:
• Do not apply pressure to the front edge of the
hood. Doing so can crease the edge.
1. Lower the hood until the striker touches the latches.
• Do not slam or drop the hood.
2. Place both hands on the front of the hood in the
• To avoid scratches, don't have anything in your
areas shown (in green), then press down firmly to
hands (keys). Jewelry can also cause scratches.
engage the latches.
24
Front Trunk
WARNING: Before driving, you must ensure that
2. To remove the tow eye cover, insert a small, flat
the hood is securely latched in the fully closed
screwdriver into the top and bottom slots, release the
position by carefully trying to lift the front edge of
snaps and pull the cover towards you.
the hood upward and confirming there is no
movement.
The front trunk locks when:
• You lock Model X using the touchscreen, key or
mobile app.
• You leave Model X carrying your key (if Walk-Away
Door Lock on page 19 is turned on).
• Valet mode is active (see Valet Mode on page 55).
Interior Emergency Release
An illuminated interior release button inside the front
trunk allows a person locked inside to get out.
3. Pull the two wires out of the tow eye opening to
expose both terminals.
Press the interior release button to open the front trunk,
then push up on the hood.
NOTE: The interior release button glows following a brief
4. Connect the low voltage power supply's red positive
exposure to ambient light.
(+) cable to the red positive (+) terminal.
WARNING: People should never climb inside the
5. Connect the low voltage power supply's black
front trunk. Never shut the front trunk when a
negative (-) cable to the black negative (-) terminal.
person is inside.
WARNING: Care should be taken to ensure that
objects inside the front trunk do not bump against
the release button, causing the hood to
accidentally open.
Opening Hood with No Power
In the unlikely event that Model X has no low voltage
power, you will be unable to open the front trunk using
the touchscreen, key fob, or mobile app. To open the
front trunk in this situation:
NOTE: The following steps do not open the front trunk if
Model X is locked and has low voltage power.
NOTE: Applying external low voltage power to these
terminals only releases the hood latches. You cannot
1. Locate an external low voltage power supply (such as
charge the low voltage battery using these terminals.
a portable jump starter).
Opening and Closing
25
Front Trunk
6. Turn on the external power supply (refer to the
manufacturer’s instructions). The hood latches are
immediately released and you can now open the
hood to access the front trunk area.
7. Disconnect both cables, beginning with the black
negative (-) cable.
8. If pulling the vehicle onto a flatbed truck, do not
replace the tow eye cover yet. If necessary, install the
tow eye cover by inserting the wires into the tow eye
opening and aligning the tow eye cover into position
and snapping it into place.
26
Interior Storage and Electronics
For additional glovebox security, touch Controls >
Center Console
Safety > Glovebox PIN to set a 4-digit PIN (see
Glovebox PIN on page 167).
In addition to housing an RFID transmitter that reads key
fobs and key cards (see Keys on page 10), the center
NOTE: If you leave the glovebox open, its light
console includes cup holders, two storage
eventually turns off.
compartments, wireless phone chargers, and a rear
touchscreen.
NOTE: The glovebox locks whenever closed and you
lock Model X using the mobile app, key card, you leave
To open the main storage compartment, pull its cover
Model X carrying your phone key (if Walk-Away Door
upward. Open the front storage compartment by sliding
Lock is turned on), or if Valet mode is active (see Valet
its cover forward.
Mode on page 55). It does not lock when Model X is
locked by touching the lock icon on the touchscreen.
WARNING: When driving, keep the glovebox
closed to prevent injury to a passenger if a
collision or sudden stop occurs.
USB Ports
Model X has five USB ports:
• Two USB ports are located in the front compartment
of the center console. These can be used to charge
USB devices and to play audio files from a phone or
USB device (see Playing Media from Devices on page
155).
• Two USB ports are located below the rear
touchscreen that can be used to charge USB devices.
• One USB port is located inside the glovebox. This
port is equipped with a USB flash drive. The secure
location of this USB port makes it ideal for saving
Sentry Mode and Dashcam video footage.
Model X has two cupholders that slide out under the
rear touchscreen.
To access the front USB ports, open the front
compartment of the center console. The front USB ports
are located on the rear wall of the compartment:
Glovebox
To open the glovebox, touch Controls > Glovebox. The
glovebox automatically opens and the light turns on.
Rear USB ports are located below the rear touchscreen:
To close the glovebox, push it upward until it latches into
the closed position.
Opening and Closing
27
Interior Storage and Electronics
One or more features on your Model X requires the use
of a flash drive (for example, Dashcam, Sentry Mode that
meets these requirements:
• Minimum storage capacity of 64 GB. Use a flash drive
with as much available storage as possible. Video
footage can occupy a large amount of space.
• A sustained write speed of at least 4 MB/s. Note that
sustained write speed differs from peak write speed.
• USB 2.0 compatible. If using a USB 3.0 flash drive, it
must support USB 2.0.
• Properly formatted (described below).
NOTE: In some market regions you can purchase
Glovebox USB port:
recommended USB drives on http://www.tesla.com.
Formatting a USB Flash Drive
To save and retrieve video footage, Model X requires a
USB flash drive formatted as exFAT, MS-DOS FAT (for
Mac), ext3, or ext4 (NTFS is currently not supported).
For use with Dashcam and Sentry Mode, the flash drive
must contain a base-level folder called TeslaCam.
Model X can format a USB flash drive for you. Insert the
flash drive into a front USB port, and touch Controls >
Safety > Format USB Drive. Doing so automatically
formats the drive as exFAT and creates a folder for
TeslaCam. The USB flash drive is now ready to record
and save video footage. Format USB Drive is available
only when a USB flash drive (with one or fewer
partitions) is inserted into a front USB port. Choosing
NOTE: Power is available whenever the vehicle is
Format USB Drive erases any existing content on the
considered "awake". The vehicle may be awake for many
flash drive—before using this feature, you must move
reasons. For example, when using features such as
any content you want to keep to a different device.
Summon, or when features such as Preconditioning,
Keep Climate On, Dog Mode, Camp Mode, or Sentry
If Model X is unable to format the flash drive, you must
Mode are enabled. The vehicle is also awake whenever
format it using a computer. Remember to manually
the low voltage battery is being charged or is in use,
create the TeslaCam folder (if equipped).
during high voltage charging, when the vehicle is
communicating with the mobile app, etc. Leaving an
You can also format the USB flash drive with a computer
accessory plugged in does not deplete the low voltage
to use a single flash drive for Dashcam, Sentry Mode,
battery.
Track Mode (if equipped), and audio files. Create
NOTE: Use USB 3.0 compliant cables to connect a
separate partitions on the drive formatted as exFAT; for
device to a USB port. Using non-compliant cables can
example, one for Dashcam and Sentry Mode (you must
result in slower charging, potential connection problems
create the TeslaCam folder), one for Track Mode (create
or degraded performance.
the TeslaTrackMode folder), and an audio partition.
NOTE: Do not connect multiple devices using a USB
Once the USB flash drive is formatted and contains the
hub. This can prevent connected devices from charging
necessary folder(s), insert it into a front (or glovebox, if
or from being recognized by Media Player, Sentry Mode,
equipped) USB port. Do not use a rear USB port— these
Dashcam, etc.
are used only to charge USB devices. Once inserted, it
can take up to 15 seconds for Model X to recognize the
USB Drive Requirements for
flash drive. When recognized, icons for Dashcam and
Sentry Mode are available when you touch Controls and
Recording Videos
your vehicle is ready to record videos. You may need to
first enable Sentry Mode (if equipped) by touching
NOTE: For saving Sentry Mode and Dashcam footage,
Controls > Sentry.
Tesla recommends using the USB port located in the
glovebox. Doing so increases security and minimizes
power consumption.
28
Interior Storage and Electronics
Viewing Video Recordings
You can view recorded footage on the touchscreen
when Model X is in Park. Touch the Dashcam icon
located in the app launcher or the Dashcam icon on the
Controls screen. Touch the menu icon in the top corner
of the screen. The tabs display a list of all video clips,
organized by location and timestamp. Pause, rewind,
fast forward, and delete video recordings as needed.
You can also navigate to Controls > Safety > Delete
Dashcam Clips to delete all dashcam and Sentry Mode
footage, including recent and saved clips.
NOTE: Dashcam recording pauses when you launch the
Viewer.
You can also view video footage by removing and
When placed on the wireless charger, your phone
inserting the USB flash drive into a computer and
charges whenever the vehicle is powered on (the
navigating to the TeslaCam (if equipped) folder.
touchscreen is on and you are in the vehicle). Your
phone does not charge when you leave the vehicle
The TeslaCam folder contains three sub-folders:
unless a feature, such as Sentry mode is enabled.
Recent Clips: When recording, Dashcam continuously
NOTE: The phone must be in direct contact with the
saves footage to Recent Clips in 60-minute cycles.
wireless charger. Do not place objects between the
Footage is overwritten every hour unless you
phone and the charger (for example, credit cards, key
manually save it. Four videos are recorded for each
cards, coins, keys, metal objects, etc.).
clip, one from each camera (front, rear, left, and
NOTE: The wireless phone charger may not work if your
right).
phone case is too large or is made of metal. Try
Saved Clips: Contains all recordings that are saved
removing the phone from its case before placing it on
using Dashcam.
the charger.
Sentry Clips: Contains the last 10 minutes of footage
NOTE: The wireless phone charger does not charge if
from all Sentry Mode events that triggered an Alert
the vehicle's high voltage Battery is discharged.
or Alarm state. If storage space on the USB flash
drive becomes limited, the oldest Sentry Clips are
deleted to provide space for new ones. Once deleted,
Low Voltage Power Socket
you cannot retrieve them.
Your Model X has a power socket located in the center
When the USB flash drive runs out of storage space,
console's rear compartment. To access the low voltage
socket, open the front compartment of the center
video footage can no longer be saved. To prevent the
flash drive from getting full, regularly move saved videos
console.
to another device and delete them from the flash drive.
Wireless Phone Chargers
Wireless phone chargers are integrated into both the
front and rear consoles, each providing up to 15W of
power to charge Qi-enabled phones. Simply place your
phone on the charger. Your device may feel warm while
charging, but this is a normal effect of inductive
charging.
The power socket is suitable for accessories requiring up
to 12A continuous draw (16A peak).
Opening and Closing
29
Interior Storage and Electronics
NOTE: Power is available whenever the vehicle is
intelligently create quiet zones around the front
considered "awake". The vehicle may be awake for many
occupants depending on vehicle and environmental
reasons. For example, when using features such as
factors.
Summon, or when features such as Preconditioning,
Cabin Overheat Protection, Keep Climate On, Dog Mode,
Camp Mode, Sentry Mode, etc. are enabled. The vehicle
is also awake whenever the low voltage battery is being
charged or is in use, during high voltage charging, when
the vehicle is communicating with the mobile app, etc.
Leaving an accessory plugged in does not deplete the
low voltage battery.
WARNING: The power socket and an accessory’s
connector can become hot.
WARNING: To prevent excessive interference with
the vehicle’s electronics, Tesla recommends that
you do not plug any non-Tesla accessories,
including power inverters, into the low voltage
power socket. However, if you do use a non-Tesla
accessory and notice any malfunctions or
unexpected behavior, such as indicator lights, alert
messages, or excessive heat from the accessory,
unplug the accessory from the low voltage power
socket immediately.
NOTE: A power inverter plugged into the low voltage
power socket must support 16V DC input to function.
To turn Active Road Noise Reduction on or off, open the
CAUTION: Do not attempt to jump start Model X
Media Player and touch Audio Settings icon > Options >
using the low voltage power socket. Doing so can
Active Road Noise Reduction (the audio settings icon
result in damage.
shows an equalizer with three vertical lines). This may
require several minutes of driving time to calibrate
Coat Hangers
before enabling.
Your Model X has a coat hanger on each side of the
NOTE: To ensure active noise reduction operates
vehicle above the rear window in the second row, next to
effectively, avoid covering the microphones (with seat
the reading light. Push the coat hanger to release it.
covers, etc.). Active Road Noise Reduction may disable
Push it again to retract it.
if a window is rolled down, door is open, or the fan is
turned up. Active Road Noise Reduction also disables if
there is a rear passenger in the vehicle.
CAUTION: To prevent damage to these
microphones when cleaning, do not over-saturate
the area of the seats where the microphones are
located.
Active Road Noise Reduction
Model X is equipped with Active Road Noise Reduction
which reduces low-frequency road noise while driving
on rough surfaces. To accomplish this, the vehicle uses
the seat microphones to measure noise in the cabin,
then generates anti-noise through the speakers to
30
Sun Visors
The sun visors in Model X are held in place by magnets.
To protect occupants from sunlight coming through the
windshield, release the sun visor from the pillar and
pivot it toward the rear view mirror until the magnet
snaps into place. While held in place by the magnet, you
can adjust the sun visor and lower the extender to
provide maximum shade.
To expose the vanity mirror, lower the visor extender
then lower the mirror cover. While the cover is lowered,
the mirror is exposed and lights are illuminated.
To protect front seat occupants from sunlight coming
through the side window, lower the sun visor from the
pillar then lower the visor extender.
Opening and Closing
31
Front and Rear Seats
Correct Driving Position
Adjusting Front Seats
The seat, head support, seat belt and airbags work
together to maximize your safety. Using these correctly
ensures greater protection.
Position the seat so you can wear the seat belt correctly,
while being as far away from the front airbag as
possible:
1. Sit upright with both feet on the floor and the seat
back reclined no more than 30 degrees.
2. Make sure you can easily reach the pedals and that
your arms are slightly bent when holding the steering
yoke. Your chest should be at least 10 inches (25 cm)
from the center of the airbag cover.
3. Place the shoulder section of the seat belt mid-way
between your neck and your shoulder. Fit the lap
section of the belt tightly across your hips, not across
your stomach.
Model X seats include integrated head supports that
cannot be adjusted or removed.
1. Move seat forward/backward and adjust the seat’s
height and tilt angle up/down.
2. Adjust backrest.
3. Adjust lumbar support.
WARNING: Before adjusting a front seat, check
that the area around the seat is free of obstacles
(people and objects).
WARNING: Do not adjust seats while driving.
Doing so increases the risk of a collision.
32
Front and Rear Seats
WARNING: Riding in a moving vehicle with the
seat back reclined can result in serious injuries in a
collision, as you could slide under the lap belt or
be propelled into the seat belt. Ensure your seat
back is reclined no more than 30 degrees when
the vehicle is moving.
Adjusting Second Row Seats
(Bench)
Second row bench seats can accommodate up to three
passengers. Use the mechanical adjustment lever
located at the side of each outboard seating position to
adjust the seat backs. A bench seat is split 60/40 so the
adjustment lever on the left side moves the seat backs
for both the left and center seats, whereas the lever on
the right side moves the rightmost seat back only. While
pulling and holding the lever, move the seat back to the
desired position, and then release the lever. When
NOTE: Before folding seats fully forward, remove any
returning a seat back to its upright position, try moving
items from the seats and the rear footwell. To allow the
it forward or back to ensure it is securely latched into
seat backs to fold completely flat, you may need to
position.
move the front seats forward.
Moving Second Row Seats (Bench)
NOTE: Only bench seats in seven-seat vehicles can be
moved forward and rearward. The bench seats in five-
seat vehicles are stationary.
Use the mechanical lever located beneath each
outboard seating position to move the second row seats
forward or rearward. The bench seats have a 60/40 split
—therefore, the lever on the left side moves the seat for
the left and center seats, whereas the lever on the right
side moves only the rightmost seat. Pull and hold the
lever while moving the seat forward or rearward. Release
the lever when the seat is at the desired location. Ensure
the lever is locked in place before driving.
WARNING: Riding in a moving vehicle with the
seat back reclined can result in serious injuries in a
collision, as you could slide under the lap belt or
be propelled into the seat belt. Ensure the backs of
occupied seats are reclined no more than 30
degrees when the vehicle is moving.
Folding Second Row Seats (Bench)
The second row seat backs on bench seats can be
folded fully forward so they lay flat and maximize cargo
space. Pull up the mechanical lever located on the side
of each outboard seat (the same lever you use to recline
the seats, as described previously), then push the seat
back fully forward. The bench seats have a 60/40 split—
therefore, the adjustment lever on the left side folds the
NOTE: You can adjust the position of bench seats using
seat backs for both the left and center seats, whereas
the mechanical levers only. You cannot use the
the lever on the right folds the rightmost seat back only.
touchscreen to adjust bench seats.
Seating and Safety Restraints
33
Front and Rear Seats
Adjusting Second Row Seats
(Monopost)
A Model X equipped with monopost seats can
accommodate two passengers in the second row. To
adjust the position of these seats, use the manual
adjustments.
WARNING: For vehicles with third row seats, do
not use the third row ingress button located on the
backrest of a second row outboard bench seat
when a child is seated in the second row. Using the
button allows the combined left and center seats
to be moved forward and can squeeze the
occupant. Use this button only when the second
row seats are unoccupied. Before driving, ensure
the seat and the seat back are securely latched
Use the button near the top of the seat to move the seat
into position.
back forward/backward.
In some situations, such as when you are parked on an
Use the L-shaped button at the bottom of the seat to
incline or when the seat's trim affects the movement of
move the seat forward/backward (up/down on the
the bench seats after you press the button, the bench
control) and adjust the backrest by tilting the top of the
seats might not move forward completely, and you may
L-shaped button forward/backward.
need to push the seats forward gently until they reach
the end of the track.
NOTE: The backrest locks into position when you release
the lever. If a backrest is not locked into position when a
WARNING: After you use the third row ingress
drive mode is engaged, the instrument panel displays an
button to access the third row seats, push the
alert for the unlocked backrest. Adjust the backrest
bench seats back to their seating position,
again, ensuring it locks into position.
ensuring the seats are securely latched into
position by trying to move them forward and
WARNING: Before driving, ensure the seat is
rearward. The seat must be fully latched into
locked in position. You may need to pull the seat
position before driving. Push or pull the seat until
forward or backward until it clicks into place.
you hear the seat "click" into place. Failure to do
so increases the risk of injury.
Accessing Third Row Seats (if
equipped)
Monopost Seats
If your vehicle is equipped with monopost seats, a third
Bench Seats
row ingress button is located on the backrest of each
outboard monopost seat in the second row. This button
If your vehicle is equipped with bench seats, a button is
makes it easy for passengers to enter and exit the third
located on the backrest of each second row outboard
row seating positions. Touch Controls > Safety > Third
bench seat. This third row ingress button makes it easy
Row Easy Entry and choose how you want this button to
for passengers to enter and exit the third row seating
work:
positions. Press and release the button on the left
outboard seat to tilt and move the combined left and
ON - Allows you to tilt and move the associated
center seats forward. Press and release the button on
outboard seat fully forward, and the center seat
the right outboard seat to tilt and move the right seat
partially forward, with a single-press of the button.
forward.
OFF - When off, which is recommended if a child seat
is installed in the second row, you must hold the
button to move the second row seats.
34

















Content      ..      1       2         ..





///////////////////////////////////////
