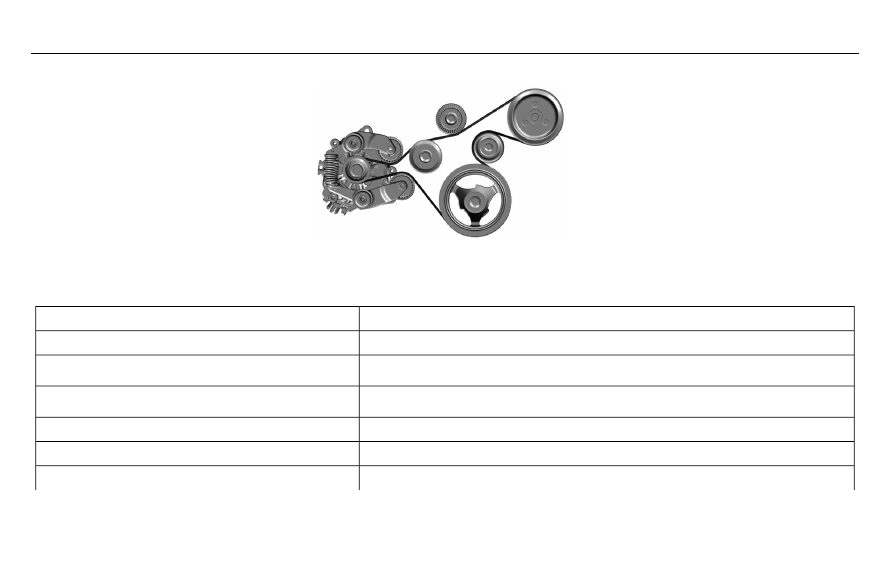

Drivebelt Routing

E294410

MOTORCRAFT PARTS - EXCLUDING: PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)

Part Number

Component

FA-1884

Air filter.

FL-2062-A

Oil filter.

1

BAGM-94RH7-800

Battery.

2

SP-594

Spark plug.

FP-103

Cabin air filter.

WW-2617-NH (non-heated driver side)

Windshield wiper blade.

462

Capacities and Specifications

Part Number

Component

WW-2618-H (heated driver side)

WW-2619-R (refill driver side)

WW-2114-NH (non-heated passenger side)

WW-2115-H (heated passenger side)

WW-2116-R (refill passenger side)

WW-1111

Rear window wiper blade.

1

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

2

See your authorized dealer for correct replacement.

We recommend Motorcraft replacement parts available at your authorized dealer or at fordparts.com for scheduled maintenance. These parts
engineered for your vehicle meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability.
Your warranty could be void for any damage related to use of other parts.

463

Capacities and Specifications

MOTORCRAFT PARTS - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)

Part Number

Component

FA-1884

Air filter.

FL-2062-A

Oil filter.

1

BAGM-94RH7-800 (main-engine compartment)

Battery.

2

BHAGM-AUX1-A (auxiliary-rear mount)

SP-594

Spark plug.

FP-103

Cabin air filter.

WW-2617-NH (non-heated driver side)

Windshield wiper blade.

WW-2618-H (heated driver side)

WW-2619-R (refill driver side)

WW-2114-NH (non-heated passenger side)

WW-2115-H (heated passenger side)

WW-2116-R (refill passenger side)

WW-1111

Rear window wiper blade.

1

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

2

See your authorized dealer for correct replacement.

We recommend Motorcraft replacement parts available at your authorized dealer or at fordparts.com for scheduled maintenance. These parts
engineered for your vehicle meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability.
Your warranty could be void for any damage related to use of other parts.

464

Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER

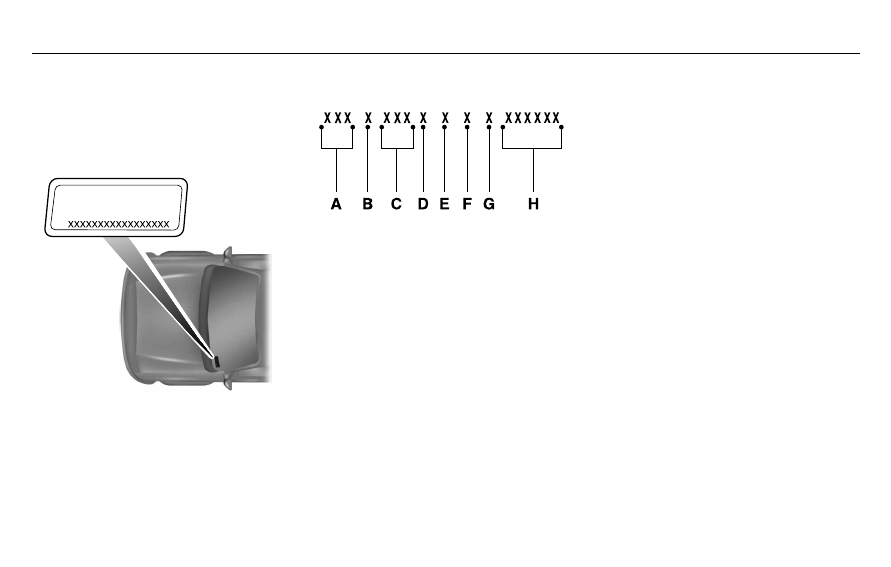

The vehicle identification number is located
on the left-hand side of the instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

CAPACITIES AND SPECIFICATIONS
- EXCLUDING: PLUG-IN HYBRID
ELECTRIC VEHICLE (PHEV)

Use oil and fluid that meets the defined
specification and viscosity grade.

If you do not use oil and fluid that meets the
defined specification and viscosity grade, it
could result in:

•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

465

Capacities and Specifications

Air Conditioning System

WARNING:

The air conditioning

refrigerant system contains refrigerant

under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.

Capacities

Refrigerant Oil

Refrigerant

Variant

5.92 fl oz (175 ml)

35 oz (0.99 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf
Motorcraft®(Canada)
YN-35(U.S. & Canada)

466

Capacities and Specifications

Automatic Transmission

Note:

Only use MERCON® ULV transmission

fluid for automatic transmissions that require
MERCON® ULV transmission fluid. The use
of any other fluid could cause transmission
damage.

Capacities

Quantity

Variant

12.6 qt (11.9 L)

1

All.

1

Approximate dry fill capacity. Actual amount could vary during fluid changes.

Materials

Specification

Name

WSS-M2C949-A, MERCON® ULV

Motorcraft® MERCON® ULV Automatic Transmission Fluid(U.S.)
Motorcraft® MERCON® ULV Automatic Transmission Fluid / MERCON® ULV huile
pour boîtes automatique Motorcraft®(Canada)
XT-12-QULV(U.S. & Canada)

467

Capacities and Specifications

Engine Coolant

Capacities

Quantity

Variant

18.0 qt (17 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement
prédilué jaune Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

468

Capacities and Specifications

Engine Oil

E142732

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not available,
use motor oils of the recommended viscosity
grade that display the API Certification Mark
for gasoline engines.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that your vehicle
warranty does not cover.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

469

Capacities and Specifications

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil / Huile moteur de très haute
qualité SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

470

Capacities and Specifications

E240523

Fuel Tank

Capacities

Quantity

Variant

20.2 gal (76.5 L)

All.

Grease

471

Capacities and Specifications

Materials

Specification

Name

ESA-M1C75-B

Motorcraft® Premium Long-Life Grease(U.S.)
Motorcraft® Premium Long-Life Grease / Graisse longue durée de qualité première
Motorcraft®(Canada)
XG-1-E1(U.S. & Canada)

ESB-M1C93-B

Motorcraft® Multi-Purpose Grease Spray(U.S.)
Motorcraft® Multi-Purpose Grease Spray / Graisse tout usage en aérosol Motor-
craft®(Canada)
XL-5-A(U.S. & Canada)

Hydraulic Brake System

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de
frein automobile haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

472

Capacities and Specifications

Note:

We recommend using DOT 4 Low

Viscosity (LV) High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use
of any fluid other than the recommended
fluid could cause reduced brake
performance and not meet our performance
standards. Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.

Locks

Materials

Specification

Name

-

Motorcraft® Penetrating and Lock Lubricant(U.S.)
Motorcraft® Penetrating Fluid / Liquide dégrippant Motorcraft®(Canada)
XL-1(U.S.)
CXC-51-A(Canada)

Transfer Case

Capacities

Quantity

Variant

1.1 qt (1 L)

All-wheel drive.

473

Capacities and Specifications

Materials

Specification

Name

WSS-M2C938-AMERCON® LV,

Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boîte auto-
matique MERCON® LV Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)

Front Axle

Capacities

Quantity

Variant

0.6 qt (0.6 L)

All-wheel drive.

474

Capacities and Specifications

Materials

Specification

Name

WSL-M2C192-A

Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant(U.S.)
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / Lubrifiant synthétique
pour pont arrière SAE 75W-140 Motorcraft®(Canada)
XY-75W140-QL(U.S.)
CXY-75W140-1L(Canada)

Rear Axle

Capacities

Quantity

Variant

1.9 qt (1.8 L)

All.

475

Capacities and Specifications

Materials

Specification

Name

WSS-M2C942-A

Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.)
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile
synthétique de haute qualité pour engrenages hypoïdes SAE 75W-85 Motor-
craft®(Canada)
XY-75W85-QL(U.S. & Canada)

Washer Reservoir

Capacities

Quantity

Variant

Fill as required.

All.

476

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concentrate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute
qualité Motorcraft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

CAPACITIES AND SPECIFICATIONS
- PLUG-IN HYBRID ELECTRIC
VEHICLE (PHEV)

Use oil and fluid that meets the defined
specification and viscosity grade.

If you do not use oil and fluid that meets the
defined specification and viscosity grade, it
could result in:

•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

Air Conditioning System

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.

Capacities

Refrigerant Oil

Refrigerant

Variant

6.93 fl oz (205 ml)

35 oz (0.99 kg)

All.

477
