PRINCIPLE OF OPERATION

MyKey allows you to program keys with
restricted driving modes to promote good
driving habits. You can program the
restrictions to all keys except one. Any keys
that you did not program are administrator
keys or admin keys.

You can use admin keys to:

•

Create a MyKey with certain vehicle
restrictions.

•

Program certain MyKey settings.

•

Clear all MyKey restrictions.

After you program a MyKey, you can view
the following information through the
information display:

•

The total number of admin keys and
MyKeys for your vehicle.

•

The total distance a MyKey driver
traveled with your vehicle.

Note:

Every MyKey receives the same

restrictions and settings. You cannot
program them individually.

Note:

For vehicles equipped with a

push-button start switch: When both a MyKey
and an admin key are present when you
start your vehicle, the system recognizes the
admin key only.

Standard Settings

Not every vehicle includes the features listed
below. If your vehicle has this equipment,
then you cannot change the following
settings when using a MyKey:

•

Seatbelt reminder or Belt-Minder™. MyKey
mutes the audio system until drivers, and
in some instances, passengers, fasten
their seatbelts.

Note:

 If your vehicle

includes an AM/FM radio or a very basic
audio system, then the radio may not
mute.

•

Earlier low-fuel warning. The low-fuel
warning activates earlier for MyKey
drivers, giving them more time to refuel.

•

Certain driver alerts, stability systems or
parking aids turn on automatically when
you use the MyKey system. For example,
Blind Spot Information System (BLIS),
cross traffic alert, lane departure warning
or forward collision warning.

Note:

 MyKey

drivers may be able to turn the lane
departure warning feature off, but this
feature turns back on automatically with
every new key cycle.

•

Restricted touchscreen operation in some
markets. For example, MyKey may
prevent manual navigation destination
input while the vehicle is in any gear
other than park (P) or when the vehicle
reaches a certain rate of speed.

•

Satellite radio adult content restrictions,
if this feature is available in your market.

Optional Settings

You can configure certain vehicle feature
settings when you first create a MyKey. You
can also change the settings afterward with
an admin key.

78

MyKey™

Note:

Not every feature applies to every

vehicle in every market. When they are
available for your vehicle, then they appear
in the information display, providing choices
to switch them on or off, or to select a more
specific setting.

•

Various vehicle speed limits so the
MyKey driver cannot exceed certain
speeds. The information display shows
warnings followed by an audible tone
when the MyKey driver reaches the set
speed. You cannot override the set
speed by fully depressing the accelerator
pedal.

WARNING:

Do not set MyKey

maximum speed limit to a limit that will
prevent the driver from maintaining a safe
speed considering posted speed limits and
prevailing road conditions. The driver is
always responsible to drive in accordance
with local laws and prevailing conditions.
Failure to do so could result in accident or
injury.

•

Various vehicle speed reminders so
MyKey drivers know when their vehicle
speed approaches the limits. Warnings
appear in the information display and a
tone sounds when the MyKey drivers
exceed the set vehicle speed.

•

The audio system's maximum volume
limits to 45% so MyKey drivers can
concentrate on the road. A message
appears in the information display when
MyKey drivers attempt to exceed the
limited volume. MyKey also disables the
automatic volume control.

Note:

 If your

vehicle includes an AM/FM radio or a
very basic audio system, then the radio
may not limit.

•

Always on setting. This setting forces
certain features to remain on and active
for MyKey drivers. For example, E911 or
emergency assistance and the do not
disturb features stay on even if a MyKey
driver uses the feature's control to switch
it off. When selected, you will not be able
to turn off Advance Trac or traction
control (if your vehicle has this feature).

CREATING A MYKEY

Use the touchscreen to create a MyKey:

1.

Insert the key you want to program into
the ignition. If your vehicle has a push
button start, place the remote control into
the backup slot.  See

Starting a Gasoline

Engine

 (page 206).

2. Switch the ignition on.

3. Press

SETTINGS

.

4. Press

Vehicle

.

5. Press

MyKey

.

6. Press

Create MyKey

.

7.

Press

Yes

.

8. Switch the ignition off.

You have successfully created a MyKey.
Make sure you label it so you can distinguish
it from the admin keys.

You can also program configurable settings
for the key.

79

MyKey™

Programming and Changing
Configurable Settings

Use the touchscreen to access your
configurable MyKey settings.

1.

Switch the ignition on using an admin key
or the remote control you want to
program.

2. Press

SETTINGS

.

3. Press

Vehicle

.

4. Press

MyKey

.

5. Select a setting and configure it by

following the instructions on the
touchscreen.

The programmed restrictions apply when
you switch the vehicle off, open and close
the driver door and restart your vehicle with
the programmed key or remote control.

Note:

 You can clear or change your MyKey

settings at any time during the same key
cycle as you created the MyKey.  Once you
have switched the vehicle off, you need an
admin key to change or clear your MyKey
settings.  When you make any changes to
your MyKey settings, you change the settings
for every MyKey.  You cannot make
individual changes to apply to specific
MyKeys.

CLEARING ALL MYKEYS

When you clear your MyKeys, you remove
all restrictions and return all MyKeys to their
original admin key status at once. To clear
all MyKeys of all MyKey settings, use the
touchscreen.

1.

Switch the ignition on using an admin
key.

2. Press

SETTINGS

.

3. Press

Vehicle

.

4. Press

MyKey

.

5. Press

Clear All MyKeys

.

6. Press

Yes

.

7.

A confirmation message appears in the
display after you finish clearing your
MyKeys.

CHECKING MYKEY SYSTEM
STATUS

You can find information about your
programmed MyKeys by using the
touchscreen.  See

Settings

 (page 555).

MyKey Distance

Tracks the distance when drivers use a
MyKey. The only way to delete the
accumulated distance is by using an admin
key to clear all MyKeys. If the distance does
not accumulate as expected, then the
intended user is not using the MyKey, or an
admin key user recently cleared and then
recreated a MyKey.

80

MyKey™

Number of MyKeys

Indicates the number of MyKeys you have
programmed to your vehicle. Use this feature
to detect how many MyKeys you have for
your vehicle and determine when you have
deleted all MyKeys.

Number of Admin Keys

Indicates how many admin keys you have
programmed to your vehicle. Use this feature
to determine how many admin keys you have
for your vehicle, and detect if an additional
MyKey has been programmed.

USING MYKEY WITH REMOTE
START SYSTEMS

MyKey is not compatible with non
Ford-approved, aftermarket remote start
systems. If you choose to install a remote
start system, see an authorized dealer for a
Ford-approved remote start system.

MYKEY – TROUBLESHOOTING

Potential Causes

Condition

· The key or remote control used to start the vehicle does not have
admin privileges.

I cannot create a MyKey.

· Vehicles with keyless start: Make sure you place the remote control
into the backup slot. See

Starting a Gasoline Engine

 (page 206).

· The key or remote control used to start the vehicle is the only admin
key. You always need at least one admin key.
· The SecuriLock passive anti-theft system is disabled or in unlimited
mode.

· The key or remote control used to start the vehicle does not have
admin privileges.

I cannot program the configurable settings.

81

MyKey™

Potential Causes

Condition

· There are no MyKeys programmed to the vehicle. See

Creating a

MyKey

 (page 79).

· The key or remote control used to start the vehicle does not have
admin privileges.

I cannot clear the MyKeys.

· You do not have any MyKeys created.  See

Creating a MyKey

 (page

79).

· Purchase a new key or remote control from your authorized dealer.

I lost the only admin key.

· Program a spare remote control. You may need to see your author-
ized dealer. See

Starting a Gasoline Engine

 (page 206).

I lost a remote control.

· The MyKey user is not using the MyKey.

MyKey distances do not accumulate.

· An admin key holder cleared the MyKeys and created new MyKeys.
· The key system has been reset.

82

MyKey™

LOCKING AND UNLOCKING

Your vehicle has an intelligent electronically
controlled door system that is in constant
communication with overall vehicle systems.

When you lock your vehicle using either the
lock switch on each door interior trim panel,
the keyless entry keypad or the lock sensor
on each exterior door trim panel, the exterior
door handle switches do not release the
doors. This helps secure your vehicle and
prevent unauthorized entry. Also, when your
vehicle reaches a speed greater than 12 mph
(20 km/h), the exterior door handle switches
do not release the doors.

If the airbags deploy or the fuel pump shutoff
switch activates, all interior and exterior
unlock switches do not unlock your door for
six seconds. This helps secure the doors in
the event of a crash. After six seconds, all
switches reset and you can open the doors
using the interior and exterior unlatch
switches.

Door Lock Indicator

An LED on each door lock switch illuminates
when you lock the doors.  It remains on for
2 to 5 seconds after you switch the ignition
off.

Door Lock Switch Inhibitor

When you electronically lock your vehicle,
the door lock switches and the interior
luggage compartment release switch do not
operate after 20 seconds.  To restore
function to these switches, you must unlock
your vehicle with the remote control or
keyless entry keypad, or switch the ignition
on.

Activating Intelligent Access

The intelligent access key must be within 3 ft
(1 m) of the door or luggage compartment
you intend to lock or unlock.

At a Door

E295769

83

Doors and Locks

Electronic door handles are on each door.
Gently press the switch inside the exterior
door handle to unlock and open the door.

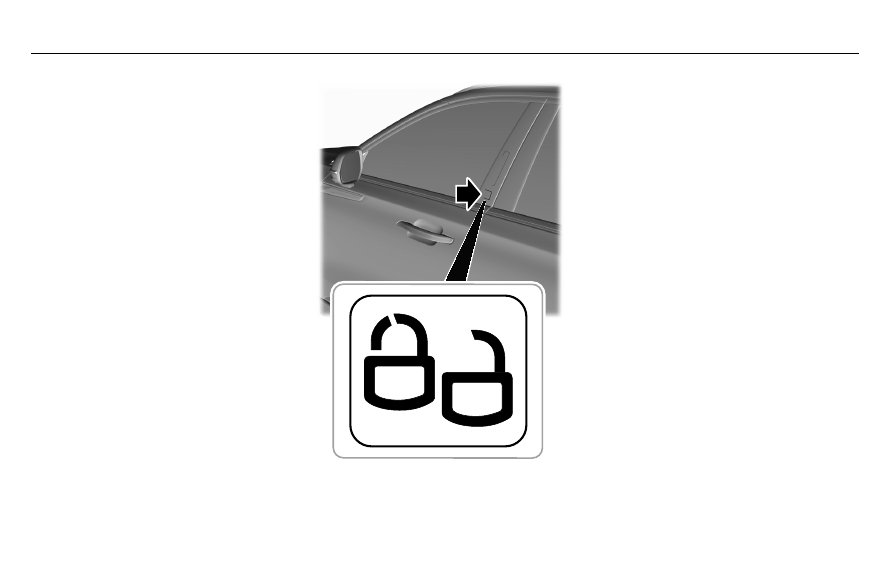

An unlock symbol illuminates on the door
window trim indicating your vehicle is
unlocked.

E295770

Locking sensors are on both front doors.
When the intelligent access key is within 3 ft
(1 m) of your vehicle, you can lock your
vehicle by touching the locking sensor below
the keyless entry keypad. Doing so causes
a lock symbol to illuminate on the door
window trim indicating your vehicle is locked
and you can no longer release the door using
the exterior door handle switches. Touching
the locking sensor when the intelligent
access key is not within 3 ft (1 m) causes the
lock status to display, but does not lock the
doors.

Swipe across the locking sensor to display
the current lock status of your vehicle. The
lock status also displays when you open a
door or when the lock status changes.

Note:

 You cannot use the locking sensors

to unlock your vehicle.

84

Doors and Locks

At the Luggage Compartment

E291416

E291416

Press the exterior release button.

Remote Control

You can use the remote control at any time.
When you press the lock button on the
remote control, all exterior door handle
switches are not able to open the doors.
When you press the unlock button, all
exterior door handle switches are able to
open the doors.

Unlocking the Doors (Two-stage Unlock)

E138629

Press the button.  The direction
indicators flash.  You can then use
the exterior door handle switch to

open the door.

Press and hold both the lock and unlock
buttons on the remote control for three
seconds to change between driver door or
all doors unlock mode.  The direction
indicators flash twice to confirm the change.
Driver door mode only unlocks the driver
door when you press the unlock button
once.  All door mode unlocks all doors when
you press the unlock button once.  The
unlocking mode applies to the remote
control, keyless entry keypad and intelligent
access.

Locking the Doors

E138623

Press the button.  The direction
indicators flash. You can no longer
use the exterior door handle switch

to release the door.

Press the button again within three seconds
to confirm that all the doors are closed.  A
tone sounds and the direction indicators
flash if all the doors and the luggage
compartment are closed.

Mislock

If any door is open, or if the luggage
compartment or hood is open, a tone sounds
and the direction indicators do not flash.  The
exterior lock status display also flashes if any
door does not lock.

Switching the Mislock On or Off

Use the touchscreen to select the following:

1.

Select

Settings

.

2. Select

Vehicle

.

3. Select

Locks

.

4. Switch

Mislock Chirp

 on or off.

85

Doors and Locks

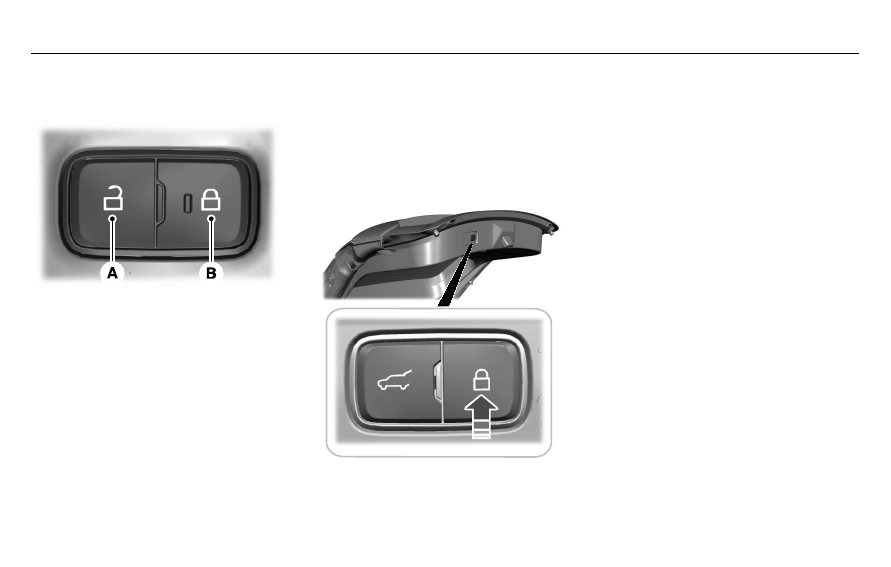

Locking and Unlocking the Doors from
Inside

E295772

Unlock.

A

Lock.

B

Locking the Doors

Press the lock switch on the door interior trim
panel. The doors can no longer be released
using the exterior door handle switches and
the luggage compartment locks.

Unlocking the Doors

Press the unlock switch on the door interior
trim panel. The doors can then be released
using the exterior door handle switches.

Locking the Doors from the Luggage
Compartment

E295

2959

5920

95920

95920

On the left-hand side of the liftgate, press
the lock switch. The doors can no longer be
opened using the exterior door handle
switches and the luggage compartment
locks.

Emergency Locking

Each door has a backup power system which
allows the door to function if your vehicle
has no power. The system has a limited
number of operations before the power is
depleted and turns off. When the system
turns off, the door remains open and
unlatched and does not close.

If your vehicle has no power and the backup
power system is turned off, you can close
and secure your vehicle by manually
resetting each door latch using a key in the
position shown.

86

Doors and Locks

E316247

E316247

316247

316247

Left-Hand Side

Turn clockwise to reset the latch.

Right-Hand Side

Turn counterclockwise to reset the latch.

When you have reset the latch, you are then
able to fully close and latch the door.

Note:

You cannot open the door again until

the vehicle battery is fully charged and
operational.

Unlatching the Driver Door with the
Key Blade

If your vehicle has no power and the backup
power system is turned off, you can manually
unlatch the driver door using a key in the
position shown.

E295771

1.

Remove the key blade from the remote
control.

2. Insert the key blade into the lock cylinder.

3. Turn the key clockwise to unlatch the

driver door.

Note:

All other doors remain locked.

87

Doors and Locks

Smart Unlocks for Intelligent Access
Keys

This prevents you from locking your
intelligent access key inside your vehicle’s
passenger compartment or rear cargo area.

When you electronically lock your vehicle
with any door open, the transmission is in
park (P) and the ignition is off, the system
searches for an intelligent access key inside
your vehicle after you close the last door.  If
the system finds a key, all the doors
immediately unlock and the horn sounds
twice, indicating that a key is inside.

You can override the smart unlock feature
and intentionally lock the intelligent access
key inside your vehicle.

To do this, lock your vehicle after you have
closed all the doors by:

•

Using the keyless entry keypad.

•

Pressing the lock button on another
intelligent access key.

•

Touching the locking sensor on the door
window trim with another intelligent
access key in your hand.

When you open one of the front doors and
lock your vehicle using the power door lock
control, all doors lock then unlock if:

•

The ignition is on.

•

The ignition is off, and the transmission
is not in park (P).

Autolock

 (If Equipped)

Autolock locks all the doors when:

•

All doors are closed.

•

The ignition is on.

•

You shift into any gear putting your
vehicle in motion.

•

Your vehicle reaches a speed greater
than 12 mph (20 km/h).

Autolock repeats when:

•

You open then close any door while the
ignition is on and your vehicle speed is
9 mph (15 km/h) or lower.

•

Your vehicle reaches a speed greater
than 12 mph (20 km/h).

Autounlock

Autounlock unlocks all the doors when:

•

The ignition is on, all the doors are
closed, and your vehicle has been
moving at a speed greater than 12 mph
(20 km/h).

•

Your vehicle comes to a stop and you
switch the ignition off or to the accessory
position.

•

You open the driver door within 10
minutes of switching the ignition off or to
accessory.

Note:

The doors do not autounlock if you

electronically lock your vehicle after you
switch the ignition off and before you open
the driver door.

Switching Autounlock On and Off

Use the touchscreen to select the following:

1.

Select

Settings

.

2. Select

Vehicle

.

3. Select

Locks

.

4. Switch

Autounlock

 on or off.

88

Doors and Locks

Illuminated Entry

The interior lamps and some exterior lamps
illuminate when you unlock the doors with
the remote control.

The illuminated entry system turns off the
lights if:

•

The ignition is on.

•

You press the remote control lock button.

•

More than 25 seconds have elapsed.

The lights do not turn off if:

•

You turn them on with the lamp control.

•

Any door is open.

Illuminated Exit

The interior lamps and some exterior lamps
illuminate when all doors are closed and you
switch the ignition off.

The lamps turn off if all the doors remain
closed and:

•

More than 25 seconds have elapsed.

•

You press the push button ignition
switch.

Battery Saver

If you leave the courtesy lamps, interior
lamps or headlamps on, the battery saver
shuts them off 10 minutes after you switch
the ignition off.

Battery Saver for Intelligent Access Keys

If you leave the ignition switched on, it shuts
off when it detects a certain amount of
battery drain, or after 30 minutes.

Opening the Luggage Compartment

From Inside Your Vehicle

E138633

With the transmission in park (P),
press the button on the instrument
panel.

With the Remote Control

E306276

Press twice within three seconds
to open the luggage compartment.

From Outside Your Vehicle

E291416

E291416

Press the exterior release button. Your
vehicle must be unlocked or have an
intelligent access key within 3 ft (1 m) of the
luggage compartment.

89

Doors and Locks

Closing the Luggage Compartment

From Inside Your Vehicle

E138633

Press the button on the instrument
panel to close the luggage
compartment.

With the Remote Control

E306276

Press twice within three seconds
to close the luggage compartment.

From Outside Your Vehicle

E29559

919

E295

2959

5919

95919

95919

On the left-hand side of the liftgate, press
the liftgate button.

OPENING THE DOORS

Front Doors

E232417

Press the door release button on
the armrest to release the door.
Push the door out to open the

door.

Rear Doors

E232417

Press the unlock switch on the
door and then press the door
release button on the armrest to

release the door. The first press unlocks the
door and the second press unlatches the
door. Push the door out to open the door.

Note:

 When your vehicle reaches a speed

greater than 2 mph (3 km/h), you will only be
able to release the door by pressing the
unlock button and then door release button
within two seconds.

Note:

Do not use the door latch assembly

to attach any accessory, such as handles or
steps, as this can cause damage to your
vehicle.

90

Doors and Locks

EMERGENCY DOOR RELEASE

E2995773

E295773

295773

If you are inside your vehicle and unable to
use the electronic door system, you can
open the driver door using the emergency
door release switch in the map pocket.

SOFT CLOSING DOOR

Gently close the door until it fully latches.
The system automatically closes the door,
making sure it is fully secure.

Note:

The system does not work if the

vehicle battery charge is low.

Note:

The system is limited to 25 cycles

between each ignition cycle. This is to
prevent the vehicle battery from losing
charge.

Note:

You can override soft close by fully

closing the door manually.

KEYLESS ENTRY

SECURICODE™ Keyless Entry Keypad

The keypad is near the driver window.  It
illuminates when touched.

Note:

 If you enter your entry code too fast

on the keypad, the unlock function may not
work.  Enter your entry code again more
slowly.

E138637

You can use the keypad to do the following:

•

Lock or unlock the doors.

•

Program and erase user codes.

•

Arm and disarm the anti-theft alarm.

91

Doors and Locks

You can operate the keypad with the
factory-set five-digit entry code.  The code
is on the owner's wallet card in the glove box
and is available from an authorized dealer.
You can also program up to five of your own
five-digit personal entry codes.

Programming a Personal Entry Code

1.

Enter the factory-set five-digit code.

2. Press

1·2

 on the keypad within five

seconds.

3. Enter your personal five-digit code.  You

must enter each number within five
seconds of each other.

4. Press

1·2

 on the keypad to save personal

code 1.

The doors lock then unlock to confirm that
programming was successful.

To program additional personal entry codes,
repeat steps 1 through 3, then for step 4:

•

Press

3·4

 to save personal code 2.

•

Press

5·6

 to save personal code 3.

•

Press

7·8

 to save personal code 4.

•

Press

9·0

 to save personal code 5.

Hints:

•

Do not set a code that uses five of the
same number.

•

Do not use five numbers in sequential
order.

•

The factory-set code works even if you
have set your own personal code.

Erasing a Personal Code

1.

Enter the factory-set five-digit code.

2. Press and release

1·2

 on the keypad

within five seconds.

3. Press and hold

1·2

 for two seconds. You

must do this within five seconds of
completing step 2.

All personal codes erase and only the
factory-set five-digit code works.

Anti-Scan Feature

The keypad goes into an anti-scan mode if
you enter the wrong code seven times.  This
mode turns off the keypad for one minute
and the keypad lamp flashes.

The anti-scan feature turns off after any of
the following occur:

•

One minute of keypad inactivity.

•

You press the unlock button on the
remote control.

•

You switch your vehicle on.

•

You unlock the vehicle using intelligent
access.

Locking and Unlocking the Doors

Locking All Doors

Press and hold

7·8

 and

9·0

 on the keypad

simultaneously with the driver door closed.
You do not need to enter a code first.

Unlocking All Doors

Enter the factory-set or your personal
five-digit code, then press

3·4

 on the keypad

within five seconds.

Unlocking Only the Driver Door

Enter the factory-set or your personal
five-digit code.  You must press each number
within five seconds of each other.  The
interior lamps illuminate.

92

Doors and Locks

Note:

All doors unlock if you switch the

two-stage unlocking feature off.  See

Locking and Unlocking

 (page 83).

93

Doors and Locks
