Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil / Huile moteur de très haute
qualité SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

472

Capacities and Specifications

E240523

COOLING SYSTEM CAPACITY AND
SPECIFICATION

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

16.0 qt (15.1 L)

All.

473

Capacities and Specifications

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement
prédilué jaune Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

FUEL TANK CAPACITY

Capacities

Quantity

Variant

23.6 gal (89.3 L)

Base.

27.8 gal (105.2 L)

Navigator L.

474

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND SPECIFICATION

WARNING: The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified

personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.

Use refrigerant and oil that meets the defined
specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

6.1 fl oz (180 ml)

37 oz (1.05 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf
Motorcraft®(Canada)
YN-35(U.S. & Canada)

475

Capacities and Specifications

WASHER FLUID SPECIFICATION

Capacities

Quantity

Variant

Fill as required.

All.

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concentrate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer Fluid / Liquide lave-glace de haute
qualité Motorcraft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

BRAKE FLUID SPECIFICATION

Use fluid that meets the defined specification
and viscosity grade.

If you do not use fluid that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced brake performance.

476

Capacities and Specifications

Note: We recommend you use Dot 4 Low
Viscosity (LV) High Performance Brake Fluid
meeting WSS-M6C65-A2 specifications or
ISO 4925 Class 6 standards. If you use any
fluid other than the recommended fluid, it
could cause reduced brake performance
and not meet our performance standards.
Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.

Capacities

Quantity

Variant

Fill as required.

All.

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / Liquide de
frein automobile haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

477

Capacities and Specifications

TRANSFER CASE FLUID CAPACITY
AND SPECIFICATION

Use fluid that meets the defined specification
and viscosity grade.

If you do not use fluid that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

1.4–1.6 qt (1.3–1.5 L)

All.

Materials

Specification

Name

WSS-M2C938-AMERCON® LV,

Motorcraft® MERCON® LV Automatic Transmission Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission Fluid / Huile pour boîte auto-
matique MERCON® LV Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)

478

Capacities and Specifications

FRONT AXLE FLUID CAPACITY
AND SPECIFICATION

Use fluid that meets the defined specification
and viscosity grade.

If you do not use fluid that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

1.8 qt (1.7 L)

Four-wheel drive.

Materials

Specification

Name

WSS-M2C942-A

Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.)
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile
synthétique de haute qualité pour engrenages hypoïdes SAE 75W-85 Motor-
craft®(Canada)
XY-75W85-QL(U.S. & Canada)

479

Capacities and Specifications

REAR AXLE FLUID CAPACITY AND
SPECIFICATION

Use fluid that meets the defined specification
and viscosity grade.

If you do not use fluid that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

2.5 qt (2.4 L)

All.

Materials

Specification

Name

WSS-M2C942-A

Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant(U.S.)
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / Huile
synthétique de haute qualité pour engrenages hypoïdes SAE 75W-85 Motor-
craft®(Canada)
XY-75W85-QL(U.S. & Canada)

480

Capacities and Specifications

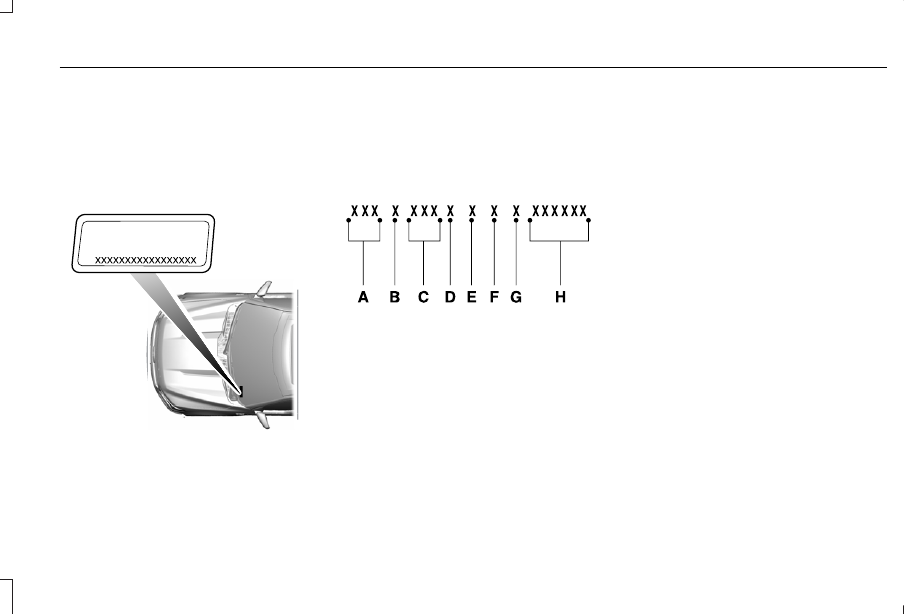

VEHICLE IDENTIFICATION NUMBER

LOCATING THE VEHICLE
IDENTIFICATION NUMBER

The vehicle identification number is on the
left-hand side of the instrument panel.

E311767

Note: In the illustration, XXXX is
representative of your vehicle identification
number.

VEHICLE IDENTIFICATION NUMBER
OVERVIEW

The vehicle identification number contains
the following information:

E142477

World manufacturer identifier.

A

Brake system, gross vehicle weight
rating, restraint devices and their
locations.

B

Make, vehicle line, series, body
type.

C

Engine or motor type.

D

Check digit.

E

Model year.

F

Assembly plant.

G

Production sequence number.

H

481

Vehicle Identification

WHAT IS A CONNECTED VEHICLE

A connected vehicle has technology that
allows your vehicle to connect to a mobile
network and for you to access a range of
features. When used in conjunction with the
FordPass app, it could allow you to monitor
and control your vehicle further, for example
checking the tire pressures, the fuel level
and the vehicle location. For additional
information, refer to the local Ford website.

CONNECTED VEHICLE
REQUIREMENTS

Connected service and related feature
functionality requires a compatible vehicle
network.

Some remote features require additional
service activation. Log in to your Ford
account for details. Some restrictions, third
party terms and message or data rates may
apply.

CONNECTED VEHICLE
LIMITATIONS

Evolving technology, cellular networks, or
regulations could affect functionality and
availability, or continued provision of some
features. These changes could even stop
some features from functioning.

CONNECTING THE VEHICLE TO A
MOBILE NETWORK

WHAT IS THE MODEM

The modem allows access to a
range of features built into your
vehicle.

ENABLING AND DISABLING THE
MODEM

1. Press Settings.

2. Press Connectivity.

3. Press Connected Vehicle Features.

4. Switch vehicle connectivity on or off.

CONNECTING LINCOLN WAY TO THE
MODEM

1. Make sure that the modem is enabled

using the vehicle settings menu.

2. Open the Lincoln Way app on your

device and log in.

3. Add your vehicle or select your vehicle

if already added.

4. Select the option for vehicle details.

5. Select the option to activate your vehicle.

6. Make sure that the name on the screen

matches the name shown in your Lincoln
Way account.

7. Confirm that your Lincoln Way account

is connected to the modem.

CONNECTING THE VEHICLE TO A
WI-FI NETWORK

E280315

Select the settings option on the
feature bar.

482

Connected Vehicle

1. Press Connectivity.

2. Press Manage Wi-Fi Networks.

3. Switch Wi-Fi on.

4. Press View Available Networks.

5. Select an available Wi-Fi network.

Note: Enter the network password to
connect to a secure network.

CONNECTED VEHICLE – TROUBLESHOOTING

CONNECTED VEHICLE – FREQUENTLY ASKED QUESTIONS - VEHICLES WITH: MODEM

Possible Cause and Resolution

Symptom

I cannot confirm the connection of my Ford-
Pass account to the modem.

– Modem is not enabled.

•

Switch vehicle connectivity on.

– Weak network signal.

•

Move your vehicle closer to a place where the network signal is not obstructed.

483

Connected Vehicle

CONNECTED VEHICLE – FREQUENTLY
ASKED QUESTIONS - VEHICLES WITH:
SYNC 4

Why can I not confirm the connection
of my FordPass account to the modem?

•

The modem is not enabled. Switch
vehicle connectivity on.

•

The network signal is weak. Move your
vehicle closer to a place where the
network signal is not obstructed.

Why can I not connect to a Wi-Fi
network?

•

You entered the wrong network
password. Enter the correct password.

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to a
place where the network signal is not
obstructed.

•

There are multiple access points in range
with the same network name. Choose a
unique name for your network. Do not
use the default name unless it contains
a unique identifier, for example as part
of the MAC address.

Why does the Wi-Fi connection
disconnect after successful
connection?

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to a
place where the network signal is not
obstructed.

What can I do if I am close to a Wi-Fi
router but the network signal strength
is weak?

•

If your vehicle has a heated windshield,
position your vehicle so that the
windshield is not facing the Wi-Fi router.

•

If your vehicle has metallic tinting on the
windows but not on the windshield,
position your vehicle so that the
windshield is facing the Wi-Fi router or
open the windows that are facing the
router.

•

If your vehicle has metallic tinting on the
windows and the windshield, open the
windows that are facing the router.

•

If your vehicle is in a garage and you
have the garage door closed, open the
garage door as it could block the signal.

Why can I not see a network I expect
to see in the list of available networks?

•

The network is hidden. Make the network
visible and try again, or manually add a
network in the Wi-Fi settings menu.

•

Some network security types are not
supported, for example WEP.

Why do software downloads take too
long?

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to a
place where the network signal is not
obstructed.

•

Wi-Fi network is in high demand or has
a slow Internet connection. Use a more
reliable Wi-Fi network.

484

Connected Vehicle

Why does the software not update
when the system seems to connect to
a Wi-Fi network and the signal strength
is excellent?

•

No software update is available at this
time.

•

Select automatic updates option in the
settings menu to enable automatic
software update or contact an authorized
dealer.

•

There could be a connection problem.
Test the network using another device.

485

Connected Vehicle

CREATING A VEHICLE WI-FI
HOTSPOT

You can create a Wi-Fi hotspot in your
vehicle and allow devices to connect to it for
access to the Internet.

E280315

Select the settings option on the
feature bar.

1. Press Vehicle Hotspot.
Note: The vehicle hotspot default setting is
on.

2. Press Settings.

3. Press Edit.

4. Press Hotspot visibility.

Note: The hotspot visibility default setting is
on.

Finding the Wi-Fi Hotspot Name and
Password

E280315

Select the settings option on the
feature bar.

1. Press Vehicle Hotspot.

2. Press Settings.
Note: The network name is the hotspot
name.

3. Press View Password.

Connecting a Device to the Wi-Fi
Hotspot

1. On your device, switch Wi-Fi on and

select the hotspot from the list of
available Wi-Fi networks.

2. When prompted, enter the password.

Purchasing a Data Plan

1. Connect a device to the hotspot.

Note: The vehicle network carrier’s portal
opens on your device.

2. If the portal does not open on your

device, open a website and it redirects
to the vehicle network carrier’s portal.

Note: Secure websites do not redirect.

3. Follow the instructions on the carrier

portal to purchase a plan.

Note: If you have an active plan, the system
does not redirect to the vehicle network
carrier’s portal when you connect a device.
Visit the vehicle network carrier’s website to
purchase more data.

Note: If data usage information is available
in the vehicle hotspot menu, it is
approximate.

Note: If you carry out a master reset, the
system does not remove your vehicle from
your vehicle network carrier’s account. To
remove your vehicle from the account,
contact your vehicle network carrier.

Note: The vehicle network carrier provides
Vehicle Hotspot services, subject to your
vehicle network carrier agreement, coverage
and availability.

CHANGING THE VEHICLE WI-FI
HOTSPOT NAME OR PASSWORD

E280315

Select the settings option on the
feature bar.

1. Press Vehicle Hotspot.

486

Vehicle Wi-Fi Hotspot

2. Press Settings.

3. Press Edit.
4. Press Change Network Name.

5. Enter your required network name.

6. Press Done.

7. Press Change Password.
8. Enter your required password.

9. Press Done.

Changing the Wi-Fi Hotspot Frequency

Note: The vehicle hotspot frequency band
is selectable depending upon your device
capabilities. You will not be able to connect
your device to the vehicle hotspot if it does
not support the selected frequency band.

E280315

Select the settings option on the
feature bar.

1. Press Vehicle Hotspot.

2. Press Settings.

3. Press Edit.

4. Select a frequency.

487

Vehicle Wi-Fi Hotspot
