PRE-COLLISION ASSIST –
FREQUENTLY ASKED QUESTIONS

Camera Troubleshooting

The windshield in front of the camera is
dirty or obstructed.

Clean the outside of the windshield in
front of the camera.

The windshield in front of the camera is
clean, but the message remains in the
instrument cluster display.

Wait a short time. It could take several
minutes for the camera to detect that
there is no obstruction.

Radar Troubleshooting

 (If Equipped)

The surface of the radar in the grille is dirty
or obstructed.

Clean the grille surface in front of the
radar or remove the object causing the
obstruction.

The surface of the radar in the grille is
clean, but the message remains in the
instrument cluster display.

Wait a short time. It could take several
minutes for the radar to detect that there
is no obstruction.

Heavy rain, spray or fog is interfering with
the radar signals.

The pre-collision assist system is
temporarily disabled. Pre-collision assist
reactivates a short time after the
weather conditions improve.

Swirling water or snow or ice on the surface
of the road is interfering with the radar
signals.

The pre-collision assist system is
temporarily disabled. Pre-collision assist
reactivates a short time after the
weather conditions improve.

Radar is out of alignment due to a front-end
impact.

Have your vehicle serviced to have the
radar checked for proper coverage and
operation.

PRE-COLLISION ASSIST –
FREQUENTLY ASKED QUESTIONS -
VEHICLES WITH: INTERSECTION
ASSIST

Camera Troubleshooting

The windshield in front of the camera is
dirty or obstructed.

Clean the outside of the windshield in
front of the camera.

The windshield in front of the camera is
clean, but the message remains in the
instrument cluster display.

Wait a short time. It could take several
minutes for the camera to detect that
there is no obstruction.

Radar Troubleshooting

 (If Equipped)

The surface of the radar in the grille is dirty
or obstructed.

Clean the grille surface in front of the
radar or remove the object causing the
obstruction.

328

Pre-Collision Assist

The surface of the radar in the grille is
clean, but the message remains in the
instrument cluster display.

Wait a short time. It could take several
minutes for the radar to detect that there
is no obstruction.

Heavy rain, spray or fog is interfering with
the radar signals.

The pre-collision assist system is
temporarily disabled. Pre-collision assist
reactivates a short time after the
weather conditions improve.

Swirling water or snow or ice on the surface
of the road could interfere with the radar
signals.

The pre-collision assist system is
temporarily disabled. Pre-collision assist
reactivates a short time after the
weather conditions improve.

Radar is out of alignment due to a front end
impact.

Have your vehicle serviced to have the
radar checked for proper coverage and
operation.

329

Pre-Collision Assist

WHAT IS DRIVER ALERT

Driver alert alerts you if it determines that
you are becoming drowsy or if your driving
deteriorates.

HOW DOES DRIVER ALERT WORK

Driver Alert calculates your alertness level
based on your driving behavior in relation to
the lane markings and other factors through

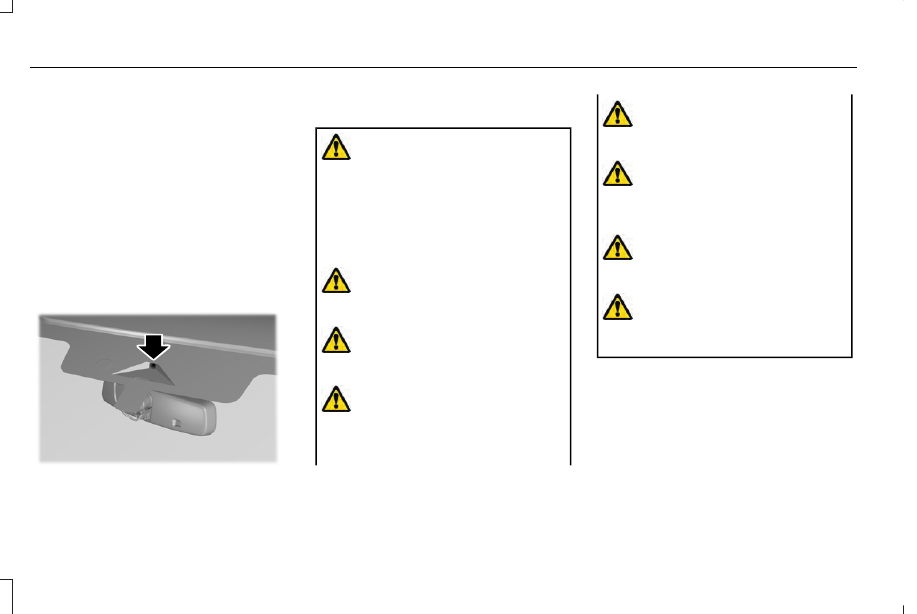

use of the front camera sensor behind the
interior mirror.

E309385

DRIVER ALERT PRECAUTIONS

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: Take regular rest breaks

if you feel tired. Do not wait for the system
to warn you.

WARNING: Certain driving styles may

result in the system warning you even if
you are not feeling tired.

WARNING: In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all limit
sensor performance.

WARNING: The system will not

operate if the sensor cannot track the road
lane markings.

WARNING: If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING: The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by us.

WARNING: The system may not

operate properly if the sensor is blocked.
Keep the windshield free from obstruction.

Note: If something is blocking the camera
or damaged the windshield, Driver Alert may
not function.

330

Driver Alert

DRIVER ALERT LIMITATIONS

Driver alert may not function correctly if:
•

The sensor cannot track the road lane
markings.

•

Your vehicle's speed is less than
approximately 40 mph (65 km/h).

SWITCHING DRIVER ALERT ON
AND OFF

1. Press Features on the touchscreen.
2. Press Driver Assistance.

3. Switch Driver Alert on or off.
Note: The system remains on or off
depending on how it was last set.

Resetting Driver Alert

You can reset the system by either:
•

Switching the ignition off and on.

•

Opening and closing the driver door
when your vehicle is stationary, and it is
safe to do so.

DRIVER ALERT – TROUBLESHOOTING

DRIVER ALERT – INFORMATION MESSAGES

Action

Message

Stop and rest as soon as it is safe to do so.

Driver Alert Warning Rest Now

Take a rest soon.

Driver Alert Warning Rest Suggested

331

Driver Alert

WHAT IS SPEED SIGN
RECOGNITION

Speed sign recognition detects speed limit
signs to inform you of the current speed limit.
Detected speed signs appear in the
information display.

HOW DOES SPEED SIGN
RECOGNITION WORK

Speed sign recognition uses a sensor behind
the interior mirror to detect speed signs.

If your vehicle has speed sign recognition
with navigation, stored speed sign data may
influence the indicated speed limit value.

SPEED SIGN RECOGNITION
PRECAUTIONS

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all limit
sensor performance.

WARNING: The system may not

operate properly if the sensor is blocked.
Keep the windshield free from obstruction.

Note: Do not carry out windshield repairs in
the immediate area surrounding the sensor.

Note: If your vehicle has a suspension kit
not approved by us, the system may not
correctly function.

Note: The system may not detect all speed
signs and may incorrectly read signs.

Note: Always fit our original parts when
replacing headlamp bulbs. Other bulbs may
reduce system performance.

SPEED SIGN RECOGNITION
LIMITATIONS

Speed sign recognition may not operate
correctly due to:

•

Outdated map data.

•

Incorrect recognition of speed limits by
the sensor of signs on parallel roads or
exit ramps.

•

Missed recognition of faded, dirty, or
distorted signs.

332

Speed Sign Recognition

SPEED SIGN RECOGNITION
INDICATORS

E317824

When the system detects a speed limit sign,
it appears in the information display.

SETTING THE SPEED SIGN
RECOGNITION SPEED WARNING

To set the speed warning, use the
touchscreen.

1. Press Features on the touchscreen.

2. Press Driver Assistance.

3. Press Speed Limit Assist.

4. Switch the feature on or off.

SETTING THE SPEED SIGN
RECOGNITION SPEED TOLERANCE

To set the tolerance of the speed warning,
use the touchscreen.

1. Press Features on the touchscreen.
2. Press Driver Assistance.
3. Press Speed Limit Assist.

4. Press Tolerance.

5. Use the slider bar to select the required

level.

SPEED SIGN RECOGNITION – TROUBLESHOOTING

SPEED SIGN RECOGNITION – INFORMATION MESSAGES

Action

Message

The traffic sign data provided by the navigation system is unavailable
due to weak or no signal. Wait for a short period of time for the signal

to improve. If the message continues to appear, have the system

checked as soon as possible.

Traffic Sign Reduced Performance See Manual

333

Speed Sign Recognition

SPEED SIGN RECOGNITION –
FREQUENTLY ASKED QUESTIONS

Why does the speed limit change without
any sign on the road?

The speed limit changes due to the
speed limit data stored in the map data.

Why does speed sign recognition show a
wrong speed limit?

The system shows a wrong speed limit
due to incorrect and outdated map data
or due to incorrect recognition of the
speed limits by the camera.

334

Speed Sign Recognition

LOAD CARRYING PRECAUTIONS

Keep your loaded vehicle weight within
its design rating capability, with or
without a trailer. Properly loading your
vehicle provides maximum return of
vehicle design performance. Before you
load your vehicle, become familiar with
the following terms for determining your
vehicle’s weight rating, with or without
a trailer, from the vehicle’s Tire and
Loading Information label or Safety
Compliance Certification label.

WARNING: The appropriate

loading capacity of your vehicle can
be limited either by volume capacity
(how much space is available) or by
payload capacity (how much weight
the vehicle should carry). Once you
have reached the maximum payload
of your vehicle, do not add more
cargo, even if there is space available.
Overloading or improperly loading
your vehicle can contribute to loss of
vehicle control and vehicle rollover.

WARNING: Exceeding the Safety

Compliance Certification label vehicle
weight limits can adversely affect the
performance and handling of your
vehicle, cause vehicle damage and
can result in the loss of control of your
vehicle, serious personal injury or
death.

WARNING: Do not use

replacement tires with lower load
carrying capacities than the original
tires because they may lower your
vehicle's GVWR and GAWR limitations.
Replacement tires with a higher limit
than the original tires do not increase
the GVWR and GAWR limitations.

WARNING: Do not exceed the

GVWR or the GAWR specified on the
certification label.

WARNING: Exceeding any

vehicle weight rating can adversely
affect the performance and handling
of your vehicle, cause vehicle damage
and can result in the loss of control of
your vehicle, serious personal injury
or death.

WARNING: When loading the

roof racks, we recommend you evenly
distribute the load, as well as maintain
a low center of gravity. Loaded
vehicles, with higher centers of gravity,
may handle differently than unloaded
vehicles. Take extra precautions, such
as slower speeds and increased
stopping distance, when driving a
heavily loaded vehicle.

The gross combined weight must never
exceed the Gross Combined Weight
Rating.

335

Load Carrying

LOCATING THE SAFETY
COMPLIANCE CERTIFICATION
LABELS

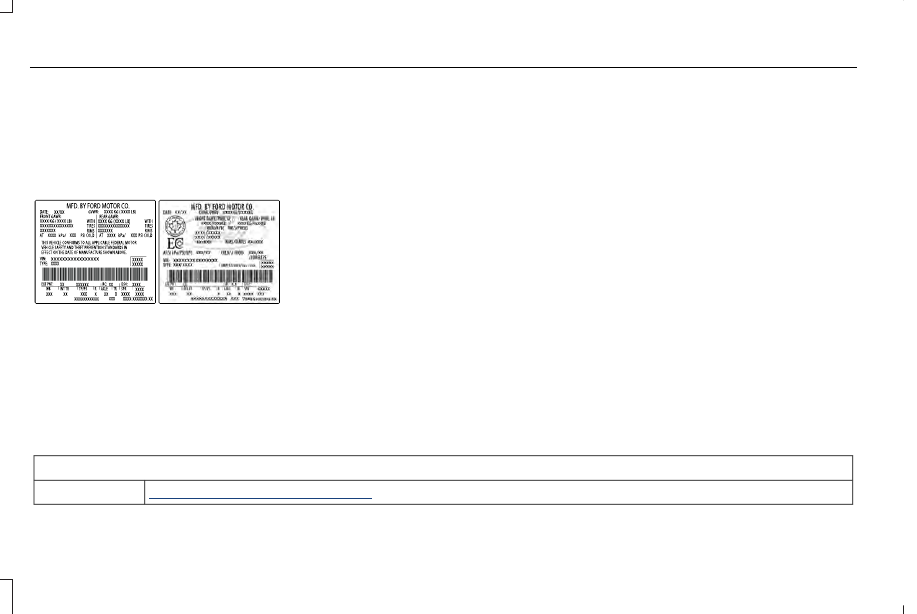

Safety Compliance Certification Label
Example:

E198828

The Safety Compliance Certification label is
located on the door hinge pillar, door-latch
post, or the door edge that meets the
door-latch post, next to the driver seating
position.

WHAT IS THE GROSS AXLE
WEIGHT RATING

GAWR (Gross Axle Weight Rating)

GAWR is the maximum allowable weight
that a single axle (front or rear) can carry.
These numbers are on the Safety
Compliance Certification label.

WHAT IS THE GROSS VEHICLE
WEIGHT RATING

GVWR is the maximum allowable weight
of the fully loaded vehicle. This includes
all options, equipment, passengers and
cargo. It appears on the Safety
Compliance Certification label.

WHAT IS THE GROSS COMBINED
WEIGHT RATING

Gross Combined Weight Rating (GCWR)
is the maximum allowable weight of the
vehicle and the loaded trailer, including
all cargo and passengers, that the
vehicle can handle without risking
damage. (Important: The towing
vehicle’s braking system is rated for
operation at Gross Vehicle Weight
Rating, not at Gross Combined Weight
Rating.) Separate functional brakes
should be used for safe control of towed
vehicles and for trailers where the Gross
Combined Weight of the towing vehicle
plus the trailer exceed the Gross Vehicle
Weight Rating of the towing vehicle.

Note: For trailer towing information refer
to the RV and Trailer Towing Guide
available at an authorized dealer, or
online at the website that follows.

RV & Trailer Towing Guide Online

www.fleet.ford.com/towing-guides

Website

336

Load Carrying

CALCULATING PAYLOAD

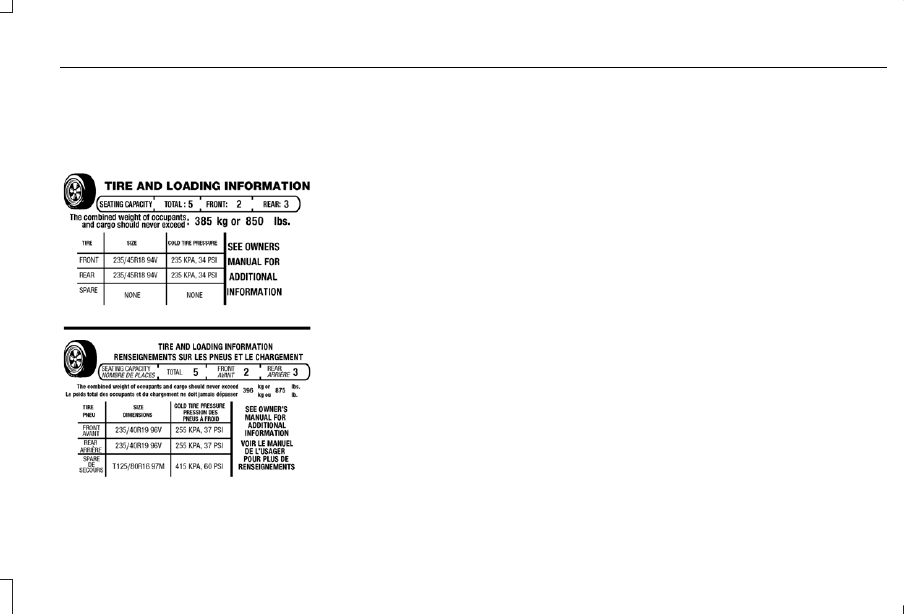

Tire and Loading Label Information
Example:

E198719

Payload is the combined weight of cargo
and passengers that your vehicle is
carrying. The maximum payload for your
vehicle appears on the Tire and Loading
label. The label is either on the B-pillar
or the edge of the driver door. Vehicles
exported outside the US and Canada
may not have a tire and loading label.
Look for “The combined weight of
occupants and cargo should never
exceed XXX kg or XXX lb” for maximum
payload. The payload listed on the Tire
and Loading Information label is the
maximum payload for your vehicle as
built by the assembly plant. If you install
any additional equipment on your
vehicle, you must determine the new
payload. Subtract the weight of the
equipment from the payload listed on
the Tire and Loading label. When towing,
trailer tongue weight or king pin weight
is also part of payload.

CALCULATING THE LOAD LIMIT

Steps for determining the correct load
limit:

1. Locate the statement "The combined

weight of occupants and cargo
should never exceed XXX kg or XXX
lb." on your vehicle’s placard.

2. Determine the combined weight of

the driver and passengers that will
be riding in your vehicle.

3. Subtract the combined weight of the

driver and passengers from XXX kg
or XXX lb.

4. The resulting figure equals the

available amount of cargo and
luggage load capacity. For example,
if the “XXX” amount equals 1,400 lb.
and there will be five 150 lb.
passengers in your vehicle, the
amount of available cargo and
luggage load capacity is 650 lb.
(1400-750 (5 x 150) = 650 lb.)

5. Determine the combined weight of

luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo
and luggage load capacity calculated
in Step 4.

337

Load Carrying

6. If your vehicle will be towing a trailer,

load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and
luggage load capacity of your
vehicle.

Helpful examples for calculating the
available amount of cargo and luggage
load capacity

Suppose your vehicle has a 1400-pound
(635-kilogram) cargo and luggage
capacity. You decide to go golfing. Is
there enough load capacity to carry you,
four of your friends and all the golf bags?
You and four friends average 220
pounds (99 kilograms) each and the golf
bags weigh approximately 30 pounds
(13.5 kilograms) each. The calculation
would be: 1400 - (5 x 220) - (5 x 30) =
1400 - 1100 - 150 = 150 pounds. Yes, you

have enough load capacity in your
vehicle to transport four friends and your
golf bags. In metric units, the calculation
would be: 635 kilograms - (5 x 99
kilograms) - (5 x 13.5 kilograms) = 635 -
495 - 67.5 = 72.5 kilograms.

Suppose your vehicle has a 1400-pound
(635-kilogram) cargo and luggage
capacity. You and one of your friends
decide to pick up cement from the local
home improvement store to finish that
patio you have been planning for the
past two years. Measuring the inside of
the vehicle with the rear seat folded
down, you have room for twelve
100-pound (45-kilogram) bags of
cement. Do you have enough load
capacity to transport the cement to your
home? If you and your friend each weigh
220 pounds (99 kilograms), the
calculation would be: 1400 - (2 x 220) -
(12 x 100) = 1400 - 440 - 1200 = - 240
pounds. No, you do not have enough
cargo capacity to carry that much
weight. In metric units, the calculation
would be: 635 kilograms - (2 x 99
kilograms) - (12 x 45 kilograms) = 635 -

198 - 540 = -103 kilograms. You will need
to reduce the load weight by at least
240 pounds (104 kilograms). If you
remove three 100-pound (45-kilogram)
cement bags, then the load calculation
would be: 1400 - (2 x 220) - (9 x 100) =
1400 - 440 - 900 = 60 pounds. Now you
have the load capacity to transport the
cement and your friend home. In metric
units, the calculation would be: 635
kilograms - (2 x 99 kilograms) - (9 x 45
kilograms) = 635 - 198 - 405 = 32
kilograms.

The above calculations also assume that
the loads are positioned in your vehicle
in a manner that does not overload the
front or the rear gross axle weight rating
specified for your vehicle on the Safety
Compliance Certification label.

338

Load Carrying

ROOF RACK

ROOF RACK PRECAUTIONS

WARNING: Read and follow the

manufacturer's instructions when you are
fitting a roof rack.

WARNING: When loading the roof

racks, we recommend you evenly distribute
the load, as well as maintain a low center
of gravity. Loaded vehicles, with higher
centers of gravity, may handle differently
than unloaded vehicles. Take extra
precautions, such as slower speeds and
increased stopping distance, when driving
a heavily loaded vehicle.

Note: If you use a roof rack, the fuel
consumption of your vehicle will be higher
and you may experience different driving
characteristics.

You must place loads directly on the
crossbars fitted to the roof rack side rails.
When using the roof rack system, we
recommend that you use genuine Ford Motor
Company accessory crossbars specifically
designed for your vehicle.

Make sure that you securely fasten the load.
Check the tightness of the load before
driving and at each fuel stop.

ROOF RACK LOAD CAPACITIES

Do not install crossbars if your vehicle has a
moonroof. Do not place any load on your
vehicle if it has a moonroof. Using crossbars
or loading the vehicle roof may void your
vehicle's warranty.

Maximum Recommended Load

Description

100 lb (45 kg)

Vehicles with a moonroof.

175 lb (79 kg)

Vehicles without a moonroof.

Note: The maximum roof load is based on
evenly distributing the load on the crossbars.

339

Load Carrying

Note: When using a roof rack system, you
must subtract the weight of the roof rack
system from the maximum recommended
load to determine your actual maximum
cargo load. See the roof rack system
manufacturer for more information.

340

Load Carrying

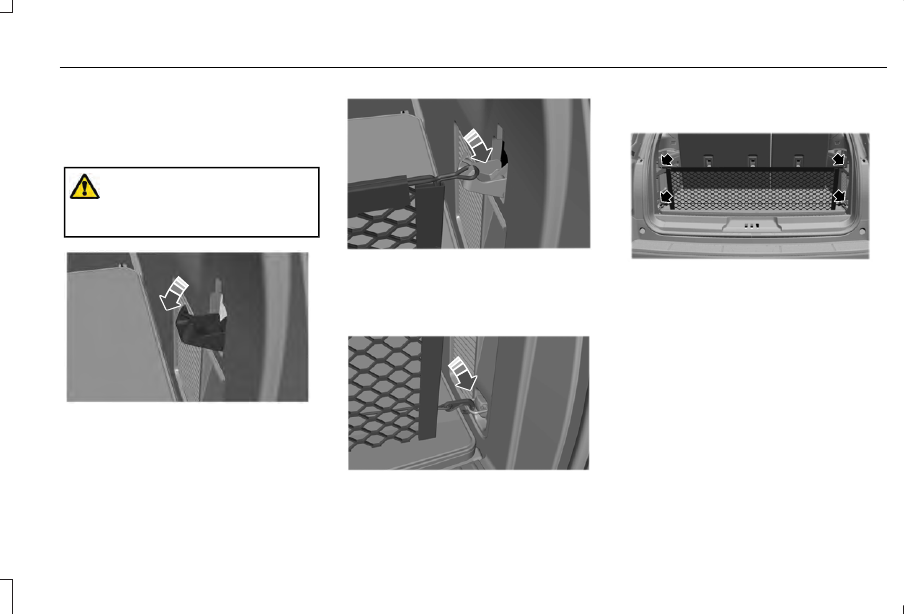

INSTALLING AND REMOVING THE
LUGGAGE COMPARTMENT CARGO
NET

WARNING: This net is not designed

to restrain objects during a collision or
heavy braking.

E275127

1. Fold down the hooks on the top of the

rear quarter trim panel.

E275126

2. Attach the loop end of the net to the

upper hook. Use one prong on the hook
for the net attachment.

E275125

3. Attach the bottom of the net to the lower

anchor point.

E275124

4. Repeat this procedure on the other side

of your vehicle.

341

Luggage Compartment

ADJUSTING THE LUGGAGE
COMPARTMENT LOAD FLOOR

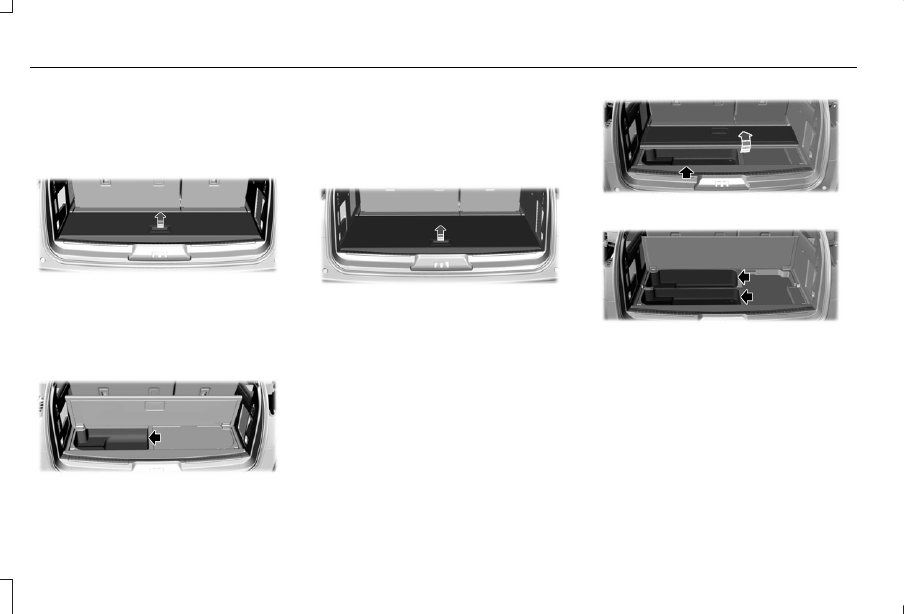

Short Wheelbase Load Floor

E250821

Lift up on the handle to open the cover.

Note: The board operates with friction
hinges. This allows you to put it in any
position between a 0° and a 90° angle.

E250823

To close, lower the cover.

Long Wheelbase Load Floor

The bi-folding load floor provides access to
two separate storage compartments.

E250822

Lift up on the handle and fold it back to open
the cover.

Note: The board operates with friction
hinges. This allows you to put it in any
position between a 0° and a 90° angle.

E250824

E250825

To access the second storage compartment,
fold the cover back a second time.

To close, lower the cover.

342

Luggage Compartment

ADJUSTING THE LUGGAGE
COMPARTMENT DIVIDER

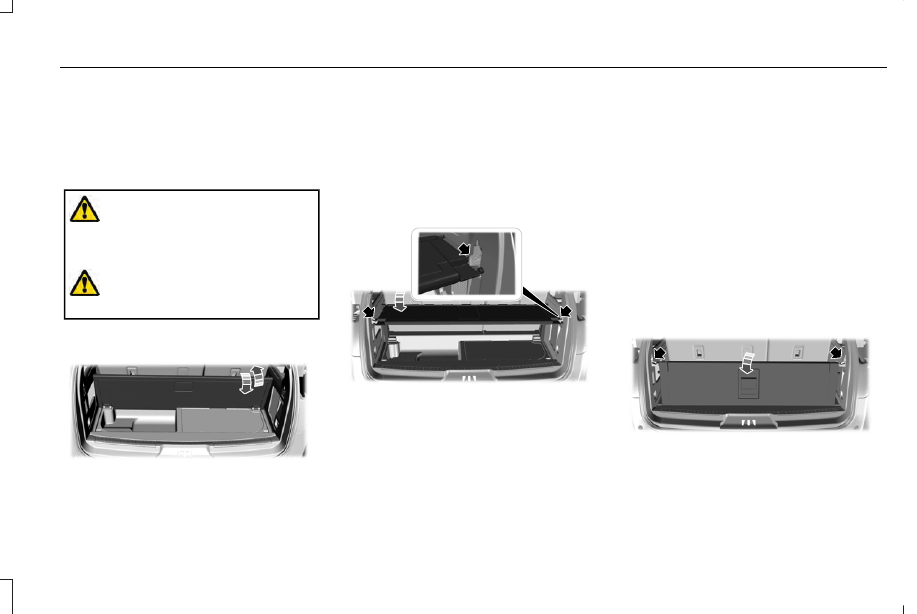

Advanced Luggage Compartment
Divider

 (If Equipped)

WARNING: Do not load any objects

on the shelf that may obstruct your vision
or strike occupants of the vehicle in the
case of a sudden stop or collision.

WARNING: Do not place people or

pets on or under the parcel shelf.

Forward Divider

E250828

To move the board into the divider position,
lift up on the handle and position the board
vertically at a 90° angle.

Note: The board operates with friction
hinges. This allows you to put it in any
position between a 0° and a 90° angle.

Cargo Shelf

E250829

To move the board into the shelf position,
lift the board and move it to the horizontal
position. Once the board is horizontal, insert
the forward-facing nubs into the hooks on
either side.

For the short wheelbase, it is necessary to
raise up the second panel toward the front
of the vehicle when you have the seats
folded down.

For the long wheelbase, it is necessary to
raise up the second panel toward the front
of the vehicle.

Note: Before moving the board into the shelf
position, you may need to flip down the
hooks.

Note: Do not put more than 50 lb (22 kg) on
the shelf.

Rear Barrier (Bulkhead Position)

E250830

343

Luggage Compartment
