Protected Component

Fuse Rating

Fuse Number

Second row power seat.

30 A

1

Starter relay.

—

2

Rear window wiper.

15 A

3

Rain sensor.
Rear wash relay coil.

Blower motor relay.

—

4

Not used.

—

5

Not used.

—

6

Powertrain control module - vehicle power 1.

20 A

7

Powertrain control module - vehicle power 2.

20 A

8

Canister vent.
Vapor blocking value.
Heated oxygen post.

Powertrain control module relay.

—

9

Power outlet 5-main bin.

20 A

10

Powertrain control module - vehicle power 4.

15 A

11

Powertrain control module - vehicle power 3.

15 A

12

326

Fuses

Protected Component

Fuse Rating

Fuse Number

Not used.

—

13

Not used.

—

14

Run-start relay.

—

15

Power outlet 2 - back of console.

20 A

16

Power outlet 4 - luggage compartment.

20 A

17

Not used.

—

18

Run-start electronic power assist steering.

10 A

19

Run/start lighting.

10 A

20

Not used.

—

21

Air conditioner clutch solenoid.

10 A

22

Front split view camera.

15 A

23

Rear view camera.
Forward looking radar.
360° camera module.
Blind spot information system.
Voltage quality module (start/stop).

Not used (spare).

10 A

24

Run-start anti-lock brake system.

10 A

25

327

Fuses

Protected Component

Fuse Rating

Fuse Number

Run-start powertrain control module.

10 A

26

USB power outlet - back of console.

5 A

27

Rear window washer pump.

10 A

28

Not used.

—

29

Not used.

—

30

Not used.

—

31

Electronic fan 1 relay.

—

32

A/C clutch relay.

—

33

Not used.

—

34

Not used.

—

35

Not used.

—

36

Not used.

—

37

Electronic fan 2 relay.

—

38

Electronic fan 3 relay.

—

39

Horn relay.

—

40

Left-hand high beam and stoplamp relay.

—

41

328

Fuses

Protected Component

Fuse Rating

Fuse Number

Fuel pump relay.

—

42

Right-hand high beam and stoplamp.

15 A

43

Not used.

—

44

Not used.

—

45

Not used.

—

46

Not used.

—

47

Left-hand high beam and stoplamp.

15 A

48

Not used.

—

49

Horn.

20 A

50

Not used.

—

51

Not used.

—

52

Massaging seats.

10 A

53

Brake on-off switch.

10 A

54

Alternator A-line.

10 A

55

Not used.

—

86

329

Fuses

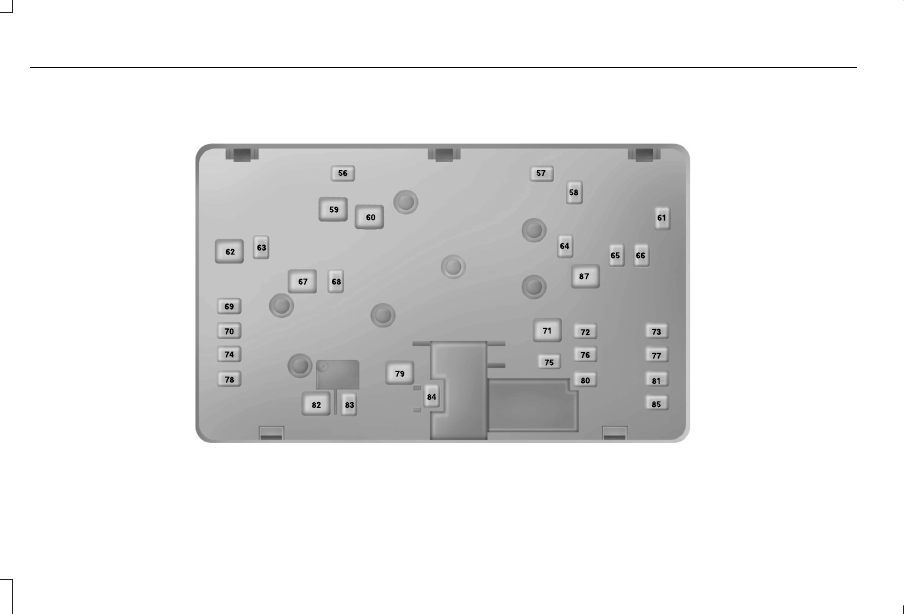

Under Hood Fuse Box - Bottom

E190798

330

Fuses

Protected Component

Fuse Rating

Fuse Number

Not used.

—

56

Not used.

—

57

Fuel pump feed.

30 A

58

Electronic fan 3.

40 A

59

Electronic fan 1.

40 A

60

Not used.

—

61

Body control module 1.

50 A

62

Electronic fan 2.

25 A

63

Not used.

—

64

Front heated seat.

20 A

65

Not used (spare).

15 A

66

Body control module 2.

50 A

67

Heated rear window.

40 A

68

Anti-lock brake system valves.

30 A

69

Passenger seat.

30 A

70

331

Fuses

Protected Component

Fuse Rating

Fuse Number

Not used.

–

71

Not used.

—

72

Rear heated seats.

20 A

73

Driver seat module.

30 A

74

Windshield wiper motor.

25 A

75

Power liftgate module.

30 A

76

Climate controlled seat module.

30 A

77

Trailer tow.

40 A

78

Blower motor.

40 A

79

Not used.

—

80

110 V inverter.

40 A

81

Not used.

–

82

Not used.

—

83

Starter motor solenoid.

30 A

84

Not used.

—

85

Anti-lock brake system pump.

60 A

87

332

Fuses

BODY CONTROL MODULE FUSE BOX

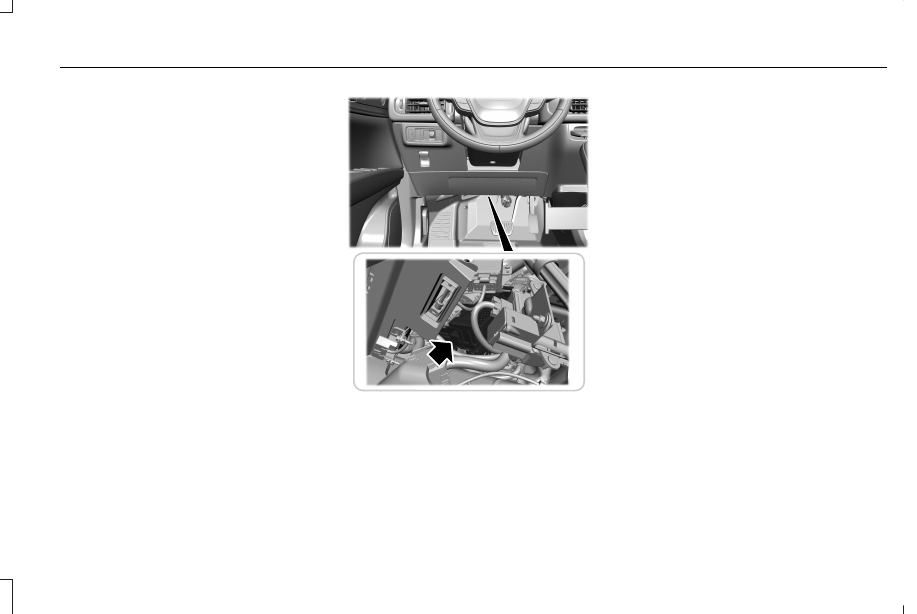

LOCATING THE BODY CONTROL
MODULE FUSE BOX

E331712

ACCESSING THE BODY CONTROL
MODULE FUSE BOX

To access the fuses in the body control
module fuse box, contact an authorized
dealer.

333

Fuses

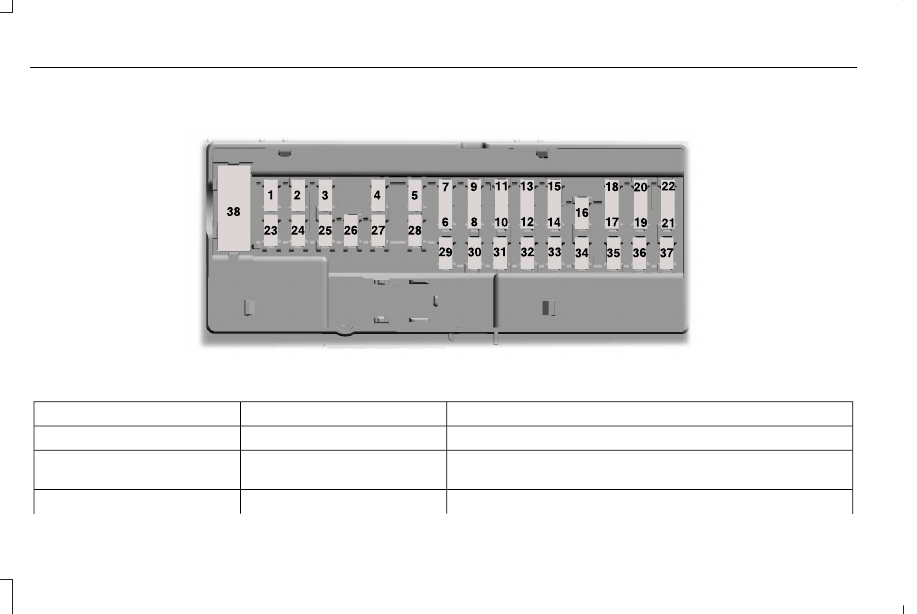

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX

E145984

Protected Components

Fuse Rating

Fuse or Relay Number

Not used.

–

1

Delayed accessory - power inverter logic, moonroof logic and driver
window switch power.

10 A

2

Memory seats.

7.5 A

3

334

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Lumbar.
Wireless accessory charging.

Subwoofer amplifier.

20 A

4

Not used.

–

5

Security horn relay.

10 A

6

Gearshift module.

10 A

7

Power liftgate module.

5 A

8

Hands free liftgate module.
Embedded modem.

Keypad.

5 A

9

Combined sensing module.

Not used.

–

10

Not used.

–

11

Climate control module.

7.5 A

12

Enhanced central gateway module.

Instrument cluster.

7.5 A

13

Steering column control module.

Not used.

15 A

14

335

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

SYNC module.

15 A

15

Not used.

–

16

Headlamp control module.

7.5 A

17

Not used (spare).

7.5 A

18

Headlamp switch.

5 A

19

Bluetooth low energy module.

Push button ignition switch.

5 A

20

Not used (spare).

5 A

21

Not used (spare).

5 A

22

Driver door window and mirror.

30 A

23

Driver door module.
Driver door lock indicator.
Driver lock switch illumination.

Moonroof.

30 A

24

Amplifier.

20 A

25

Front passenger door window and mirror.

30 A

26

Front passenger door module.
Front passenger lock indicator.
Front passenger switch illumination.

336

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Left-hand rear door module.

30 A

27

Right-hand rear door module.

30 A

28

Enhanced central gateway power - OBD connector.

15 A

29

Not used (spare).

5 A

30

Radio transceiver module.

10 A

31

Multi-function display.
Integrated control panel.

Radio.

20 A

32

Not used.

–

33

Run-start bus (fuse 17, 18, 21, 22, 35, 36, 37, circuit breaker 38).

30 A

34

Passenger airbag deactivation indicator.

5 A

35

Rear heated seat module.

15 A

36

Suspension module.

Heated steering wheel.

20 A

37

Auto-dimming interior mirror.
Automatic high beam and lane departure mirror module.
Parking assist control module.

Circuit breaker.

30 A

38

337

Fuses

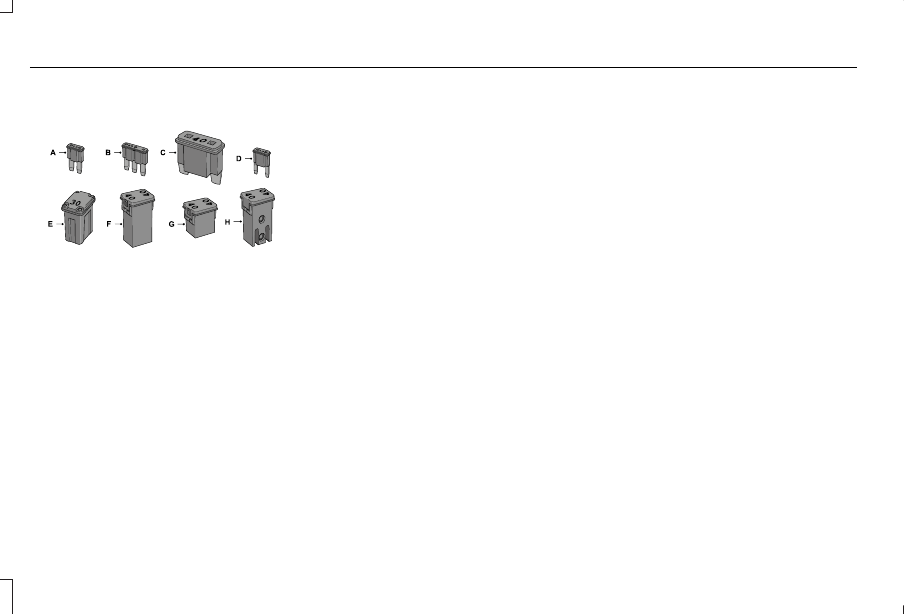

IDENTIFYING FUSE TYPES

E267379

Micro 2.

A

Micro 3.

B

Maxi.

C

Mini.

D

M Case.

E

J Case.

F

J Case Low Profile.

G

Slotted M Case.

H

FUSES – TROUBLESHOOTING

FUSES – FREQUENTLY ASKED
QUESTIONS

When do I need to check a fuse?

If electrical components in the vehicle
are not working.

When do I need to replace a fuse?

If a fuse has blown.

How do I identify a blown fuse?

You can identify a blown fuse by a
broken wire within the fuse.

338

Fuses

MAINTENANCE PRECAUTIONS

Service your vehicle regularly to help
maintain its roadworthiness and resale value.
There is a large network of authorized
dealers that are there to help you with their
professional servicing expertise. We believe
that their specially trained technicians are
best qualified to service your vehicle properly
and expertly. They are supported by a wide
range of highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service.  Check your
warranty information to find out which parts
and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications.   See Capacities and
Specifications (page 404).

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the engine
running in an enclosed space, unless you
are sure you have enough ventilation.

•

Keep all open flames and other burning
material, such as cigarettes, away from
the battery and all fuel related parts.

•

Set the parking brake, shift the
transmission to park (P) and block the
wheels.

OPENING AND CLOSING THE
HOOD

Opening the Hood

E142457

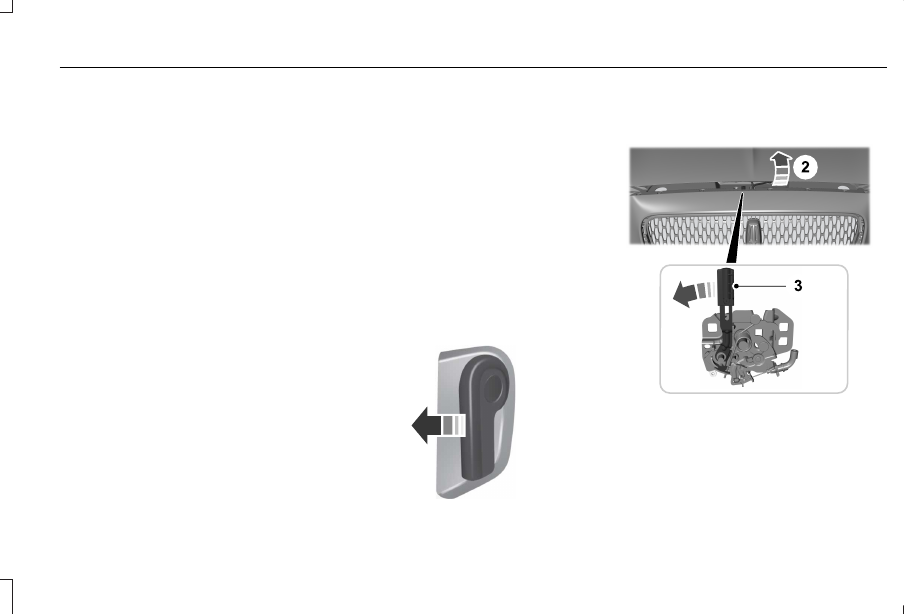

1. Inside the vehicle, pull the hood release

handle located under the left-hand side
of the instrument panel.

E267365

2. Slightly lift the hood.

3. Release the hood latch by pushing the

secondary release lever to your left-hand
side.

339

Maintenance

E202009

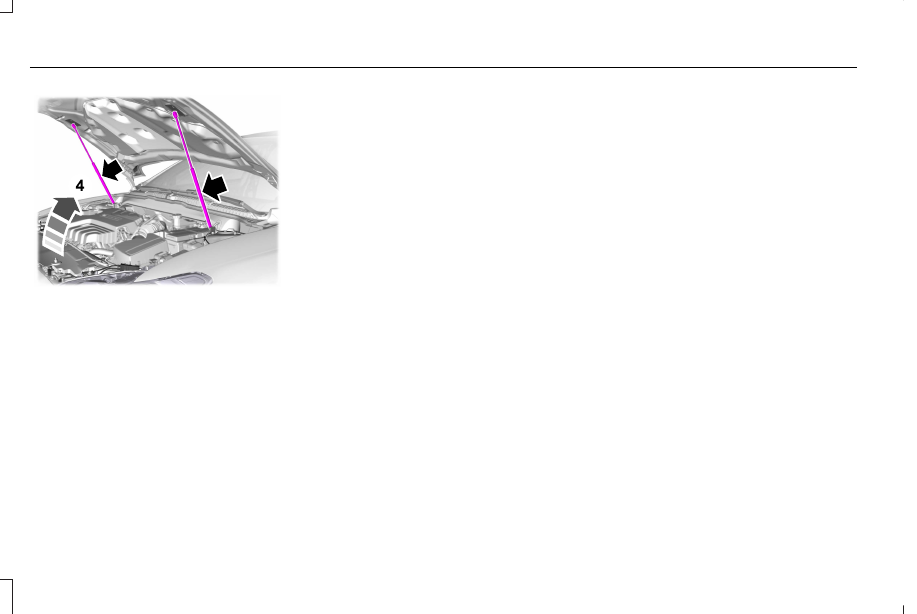

4. Open the hood.  The hood struts

automatically supports the hood.

Closing the Hood

1. Lower the hood until it engages on to the

secondary latch.

2. Firmly push down on the front of the

hood to close it fully.

Note: Make sure that the hood is correctly
closed.

340

Maintenance

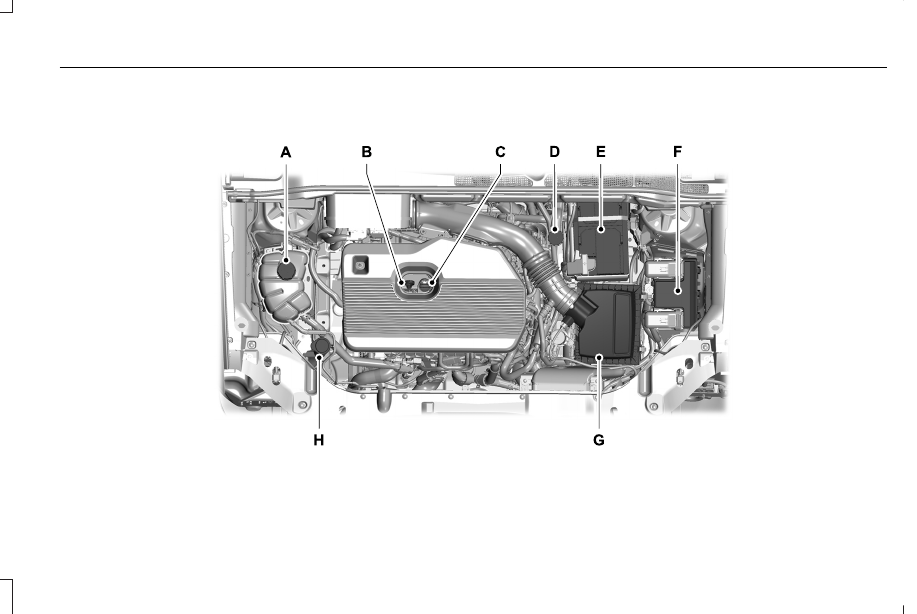

UNDER HOOD OVERVIEW - 2.0L

E341608

341
