Note: The system may not correctly operate
when towing a trailer. For vehicles with a
trailer tow module and tow bar approved by
us, the system turns off when you attach a
trailer. For vehicles with an aftermarket
trailer tow module or tow bar, we
recommend that you switch the system off
when you attach a trailer.

BLIND SPOT INFORMATION
SYSTEM REQUIREMENTS

Blind spot information system turns on when
all the following occur:
•

You start your vehicle.

•

You shift into drive (D).

•

The vehicle speed is greater than 6 mph
(10 km/h).

SWITCHING BLIND SPOT
INFORMATION SYSTEM ON AND
OFF

To switch blind spot information system on
or off, use the instrument cluster display:

1. Using the instrument cluster display

controls on the steering wheel, select
SETTINGS.

2. Select Driver assistance.

3. Switch Blindspot on or off.

When you switch blind spot information
system off, a warning lamp illuminates and
a message displays. When you switch the
system on or off, the alert indicators flash
twice.

Note: The system remembers the last setting
when you start your vehicle.

To permanently switch the system off,
contact an authorized dealer.

LOCATING THE BLIND SPOT
INFORMATION SYSTEM SENSORS

E205199

The sensors are behind the rear bumper on
both sides of your vehicle.

Note: Keep the sensors free from snow, ice
and large accumulations of dirt.

Note: Do not cover the sensors with bumper
stickers, repair compound or other objects.

Note: Blocked sensors may affect system
accuracy.

If the sensors become blocked, a message
may appear in the information display. The
alert indicators remain illuminated but the
system does not alert you.

278

Blind Spot Information System

BLIND SPOT INFORMATION
SYSTEM INDICATORS

E309137

E249861

E249861

When blind spot information
system detects a vehicle, an alert
indicator illuminates in the exterior

mirror on the side the approaching vehicle
is coming from. If you turn the turn signal on
for that side of your vehicle, the alert
indicator flashes.

BLIND SPOT INFORMATION SYSTEM – TROUBLESHOOTING

BLIND SPOT INFORMATION SYSTEM – INFORMATION MESSAGES

Action

Message

A fault with the system has occurred. Have your vehicle checked as

soon as possible.

Blind Spot System Fault

Something is blocking the sensors. Clean the sensors.

Blind Spot Not Available Sensor Blocked See Manual

The system automatically turns off and displays this message when

you connect a trailer to the vehicle that does not have a trailer blind

spot system or when you switch the trailer blind spot system off

through the touchscreen.

Blind Spot Alert Deactivated Trailer Attached

279

Blind Spot Information System

WHAT IS CROSS TRAFFIC ALERT

The system alerts you of vehicles
approaching from the sides behind your
vehicle when you shift into reverse (R).

HOW DOES CROSS TRAFFIC
ALERT WORK

Cross traffic alert detects vehicles that
approach at a speed between 4–37 mph
(6–60 km/h). Coverage decreases when the
sensors are partially, mostly or fully
obstructed.

E142440

The sensor on the left-hand side is only
partially obstructed and zone coverage on
the right-hand side is maximized.

E142441

Zone coverage also decreases when parking
at narrow angles. The sensor on the left-hand
side is mostly obstructed and zone coverage
on that side is severely reduced.

Note:  Slowly reversing helps increase the
coverage area and effectiveness.

CROSS TRAFFIC ALERT
PRECAUTIONS

WARNING: Do not use the cross

traffic alert system as a replacement for
using the interior and exterior mirrors or
looking over your shoulder before
reversing out of a parking space. The cross
traffic alert system is not a replacement for
careful driving.

WARNING: The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due care
and attention. Failure to take care may
result in a crash.

280

Cross Traffic Alert

CROSS TRAFFIC ALERT
LIMITATIONS

Cross traffic alert may not correctly operate
when any of the following occur:
•

Something is blocking the sensors.

•

Adjacently parked vehicles or objects are
obstructing the sensors.

•

Vehicles approach at speeds less than
4 mph (6 km/h) or greater than 37 mph
(60 km/h).

•

Your vehicle speed is greater than 7 mph
(12 km/h).

•

You reverse out of an angled parking
space.

SWITCHING CROSS TRAFFIC
ALERT ON AND OFF

To switch cross traffic alert on or off use the
instrument cluster display:

1. Using the instrument cluster display

controls on the steering wheel, select
SETTINGS.

2. Select Driver assistance.

3. Switch Cross traffic alert on or off.

LOCATING THE CROSS TRAFFIC
ALERT SENSORS

E205199

The sensors are behind the rear bumper on
both sides of your vehicle.

Note: Keep the sensors free from snow, ice
and large accumulations of dirt.

Note: Do not cover the sensors with bumper
stickers, repair compound or other objects.

Note: Blocked sensors could affect system
performance.

Note: Bike and cargo racks could cause
false alerts due to obstruction of the sensor.
We recommend switching the feature off
when using a bike or cargo rack.

If the sensors are blocked, a message may
appear in the information display when you
shift into reverse (R).

CROSS TRAFFIC ALERT
INDICATORS

E268294

When the cross traffic alert detects
an approaching vehicle, a tone
sounds, a warning lamp illuminates

in the relevant exterior mirror and arrows
appear in the information display to show
which side the vehicle is approaching from.

If the system malfunctions, a warning lamp
illuminates in the instrument cluster and a
message appears in the information display.
Have your vehicle checked as soon as
possible.

Note: If arrows do not display, a message
appears in the information display.

281

Cross Traffic Alert

Note: In some conditions, the system could
alert you, even when there is nothing in the
detection zone, for example a vehicle
passing further away from your vehicle.

CROSS TRAFFIC ALERT – TROUBLESHOOTING

CROSS TRAFFIC ALERT – INFORMATION MESSAGES

Action

Message

Displays instead of indication arrows when the system detects a

vehicle. Check for approaching traffic.

Cross Traffic Alert

Indicates blocked cross traffic alert system sensors. Clean the sensors.

If the message continues to appear, have your vehicle checked as

soon as possible.

Cross Traffic Not Available Sensor Blocked See Manual

The system has malfunctioned.  Have your vehicle checked as soon

as possible.

Cross Traffic System Fault

Displays if you attach a trailer to your vehicle.

Cross Traffic Alert Deactivated Trailer Attached

282

Cross Traffic Alert

WHAT IS PRE-COLLISION ASSIST

Pre-collision assist detects and warns of
approaching hazards in the roadway. If your
vehicle is rapidly approaching another
stationary vehicle, a vehicle traveling in the
same direction as yours, or a pedestrian
within your driving path, the system provides
multiple levels of assistance to help avoid a
collision.

HOW DOES PRE-COLLISION
ASSIST WORK

The system warns the driver of potential
hazards by providing three levels of
assistance.

E156130

If your vehicle is rapidly approaching
potential hazards, the system provides the
following levels of functionality:

1. Alert.

2. Brake Support.

3. Automatic Emergency Braking.

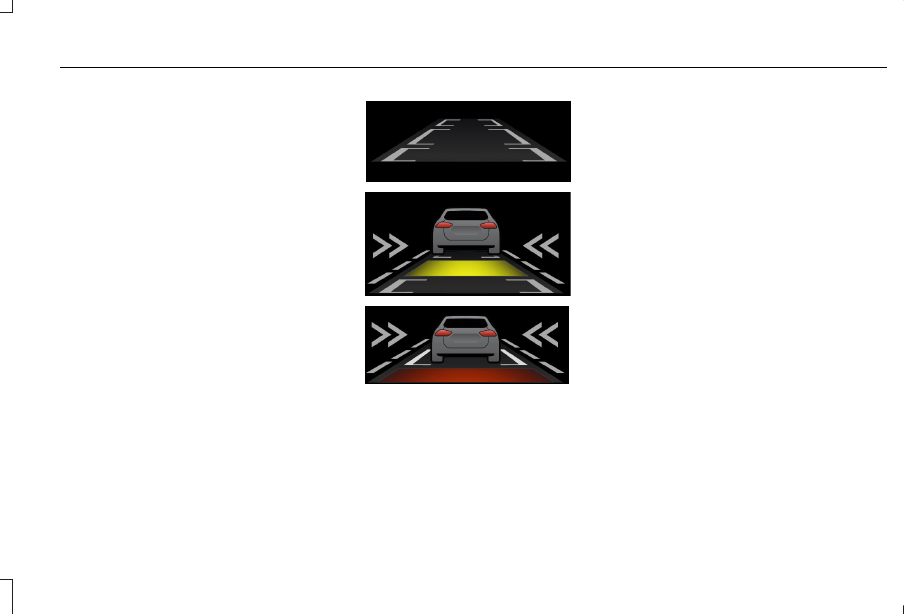

E255268

Alert: When active, a flashing visual warning
appears and an audible warning tone
sounds.

Brake Support: The system is designed to
help reduce the impact speed by preparing
the brakes for rapid braking. The system
does not automatically apply the brakes. If
you press the brake pedal, the system could
apply additional braking up to maximum
braking force, even if you lightly press the
brake pedal.

Automatic Emergency Braking: Automatic
emergency braking could activate if the
system determines that a collision is
imminent.

Note: If you perceive pre-collision assist
alerts as being too frequent or disturbing,
then you could reduce the alert sensitivity.
The manufacturer recommends using the
highest sensitivity setting where possible.
Setting a lower sensitivity would lead to
fewer and later system warnings.

Each system has various levels of detection
capabilities.  See Pre-Collision Assist
Limitations (page 284).

283

Pre-Collision Assist

PRE-COLLISION ASSIST
PRECAUTIONS

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: The system does not

detect vehicles moving in a different
direction or animals. Apply the brakes
when necessary. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING: The system does not

operate during hard acceleration or
steering. Failure to take care may lead to
a crash or personal injury.

WARNING: The system may fail or

operate with reduced function during cold
and severe weather conditions. Snow, ice,
rain, spray and fog can adversely affect the
system. Keep the front camera and radar
free of snow and ice. Failure to take care
may result in the loss of control of your
vehicle, serious personal injury or death.

WARNING: Take additional care if

your vehicle is heavily loaded or you are
towing a trailer. These conditions could
result in reduced performance of this
system. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING: The system cannot help

prevent all crashes. Do not rely on this
system to replace driver judgment and the
need to maintain a safe distance and
speed.

WARNING: In situations where the

vehicle camera has limited detection
capability, this may reduce system
performance. These situations include but
are not limited to direct or low sunlight,
vehicles at night without tail lights,
unconventional vehicle types, pedestrians
with complex backgrounds, running
pedestrians, partly obscured pedestrians,
or pedestrians that the system cannot
distinguish from a group. Failure to take
care may result in the loss of control of
your vehicle, serious personal injury or
death.

PRE-COLLISION ASSIST
LIMITATIONS

Pre-collision assist depends on the detection
ability of its camera and sensors. Any
obstructions or damage to these areas can
limit detection or prevent the system from
functioning.  See Locating the Pre-Collision
Assist Sensors (page 285).

284

Pre-Collision Assist

The system is active at speeds above 3 mph
(5 km/h)

Note: The pre-collision assist system
disables when you select four-wheel drive
low or manually disable AdvanceTrac™.

Note: Brake support and automatic
emergency braking are active at speeds up
to 80 mph (130 km/h). If the vehicle has a
radar sensor included with adaptive cruise
control, then brake support and automatic
emergency braking are active up to the
maximum speed of the vehicle.

Pedestrian Detection Limitations

Pedestrian detection is active at speeds up
to 50 mph (80 km/h).

Pedestrian detection functions optimally
when detected hazards are clearly
identifiable. System performance may reduce
in situations where pedestrians are running,
partly obscured, have a complex
background, or cannot be distinguished from
a group.

LOCATING THE PRE-COLLISION
ASSIST SENSORS

E268024

Camera.

1

Radar sensor (if equipped).

2

If a message regarding a blocked sensor or
camera appears in the information display,
something is obstructing the radar signals or
camera images. The radar sensor is behind
the fascia cover in the center of the lower
grille. With a blocked sensor or camera, the
system may not function, or performance
may reduce.  See Pre-Collision Assist –
Information Messages (page 289).

Note: Proper system operation requires a
clear view of the road by the camera. Have
any windshield damage in the area of the
camera's field of view repaired.

Note: If something hits the front end of your
vehicle or damage occurs and your vehicle
has a radar sensor, the radar sensing zone
could change. This could cause missed or
false vehicle detections. Have your vehicle
serviced to have the radar checked for
proper coverage and operation.

Note: If your vehicle detects excessive heat
at the camera or a potential misalignment
condition, a message could display in the
information display indicating temporary
sensor unavailability. When operational
conditions are correct, the message
deactivates. For example, when the ambient
temperature around the sensor decreases
or the sensor recalibrates successfully.

285

Pre-Collision Assist

DISTANCE INDICATION

 (IF EQUIPPED)

WHAT IS DISTANCE INDICATION

Distance indication displays the gap between
your vehicle and the vehicle ahead of you.

Note: The graphic does not display if you
switch on cruise control or adaptive cruise
control.

Time Gap

Distance Gap

Distance Indicator Color

System Sensitivity

Vehicle Speed

Greater than 0.9 seconds.

Greater than 82 ft (25 m).

Gray.

Normal.

62 mph (100 km/h).

0.6-0.9 seconds.

56–82 ft (17–25 m).

Yellow.

Less than 0.6 seconds.

Less than 56 ft (17 m).

Red.

286

Pre-Collision Assist

SWITCHING DISTANCE INDICATION
ON AND OFF

To switch the system on or off, use the
instrument cluster display:

1. Using the instrument cluster display

controls on the steering wheel, select
SETTINGS.

2. Select Driver assistance.

3. Select Pre-collision.

4. Switch Distance Indication on or off.

DISTANCE INDICATION INDICATOR

The indicator displays the time gap between
your vehicle and vehicles traveling in the
same direction ahead of you.

E254791

DISTANCE ALERT

 (IF EQUIPPED)

WHAT IS DISTANCE ALERT

The system alerts you with a warning lamp
if the distance to the vehicle ahead is small.

Note: The warning lamp does not illuminate
if cruise control or adaptive cruise control is
active.

ADJUSTING THE SENSITIVITY OF
DISTANCE ALERT

To adjust the sensitivity of the system, use
the instrument cluster display:

1. Using the instrument cluster display

controls on the steering wheel, select
SETTINGS.

2. Select Driver assistance.

3. Select Pre-collision.

4. Select Alert sensitivity.

5. Select a setting.

287

Pre-Collision Assist

AUTOMATIC EMERGENCY BRAKING

WHAT IS AUTOMATIC EMERGENCY
BRAKING

Automatic emergency braking may activate
if the system determines that a collision is
imminent. The system may help reduce
impact damage to avoid the crash
completely.

Automatic emergency braking is only
available up to certain speeds.  See
Pre-Collision Assist Limitations (page 284).

SWITCHING AUTOMATIC EMERGENCY
BRAKING ON AND OFF

To switch the system on or off, use the
instrument cluster display:

1. Using the instrument cluster display

controls on the steering wheel, select
SETTINGS.

2. Select Driver assistance.

3. Select Pre-collision.

4. Switch Auto Emergency Braking on or

off.

Note: Automatic emergency braking
switches on every time you switch the
ignition on.

EVASIVE STEERING ASSIST

 (IF EQUIPPED)

WHAT IS EVASIVE STEERING ASSIST

If your vehicle is rapidly approaching a road
user, evasive steering assist helps you steer
around the road user.

After you turn the steering wheel in an
attempt to avoid a crash with the road user,
the system applies additional steering torque
to help you steer around the road user. After
you pass the road user, the system applies
steering torque when you turn the steering
wheel to steer back into the lane. The system
deactivates after you fully pass the road user.

Note: Road users are defined as another
stationary vehicle in the same lane or a
vehicle traveling in the same lane in the
same direction as you.  See Pre-Collision
Assist Precautions (page 284).

EVASIVE STEERING ASSIST
LIMITATIONS

Evasive steering assist only activates when
all the following occur:
•

Automatic emergency braking and
evasive steering assist are on.

•

The system detects a road user ahead
and starts to apply the brakes.

•

You significantly turn the steering wheel
to steer around a road user.

Note: Evasive steering assist does not
automatically steer around a road user. If
you do not turn the steering wheel, evasive
steering assist does not activate.

Note: Evasive steering assist does not
activate if the distance to the road user
ahead is too small and the system cannot
avoid a crash.

Note: Evasive steering does not activate with
cyclists or pedestrians.

288

Pre-Collision Assist

SWITCHING EVASIVE STEERING
ASSIST ON AND OFF

To switch the system on or off, use the
touchscreen:

1. Press Features on the touchscreen.

2. Press Driver Assistance.
3. Press Pre-Collision Assist.

4. Switch Evasive Steering on or off.

Note: If you switch automatic emergency
braking off, evasive steering assist turns off.

Note: Automatic emergency braking and
evasive steering assist turn on every time
you switch the ignition on.

PRE-COLLISION ASSIST – TROUBLESHOOTING

PRE-COLLISION ASSIST – INFORMATION MESSAGES

Action

Message

You have a blocked sensor due to bad weather, ice, mud or water in
front of the radar sensor. You can typically clean the sensor to resolve.

Pre-Collision Assist Not Available Sensor Blocked

A fault with the system has occurred. Have your vehicle checked as

soon as possible.

Pre-Collision Assist Not Available

289

Pre-Collision Assist

PRE-COLLISION ASSIST –
FREQUENTLY ASKED QUESTIONS

Camera Troubleshooting

The windshield in front of the camera is
dirty or obstructed.

Clean the outside of the windshield in
front of the camera.

The windshield in front of the camera is
clean, but the message remains in the
instrument cluster display.

Wait a short time. It could take several
minutes for the camera to detect that
there is no obstruction.

Radar Troubleshooting

 (If Equipped)

The surface of the radar in the grille is dirty
or obstructed.

Clean the grille surface in front of the
radar or remove the object causing the
obstruction.

The surface of the radar in the grille is
clean, but the message remains in the
instrument cluster display.

Wait a short time. It could take several
minutes for the radar to detect that there
is no obstruction.

Heavy rain, spray or fog is interfering with
the radar signals.

The pre-collision assist system is
temporarily disabled. Pre-collision assist
reactivates a short time after the
weather conditions improve.

Swirling water or snow or ice on the surface
of the road could interfere with the radar
signals.

The pre-collision assist system is
temporarily disabled. Pre-collision assist
reactivates a short time after the
weather conditions improve.

Radar is out of alignment due to a front end
impact.

Have your vehicle serviced to have the
radar checked for proper coverage and
operation.

290

Pre-Collision Assist

WHAT IS DRIVER ALERT

Driver alert alerts you if it determines that
you are becoming drowsy or if your driving
deteriorates.

HOW DOES DRIVER ALERT WORK

Driver Alert calculates your alertness level
based on your driving behavior in relation to
the lane markings and other factors through
use of the front camera sensor behind the
interior mirror.

E309385

DRIVER ALERT PRECAUTIONS

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: Take regular rest breaks

if you feel tired. Do not wait for the system
to warn you.

WARNING: Certain driving styles may

result in the system warning you even if
you are not feeling tired.

WARNING: In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all limit
sensor performance.

WARNING: The system will not

operate if the sensor cannot track the road
lane markings.

WARNING: If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING: The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by us.

WARNING: The system may not

operate properly if the sensor is blocked.
Keep the windshield free from obstruction.

Note: If something is blocking the camera
or damaged the windshield, Driver Alert may
not function.

291

Driver Alert

DRIVER ALERT LIMITATIONS

Driver alert may not function correctly if:
•

The sensor cannot track the road lane
markings.

•

Your vehicle's speed is less than
approximately 40 mph (65 km/h).

SWITCHING DRIVER ALERT ON
AND OFF

1. Using the instrument cluster display

controls on the steering wheel, select
SETTINGS.

2. Select Driver assistance.

3. Switch Driver alert on or off.

Note: The system remains on or off
depending on how it was last set.

Resetting Driver Alert

You can reset the system by either:
•

Switching the ignition off and on.

•

Stopping the vehicle and then opening
and closing the driver door.

DRIVER ALERT – TROUBLESHOOTING

DRIVER ALERT – INFORMATION MESSAGES

Action

Message

Stop and rest as soon as it is safe to do so.

Driver Alert Warning Rest Now

Take a rest soon.

Driver Alert Warning Rest Suggested

292

Driver Alert

LOAD CARRYING PRECAUTIONS

Keep your loaded vehicle weight within
its design rating capability, with or
without a trailer. Properly loading your
vehicle provides maximum return of
vehicle design performance. Before you
load your vehicle, become familiar with
the following terms for determining your
vehicle’s weight rating, with or without
a trailer, from the vehicle’s Tire and
Loading Information label or Safety
Compliance Certification label.

WARNING: The appropriate

loading capacity of your vehicle can
be limited either by volume capacity
(how much space is available) or by
payload capacity (how much weight
the vehicle should carry). Once you
have reached the maximum payload
of your vehicle, do not add more
cargo, even if there is space available.
Overloading or improperly loading
your vehicle can contribute to loss of
vehicle control and vehicle rollover.

WARNING: Exceeding the Safety

Compliance Certification label vehicle
weight limits can adversely affect the
performance and handling of your
vehicle, cause vehicle damage and
can result in the loss of control of your
vehicle, serious personal injury or
death.

WARNING: Do not use

replacement tires with lower load
carrying capacities than the original
tires because they may lower your
vehicle's GVWR and GAWR limitations.
Replacement tires with a higher limit
than the original tires do not increase
the GVWR and GAWR limitations.

WARNING: Do not exceed the

GVWR or the GAWR specified on the
certification label.

WARNING: Exceeding any

vehicle weight rating can adversely
affect the performance and handling
of your vehicle, cause vehicle damage
and can result in the loss of control of
your vehicle, serious personal injury
or death.

WARNING: When loading the

roof racks, we recommend you evenly
distribute the load, as well as maintain
a low center of gravity. Loaded
vehicles, with higher centers of gravity,
may handle differently than unloaded
vehicles. Take extra precautions, such
as slower speeds and increased
stopping distance, when driving a
heavily loaded vehicle.

The gross combined weight must never
exceed the Gross Combined Weight
Rating.

293

Load Carrying
