14.

Remove the lug nuts with the lug
wrench.

Note: For vehicles with full wheel covers with
exposed wheel nuts, remove the wheel nuts
prior to removing the wheel cover or damage
to the wheel cover may occur.

15.

Replace the flat tire with the spare tire,
making sure the valve stem is facing
outward. Reinstall the lug nuts until the
wheel is snug against the hub. Do not
fully tighten the lug nuts until the wheel
has been lowered.

16.

Lower the wheel by turning the jack
handle counterclockwise.

17.

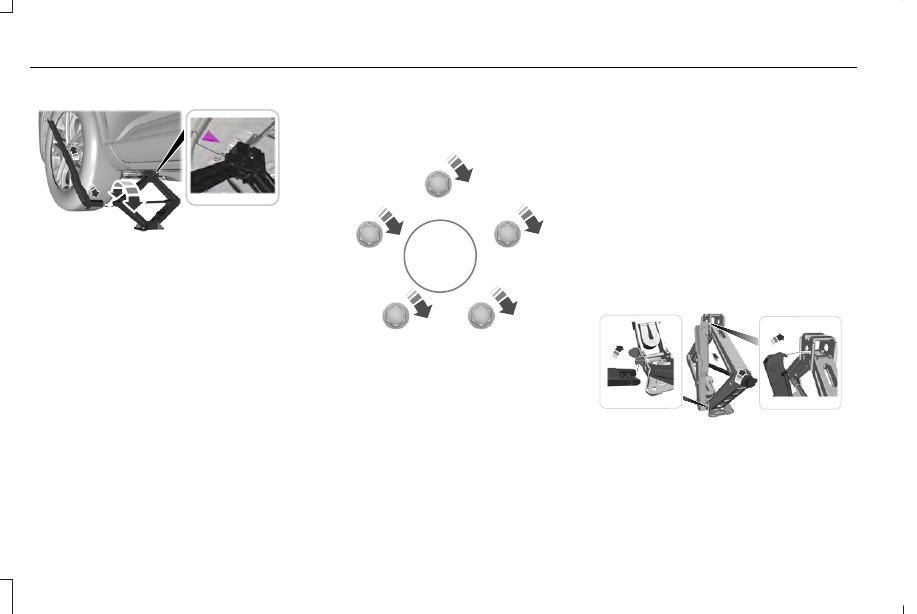

Remove the jack and fully tighten the
lug nuts in the order shown. See
Technical Specifications (page 459).

1

2

3

4

5

E306781

Stowing the flat tire

1. To store the jack kit on Non Plug-in

Hybrid Electric Vehicles "Non-PHEV", fold
the jack and wrench handle and engage
it to the bracket of the jack base using
the lug wrench pin.

Note: To store the jack and wrench on
Plug-in Hybrid Electric Vehicles "PHEV", fold
the jack and wrench into the closed position,
and place the wrench into the storage
compartment. Position the jack assembly
into the closed position and make sure the
jack is fastened securely before you drive.

2. When attaching the folded wrench on the

jack, swing the wrench upward and
adjust the jack height until the wrench
hook engages the hole on the jack.
Tighten the hex nut clockwise until
secure.

E294121

3. Re-position the jack kit assembly into the

original vehicle position and secure with
the plastic wing nut. Make sure the jack
is fastened securely before you drive.

4. Unblock the wheels.

456

Wheels and Tires

5. Stow the flat tire on the floor in the cargo

area. Secure with the flat tire retainer
strap by following the next steps:

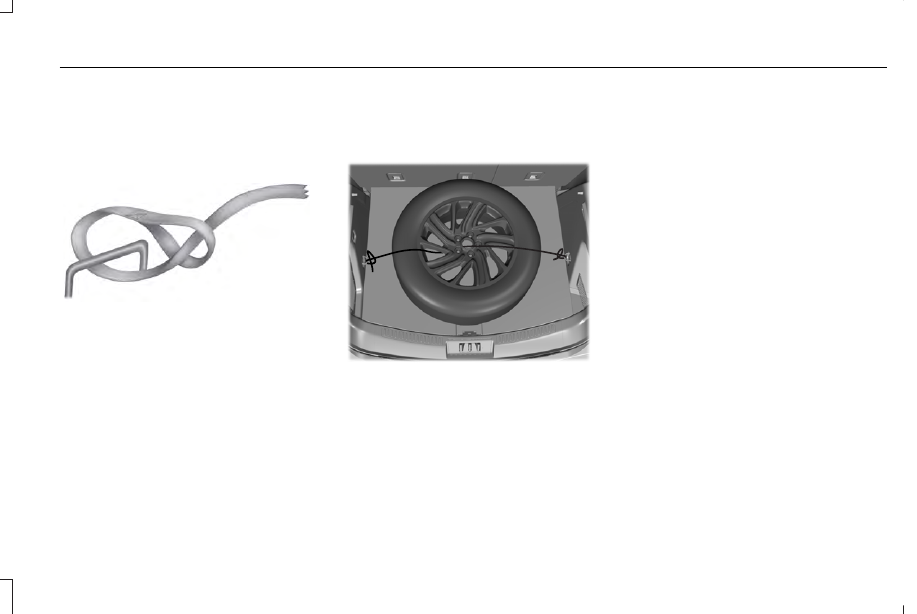

E142906

6. Locate the cargo tie-down near the

seatback. Push the loop of the retainer
strap through the tie-down. Thread the
non-loop end through the loop.

E309378

7. Weave the retainer strap through the

wheel openings.

8. Locate the front cargo tie-down at the

opposite corner of the cargo area to the
tie-down used in Step 4. Thread the
retainer strap through the tie-down and
pull tight.

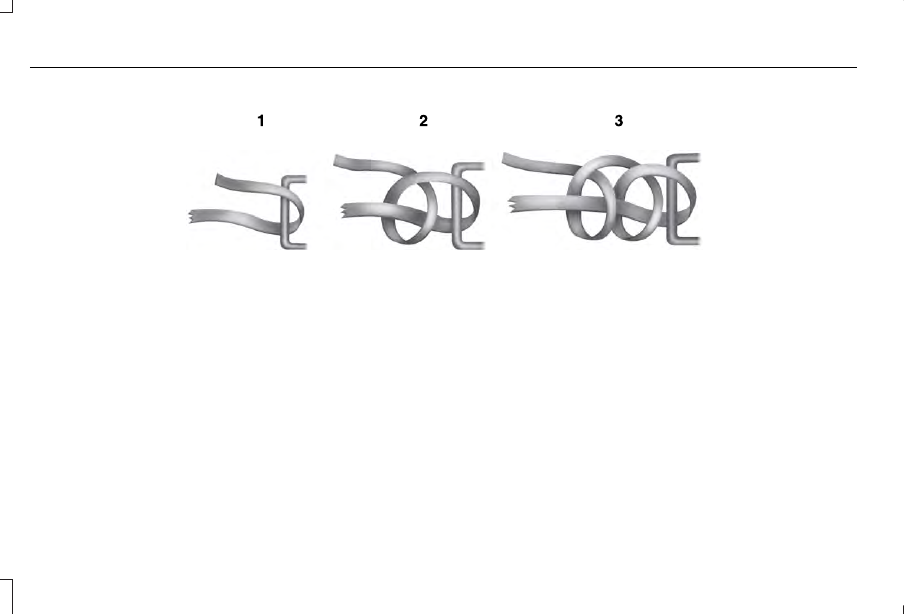

9. Secure by tying a 2-half hitch knot.

457

Wheels and Tires

E143746

458

Wheels and Tires

TECHNICAL SPECIFICATIONS

Wheel Lug Nut Torque Specifications

WARNING: When you install a wheel, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the

wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners that attach
the rotor to the hub so they do not interfere with the mounting surfaces of the wheel. Installing wheels without correct metal-to-metal contact
at the wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle is in motion, resulting in
loss of vehicle control, personal injury or death.

Ib-ft (Nm)

*

Bolt size

100 lb.ft (135 Nm)

M12 x 1.5

*

Torque specifications are for nut and bolt threads free of oil, dirt and rust. Use only Ford recommended replacement fasteners.

Retighten the lug nuts to the specified torque within 100 mi (160 km) after any wheel disturbance (such as tire rotation, changing a flat tire,
wheel removal).

459

Wheels and Tires

E145950

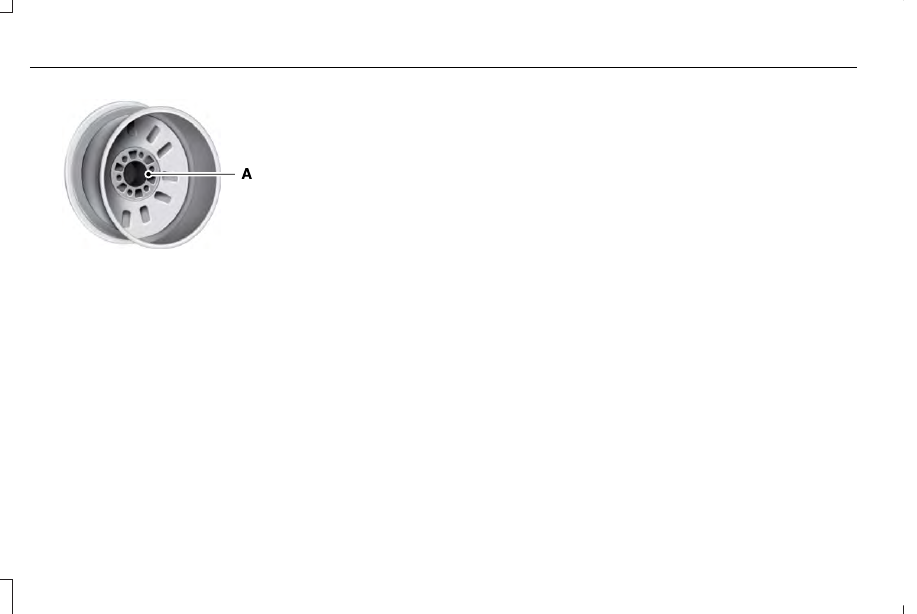

Wheel pilot bore.

A

Inspect the wheel pilot bore and mounting
surface prior to installation. Remove any
visible corrosion or loose particles.

460

Wheels and Tires

ENGINE SPECIFICATIONS - 2.0L

Specification

Engine

122 in³ (1,999 cm³)

Displacement.

10:1

Compression ratio.

1-3-4-2

Firing order.

0.028–0.031 in (0.7–0.8 mm)

Spark plug gap.

461

Capacities and Specifications

Drivebelt Routing

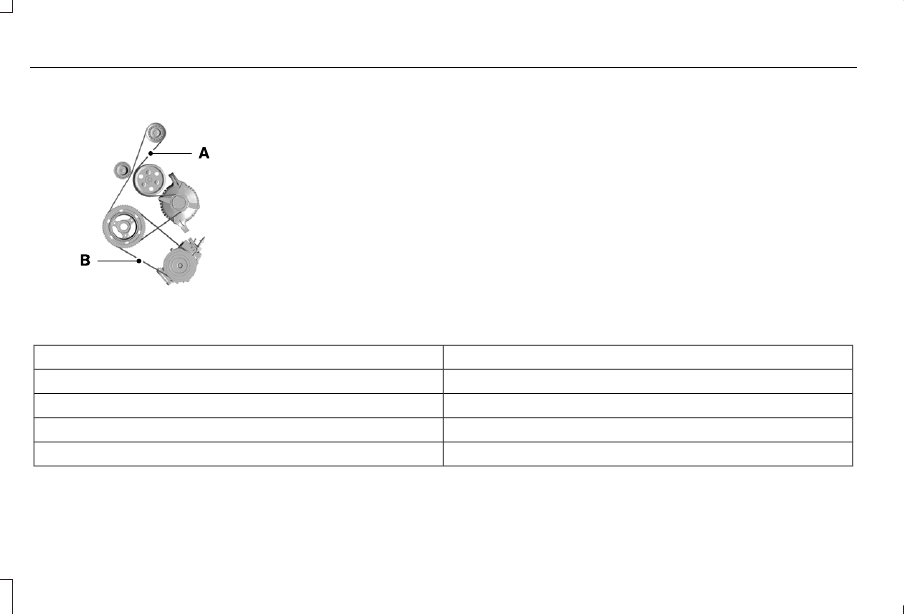

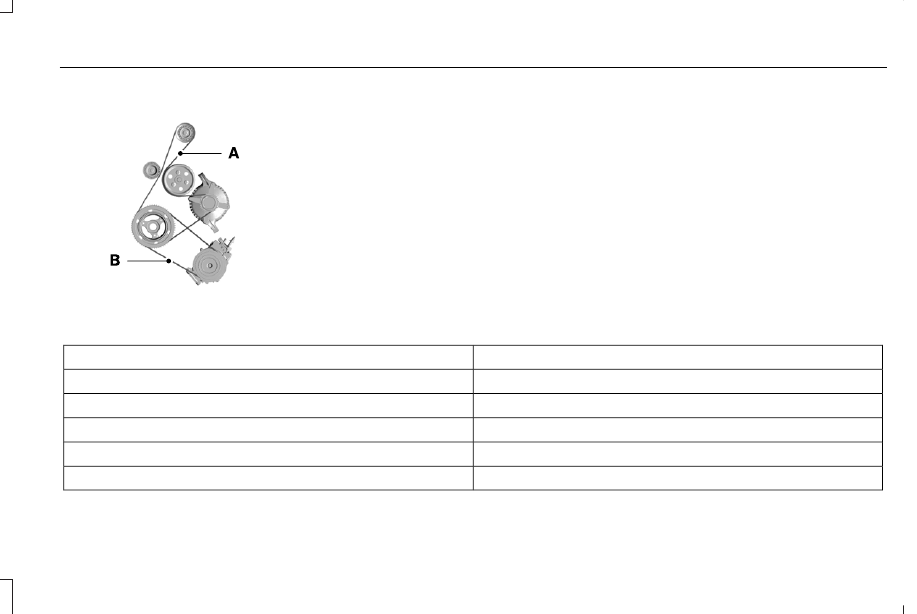

E161383

The long drivebelt is on the first
pulley groove closest to the
engine.

A.

The short drivebelt is on the
second pulley groove farthest from
engine.

B.

ENGINE SPECIFICATIONS - 2.3L

Specification

Engine

138 in³ (2,261 cm³)

Displacement.

10.0:1

Compression ratio.

1-3-4-2

Firing order.

0.028–0.031 in (0.7–0.8 mm)

Spark plug gap.

462

Capacities and Specifications

Drivebelt Routing

E161383

The long drivebelt is on the first
pulley groove closest to the
engine.

A.

The short drivebelt is on the
second pulley groove farthest from
the engine.

B.

ENGINE SPECIFICATIONS - 2.5L, PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)

Specification

Engine

13.0:1

Compression ratio.

152 in³ (2,490 cm³)

Displacement.

1-3-4-2

Firing order.

Coil on plug

Ignition system.

0.049–0.053 in (1.25–1.35 mm)

Spark plug gap.

463

Capacities and Specifications

MOTORCRAFT PARTS - 2.0L

Motorcraft Part Number

Component

FA-1939

Air filter element.

FL-910-S

Oil filter.

1

BAGM-94RH7-800

Battery.

SP-594

Spark plug.

FP-89

Cabin air filter.

WW-2765 (driver side)

Windshield wiper blade.

WW-1814 (passenger side)

WW-1003 (rear window)

1

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

We recommend Motorcraft parts that are available at your authorized dealer or at www.parts.ford.com. We engineer these parts for your
vehicle to meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty
could be void for any damage related to use of other parts.

464

Capacities and Specifications

MOTORCRAFT PARTS - 2.3L

Motorcraft Part Number

Component

FA-1939

Air filter element.

FL-910-S

Oil filter.

1

BAGM-94RH7-800

Battery.

SP-594

Spark plug.

FP-89

Cabin air filter.

WW-2765 (driver side)

Windshield wiper blade.

WW-1814 (passenger side)

WW-1003 (rear window)

1

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

We recommend Motorcraft parts that are available at your authorized dealer or at www.parts.ford.com. We engineer these parts for your
vehicle to meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty
could be void for any damage related to use of other parts.

465

Capacities and Specifications

MOTORCRAFT PARTS - 2.5L, PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)

Motorcraft Part Number

Component

FA-1948

Air filter element.

FL-910-S

Oil filter.

1

BAGM-48H6-760

Battery.

SP-530

Spark plug.

FP-89

Cabin air filter.

WW-2765 (driver side)

Windshield wiper blade.

WW-1814 (passenger side)

WW-1003 (rear window)

1

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

We recommend Motorcraft parts that are available at your authorized dealer or at www.fordparts.com. We engineer these parts for your
vehicle to meet or exceed our specifications. Use of other parts could impact vehicle performance, emissions and durability. Your warranty
could be void for any damage related to use of other parts.

466

Capacities and Specifications

CAPACITIES AND SPECIFICATIONS
- 2.0L

Use oil and fluid that meets the defined
specification and viscosity grade.

If you do not use oil and fluid that meets the
defined specification and viscosity grade, it
could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

Air Conditioning System

WARNING: The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.

Capacities

Refrigerant Oil

Refrigerant

Variant

3.4 fl oz (100 ml)

19.4 oz (0.55 kg)

All.

467

Capacities and Specifications

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile PAG pour frigorigène R-1234yf
Motorcraft®(Canada)
YN-35(U.S. & Canada)

Engine Coolant

Capacities

Quantity

Variant

8.7 qt (8.2 L)

All.

468

Capacities and Specifications

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement
prédilué jaune Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

Engine Oil

E142732

An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.

We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not available,
use motor oils of the recommended viscosity
grade that display the API Certification Mark
for gasoline engines.

Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage not covered by your
vehicle warranty.

469

Capacities and Specifications

Capacities

Including the Oil Filter

Variant

5.5 qt (5.2 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil / Huile moteur de très haute
qualité SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)

Alternative Engine Oil for Extremely
Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22°F (-30°C) or below.

470

Capacities and Specifications

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

E240523

471
