When Inflating Your Tires

WARNING: Do not use the tire

pressure displayed in the information
display as a tire pressure gauge. Failure to
follow this instruction could result in
personal injury or death.

When putting air into your tires (such as at a
gas station or in your garage), the tire
pressure monitoring system will not respond
immediately to the air added to your tires.

It could take up to two minutes of driving
over 20 mph (32 km/h) for the light to turn
off after you have filled your tires to the
recommended inflation pressure.

How Temperature Affects Your Tire
Pressure

The tire pressure monitoring system monitors
tire pressure in each pneumatic tire. While
driving in a normal manner, a typical
passenger tire inflation pressure could
increase about 2–4 psi (14–28 kPa) from a
cold start situation. If the vehicle is stationary
overnight with the outside temperature

significantly lower than the daytime
temperature, the tire pressure could
decrease about 3 psi (21 kPa) for a drop of
30°F (17°C) in ambient temperature. This
lower pressure value could be detected by
the tire pressure monitoring system as being
significantly lower than the recommended
inflation pressure and activate the system
warning light for low tire pressure. If the low
tire pressure warning light is on, visually
check each tire to verify that no tire is flat. If
one or more tires are flat, repair as
necessary. Check the air pressure in the road
tires. If any tire is under-inflated, carefully
drive the vehicle to the nearest location
where air can be added to the tires. Inflate
all the tires to the recommended inflation
pressure.

CHANGING A ROAD WHEEL

 (IF

EQUIPPED)

WARNING: If the tire pressure

monitor sensor becomes damaged it may
not function.

Note: The tire pressure monitoring system
indicator light illuminates when the spare
tire is in use. To restore the full function of
the monitoring system, mount all road
wheels equipped with tire pressure
monitoring sensors on the vehicle.

Note: You should only use tire sealants in
roadside emergencies as they may cause
damage to the tire pressure monitoring
system sensor.

If you get a flat tire when driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe place
on the side of the road.

Have a flat serviced by an authorized dealer
to prevent damage to the tire pressure
monitoring system sensors. See Tire
Pressure Monitoring System
 (page 350).
Replace the spare tire with a road tire as
soon as possible. During repairing or
replacing of the flat tire, have an authorized
dealer inspect the tire pressure monitoring
system sensor for damage.

355

Wheels and Tires

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Dissimilar Spare Wheel and Tire
Assembly Information

WARNING: Failure to follow these

guidelines could result in an increased risk
of loss of vehicle control, injury or death.

If you have a dissimilar spare wheel and tire,
use it for temporary use only. This means
that if you need to use it, you should replace
it as soon as possible with a road wheel and
tire assembly that is the same size and type
as the road tires and wheels that originally
came with your vehicle. If the dissimilar spare
tire or wheel is damaged, replace it instead
of repairing it.

Important Use of Spare Wheel

A dissimilar spare wheel and tire assembly is a spare wheel and tire assembly that is different in brand, size or appearance from the road
tires and wheels and can be one of three types:

Types of Spare Wheels

T-type mini-spare.

1

Full-size dissimilar spare with label on wheel.

2

Full-size dissimilar spare without label on wheel.

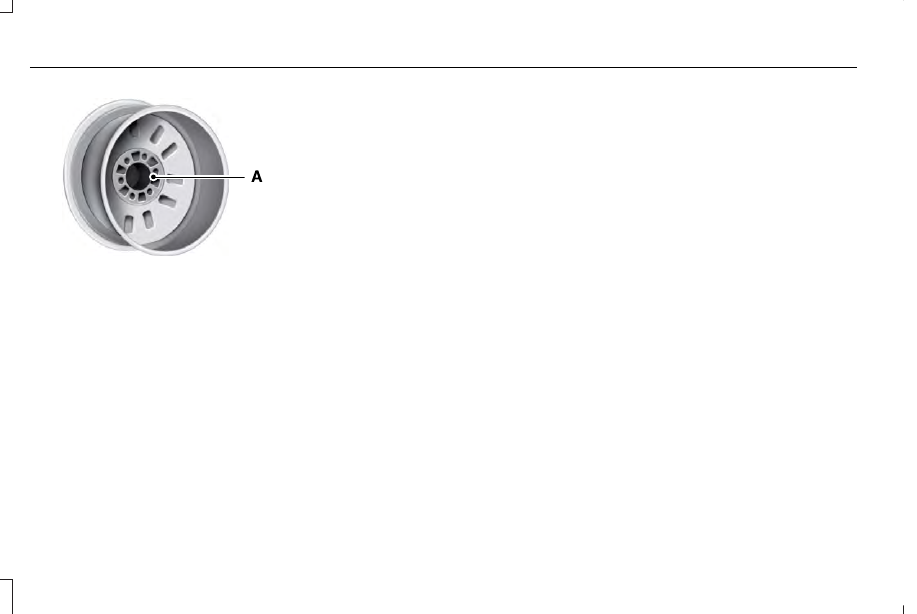

This spare tire begins with the letter T for tire size and may have Temporary Use Only molded in the sidewall.

This spare tire has a label on the wheel that states: THIS WHEEL AND TIRE ASSEMBLY FOR TEMPORARY USE ONLY.

356

Wheels and Tires

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving with a T-type Mini-spare or Full-size
Dissimilar Spare with Label on Wheel

Do not:

Exceed 50 mph (80 km/h).

Load the vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.

Tow a trailer.

Use snow chains on the end of the
vehicle with the dissimilar spare tire.

Use more than one dissimilar spare tire
at a time.

Use commercial car washing equipment.

Try to repair the dissimilar spare tire.

Use of the above dissimilar spare wheel at
any one wheel location can lead to
impairment of the following:

Handling, stability and braking
performance.

Comfort and noise.

Ground clearance and parking at curbs.

Winter weather driving capability.

Wet weather driving capability.

All-wheel driving capability, if applicable.

Driving with a Full-size Dissimilar Spare
Wheel and Tire Assembly

Do not:

Exceed 70 mph (113 km/h).

Use more than one dissimilar spare
wheel and tire assembly at a time.

Use commercial car washing equipment.

Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.

Use of the above dissimilar spare wheel at
any one wheel location can lead to
impairment of the following:

Handling, stability and braking
performance.

Comfort and noise.

Ground clearance and parking at curbs.

Winter weather driving capability.

Wet weather driving capability.

All-wheel driving capability.

Give additional caution to the following when
driving with the full-size dissimilar spare
wheel and tire assembly:

Towing a trailer.

Driving vehicles equipped with a camper
body.

Driving vehicles with a load on the cargo
rack.

Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly and
seek service as soon as possible.

Changing a Road Wheel Procedure

WARNING: When one of the front

wheels is off the ground, the transmission
alone will not prevent the vehicle from
moving or slipping off the jack, even if the
transmission is in park (P).

357

Wheels and Tires

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING: To help prevent your

vehicle from moving when changing a
wheel, shift the transmission into park (P),
set the parking brake and use an
appropriate block or wheel chock to
secure the wheel diagonally opposite to
the wheel being changed. For example,
when changing the front left wheel, place
an appropriate block or wheel chock on
the right rear wheel.

WARNING: Do not work on your

vehicle when the jack is the only support.
If the vehicle slips off the jack, you or
someone else could be seriously injured.

WARNING: Check that the vehicle

jack is not damaged or deformed and the
thread is lubricated and clean.

WARNING: Never place anything

between the vehicle jack and your vehicle.

WARNING: Never place anything

between the vehicle jack and the ground.

WARNING: Do not attempt to change

a tire on the side of the vehicle close to
moving traffic. Pull far enough off the road
to avoid the danger of being hit when
operating the jack or changing the wheel.

WARNING: Park your vehicle so that

you do not obstruct the flow of traffic or
place yourself in any danger and set up a
warning triangle.

WARNING: The jack supplied with

this vehicle is only intended for changing
wheels. Do not use the vehicle jack other
than when you are changing a wheel in an
emergency.

WARNING: Always use the jack

provided as original equipment with your
vehicle. If using a jack other than the one
provided, make sure the jack capacity is
adequate for the vehicle weight, including
any vehicle cargo or modifications. If you
are unsure if the jack capacity is adequate,
contact the authorized dealer.

WARNING: Use only the specified

jacking points. If you use other positions,
you may damage the body, steering,
suspension, engine, braking system or the
fuel lines.

WARNING: Failure to follow these

guidelines could result in an increased risk
of loss of vehicle control, injury or death.

E166722

Note: Do not allow passengers to remain in
your vehicle when using the jack on the
vehicle.

1. Park on a level surface, set the parking

brake and activate the hazard flashers.

358

Wheels and Tires

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Place the transmission in park (P) and

turn the engine off. For vehicles with a
manual transmission, place the
transmission in reverse (R) after you turn
the engine off.

E175447

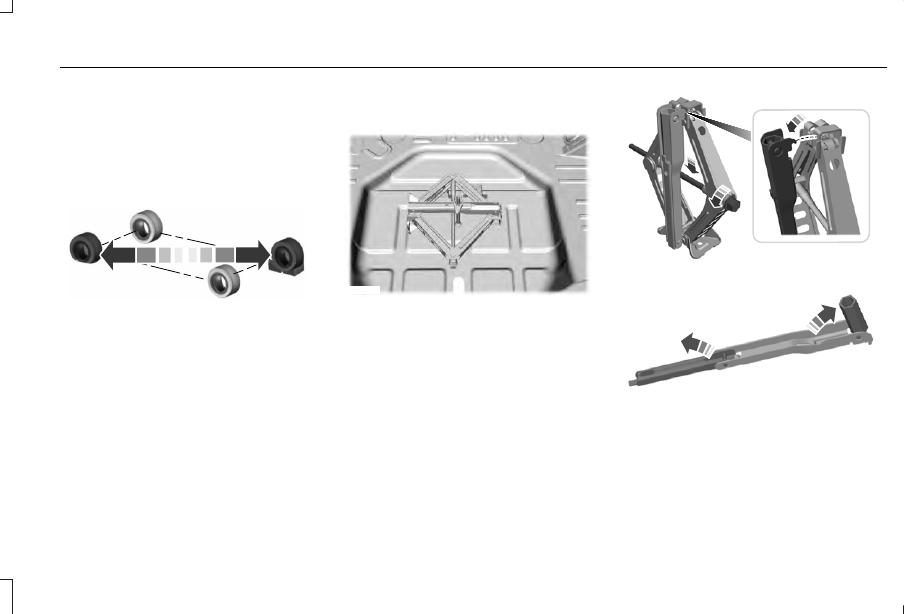

3. Block both the front and rear of the wheel

diagonally opposite the flat tire. For
example, if the left front tire is flat, block
the right rear wheel.

4. The spare tire, jack, and wrench are in

the spare tire compartment under the
trunk load floor.

5. Remove the spare tire bolt securing the

spare tire by turning it counterclockwise.

6. Remove the spare tire, jack, and wrench

from the spare tire compartment.

E178186

7. Turn the hex nut on the jack

counterclockwise to remove the lug
wrench from the jack. This lowers the
jack and loosens the mechanical lock.

E175694

8. Unfold the wrench for use.

E181744

9. If your vehicle has wheel trim covering

the lug nuts, use the tool attached to the
spare wheel retainer to remove the wheel
trim.

359

Wheels and Tires

-------------------------------------------------------------------------------------------------------------------------------------------------------------

E302004

10.

If jacking on the roadside shoulder, set
the warning triangle upright on the
shoulder in the direction of oncoming
traffic if the vehicle has a warning
triangle.

11.

Loosen each wheel lug nut one-half
turn counterclockwise, but do not
remove them until you raise the wheel
off the ground.

E145908

12.

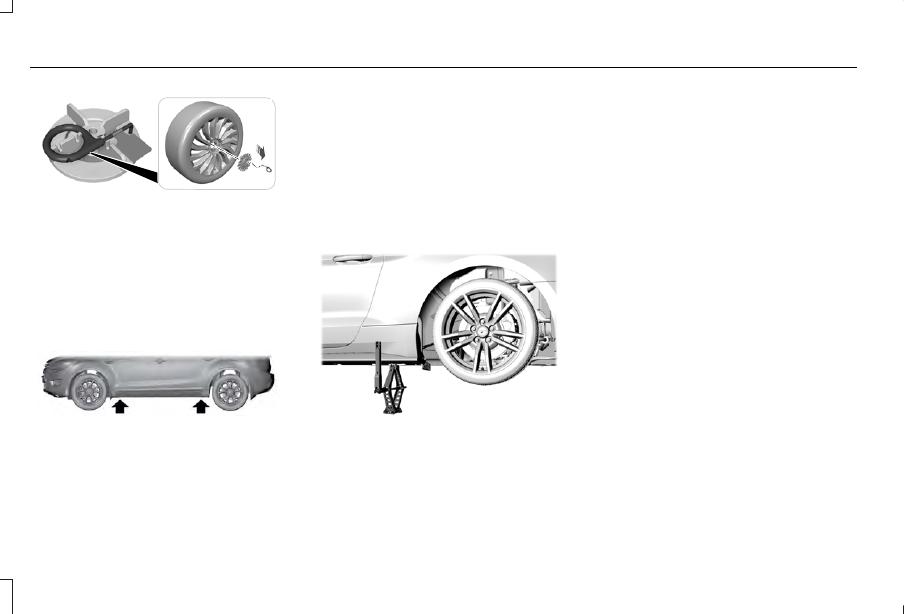

You can identify the vehicle jacking
points by the triangle markings on the
molding as shown. The triangle marking
may be on the side or the underside of
the molding. On vehicles without
moldings, a pair of arrows on the metal
flange pointing to the jacking point
between them identifies the jacking
points. The warning label on the jack
depicts the details.

E174939

13.

Place the jack at the jacking point next
to the tire you are changing. Turn the
jack handle clockwise until the wheel
is completely off the ground.

14.

Remove the lug nuts with the lug
wrench.

15.

Replace the flat tire with the spare tire,
making sure the valve stem is facing
outward. Reinstall the lug nuts until the
wheel is snug against the hub. Do not
fully tighten the lug nuts until you lower
the wheel. If you are using the
temporary tire, the lug nut washers do
not appear to be flush with the rim. This
is normal only when using the
temporary spare tire.

16.

Lower the wheel by turning the jack
handle counterclockwise.

17.

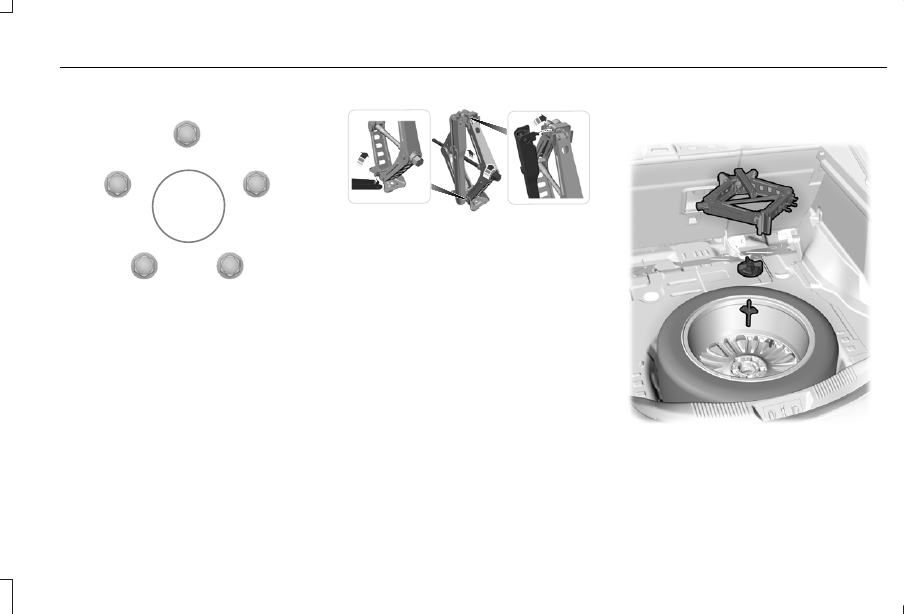

Remove the jack and fully tighten the
lug nuts in the order shown. See
Technical Specifications (page 363).

360

Wheels and Tires

-------------------------------------------------------------------------------------------------------------------------------------------------------------

1

2

3

4

5

E75442

18.

To store the folded wrench on the jack,
engage the bracket of the jack base on
the wrench feature as shown. Swing
the wrench upward and adjust the
height of the jack until the pin engages
the hole. Tighten the hex nut clockwise
by hand until secure.

E176165

19.

Put the flat tire, jack and lug wrench
away. Make sure the jack is fastened
securely before you drive.

20. Unblock the wheel and retrieve the

warning triangle.

Stowing the Flat Tire Without the
Retainer Strap

E227869

You can temporarily stow the full-size road
wheel in the spare tire compartment.

1. Lift the carpeted wheel cover at an angle

to access the spare tire compartment.

361

Wheels and Tires

-------------------------------------------------------------------------------------------------------------------------------------------------------------

2. Place the wheel in the spare tire well with

the valve stem facing down.

3. Install the shorter jack retainer bolt to the

jack bolt-down bracket through the
center of the wheel. Finally, wind the
wheel retainer down to secure the wheel
in place.

4. Place the jack and tools back into the

spare tire compartment.

5. Replace the carpeted wheel cover.

Stowing the Flat Tire Using the
Retainer Strap

 (If Equipped)

You can temporarily stow the full-size road
wheel in the spare tire compartment.

1. Find the flat tire retainer strap tucked

inside the jack channel.

E224480

2. Locate the jack bolt-down bracket. Push

the retainer strap through the jack
bolt-down bracket.

3. Put the jack and lug wrench away. Make

sure you fasten the jack so it does not
rattle when you drive.

4. Stow the flat tire on the floor in the cargo

area.

5. Weave the retainer strap through the

wheel openings.

E224479

6. Secure the flat tire by tying a flat knot.

362

Wheels and Tires

-------------------------------------------------------------------------------------------------------------------------------------------------------------

TECHNICAL SPECIFICATIONS

Wheel Lug Nut Torque Specifications

WARNING: When you install a wheel, always remove any corrosion, dirt or foreign materials present on the mounting surfaces of the

wheel or the surface of the wheel hub, brake drum or brake disc that contacts the wheel. Make sure to secure any fasteners that attach
the rotor to the hub so they do not interfere with the mounting surfaces of the wheel. Installing wheels without correct metal-to-metal contact
at the wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off while your vehicle is in motion, resulting in
loss of vehicle control, personal injury or death.

 lb.ft (Nm)

1

Bolt Size

150 lb.ft (204 Nm)

M14 x 1.5

Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners.

Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any wheel disturbance, such as tire rotation, changing a
flat tire or wheel removal.

363

Wheels and Tires

-------------------------------------------------------------------------------------------------------------------------------------------------------------

E145950

Wheel pilot bore.

A

Inspect the wheel pilot hole and mounting
surface prior to installation. Remove any
visible corrosion or loose particles.

364

Wheels and Tires

-------------------------------------------------------------------------------------------------------------------------------------------------------------

ENGINE SPECIFICATIONS - 2.0L

Specification

Measurement

122

Cubic inches

1-3-4-2

Firing order

Coil on plug

Ignition system

9.7:1

Compression ratio

0.028–0.031 in (0.7–0.8 mm)

Spark plug gap

365

Capacities and Specifications

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Drivebelt Routing

A

B

E142480

Long drivebelt is on first pulley
groove closest to engine

A

Short drivebelt is on second pulley
groove farthest from engine

B

ENGINE SPECIFICATIONS - 3.0L

Specification

Measurement

180

Cubic inches

1-4-2-5-3-6

Firing order

Coil in plug

Ignition system

9.5:1

Compression ratio

0.028–0.031 in (0.7–0.8 mm)

Spark plug gap

366

Capacities and Specifications

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Drivebelt Routing

E221312

MOTORCRAFT PARTS - 2.0L

Motorcraft part number

Component

FA-1912

Air filter element.

FL-910-S

Oil filter.

BAGM-94R-H7-800

Battery.

367

Capacities and Specifications

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Motorcraft part number

Component

SP-537

Spark plugs.

FP-71A

Cabin air filter.

WW-2200 (driver side)

Windshield wiper blade.

WW-1900 (passenger side)

We recommend Motorcraft® replacement parts available at your Lincoln dealer or at fordparts.com for scheduled maintenance. These parts
meet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance,
emissions and durability. Your warranty may be void for any damage related to use of other parts.

If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

For spark plug replacement, contact an authorized dealer.  Replace the spark plugs at the appropriate intervals.   See Scheduled Maintenance
(page 475).

368

Capacities and Specifications

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MOTORCRAFT PARTS - 3.0L

Motorcraft part number

Component

FA-1912A

Air filter element

FL-2062

Oil filter

BAGM-94R-H7-800

Battery

SP-542

Spark plugs

FP-71A

Cabin air filter

WW-2200 (driver side)

Windshield wiper blade

WW-1900 (passenger side)

We recommend Motorcraft replacement parts available at your Lincoln dealer or at fordparts.com for scheduled maintenance. These parts
meet or exceed Ford Motor Company’s specifications and are engineered for your vehicle. Use of other parts may impact vehicle performance,
emissions and durability. Your warranty may be void for any damage related to use of other parts.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance specification SAE/USCAR-36.

For spark plug replacement, contact an authorized dealer.  Replace the spark plugs at the appropriate intervals.   See Scheduled Maintenance
(page 475).

369

Capacities and Specifications

-------------------------------------------------------------------------------------------------------------------------------------------------------------

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is located
on the left-hand side of the instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

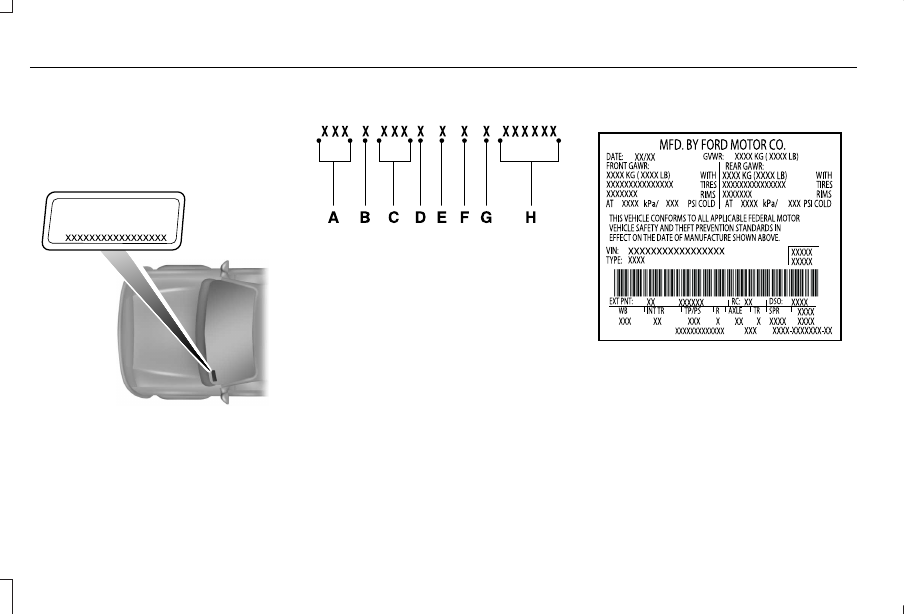

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where the
Safety Compliance Certification Label may
be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post, or
the edge of the door near the door latch,
next to the driver's seating position.

370

Capacities and Specifications

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     20      21      22      23     ..
