SERVICING AND MAINTENANCE

281

F33

–

Spare

F34

–

25 Amp Clear

ASD Feed #1

F35

–

20 Amp Yellow

ASD Feed #2

F36

–

10 Amp Red

Anti-Lock Brake Module / Steering Column Lock

Module *

F37

–

10 Amp Red

Engine Controller

F38

–

10 Amp Red

Airbag Module

F39

–

10 Amp Red

A/C Clutch / EPS */ Vacuum Pump *

F48

–

10 Amp Red

AWD Module / Front Axle Disconnect *

F49

–

Spare

F50

–

Spare

F51

–

20 Amp Yellow

Vacuum Pump *

F52

–

5 Amp Tan

Adaptive Cruise Control *

F53

–

Spare

Cavity

Cartridge Fuse

Mini-Fuse

Description

* If Equipped

282

SERVICING AND MAINTENANCE

Rear Interior Fuses

There is also a power distribution center located in

the trunk under the spare tire access panel. This

center contains fuses and relays. Fuse cavity

location and descriptions are printed on the inside

of the power distribution center cover.

Rear Power Distribution Center

CAUTION!



When installing the power distribution center

cover, it is important to ensure the cover is

properly positioned and fully latched. Failure

to do so may allow water to get into the power

distribution center and possibly result in an

electrical system failure.

Cavity

Cartridge Fuse

Mini-Fuse

Description

* If Equipped

F02

60 Amp Yellow

–

Front PDC Feed #1

F03

–

Spare

F04

60 Amp Yellow

–

Front PDC Feed #2

F05

30 Amp Pink

–

Sunroof *

20 Amp Blue – Police

Dome Lamp – Police

F06

40 Amp Green

–

Exterior Lighting #1

F07

40 Amp Green

–

Exterior Lighting #2

F08

30 Amp Pink

–

Interior Lighting

F09

40 Amp Green

–

Power Locks

F10

30 Amp Pink

–

Driver Door Control Module

F11

30 Amp Pink

–

Passenger Door Control Module

SERVICING AND MAINTENANCE

283

F12

–

20 Amp Yellow

Cigar Lighter / IP APO / RR USB

(Selectable Fuse) *

F15

40 Amp Green

–

HVAC Blower

F16

20 Amp Blue

–

Left Spot Lamp – Police

F17

20 Amp Blue

–

Right Spot Lamp – Police

F18

30 Amp Pink

–

VISM Mod (Police)

F19

–

Spare

F20

–

Spare

F21

30 Amp Pink

–

Fuel Pump (Non 6.2L ADR)

F22

–

5 Amp Tan

Cyber Gateway Module

F23

–

10 Amp Red

Fuel Door SW * / Diagnostic Port

F24

–

10 Amp Red

Integrated Center Stack

F25

–

10 Amp Red

Tire Pressure Monitor System

F26

–

15 Amp Blue

Trans Mod (Charger / 300)

F27

–

25 Amp Clear

Amplifier *

F31

–

25 Amp Breaker

Power Seats *

F32

–

15 Amp Blue

HVAC Module / Cluster

F33

–

15 Amp Blue

IGN SW / Wireless Mod / Steer Clmn

Lock Mod / Remote Start *

F34

–

10 Amp Red

Steering Column Module / Clock

(300)

Cavity

Cartridge Fuse

Mini-Fuse

Description

* If Equipped

284

SERVICING AND MAINTENANCE

F35

–

5 Amp Tan

Battery Sensor

F36

–

15 Amp Blue

Active Exhaust Valve *

F37

–

20 Amp Yellow

Radio

F38

–

20 Amp Yellow

Media Hub / Console APO

F42

30 Amp Pink

–

Rear Defrost

F43

–

20 Amp Yellow

Rear Heated Seats * / Heated

Steering Wheel *

F44

–

10 Amp Red

Park Assist */ Blind Spot */ Rear

View Camera *

F45

–

15 Amp Blue

Cluster / Rearview Mirror / Lane

Departure *

F46

–

Spare

F47

–

10 Amp Red

Adaptive Front Lighting */ Day Time

Running Lamps *

F49

–

Spare

F50

–

Spare

F51

–

20 Amp Yellow

Front Heated */ Vented Seats *

F52

–

10 Amp Red

Heated Cup Holders */ Rear Heated

Seat Switches *

F53

–

10 Amp Red

HVAC Module / In Vehicle

Temperature Sensor

F54

–

Spare

Cavity

Cartridge Fuse

Mini-Fuse

Description

* If Equipped

SERVICING AND MAINTENANCE

285

F55

–

Spare

F56

–

Spare

F57

–

Spare

F58

–

10 Amp Red

Airbag Module

F59

–

20 Amp Yellow

Adjustable Pedals – Police

F60

–

Spare

F61

–

Spare

F62

–

Spare

F63

–

Spare

F64

–

25 Amp Breaker

Rear Windows (Charger/300)

F65

–

10 Amp Red

Airbag Module

F66

–

Spare

F67

–

10 Amp Red

Rain & Light Sensor */ Sunroof */

Inside RearView Mirror / Police Run

Acc

F68

–

10 Amp Red

Rear USB Timer / Rear Sunshade *

F69

–

Spare

F70

–

Spare

Cavity

Cartridge Fuse

Mini-Fuse

Description

* If Equipped

286

SERVICING AND MAINTENANCE

ULB

EPLACEMENT

Replacement Bulbs, Names, And Part Numbers

In the instance a bulb needs to be replaced, this section includes bulb description and replacement part numbers.

NOTE:

See an authorized dealer for LED bulb replacement.

Interior Bulbs

Bulb Name

Bulb Number

Rear Courtesy/Reading Lamps

W5W

Rear Compartment (Trunk) Lamp

562

Overhead Console Reading Lamps

578

Visor Vanity Lamps

A6220

Glove Compartment Lamp – If Equipped

194

Door Courtesy

562

Shift Indicator Lamp

JKLE14140

Optional Door Map Pocket/Cupholder

LED (Serviced at an authorized dealer)

For lighted switches, see an authorized dealer for replacement instructions.

SERVICING AND MAINTENANCE

287

* The headlamps are a type of high-voltage discharge tube. High voltage can remain in the circuit even with the headlamp switch off and the key removed.

Because of this, you should not attempt to service a headlamp bulb yourself. If a headlamp bulb fails, take your vehicle to an authorized dealer for service.

Exterior Bulbs

Bulb Name

Bulb Number

Headlamp – High Intensity Discharge (HID)

D3S (Serviced at an authorized dealer) *

Halogen Headlamp

HIR2LL

Front Park/Turn Lamp

LED (Serviced at an authorized dealer)

Front Fog Lamp

H11LL

Front Side Marker

LED (Serviced at an authorized dealer)

Tail Lamp

LED (Serviced at an authorized dealer)

Stop/Turn Lamp

LED (Serviced at an authorized dealer)

Rear Side Marker

LED (Serviced at an authorized dealer)

Backup Lamp

LED (Serviced at an authorized dealer)

Center High Mount Stop Lamp (CHMSL)

LED (Serviced at an authorized dealer)

License

LED (Serviced at an authorized dealer)

288

SERVICING AND MAINTENANCE

Replacing Exterior Bulbs

LOW BEAM HEADLAMP, HIGH BEAM

HEADLAMP — MODELS WITH HALOGEN

HEADLAMPS — IF EQUIPPED

See below steps to replace:
1. Open the hood.

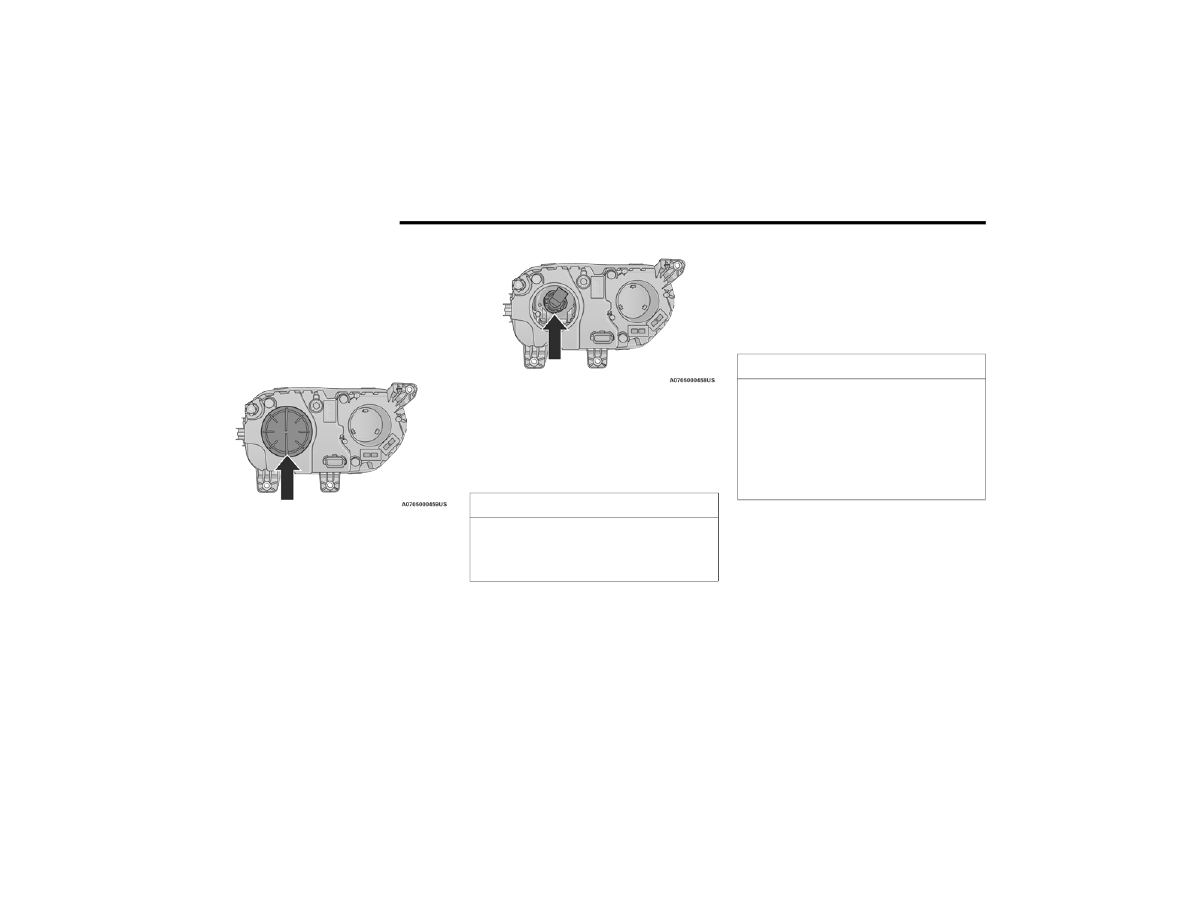

Headlamp Assembly Dust Cap Location

NOTE:

Removal of the air cleaner filter housing may be

necessary prior to replacing bulbs in the headlamp

assembly on the driver side of the vehicle.
2. Remove the large dust cap from the headlamp

housing by turning it counterclockwise.

3. Turn the bulb counterclockwise, and remove.

Headlamp Location

4. Disconnect the bulb from the socket assembly

and install the replacement bulb.

5. Reinstall the bulb and socket assembly into

the headlamp assembly, and then turn it

clockwise.

6. Reinstall the access cap making sure it is

seated into the housing and turn cap

clockwise to engage locking lugs. Visually, you

should be unable to see the blue O-ring gasket.

The access cap should be uniformly seated

and you should not be able to pull the access

cap off without turning it counterclockwise.

CAUTION!

Do not touch the new bulb with your fingers. Oil

contamination will severely shorten bulb life. If

the bulb comes in contact with any oily surface,

clean the bulb with rubbing alcohol.

CAUTION!

If the access cap is not installed correctly after

bulb replacement, the lamp becomes

susceptible to dust, condensation, and water

intrusion. This may ultimately lead to an

inoperative lamp. If the access cap cannot be

installed correctly, please return to an

authorized dealer for proper repair or access

cap replacement if necessary.

SERVICING AND MAINTENANCE

289

LOW BEAM HEADLAMP, HIGH BEAM HEAD

LAMP — MODELS WITH HIGH INTENSITY

DISCHARGE (HID) HEADLAMPS — IF EQUIPPED

The headlamps are a type of high voltage

discharge tube. High voltage can remain in the

circuit even with the headlamp switch off and the

key removed. Because of this, you should not

attempt to service a headlamp bulb yourself. If a

headlamp bulb fails, take your vehicle to an

authorized dealer for service.

NOTE:

On vehicles equipped with HID headlamps, when

the headlamps are turned on, there is a blue hue

to the lamps. This diminishes and becomes more

white after approximately 10 seconds, as the

system charges.

FRONT PARK/SIGNATURE LAMP

The Front Park/Signature function is part of the

headlamp assembly and use LED lamps that are

not serviceable separately. The headlamps must

be replaced as an assembly, see an authorized

dealer.

FRONT TURN/DRL LAMP

The Front Turn/DRL function is part of the

headlamp assembly and use LED lamps that are

not serviceable separately. The headlamps must

be replaced as an assembly, see an authorized

dealer.

FRONT/REAR SIDE MARKER LAMP

The Side Markers use LED lamps that are not

serviceable separately. The Side Markers must be

replaced as an assembly, see an authorized

dealer.

TAIL/TURN AND STOP LAMP

The Tail/Turn and Stop Lamps use LED lamps that

are not serviceable separately. The Tail/Turn and

Stop Lamps must be replaced as an assembly, see

an authorized dealer.

CENTER TAIL/BACKUP LAMP

The Center Tail/Backup Lamp use LED lamps that

are not serviceable separately. The Center Tail/

Backup Lamp must be replaced as an assembly;

see an authorized dealer.

CENTER HIGH MOUNTED STOP LAMP (CHMSL)

The CHMSL Lamp uses LED sources that are not

serviceable separately. The CHMSL Lamp must be

replaced as an assembly; see an authorized

dealer.

LICENSE LAMP

The License Lamp uses an LED source that is not

serviceable separately. The License Lamp must be

replaced as an assembly; see an authorized

dealer.

WARNING!

A transient high voltage occurs at the bulb

sockets of HID headlamps when the headlamp

switch is turned ON. It may cause serious

electrical shock or electrocution if not serviced

properly. See an authorized dealer for service.

290

SERVICING AND MAINTENANCE

TIRES

IRE

AFETY

NFORMATION

Tire safety information will cover aspects of the

following information: Tire Markings, Tire

Identification Numbers, Tire Terminology and

Definitions, Tire Pressures, and Tire Loading.

Tire Markings

NOTE:



P (Passenger) — Metric tire sizing is based on US

design standards. P-Metric tires have the letter

“P” molded into the sidewall preceding the size

designation. Example: P215/65R15 95H.



European — Metric tire sizing is based on Euro

pean design standards. Tires designed to this

standard have the tire size molded into the side

wall beginning with the section width. The letter

"P" is absent from this tire size designation.

Example: 215/65R15 96H.



LT (Light Truck) — Metric tire sizing is based on

US design standards. The size designation for

LT-Metric tires is the same as for P-Metric tires

except for the letters “LT” that are molded into

the sidewall preceding the size designation.

Example: LT235/85R16.



Temporary spare tires are designed for tempo

rary emergency use only. Temporary high pres

sure compact spare tires have the letter “T” or

“S” molded into the sidewall preceding the size

designation. Example: T145/80D18 103M.



High flotation tire sizing is based on US design

standards and it begins with the tire diameter

molded into the sidewall.

Example: 31x10.5 R15 LT.

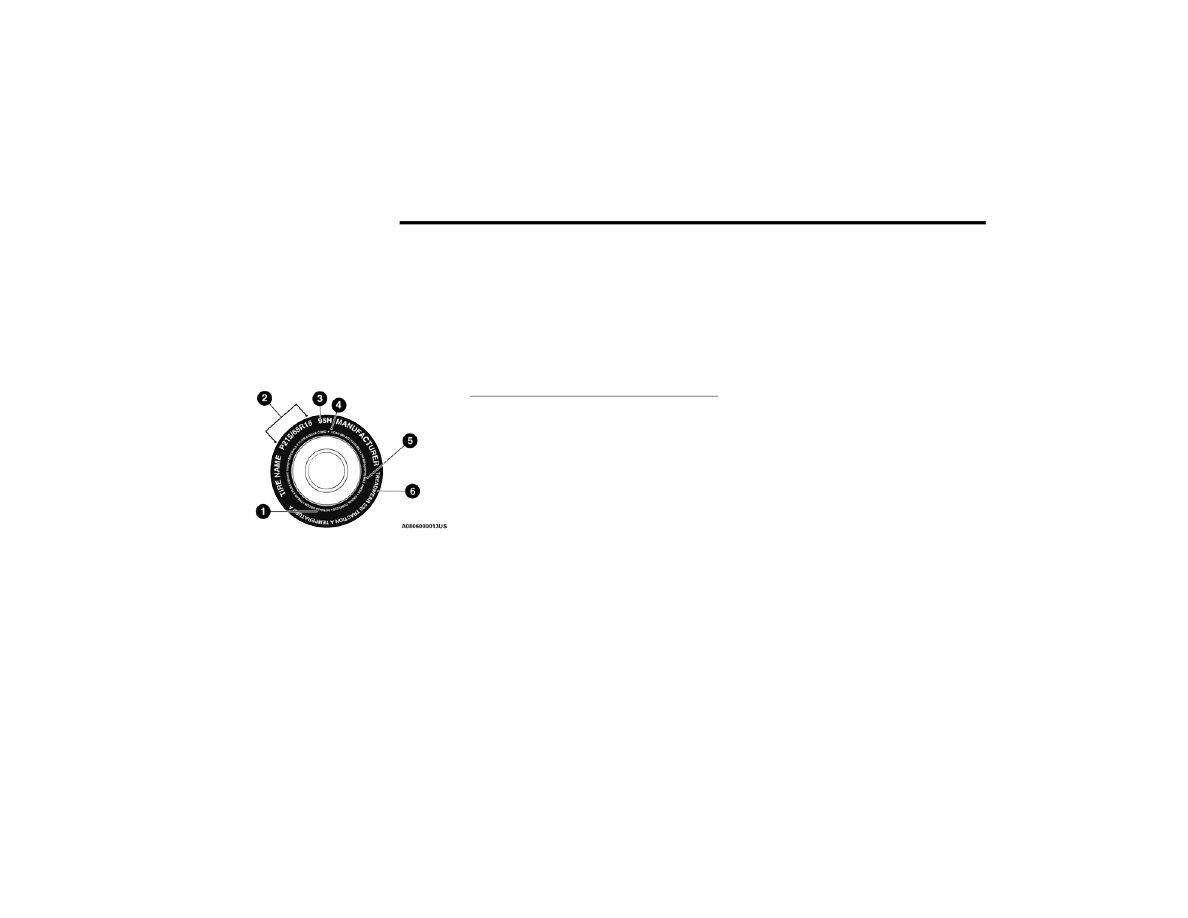

1 — US DOT Safety Standards Code

(TIN)
2 — Size Designation
3 — Service Description
4 — Maximum Load
5 — Maximum Pressure
6 — Treadwear, Traction and

Temperature Grades

SERVICING AND MAINTENANCE

291

TIRE SIZING CHART

EXAMPLE:

Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT
P = Passenger car tire size based on US design standards, or
"....blank...." = Passenger car tire based on European design standards, or
LT = Light truck tire based on US design standards, or
T or S = Temporary spare tire or
31 = Overall diameter in inches (in)
215, 235, 145 = Section width in millimeters (mm)
65, 85, 80 = Aspect ratio in percent (%)



Ratio of section height to section width of tire, or

10.5 = Section width in inches (in)
R = Construction code



"R" means radial construction, or



"D" means diagonal or bias construction

15, 16, 18 = Rim diameter in inches (in)
Service Description:
95 = Load Index



A numerical code associated with the maximum load a tire can carry

H = Speed Symbol



A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions



The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle loading,

road conditions, and posted speed limits)

292

SERVICING AND MAINTENANCE

Tire Identification Number (TIN)

The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including

the date code, located on the white sidewall side of the tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle. If the TIN is

not found on the outboard side, then you will find it on the inboard side of the tire.

Load Identification:
Absence of the following load identification symbols on the sidewall of the tire indicates a Standard Load (SL) tire:



XL = Extra load (or reinforced) tire, or



LL = Light load tire or



C, D, E, F, G = Load range associated with the maximum load a tire can carry at a specified pressure

Maximum Load – Maximum load indicates the maximum load this tire is designed to carry
Maximum Pressure – Maximum pressure indicates the maximum permissible cold tire inflation pressure for this tire

EXAMPLE:

DOT MA L9 ABCD 0301
DOT = Department of Transportation



This symbol certifies that the tire is in compliance with the US Department of Transportation tire safety standards and is approved for highway use

MA = Code representing the tire manufacturing location (two digits)
L9 = Code representing the tire size (two digits)
ABCD = Code used by the tire manufacturer (one to four digits)

SERVICING AND MAINTENANCE

293

Tire Terminology And Definitions

03 = Number representing the week in which the tire was manufactured (two digits)



03 means the 3rd week

01 = Number representing the year in which the tire was manufactured (two digits)



01 means the year 2001



Prior to July 2000, tire manufacturers were only required to have one number to represent the year in which the tire was manufactured. Example: 031 could

represent the 3rd week of 1981 or 1991

Term

Definition

B-pillar

The vehicle B-pillar is the structural member of the body located behind the front door.

Cold Tire Inflation Pressure

Cold tire inflation pressure is defined as the tire pressure after the vehicle has not been

driven for at least three hours, or driven less than 1 mile (1.6 km) after sitting for a minimum

of three hours. Inflation pressure is measured in units of PSI (pounds per square inch) or kPa

(kilopascals).

Maximum Inflation Pressure

The maximum inflation pressure is the maximum permissible cold tire inflation pressure for

this tire. The maximum inflation pressure is molded into the sidewall.

Recommended Cold Tire Inflation Pressure

Vehicle manufacturer's recommended cold tire inflation pressure as shown on the tire

placard.

Tire Placard

A label permanently attached to the vehicle describing the vehicle’s loading capacity, the

original equipment tire sizes and the recommended cold tire inflation pressures.

EXAMPLE:

294

SERVICING AND MAINTENANCE

Tire Loading And Tire Pressure

NOTE:

The proper cold tire inflation pressure is listed on

the driver’s side B-pillar or the rear edge of the

driver's side door.
Check the inflation pressure of each tire, including

the spare tire (if equipped), at least monthly and

inflate to the recommended pressure for your

vehicle.

Example Tire Placard Location (Door)

Example Tire Placard Location (B-pillar)

Tire And Loading Information Placard

This placard tells you important information

about the:
1. Number of people that can be carried in the

vehicle.

2. Total weight your vehicle can carry.
3. Tire size designed for your vehicle.
4. Cold tire inflation pressures for the front, rear,

and spare tires.

The vehicle maximum load on the tire must not

exceed the load carrying capacity of the tire on your

vehicle. You will not exceed the tire's load carrying

capacity if you adhere to the loading conditions,

tire size, and cold tire inflation pressures specified

on the Tire and Loading Information placard

page 113.

NOTE:

Under a maximum loaded vehicle condition, Gross

Axle Weight Rating (GAWR) for the front and rear

axles must not be exceeded.
For further information on GAWR, vehicle loading,

and trailer towing

page 113.

SERVICING AND MAINTENANCE

295

To determine the maximum loading conditions of

your vehicle, locate the statement “The combined

weight of occupants and cargo should never

exceed XXX kg or XXX lbs” on the Tire and Loading

Information placard. The combined weight of

occupants, cargo/luggage and trailer tongue

weight (if applicable) should never exceed the

weight referenced here.

Steps For Determining Correct Load

Limit—
(1) Locate the statement “The combined

weight of occupants and cargo should

never exceed XXX kg or XXX lbs.” on your

vehicle's placard.
(2) Determine the combined weight of

the driver and passengers that will be

riding in your vehicle.
(3) Subtract the combined weight of the

driver and passengers from XXX kg or

XXX lbs.

(4) The resulting figure equals the

available amount of cargo and luggage

load capacity. For example, if “XXX”

amount equals 1400 lbs. and there will

be five 150 lb passengers in your

vehicle, the amount of available cargo

and luggage load capacity is 650 lbs.

(1400-750 (5x150) = 650 lbs.)
(5) Determine the combined weight of

luggage and cargo being loaded on the

vehicle. That weight may not safely

exceed the available cargo and luggage

load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer,

load from your trailer will be transferred

to your vehicle. Consult this manual to

determine how this reduces the

available cargo and luggage load

capacity of your vehicle.

Metric Example For Load Limit
For example, if “XXX” amount equals 635 kg and

there will be five 68 kg passengers in your vehicle,

the amount of available cargo and luggage load

capacity is 295 kg (635-340 (5x68) = 295 kg) as

shown in step 4.

NOTE:



If your vehicle will be towing a trailer, load from

your trailer will be transferred to your vehicle.

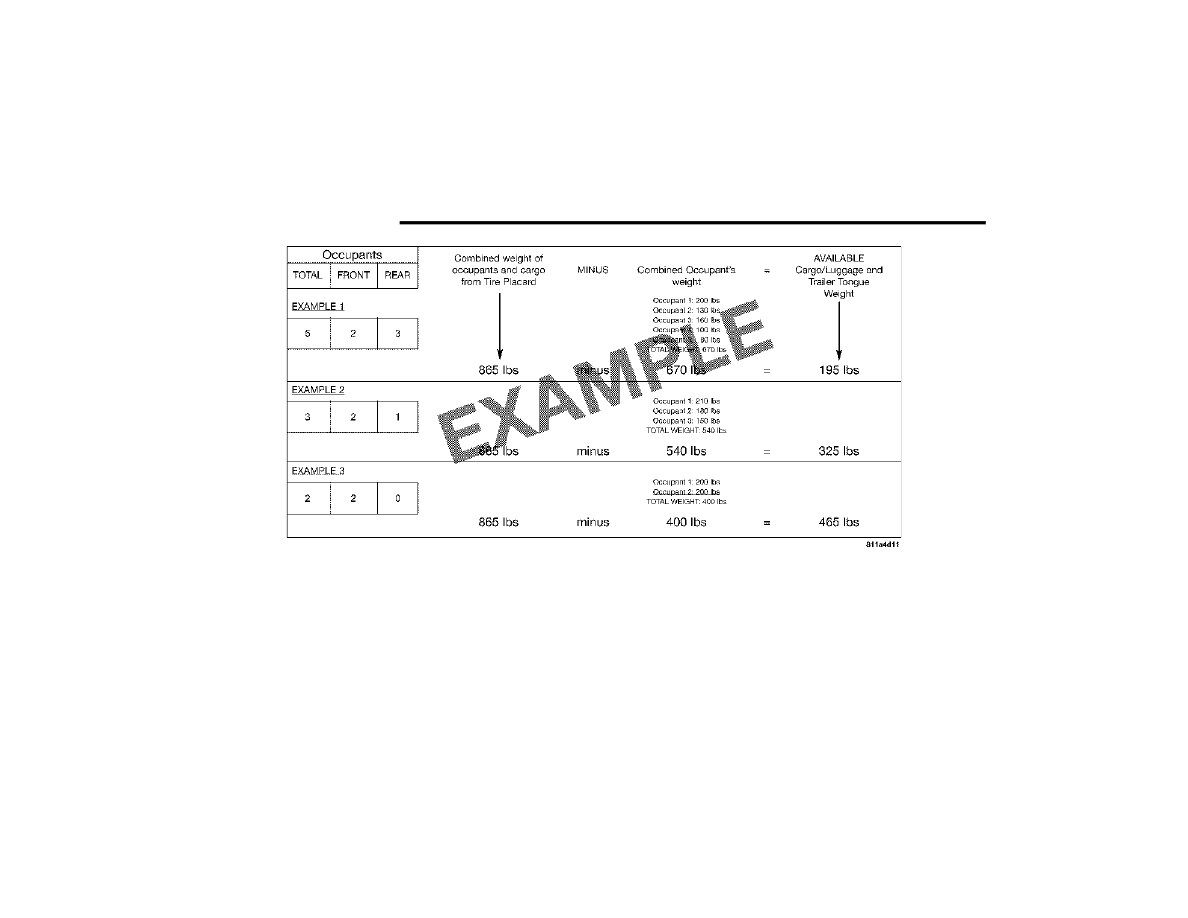

The following table shows examples on how to

calculate total load, cargo/luggage, and towing

capacities of your vehicle with varying seating

configurations and number and size of occu

pants. This table is for illustration purposes only

and may not be accurate for the seating and

load carry capacity of your vehicle.



For the following example, the combined weight

of occupants and cargo should never exceed

865 lbs (392 kg).

296

SERVICING AND MAINTENANCE

Content .. 16 17 18 19 ..
