Lincoln Aviator (2020 year). Manual - part 12

E224689

Press this symbol to cycle through the
various ventilation settings and off. More
indicator lights indicate higher fan speeds.

The rear ventilated seat controls are on the
rear of the center console.

If the engine falls below 350 RPM
(revolutions per minute) while the ventilated
seats are on, the feature switches off.
Ventilation returns to the last setting after
RPM recovery.

Note: To improve comfort, use the ventilated
seats along with the vehicle’s air
conditioning system.

185

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Seats

UNIVERSAL GARAGE DOOR
OPENER

HomeLink Wireless Control System

WARNING: Do not use the system

with any garage door opener that does not
have the safety stop and reverse feature
as required by U.S. Federal Safety
Standards (this includes any garage door
opener manufactured before April 1, 1982).
A garage door opener which cannot detect
an object, signaling the door to stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases
the risk of serious injury or death.

Note: Make sure that the garage door and
security device are free from obstruction
when you are programming. Do not program
the system with the vehicle in the garage.

Note: Make sure you keep the original
remote control transmitter for use in other
vehicles as well as for future system
programming.

Note: We recommend that upon the sale or
lease termination of your vehicle, you erase
the programmed function buttons for security
reasons. See Erasing the Function Button
Codes.

Note: You can program a maximum of three
devices. To change or replace any of the
three devices after it has been initially
programmed, you must first erase the current
settings. See Erasing the Function Button
Codes.

E142657

The universal garage door opener replaces
the common hand-held garage door opener
with a three-button transmitter that is
integrated into the driver’s sun visor.

The system includes two primary features, a
garage door opener and a platform for
remote activation of devices within the home.
As well as being programmed for garage
doors, the system transmitter can be
programmed to operate entry gate operators,
security systems, entry door locks and home
or office lighting.

Additional system information can be found
online at www.homelink.com,
www.youtube.com/HomeLinkGentex or by
calling the toll-free help line on
1-800-355-3515.

In-Vehicle Programming

This process is to program your hand-held
transmitter and your in-vehicle HomeLink
button.

Note: The programming steps below assume
you will be programming HomeLink that was
not previously programmed.

Note: Put a new battery in the hand-held
transmitter. This will ensure quicker training
and accurate transmission of the
radio-frequency signal.

186

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Garage Door Opener

E142658

1. With your vehicle parked outside of the

garage, turn your ignition to the on
position, but do not start your vehicle.

2. Hold your hand-held garage door

transmitter 2–6 in (5–14 cm) away from
the HomeLink button you want to
program.

3. Using both hands, simultaneously, press

and hold the desired HomeLink button
and the hand-held transmitter button. DO
NOT release either one until the
HomeLink indicator light flashes slowly
and then rapidly. When the indicator light
flashes rapidly, both buttons may be
released. The rapid flashing indicates
successful training.

Note: You may need to use a different
method if you live in Canada or have
difficulties programming your gate operator
or garage door opener. See Gate Operator
/ Canadian Programming.

4. Press and hold the HomeLink button you

programmed for two seconds, then
release. You may need to do this twice
to activate the door. If your garage door
does not operate, watch the HomeLink
indicator light.

If the indicator light stays on, the
programming is complete. No further action
is needed.

If the indicator light flashes rapidly for 2
seconds and then turns to a constant light,
the HomeLink button is not programmed yet.
See Programming Your Garage Door
Opener Motor.

To program additional buttons, repeat Steps
1 – 4.

For questions or comments, please contact
HomeLink at www.homelink.com,
www.youtube.com/HomeLinkGentex or
1-800-355-3515.

Programming Your Garage Door Opener
Motor

Note: You may need a ladder to reach the
unit and you may need to remove the cover
or lamp lens on your garage door opener.

E142659

1. Press the learn button on the garage

door opener motor and then you have
30 seconds to complete the next two
steps.

2. Return to your vehicle.

187

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Garage Door Opener

E142658

3. Press and hold the function button you

want to program for 2 seconds, then
release. Repeat this step. Depending on
your brand of garage door opener, you
may need to repeat this sequence a third
time.

Gate Operator / Canadian Programming

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit) after
several seconds of transmission – which may
not be long enough for HomeLink to pick up
the signal during programming. Similar to
this Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner.

Note: If programming a garage door opener
or gate operator, it is advised to unplug the
device during the “cycling” process to
prevent possible overheating.

1. Press and hold the HomeLink button

while you press and release, every two
seconds, your hand-held transmitter until
the HomeLink indicator light changes
from a slow to a rapidly blinking light.

2. Release both the HomeLink and

hand-held transmitter buttons.

3. Continue programing HomeLink. See

In-Vehicle Programming.

Erasing the Function Button Codes

Note: You cannot erase individual buttons.

E142660

1. Press and hold the outer two function

buttons simultaneously for approximately
20 seconds until the indicator lights
above the buttons flash rapidly.

2. When the indicator lights flash, release

the buttons. The codes for all buttons are
erased.

Reprogramming a Single Button

To program a device to a previously trained
button, follow these steps:

1. Press and hold the desired button. Do

NOT release the button.

188

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Garage Door Opener

2. The indicator light will begin to flash after

20 seconds. Without releasing the
button, follow Step 1 in the Programming
section.

For questions or comments, contact
HomeLink at www.homelink.com,
www.youtube.com/HomeLinkGentex or
1-800-355-3515.

Programming to a Genie Intellicode 2
Garage Door Opener

Note: The Genie Intellicode 2 transmitter
must already be programmed to operate
with the garage door opener.

Note: To program HomeLink to the
transmitter you must first put the transmitter
into programming mode.

B

A

E142661

Red indicator light

A.

Green indicator light

B.

1. Press and hold one of the buttons on the

hand-held transmitter for 10 seconds. The
indicator light will change from green to
red and green.

2. Press the same button twice to confirm

the change to programming mode. If
done properly the indicator light will
appear red.

3. Hold the transmitter within 1–3 in

(2–8 cm) of the button on the visor you
want to program.

4. Press and hold both the programmed

Genie button on the hand-held
transmitter and the button you want to
program. The indicator light on the visor
will flash rapidly when the programming
is successful.

Note: The Genie transmitter will transmit for
up to 30 seconds. If HomeLink does not
program within 30 seconds the Genie
transmitter will need to be pressed again. If
the Genie transmitter indicator light displays
green and red, release the button until the
indicator light turns off before pressing the
button again.

Once HomeLink has been programmed
successfully, the Genie transmitter must be
changed out of program mode. To do this:

1. Press and hold the previously

programmed Genie button on the
hand-held transmitter for 10 seconds. The
indicator light will change from red to red
and green.

2. Press the same button twice to confirm

the change. If done correctly the indicator
light will turn green.

189

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Garage Door Opener

Programming HomeLink to the Genie
Intellicode Garage Door Opener Motor

Note: You may need a ladder to access the
garage door opener motor.

E142662

1. Press and hold the program button on

the garage door opener motor until both
blue indicator lights turn on.

2. Release the program button. Only the

smaller round indicator light should be
on.

3. Press and release the program button.

The larger purple indicator light will flash.

Note: The next two steps must be completed
in 30 seconds.

4. Press and release the Genie Intellicode

2 hand-held transmitter’s previously
programmed button. Both indicator lights
on the garage door opener motor unit
should now flash purple.

5. Press and hold the previously

programmed button on the visor for 2
seconds. Repeat this step up to 3 times
until the garage door moves.

Programming is now complete.

Clearing a HomeLink Device

To erase programming from the three
HomeLink buttons press and hold the two
outer HomeLink buttons until the indicator
light begins to flash. The indicator light will
begin flashing in 10 to 20 seconds, at which
time both buttons should be released.
Programming has now been erased, and the
indicator light should blink slowly to indicate
the device is in train mode when any of the
three HomeLink buttons are pressed.

FCC and RSS-210 Industry Canada
Compliance

This device complies with Part 15 of the FCC
Rules and with RSS-210 of Industry Canada.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.

Changes or modifications to your device not
expressly approved by the party responsible
for compliance can void the user’s authority
to operate the equipment.

190

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Garage Door Opener

12 Volt DC Power Point

WARNING: Do not plug optional

electrical accessories into the cigar lighter
socket. Incorrect use of the cigar lighter
can cause damage not covered by the
vehicle warranty, and can result in fire or
serious injury.

Note: When you switch the ignition on, you
can use the socket to power 12 volt
appliances with a maximum current rating
of 15 amps.

Note: If the power supply does not work after
you switch the ignition off, switch the ignition
on.

Note: Do not hang any accessory from the
accessory plug.

Note: Do not use the power point over the
vehicle capacity of 12 volt DC 180 watts or
a fuse may blow.

Note: Always keep the power point caps
closed when not in use.

Do not insert objects other than an accessory
plug into the power point. This damages the
power point and may blow the fuse.

Run the vehicle for full capacity use of the
power point.

To prevent the battery from running out of
charge:
•

Do not use the power point longer than
necessary when the vehicle is not
running.

•

Do not leave devices plugged in
overnight or when you park your vehicle
for extended periods.

USB Port and Power Point Locations

USB Ports and Power Points may be in the
following locations:
•

On the lower instrument panel.

•

Inside the first row center console.

•

Inside the second row center console.

•

On the front of the center console.

•

On the rear of the center console.

•

In the cargo area.

•

On the passenger side floor panel.

•

3rd row on the quarter trim panels.

Note: Some of the USB ports may not have
data transfer capabilities.

Note: Incorrect use of the USB ports can
cause damage not covered by the vehicle
warranty.

110 Volt AC Power Point

WARNING: Do not keep electrical

devices plugged in the power point
whenever the device is not in use. Do not
use any extension cord with the 110 volt
AC power point, since it will defeat the
safety protection design. Doing so may
cause the power point to overload due to
powering multiple devices that can reach
beyond the 150 watt load limit and could
result in fire or serious injury.

Note: The power point turns off when you
switch off the ignition, when the vehicle is
not in accessory mode or when the battery
voltage drops below 11 volts.

191

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Auxiliary Power Points

You can use the power point for electric
devices that require up to 150 watts. It is on
the rear of the center console.

E247586

When the indicator light on the power point
is:
•

On: The power point is working, the
ignition is ON or the vehicle is in
accessory mode.

•

Off: The power point is OFF, the ignition
is OFF or the vehicle is not in accessory
mode.

•

Flashing: The power point is in fault
mode.

Due to the different technologies used on
its construction, some devices may exceed
the capacity shown on its label when they
are initially plugged-in.

The power outlet temporarily turns off power
when in fault mode if the device exceeds the
150 watt limit. Unplug your device and switch
the ignition off. Switch the ignition back on,
but do not plug your device back in. Let the
system cool off and switch the ignition off to
reset the fault mode. Switch the ignition back
on and make sure the indicator light remains
on.

Do not use the power point for certain
electric devices, including:
•

Cathode-ray, tube-type televisions.

•

Motor loads, such as vacuum cleaners,
electric saws and other electric power
tools or compressor-driven refrigerators.

•

Measuring devices, which process
precise data, such as medical equipment
or measuring equipment.

•

Other appliances requiring an extremely
stable power supply such as
microcomputer-controlled electric
blankets or touch-sensor lamps.

WIRELESS ACCESSORY
CHARGING

WARNING: Wireless charging

devices can affect the operation of
implanted medical devices, including
cardiac pacemakers. If you have any
implanted medical devices, we recommend
that you consult with your physician.

Note: Devices without built-in Qi wireless
charging receivers require an additional Qi
receiver or sleeve.

The system supports one Qi wireless
charging compatible device on the charging
area.

Keep the charging area clean and remove
foreign objects prior to charging a device.

Do not place items with a magnetic strip, for
example passports, parking tickets or credit
cards, near the charging area when charging
a device. Damage may occur to the magnetic
strip.

192

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Auxiliary Power Points

Do not place metal objects, for example
remote controls, coins and candy wrappers,
on or near the charging area when charging
a device. Metal objects may heat up and
degrade the charging performance.

Note: The rate of charge, or charging power,
is controlled by the device. During charging,
the device and the charger may heat up, this
is normal. If the battery gets hotter than
usual, the charger may stop charging.

E297549

To begin charging, place the
device on the charging icon with
the charging side down.

The charging area is on the center console
or lower instrument panel.  See Center
Console (page 195).

You can charge a device if the vehicle is on,
when in accessory mode or when SYNC is
on. The charging stops after your device
reaches a full charge.

Note: If the system detects a foreign object
or if the device is misaligned on the charging
area, a message appears in the display.

Note: Software and firmware updates may
affect device compatibility, including the use
of unofficial software or firmware. Customers
should verify charging functionality with their
specific devices in-vehicle.

Description

Behavior

Message

This message appears when wireless charging

begins.

Message on screen display or pop-up window.

Wireless Charger Active

The system stops charging your device if the

system detects the phone is misaligned, or a

foreign metal object is on the charging

surface.

Pop-up window.

Charging Terminated

Phone misaligned or object between phone

and charger detected. Correct the condition

to resume charging.

193

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Auxiliary Power Points

This equipment has been tested and found
to comply with Part 18 of the FCC Rules.
•

This equipment generates, uses, and can
radiate radio frequency energy and may
cause harmful interference to radio
communications. There is no guarantee
that interference will not occur in a
particular installation. If this equipment
does cause harmful interference to radio
or television reception, please consult
the dealer.

•

This product is not end-user serviceable.

FCC ID: L2C0074TR

This device contains licence-exempt
transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic
Development Canada’s licence-exempt
RSS(s). Operation is subject to the following
two conditions:
•

This device may not cause interference,
and

•

This device must accept any interference,
including interference that may cause
undesired operation of the device.

IC ID: 3432A-0074TR

194

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Auxiliary Power Points

CENTER CONSOLE

Carefully stow items in the center console
as items may become loose during hard
braking, acceleration or crashes.

Available console features include:

E292506

Media tray with USB ports.

A

Cup holder.

B

12 volt power point.

C

USB smart charger.

D

AC power point.

E

OVERHEAD CONSOLE

E307323

Press near the rear edge of the door to open
it.

195

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Storage Compartments

GENERAL INFORMATION

WARNING: Extended idling at high

engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage.

WARNING: Do not park, idle or drive

your vehicle on dry grass or other dry
ground cover. The emission system heats
up the engine compartment and exhaust
system, creating the risk of fire.

WARNING: Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic. Always
open the garage door before you start the
engine.

WARNING: Exhaust leaks may result

in entry of harmful and potentially lethal
fumes into the passenger compartment. If
you smell exhaust fumes inside your
vehicle, have your vehicle inspected
immediately. Do not drive if you smell
exhaust fumes.

If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately 5 mi (8 km)
after you reconnect it.  This is because the
engine management system must realign
itself with the engine.  You can disregard any
unusual driving characteristics during this
period.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

When you start the engine, avoid pressing
the accelerator pedal before and during
operation. Only use the accelerator pedal
when you have difficulty starting the engine.

KEYLESS STARTING

Note: The system may not function if the
intelligent access key is close to metal
objects or electronic devices, for example
keys or a cell phone.

Note: A valid intelligent access key must be
located inside your vehicle to switch the
ignition on and start your vehicle.

Ignition Modes

E144447

The keyless starting system has three
modes:

Off: Turns the ignition off.

196

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Starting and Stopping the Engine

•

Without applying the brake pedal, press
and release the button once when the
ignition is in the on mode, or when your
vehicle is running but is not moving.

On: All electrical circuits are operational and
the warning lamps and indicators illuminate.

•

Without applying the brake pedal, press
and release the button once.

Start: Starts your vehicle. The engine may
not start when your vehicle starts.

•

Press the brake pedal, and then press
the button for any length of time. An
indicator light on the button illuminates
when the ignition is on and when your
vehicle starts.

STARTING A GASOLINE ENGINE

When you start the engine, the idle speed
increases. This helps to warm up the engine.
If the engine idle speed does not slow down
automatically, have your vehicle checked by
an authorized dealer.

Note:  You can crank the engine for a total
of 60 seconds without the engine starting
before the starting system temporarily
disables.  The 60 seconds does not have to
be all at once.  For example, if you crank the
engine three times for 20 seconds each time,
without the engine starting, you reached the
60-second time limit.  A message appears
in the information display alerting you that
you exceeded the cranking time.  You
cannot attempt to start the engine for at
least 15 minutes.  After 15 minutes, you are
limited to a 15-second engine cranking time.
You need to wait 60 minutes before you can
crank the engine for 60 seconds again.

Before starting your vehicle, check the
following:
•

Make sure all occupants have fastened
their seatbelts.

•

Make sure the headlamps and electrical
accessories are off.

•

Make sure the parking brake is on.

•

Make sure the transmission is in park (P).

•

Switch the ignition on.

Vehicles with an Ignition Key

Note: Do not touch the accelerator pedal.

1. Fully depress the brake pedal.

2. Turn the key to the start position to start

the engine.

Note: The engine may continue cranking for
up to 15 seconds or until it starts.

Note: If you cannot start the engine on the
first try, wait for a short period and try again.

Vehicles with Keyless Start

Note: Do not touch the accelerator pedal.

Note: You must have your intelligent access
key in your vehicle in order to shift the
transmission out of park (P).

1. Fully depress the brake pedal.

2. Press the push button ignition switch.

The system does not function if:
•

The passive key frequencies are jammed.

•

The key battery has no charge.

If you are unable to start your vehicle, do the
following:

197

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Starting and Stopping the Engine

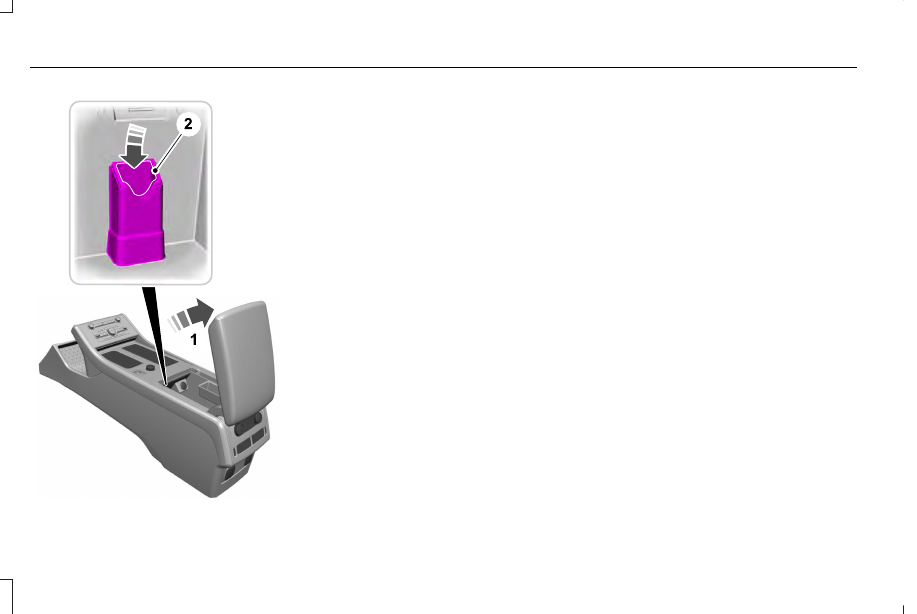

E297378

1. Open the floor console storage

compartment lid.

2. Insert the passive key into the backup

slot.

3. With the key in this position, press the

brake pedal then press the push button
ignition switch to switch the ignition on
and start your vehicle.

Fast Restart

The fast restart feature allows you to restart
your vehicle within 20 seconds of switching
it off, even if it does not detect a valid
passive key.

Within 20 seconds of switching the engine
off, press the brake pedal and press the push
button ignition switch. After 20 seconds, you
can no longer start your vehicle if it does not
detect a valid passive key.

Once your vehicle starts, it remains running
until you press the push button ignition
switch, even if your vehicle does not detect
a valid passive key.  You cannot start your
vehicle if the system does not detect a valid
passive key within 20 seconds.

Vehicles using Phone as a Key

Note: Do not touch the accelerator pedal.

Note: You must have your Phone as a Key
in your vehicle in order to shift the
transmission out of park (P).

1. Fully depress the brake pedal.
2. Press the push button ignition switch.

The system does not function if:
•

The bluetooth-enabled phone
frequencies are jammed.

•

The Phone as a Key battery is low or fully
discharged.

Phone as a Key Backup Starting
Passcode

Note: In order to use the Backup Start
Passcode feature, Phone as a Key must be
active and enabled on at least one phone.

If you are unable to start your vehicle, do the
following:
1. Fully depress the brake pedal.
2. SYNC displays the Backup Starting

Passcode entry screen.

198

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Starting and Stopping the Engine

3. Using the SYNC display enter the backup

password and select Enter within 30
seconds.

4. SYNC displays messages to start the

vehicle.

5. Fully depress the brake pedal and press

the start button within 20 seconds to start
the engine.

Failure to Start

If you cannot start the engine after three
attempts, wait 10 seconds and follow this
procedure:

1. Fully depress the brake pedal.

2. Shift into park (P).

3. Fully depress the accelerator pedal and

hold it there.

4. Start the engine.

Automatic Engine Shutdown

For vehicles with a keyless ignition, this
feature automatically shuts down the engine
if it has been idling for an extended period.
The ignition also turns off in order to save
battery power.  Before your vehicle shuts
down, a message appears in the information
display showing a timer counting down from
30 seconds.  If you do not intervene within
30 seconds, your vehicle shuts down.
Another message appears in the information
display to inform you that your vehicle has
shut down to save fuel.  Start your vehicle
as you normally do.

Note: Automatic Engine Shutdown may be
more frequent for hybrid vehicles.

Automatic Engine Shutdown Override

Note: You cannot permanently switch off the
automatic shutdown feature. When you
switch it off temporarily, it turns on at the
next ignition cycle.

You can stop the shutdown, or reset the
timer, at any point before the 30-second
countdown has expired by doing any of the
following:
•

You can reset the timer by interacting
with your vehicle, for example pressing
the brake or accelerator pedal.

•

You can temporarily switch off the
shutdown feature any time the ignition is
on using the information display.  See
Information Displays (page 127).  The
feature only remains off for the current
ignition cycle.

•

During the 30-second countdown, the
system prompts you to press OK or
RESET to temporarily switch the feature
off for the current ignition cycle only.

Stopping the Engine When Your
Vehicle is Stationary

Vehicles with an Ignition Key

1. Shift into park (P).

2. Switch the ignition off.

3. Apply the parking brake.

199

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Starting and Stopping the Engine

Vehicles with Keyless Start

1. Shift into park (P).
2. Press the push button ignition switch.

3. Apply the parking brake.

Note: The ignition, all electrical circuits and
all warning lamps and indicators will be
turned off.

Note: If the engine is idling for 30 minutes,
the ignition and engine automatically shut
down.

Vehicles using Phone as a Key

1. Shift into park (P).

2. Press the push button ignition switch.

3. Apply the parking brake.

Note: The ignition, all electrical circuits and
all warning lamps and indicators will be
turned off.

Note: If the engine is idling for 30 minutes,
the ignition and engine automatically shut
down.

Stopping the Engine When Your
Vehicle is Moving

WARNING: Switching off the engine

when your vehicle is still moving results in
a significant decrease in braking
assistance. Higher effort is required to
apply the brakes and to stop your vehicle.
A significant decrease in steering
assistance could also occur. The steering
does not lock, but higher effort could be
required to steer your vehicle. When you
switch the ignition off, some electrical
circuits, for example airbags, also turn off.
If you unintentionally switch the ignition
off, shift into neutral (N) and restart the
engine.

Vehicles with an Ignition Key

1. Shift into neutral (N) and use the brakes

to bring your vehicle to a safe stop.

2. When your vehicle has stopped, shift into

park (P) and switch the ignition off.

3. Apply the parking brake.

Vehicles with Keyless Start

1. Shift into neutral (N) and use the brakes

to bring your vehicle to a safe stop.

2. When your vehicle has stopped, shift into

park (P).

3. Press and hold the push button ignition

switch, or press it three times within two
seconds.

4. Apply the parking brake.

Vehicles using Phone as a Key

1. Shift into neutral (N) and use the brakes

to bring your vehicle to a safe stop.

2. When your vehicle has stopped, shift into

park (P).

3. Press and hold the push button ignition

switch, or press it three times within two
seconds.

4. Apply the parking brake.

200

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Starting and Stopping the Engine
