Lincoln Navigator (2019 year). Manual - part 17

Action

Cause

Do not use the system in these conditions because it may not detect
any vehicles ahead.

Water, snow or ice on the surface of the road may interfere with the
radar signals.

Wait a short time or switch to normal cruise control.

You are in a desert or remote area with no other vehicles and no
roadside objects.

Due to the nature of radar technology, it is possible to get a blockage warning with no actual block. A false blocked condition either self
clears, or clears after you restart your vehicle.

Switching to Normal Cruise Control

WARNING: Normal cruise control will

not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary.

E71340

The cruise control indicator light
replaces the adaptive cruise
control indicator light if you select

normal cruise control. The gap setting does
not display, and the system does not respond
to lead vehicles. Automatic braking remains
active to maintain set speed.

You can change from adaptive cruise control
to normal cruise control through the
information display.  See General
Information (page 120).

263

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Cruise Control

DRIVER ALERT

 (IF EQUIPPED)

WARNING: The system is designed

to aid the driver. It is not intended to
replace your attention and judgment. You
are still responsible to drive with due care
and attention.

WARNING: At all times, you are

responsible for controlling your vehicle,
supervising the system and intervening, if
required. Failure to take care may result in
the loss of control of your vehicle, serious
personal injury or death.

WARNING: The system may not

function if the sensor is blocked.

WARNING: Take regular rest breaks

if you feel tired. Do not wait for the system
to warn you.

WARNING: Certain driving styles may

result in the system warning you even if
you are not feeling tired.

WARNING: In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all limit
sensor performance.

WARNING: The system will not

operate if the sensor cannot track the road
lane markings.

WARNING: If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING: The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by us.

Note: Keep the windshield free from
obstructions. For example, bird droppings,
insects and snow or ice.

Note: If the camera is blocked or if the
windshield is damaged, the system may not
function.

Note: If enabled in the menu, the system
activates at speeds above 40 mph (64 km/h).

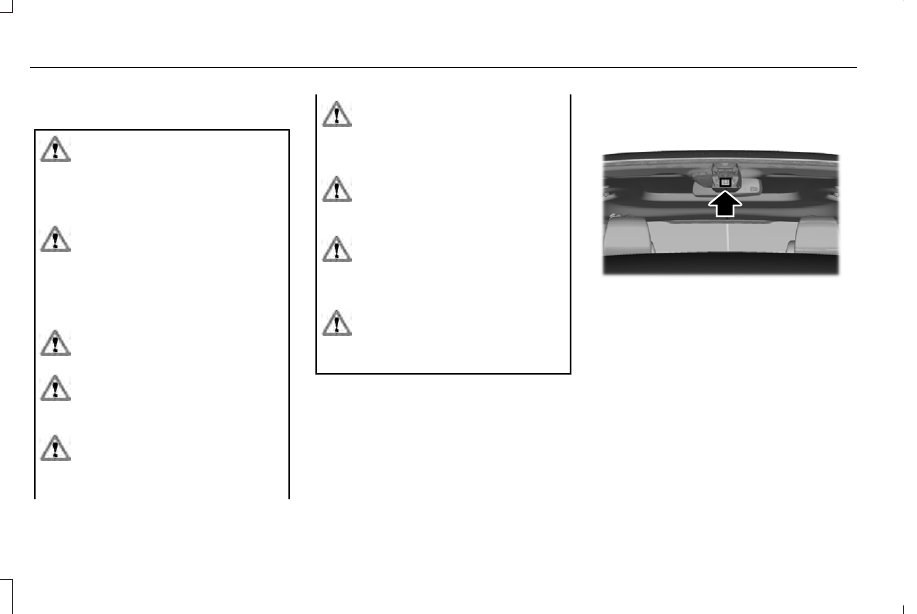

E249505

The system automatically monitors your
driving behavior using various inputs
including the front camera sensor.

If the system detects that your driving
alertness is reduced below a certain
threshold, the system will alert you using a
chime and a message in the information
display.

264

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

Using Driver Alert

Switching the system on and off

You may switch the system on or off through
the information display.  See General
Information (page 120).  When activated, the
system monitors your alertness level based
upon your driving behavior in relation to the
lane markings, and other factors.

System Warnings

Note:  The system does not issue warnings
below approximately 40 mph (64 km/h).

The warning system is in two stages. At first
the system issues a temporary warning that
you need to take a rest. This message will
only appear for a short time. If the system
detects further reduction in driving alertness,
another warning may be issued which will
remain in the information display for a longer
time. Press OK on the steering wheel control
to clear the warning. When active the system
will run automatically in the background and
only issue a warning if required.

Resetting the System

You can reset the system by either:

•

Switching the ignition off and on.

•

Stopping your vehicle and then opening
and closing the driver’s door.

LANE KEEPING SYSTEM

 (IF EQUIPPED)

WARNING: You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING: Always drive with due

care and attention when using and
operating the controls and features on your
vehicle.

WARNING: In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all limit
sensor performance.

WARNING: The system will not

operate if the sensor cannot track the road
lane markings.

WARNING: The sensor may

incorrectly track lane markings as other
structures or objects. This can result in a
false or missed warning.

WARNING: Large contrasts in outside

lighting can limit sensor performance.

WARNING: The system may not

operate properly if the sensor is blocked.
Keep the windshield free from obstruction.

WARNING: If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

265

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

WARNING: The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by us.

Note: The system works above 40 mph
(64 km/h).

Note: The system works as long as the
camera can detect one lane marking.

Note: When you select aid or alert and aid
mode and the system detects no steering
activity for a short period, the system alerts
you to put your hands on the steering wheel.
The system may detect a light grip or touch
on the steering wheel as hands off driving.

Note: The system may not function if the
camera is blocked, or if the windshield is
damaged or dirty.

E249505

When you switch the system on and it
detects an unintentional drift out of your lane
is likely to occur, the system notifies or
assists you to stay in your lane through the
steering system and information display. In
Alert mode, the system provides a warning
by vibrating the steering wheel. In Aid mode,
the system provides steering assistance by
gently counter steering your vehicle back
into the lane.

When the system is functioning in the
combined Alert and Aid mode, the system
first provides steering assistance by gently
counter steering your vehicle back into the
lane, followed by a warning that vibrates the
steering wheel if the vehicle is still out of the
lane markings.

Switching the System On and Off

Note: The system on or off setting is stored
until it is manually changed, unless a MyKey™
is detected. If the system detects a MyKey™,
it defaults to on and the mode is set to alert.

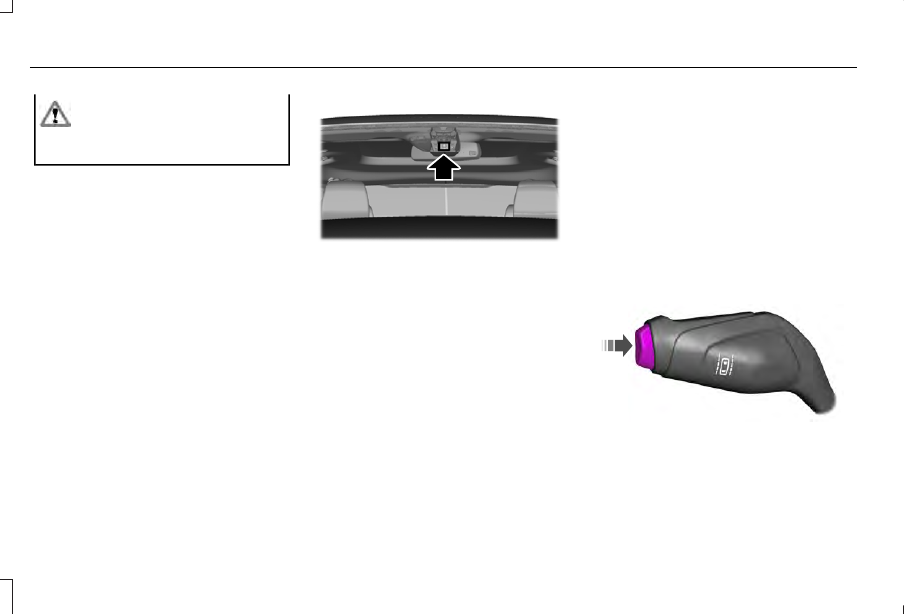

E132099

Press the button on the direction indicator
stalk to switch the system on or off.

266

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

System Settings

The system has optional menu settings
available. See General Information (page
120).  The system stores the last known
selection for each of these settings. You do
not need to readjust your settings each time
you switch the system on.

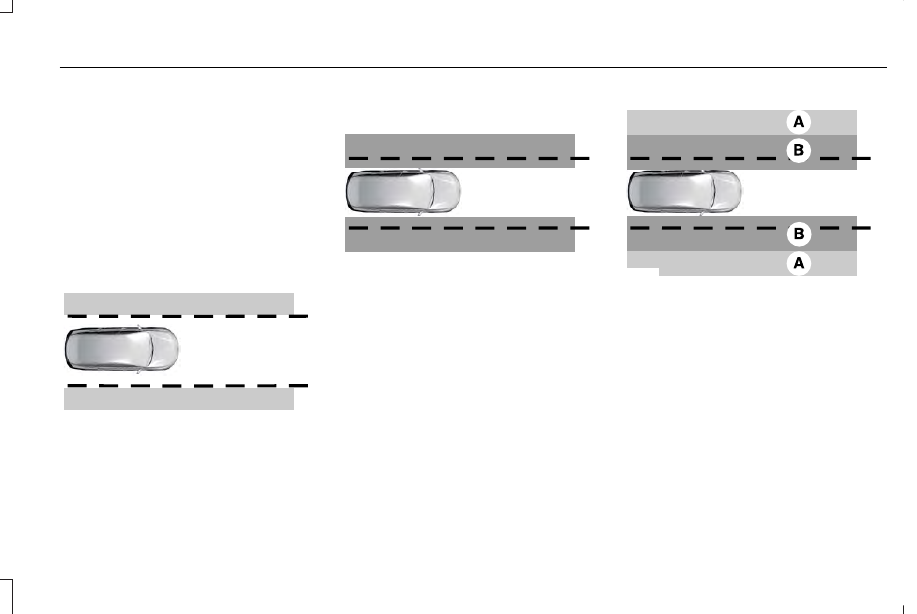

Adjust the settings to enable one of the three
modes:

Alert Only

E165515

Alert Only — Provides a steering wheel
vibration when the system detects an
unintended lane departure.

Aid Only

E165516

Aid Only — Provides steering assistance
toward the lane center.

Alert and Aid Mode

E165517

Alert

A

Aid

B

Alert + Aid — Provides steering assistance
toward the lane center.

If your vehicle continues drifting out of the
lane, the system provides a steering wheel
vibration.

Note: The alert and aid diagrams illustrate
general zone coverage. They do not provide
exact zone parameters.

267

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

Intensity: This setting affects the intensity of
the steering wheel vibration used for the alert
and alert and aid modes. This setting does
not affect the aid mode.

•

Low.

•

Medium.

•

High.

System Display

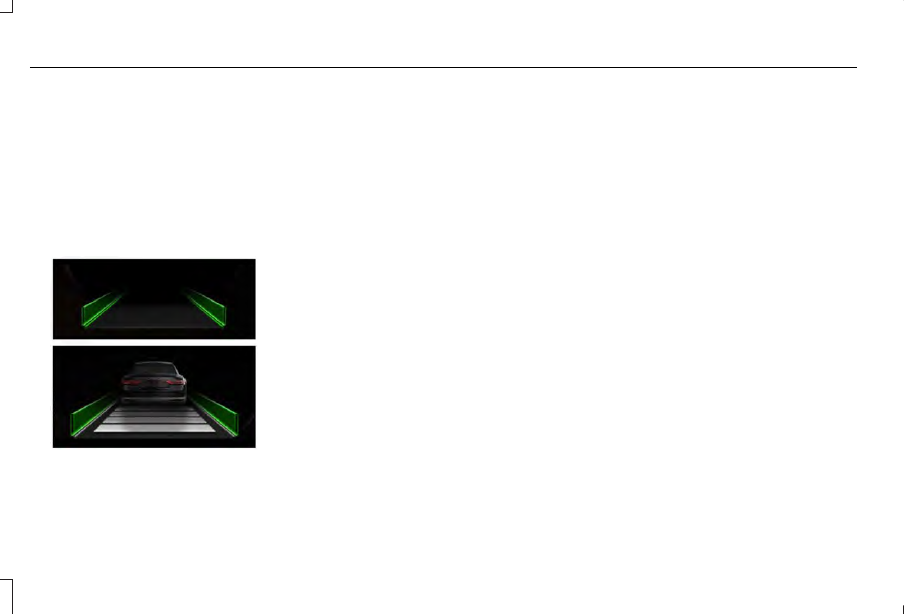

E272890

If you switch the system on in alert mode, a
graphic with lane markings appears in the
information display.

If you switch the system on in aid or alert and
aid mode, walls appear instead of lane
markings.

When you switch off the system, the lane
marking graphics do not display.

Note: The overhead vehicle graphic may still
appear if you enable adaptive cruise control.

When the system is on, the color of the lane
markings change to indicate the system
status.

Gray: Indicates that the system is temporarily
unable to provide a warning or intervention
on the indicated side. This may be because:

•

Your vehicle is under the activation
speed.

•

The direction indicator is active.

•

Your vehicle is in a dynamic maneuver.

•

Quick braking.

•

Fast acceleration.

•

Driving too close to the lane markings.

•

The road has no or poor lane markings
in the camera field-of-view.

•

The camera is obscured or unable to
detect the lane markings due to
environmental, traffic or vehicle
conditions. For example, significant sun
angles, shadows, snow, heavy rain or fog,
following a large vehicle that is blocking
or shadowing the lane or poor headlamp
illumination.

See Troubleshooting for additional
information.

Green: Indicates that the system is available
or ready to provide a warning or intervention
on the indicated side.

Red: Indicates that the system is providing
or has just provided a lane keeping alert
warning.

268

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

Troubleshooting

Why is the feature not available (line markings are gray) when I can see the lane markings on the road?

Your vehicle speed is outside the operational range of the feature.

The sun is shining directly into the camera lens.

A quick intentional lane change has occurred.

Your vehicle stays too close to the lane markings.

Driving at high speeds in curves.

The last alert warning or aid intervention occurred a short time ago.

Ambiguous lane markings, for example in construction zones.

Rapid transition from light to dark, or from dark to light.

Sudden offset in lane markings.

ABS or AdvanceTrac™ is active.

There is a camera blockage due to dirt, grime, fog, frost or water on the windshield.

You are driving too close to the vehicle in front of you.

Transitioning between no lane markings to lane markings or vice versa.

There is standing water on the road.

Faint lane markings, for example partial yellow lane markings on concrete roads.

269

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

Why is the feature not available (line markings are gray) when I can see the lane markings on the road?

Lane width is too narrow or too wide.

The camera has not been calibrated after a windshield replacement.

Driving on tight roads or on uneven roads.

Why does the vehicle not come back toward the middle of the lane, as expected, in the Aid or Aid + Alert mode?

High cross winds are present.

There is a large road crown.

Rough roads, grooves or shoulder drop-offs.

Heavy uneven loading of the vehicle or improper tire inflation pressure.

The tires have been changed, or the suspension has been modified.

270

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

BLIND SPOT INFORMATION
SYSTEM

WARNING: Do not use the blind spot

information system as a replacement for
using the interior and exterior mirrors or
looking over your shoulder before
changing lanes. The blind spot information
system is not a replacement for careful
driving.

WARNING: The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due care
and attention. Failure to take care may
result in a crash.

E255695

The system is designed to detect vehicles
that may have entered the blind spot zone.
The detection area is on both sides of your
vehicle, extending rearward from the exterior
mirrors to approximately 13 ft (4 m) beyond
the rear bumper. The detection area extends
to approximately 59 ft (18 m) beyond the rear
bumper when the vehicle speed is greater
than 30 mph (48 km/h) to alert you of faster
approaching vehicles.

Note: The system does not prevent contact
with other vehicles. It is not designed to
detect parked vehicles, pedestrians, animals
or other infrastructures.

Using the Blind Spot Information
System

Vehicles with Automatic Transmission

The system turns on when all of the following
occur:
•

You start your vehicle.

•

You shift into drive (D).

•

The vehicle speed is greater than 6 mph
(10 km/h).

271

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

Note: The system does not operate in park
(P) or reverse (R).

Vehicles with Manual Transmission

The system turns on when all of the following
occur:
•

You start your vehicle.

•

The vehicle speed is greater than 6 mph
(10 km/h).

Note: The system does not operate in
reverse (R).

System Lights and Messages

E142442

When the system detects a vehicle, an alert
indicator illuminates in the exterior mirror on
the side the approaching vehicle is coming
from. If you turn the direction indicator on for
that side of your vehicle, the alert indicator
flashes.

Note: The system may not alert you if a
vehicle quickly passes through the detection
zone.

Blocked Sensors

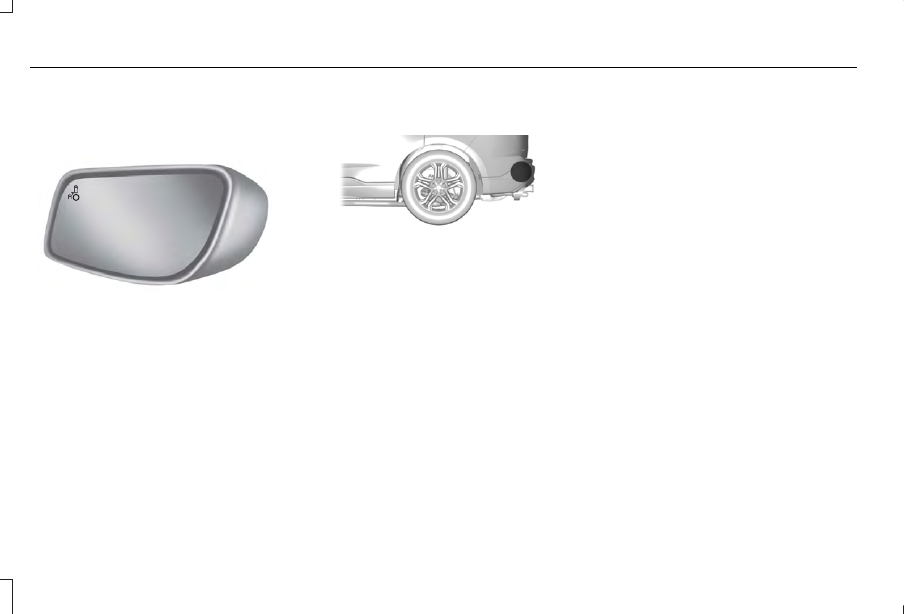

E205199

The sensors are behind the rear bumper on
both sides of your vehicle.

Note: Keep the sensors free from snow, ice
and large accumulations of dirt.

Note: Do not cover the sensors with bumper
stickers, repair compound or other objects.

Note: Blocked sensors could affect system
performance.

If the sensors become blocked, a message
may appear in the information display. See
Information Messages (page 125).  The alert
indicators remain illuminated but the system
does not alert you.

Blind Spot Information System with
Trailer Tow

 (If Equipped)

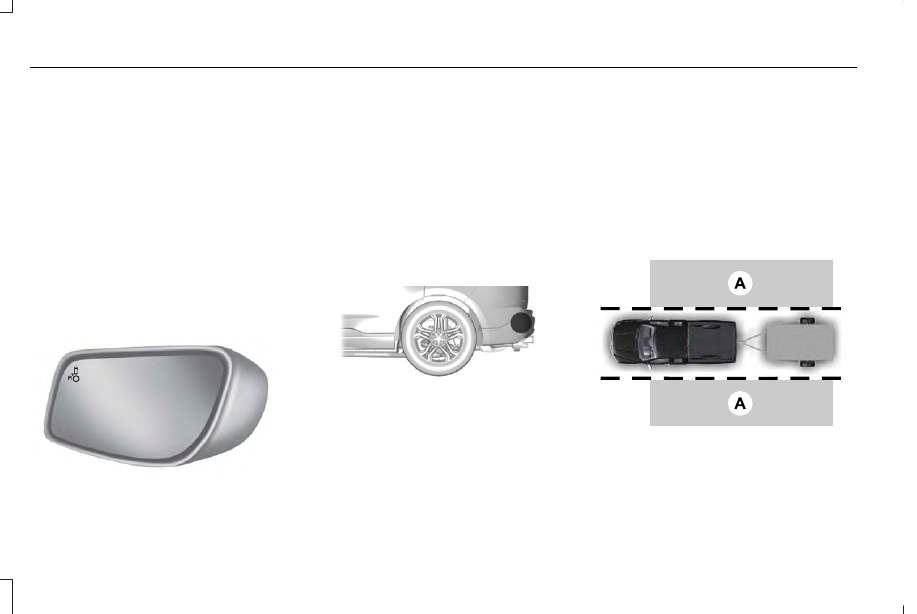

E225007

272

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

The system is designed to detect vehicles
that may have entered the blind spot zone
(A). The detection area is on both sides of
your vehicle and trailer, extending rearward
from the exterior mirrors to the end of your
trailer.

The system turns on when all of the following
occur:
•

You attach a trailer to your vehicle.

•

You have set up the trailer to work with
the system through the information
display.

•

You start your vehicle.

•

You shift into drive (D).

•

The vehicle speed is greater than 6 mph
(10 km/h).

Note: If you switch the Blind Spot Information
System off, the Blind Spot Information
System with Trailer Tow automatically turns
off.

Note: If you connect a trailer to your vehicle
and do not set up the trailer through the
information display, the system turns off and
a warning message appears. See
Information Messages (page 125).

Note: When towing a trailer, the extended
blind spot zone range decreases to a short
fixed or non-variable distance behind the
trailer. The extended blind spot zone range
returns to 59 ft (18 m) when the trailer is
disconnected.

Setting up a Trailer

E225008

Trailer length

A

Trailer width

B

Trailer hitch ball

C

You can set-up a trailer to work with the
system through the information display. See
General Information (page 120).  When
setting up a trailer, a sequence of screens
appear asking for trailer information.

•

Select type of trailer screen -
Conventional, fifth wheel or gooseneck.

The system only supports conventional
trailers. If you select fifth wheel or
gooseneck, the system automatically turns
off.

•

Do you want to set up BLIS with trailer
screen?

If no, the system turns off.

If yes, the menu goes to the next screen.

•

Is the width less than 9 ft (2.7 m) and
length less than 33 ft (10.1 m)?

If no, the system turns off.

If yes, the menu goes to the next screen.

•

Trailer width measurement:

The width of the trailer is measured at the
front of the trailer. It is not measured at the
widest point of the trailer. The maximum
width at the front of the trailer that the system
can support is 8.5 ft (2.6 m).

273

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

Note: You do not need to enter an exact
trailer width measurement. You only need
to confirm that the width of the trailer is 8.5 ft
(2.6 m) or less.

•

Trailer length measurement:

The trailer length is the distance between
the trailer hitch ball and the rear of the trailer.
The maximum length that the system can
support is 33 ft (10.1 m).

•

Enter length of trailer:

The default setting is 18 ft (5.5 m). Toggling
up or down using the menu buttons
increases or decreases the measurement by
3 ft (1 m). Select a length that is equal to or
within 3 ft (1 m) of the actual measured
length. For example, if the actual measured
length is 25 ft (7.6 m), toggle the length in
the menu to 27 ft (8.2 m). When you enter
the length of the trailer, the system setup is
saved.

Note: If the trailer is actually a bike rack or
cargo rack with electrical lighting, enter a
length of 3 ft (1 m). Cross Traffic Alert remains
on for trailers with a length of 3 ft (1 m) or
less.

Note: Proper measurement and
measurement entry is required for the
system to function as designed.

System Operation

When you connect a trailer to your vehicle,
the trailer set up menu appears in the
information display. This menu allows you to
set up a new trailer or choose from a
previously set up trailer. A warning message
appears and the system turns off if you do
not choose or add a new trailer.

Note: The warning message may not appear
until your vehicle speed reaches 22 mph
(35 km/h).

If you select a trailer in the information
display before connecting a trailer to your
vehicle, the system loads the configuration
for the selected trailer. When a trailer is
connected, a warning message appears.

Note: A second warning message may
appear stating that the Cross Traffic Alert
system has turned off. The Blind Spot
Information System with Trailer Tow
continues to function normally in this
situation.

Note: The system remembers the last
selected trailer set up when you start your
vehicle.

Trailer Considerations

The system is designed to work with a trailer
with a front width of 8.5 ft (2.6 m) or less, and
a total length from the trailer hitch ball to the
rear of the trailer of 33 ft (10.1 m) or less.

Some trailers may cause a slight change in
system performance:
•

Large box trailers may cause false alerts
to occur when driving next to
infrastructures or near parked cars. A
false alert may also occur while making
a 90-degree turn.

•

Trailers that have a width greater than
8.5 ft (2.6 m) at the front and have a total
length greater than 20 ft (6 m) may cause
delayed alerts when a vehicle is passing
at high speed.

274

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

•

Box trailers that have a width greater than
8.5 ft (2.6 m) at the front may cause early
alerts when you pass a vehicle.

•

Clam shell or V-Nose box trailers with a
width greater than 8.5 ft (2.6 m) at the
front may cause delayed alerts when a
vehicle traveling the same speed as your
vehicle merges lanes.

System Errors

If the system detects a fault, a warning lamp
illuminates and a message displays. See
Information Messages (page 125).

Switching the System On and Off

You can switch the system off using the
information display. See General Information
(page 120).  When you switch the system off,
a warning lamp illuminates and a message
displays. When you switch the system on or
off, the alert indicators flash twice.

Note: The system remembers the last setting
when you start your vehicle.

Note: The system may not correctly operate
when towing a trailer. For vehicles with a
trailer tow module and tow bar approved by
us, the system turns off when you attach a
trailer. For vehicles with an aftermarket
trailer tow module or tow bar, we
recommend that you switch the system off
when you attach a trailer.

To permanently switch the system off,
contact an authorized dealer.

CROSS TRAFFIC ALERT

WARNING: Do not use the cross

traffic alert system as a replacement for
using the interior and exterior mirrors or
looking over your shoulder before
reversing out of a parking space. The cross
traffic alert system is not a replacement for
careful driving.

WARNING: The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due care
and attention. Failure to take care may
result in a crash.

The system is designed to alert you of
vehicles approaching from the sides when
you shift into reverse (R).

Using the Cross Traffic Alert System

The system is designed to detect vehicles
that approach with a speed up to 37 mph
(60 km/h). Coverage decreases when the
sensors are partially, mostly or fully
obstructed. Slowly reversing helps increase
the coverage area and effectiveness.

The system turns on when you start the
engine and you shift into reverse (R). The
system turns off when you shift out of reverse
(R).

275

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

E142440

The sensor on the left-hand side is only
partially obstructed and zone coverage on
the right-hand side is maximized.

276

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

E142441

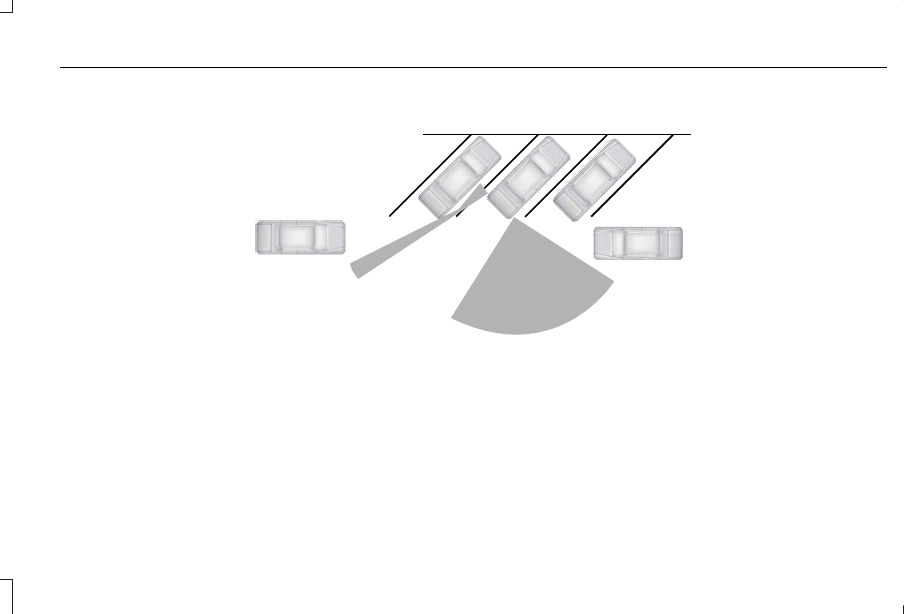

Zone coverage also decreases when parking
at narrow angles. The sensor on the left-hand
side is mostly obstructed and zone coverage
on that side is severely reduced.

277

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids

System Lights, Messages and Audible
Alerts

E142442

When the system detects a vehicle, an
indicator illuminates in the exterior mirror on
the side the approaching vehicle is coming
from.  A tone sounds and a message appears
in the information display.

Note: In exceptional conditions, the system
could alert you even when there is nothing
in the detection zone, for example a vehicle
passing in the distance.

Blocked Sensors

E205199

The sensors are behind the rear bumper on
both sides of your vehicle.

Note: Keep the sensors free from snow, ice
and large accumulations of dirt.

Note: Do not cover the sensors with bumper
stickers, repair compound or other objects.

Note: Blocked sensors could affect system
performance.

If the sensors are blocked, a message may
appear in the information display when you
shift into reverse (R).  See Information
Messages (page 125).

System Limitations

The system may not correctly operate when
any of the following occur:
•

The sensors are blocked.

•

Adjacently parked vehicles or objects are
obstructing the sensors.

•

Vehicles approach at speeds greater
than 37 mph (60 km/h).

•

The vehicle speed is greater than 7 mph
(12 km/h).

•

You reverse out of an angled parking
space.

System Errors

If the system detects a fault a message
displays.  See General Information (page
120).

Switching the System Off and On

You can temporarily switch the system off
using the information display.  See General
Information (page 120).  When you switch
system off, a message displays. See
Information Messages (page 125).

278

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Driving Aids
