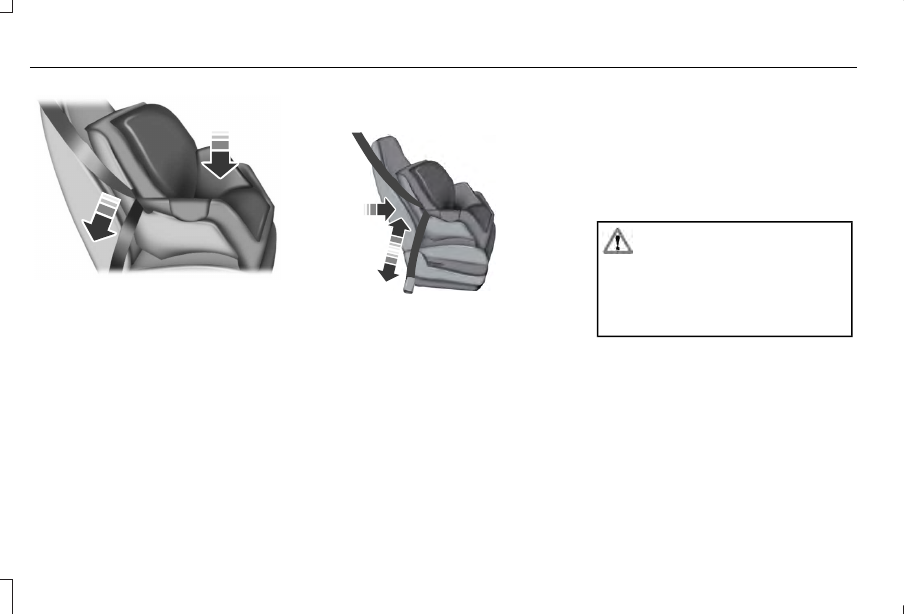

7. Try to pull the belt out of the retractor to

make sure the retractor is in the
automatic locking mode (you should not
be able to pull more belt out). If the
retractor is not locked, unbuckle the belt
and repeat Steps 5 and 6.

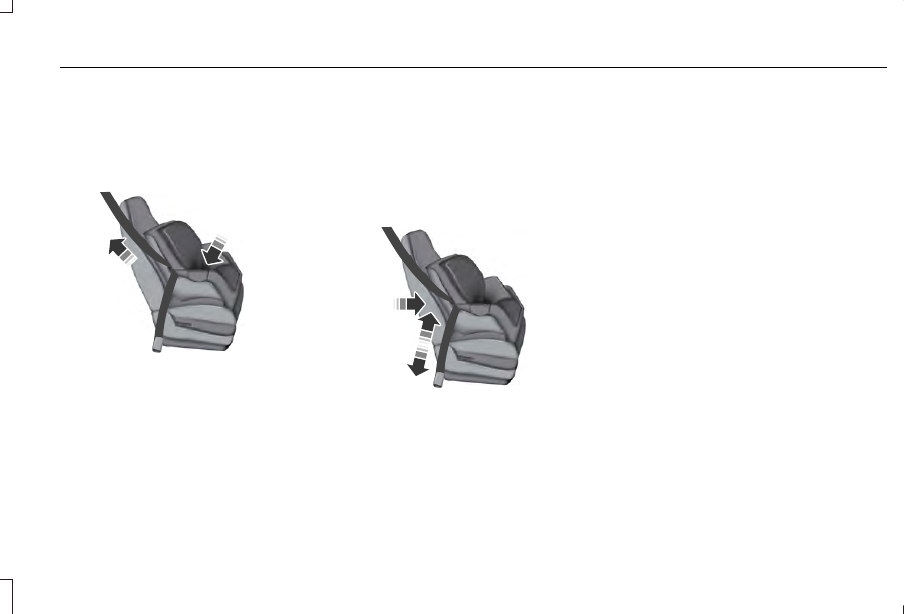

E142533

8. Remove remaining slack from the belt.

Force the seat down with extra weight,
for example, by pressing down or
kneeling on the child restraint while
pulling up on the shoulder belt in order
to force slack from the belt. This is
necessary to remove the remaining slack
that exists once the extra weight of the

child is added to the child restraint. It also
helps to achieve the proper snugness of
the child restraint to your vehicle.
Sometimes, a slight lean toward the
buckle provides extra help to remove
remaining slack from the belt.

9. Attach the tether strap (if the child

restraint is equipped).

E142534

10.

Before placing the child in the seat,
forcibly move the seat forward and back
to make sure the seat is securely held
in place. To check this, grab the seat at
the belt path and attempt to move it
side to side and forward and back.
There should be no more than 1 in
(2.5 cm) of movement for proper
installation.

We recommend checking with a NHTSA
Certified Child Passenger Safety Technician
to make certain the child restraint is properly
installed. In Canada, check with Transport
Canada for referral to a Child Car Seat Clinic.

23

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

Inflatable seatbelts

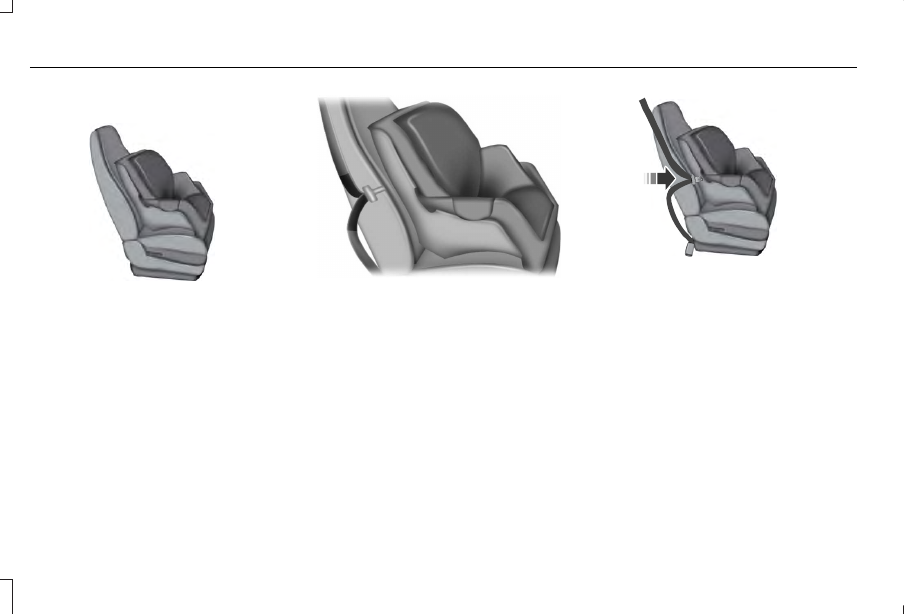

E142528

1. Position the child safety seat in a seat

with a combination lap and shoulder belt.

E146522

2. After positioning the child safety seat in

the proper seating position, grasp the
shoulder belt and lap belt together
behind the belt tongue.

E142530

3. While holding the shoulder and lap belt

portions together, route the tongue
through the child restraint according to
the child restraint manufacturer's
instructions. Be sure the belt webbing is
not twisted.

24

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

E146523

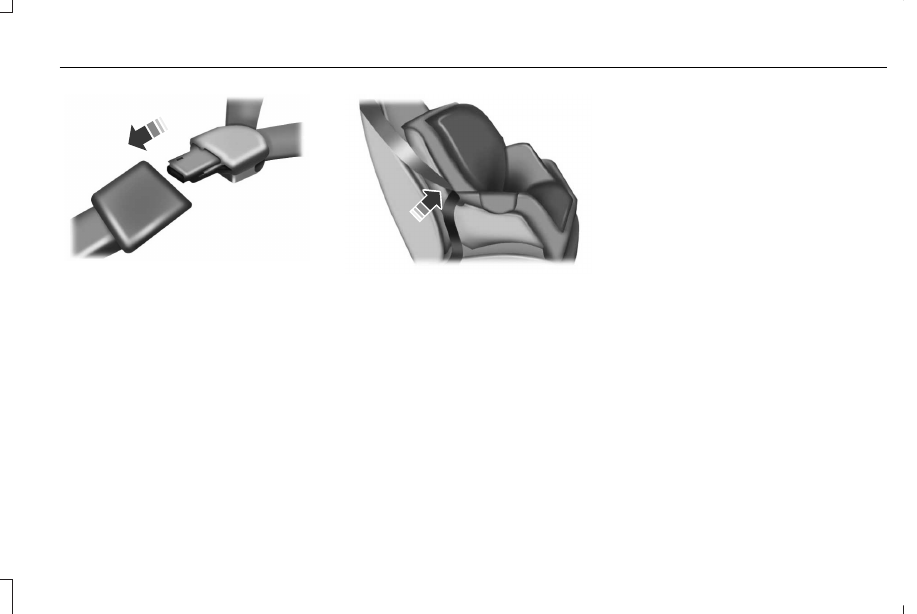

4. Insert the belt tongue into the proper

buckle (the buckle closest to the direction
the tongue is coming from) for that
seating position until you hear a snap and
feel the latch engage. Make sure the
tongue is latched securely by pulling on
it.

E146524

5. To put the retractor in the automatic

locking mode, grasp the lap portion of
the inflatable seatbelt and pull upward
until you pull all of the belt out.

Note: The automatic locking mode is
available on the front passenger and rear
seats.

Note: Unlike the standard seatbelt, the
inflatable seatbelt's unique lap portion locks
the child restraint for installation. The ability
for the shoulder portion of the belt to move
freely is normal, even after the lap belt has
been put into the automatic locking mode.

Note: The lock-off device on some child
restraints may not accommodate the
shoulder portion of the inflatable seatbelt.
Follow all instructions provided by the
manufacturer of the child restraint regarding
the necessary and proper use of the lock-off
device. In some instances, these devices
have been provided only for use in vehicles
with seatbelt systems that would otherwise
require a locking clip.

6. Allow the belt to retract to remove slack.

The belt clicks as it retracts to indicate it
is in the automatic locking mode.

7. Try to pull the belt out of the retractor to

make sure the retractor is in the
automatic locking mode (you should not
be able to pull more belt out). If the
retractor is not locked, unbuckle the belt
and repeat Steps 5 and 6.

25

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

E146525

8. Remove remaining slack from the belt.

Force the seat down with extra weight,
for example, by pressing down or
kneeling on the child restraint while
pulling down on the lap belt in order to
force slack from the belt. This is
necessary to remove the remaining slack
that exists once the extra weight of the
child is added to the child restraint. It also
helps to achieve the proper snugness of
the child restraint to your vehicle.
Sometimes, a slight lean toward the
buckle will additionally help to remove
remaining slack from the belt.

9. Attach the tether strap (if the child

restraint is equipped).

E142534

10.

Before placing the child in the seat,
forcibly move the seat forward and back
to make sure the seat is securely held
in place. To check this, grab the seat at
the belt path and attempt to move it
side to side and forward and back.
There should be no more than 1 in
(2.5 cm) of movement for proper
installation.

We recommend checking with a NHTSA
Certified Child Passenger Safety Technician
to make certain the child restraint is properly
installed. In Canada, check with Transport
Canada for referral to a Child Car Seat Clinic.

Using Lower Anchors and Tethers for

CHildren (LATCH)

WARNING: Do not attach two child

safety restraints to the same anchor. In a
crash, one anchor may not be strong
enough to hold two child safety restraint
attachments and may break, causing
serious injury or death.

The LATCH system is composed of three
vehicle anchor points: two lower anchors
where the vehicle seatback and seat cushion
meet (called the seat bight) and one top
tether anchor behind that seating position.

26

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

LATCH compatible child safety seats have
two rigid or webbing mounted attachments
that connect to the two lower anchors at the
LATCH equipped seating positions in your
vehicle. This type of attachment method
eliminates the need to use seatbelts to attach
the child restraint. However, you can still use
the seatbelt to attach the child restraint if the
lower anchors are not used. For
forward-facing child restraints, you must also
attach the top tether strap to the proper top
tether anchor if a top tether strap has been
provided with your child restraint. We
recommend the use of a child safety seat
having a top tether strap. See Using Tether
Straps in this chapter.

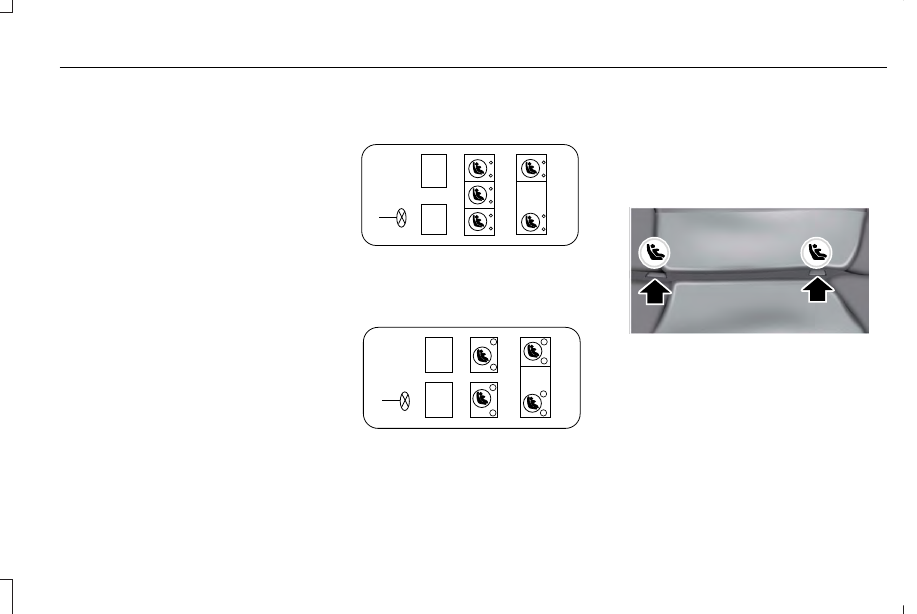

Your vehicle has LATCH lower anchors for
child restraint installation at the seating
positions marked with the child restraint
symbol.

Second Row Bench Seat

E251314

Second Row Bucket Seats

E251315

The LATCH anchors are at the rear section
of the rear seat between the cushion and
seatback, below the locator symbols on the
seatback. Follow the child restraint
manufacturer’s instructions to properly install
a child restraint with LATCH attachments.

E144054

The locator symbols are on round plastic
buttons for the center seat and on
rectangular tags for the outboard seats.

Follow the instructions on attaching child
safety seats with tether straps. See Using
Tether Straps in this chapter.

Attach LATCH lower attachments of the child
restraint only to the anchors shown.

27

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

Each time you use the safety seat, check that
the seat is properly attached to the lower
anchors and tether anchor, if applicable. Tug
the child restraint from side to side and
forward and back where it is secured to the
vehicle. The seat should move less than one
inch when you do this for a proper
installation.

If the safety seat is not anchored properly,
the risk of a child being injured in a crash
greatly increases.

Combining Seatbelt and LATCH Lower
Anchors for Attaching Child Safety
Seats

When used in combination, either the
seatbelt or the LATCH lower anchors may
be attached first, provided a proper
installation is achieved. Attach the tether
strap afterward, if included with the child
restraint.

Using Tether Straps

Many forward-facing child safety seats
include a tether strap which extends from
the back of the child safety seat and hooks
to an anchoring point called the top tether
anchor. Tether straps are available as an
accessory for many older safety seats.
Contact the manufacturer of your child
restraint for information about ordering a
tether strap, or to obtain a longer tether strap
if the tether strap on your safety seat does
not reach the appropriate top tether anchor
in the vehicle.

Some of the rear seats of your vehicle have
built-in tether strap anchors behind the seats
as described below.

The tether strap anchors in your vehicle are
in the following positions (shown from top
view).

Second Row Bench Seat

E251316

Second Row Bucket Seats

E251319

28

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

Attach the tether strap only to the
appropriate tether anchor as shown. The
tether strap may not work properly if
attached somewhere other than the correct
tether anchor.

Once the child safety seat has been installed
using either the seatbelt, the lower anchors
of the LATCH system, or both, you can attach
the top tether strap.

If you install a child restraint with rigid LATCH
attachments, do not tighten the tether strap
enough to lift the child restraint off the
vehicle seat cushion when the child is seated
in it. Keep the tether strap just snug without
lifting the front of the child restraint. Keeping
the child restraint just touching the vehicle
seat gives the best protection in a severe
crash.

Perform the following steps to install a child
safety seat with tether anchors:

29

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

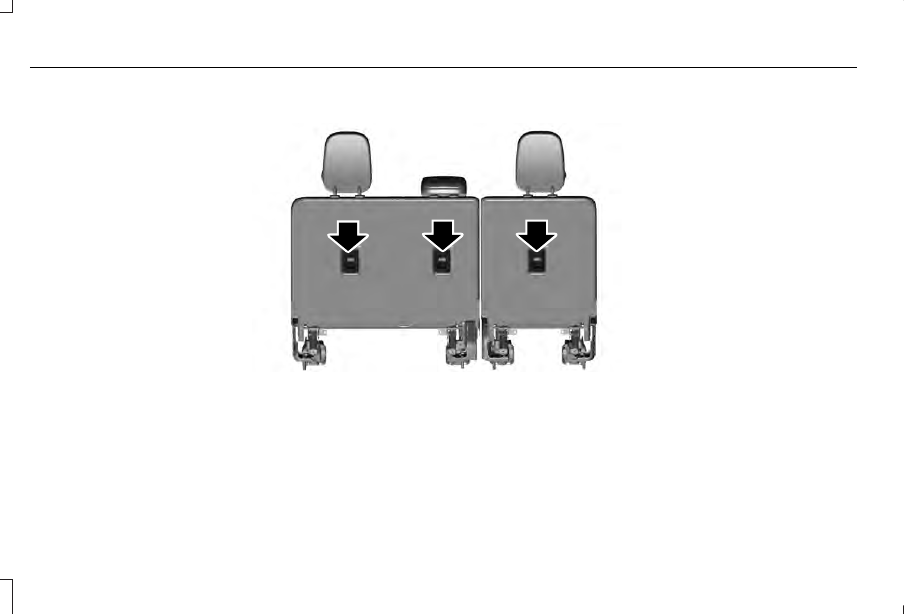

Second Row Seating Positions

E251593

30

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

Second Row Bucket Seating Positions

E251594

31

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

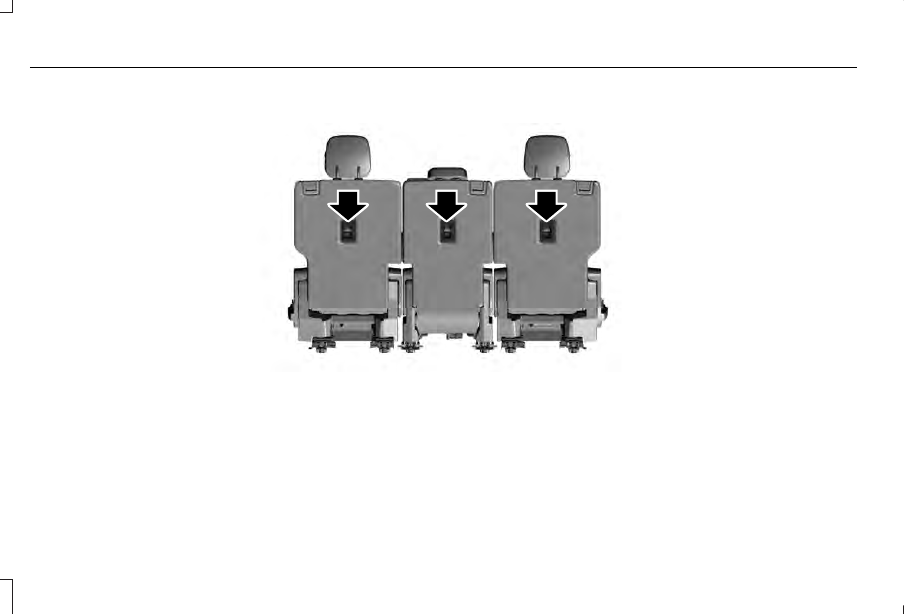

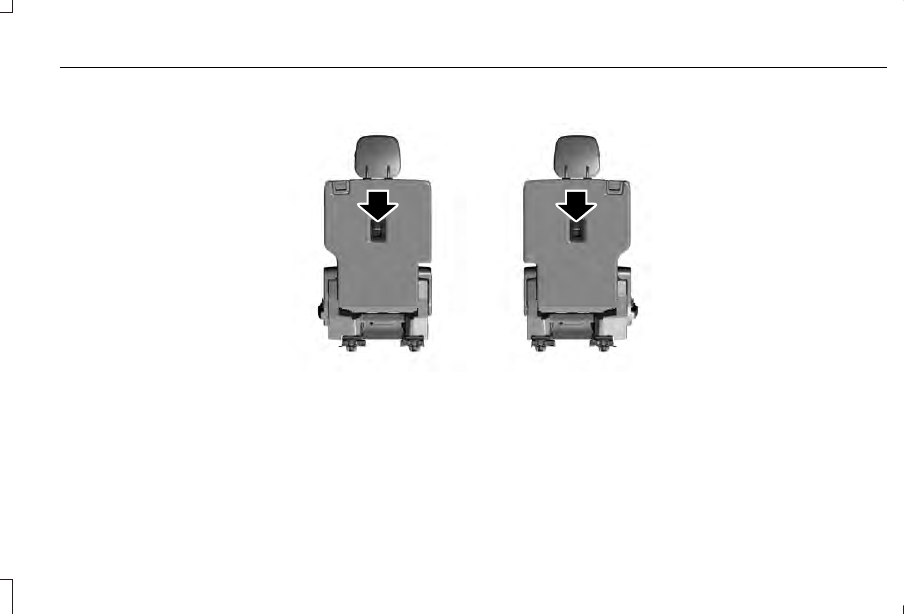

Third Row Seating Positions

E251595

1. For center seating positions, route the

child safety seat tether strap over the
back of the seat. For outboard seating
positions, route the tether strap under
the head restraint and between the head
restraint posts. If the top of the safety
seat hits the head restraint, recline the
seatback slightly to obtain proper fit.

2. Clip the tether strap to the anchor. If the

tether strap is clipped incorrectly, the
child safety seat may not be retained
properly in the event of a crash.

3. Tighten the child safety seat tether strap

according to the manufacturer’s
instructions. If the safety seat is not
anchored properly, the risk of a child
being injured in a crash greatly increases.

32

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

If your child restraint system has a tether
strap and the child restraint manufacturer
recommends its use, we also recommend its
use.

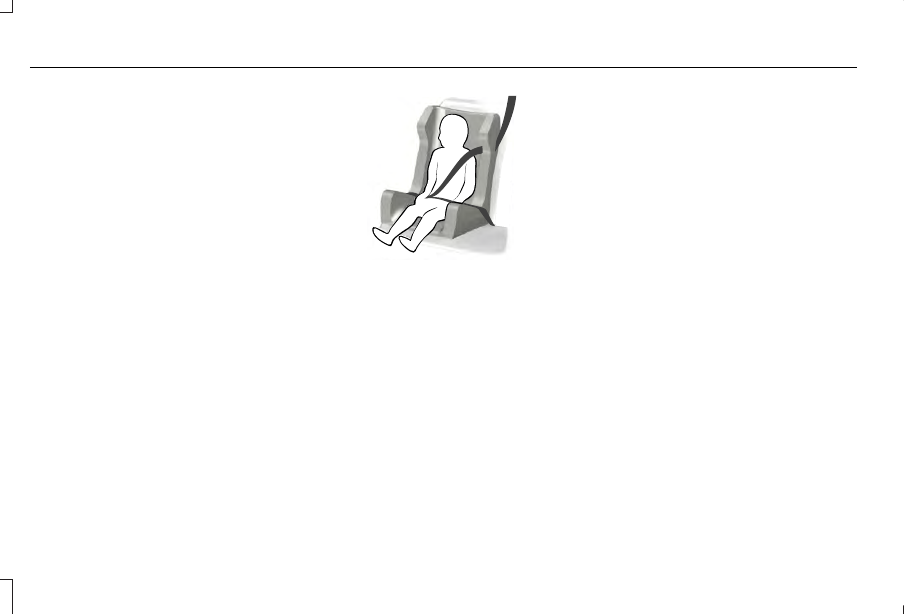

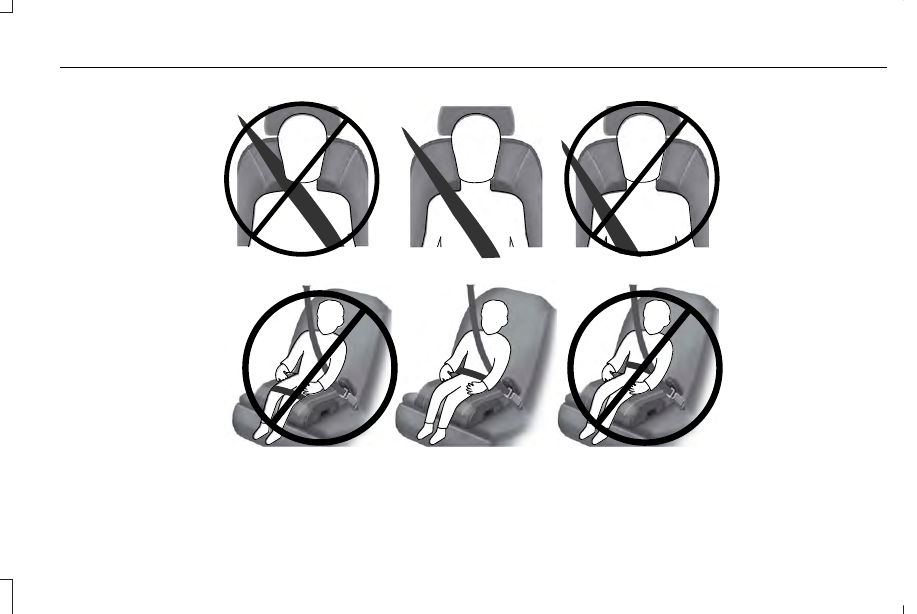

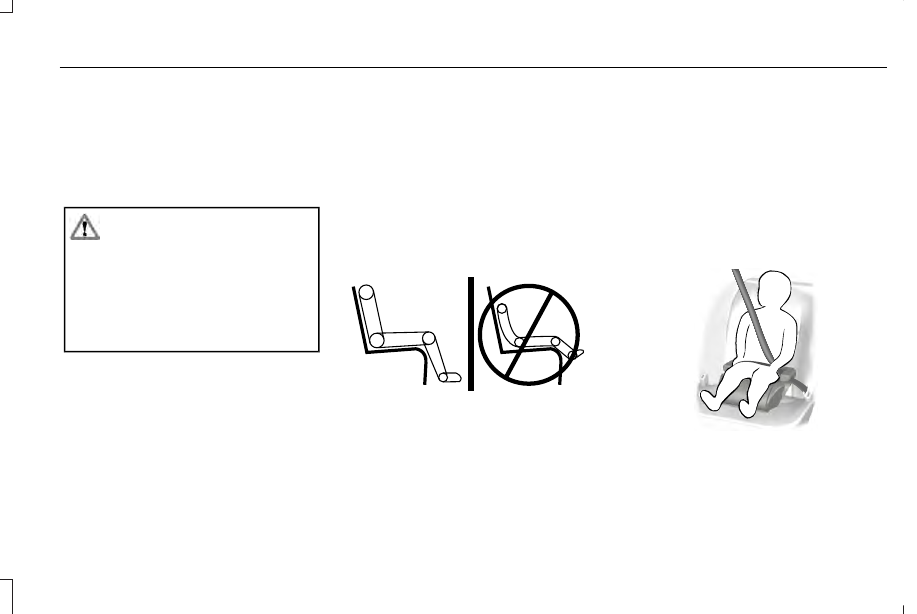

BOOSTER SEATS

WARNING: Do not put the shoulder

section of the seatbelt or allow the child to
put the shoulder section of the seatbelt
under their arm or behind their back.
Failure to follow this instruction could
reduce the effectiveness of the seatbelt
and increase the risk of injury or death in
a crash.

Note: Some booster seat seatbelt guides
may not accommodate the shoulder portion
of the inflatable seatbelt.

Use a belt-positioning booster seat for
children who have outgrown or no longer
properly fit in a child safety seat (generally
children who are less than 57 in (1.45 m) tall,
are greater than age four (4) and less than
age twelve (12), and between 40 lb (18 kg)

and 80 lb (36 kg) and upward to 100 lb
(45 kg) if recommended by your child
restraint manufacturer). Many state and
provincial laws require that children use
approved booster seats until they reach age
eight, a height of 57 in (1.45 m) tall, or 80 lb
(36 kg).

Booster seats should be used until you can
answer YES to ALL of these questions when
seated without a booster seat:

E142595

•

Can the child sit all the way back against
their vehicle seat backrest with knees
bent comfortably at the edge of the seat
cushion?

•

Can the child sit without slouching?

•

Does the lap belt rest low across the
hips?

•

Is the shoulder belt centered on the
shoulder and chest?

•

Can the child stay seated like this for the
whole trip?

Always use booster seats in conjunction with
your vehicle lap and shoulder belt.

Types of Booster Seats

E68924

•

Backless booster seats

33

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

If your backless booster seat has a
removable shield, remove the shield. If a
vehicle seating position has a low seat
backrest or no head restraint, a backless
booster seat may place your child's head (as
measured at the tops of the ears) above the
top of the seat. In this case, move the
backless booster to another seating position
with a higher seat backrest or head restraint
and lap and shoulder belts, or consider using
a high back booster seat.

E70710

•

High back booster seats

If, with a backless booster seat, you cannot
find a seating position that adequately
supports your child's head, a high back
booster seat would be a better choice.

Children and booster seats vary in size and
shape. Choose a booster that keeps the lap
belt low and snug across the hips, never up
across the stomach, and lets you adjust the
shoulder belt to cross the chest and rest
snugly near the center of the shoulder. The
following drawings compare the ideal fit
(center) to a shoulder belt uncomfortably
close to the neck and a shoulder belt that
could slip off the shoulder. The drawings also
show how the lap belt should be low and
snug across the child's hips.

34

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

E142596

E142597

35

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

If the booster seat slides on the vehicle seat
upon which it is being used, placing a
rubberized mesh sold as shelf or carpet liner
under the booster seat may improve this
condition. Do not introduce any item thicker
than this under the booster seat. Check with
the booster seat manufacturer's instructions.

CHILD RESTRAINT POSITIONING

WARNING: Do not place a rearward

facing child restraint in front of an active
airbag. Failure to follow this instruction
could result in personal injury or death.

WARNING: Properly secure children

12 years old and under in a rear seating
position whenever possible. If you are
unable to properly secure all children in a
rear seating position, properly secure the
largest child on the front seat. If you must
use a forward facing child restraint on the
front seat, move the seat as far back as
possible. Failure to follow these
instructions could result in personal injury
or death.

WARNING: Always carefully follow

the instructions and warnings provided by
the manufacturer of any child restraint to
determine if the restraint device is
appropriate for your child's size, height,
weight, or age. Follow the child restraint
manufacturer's instructions and warnings
provided for installation and use in
conjunction with the instructions and
warnings provided by your vehicle

manufacturer. A safety seat that is
improperly installed or utilized, is
inappropriate for your child's height, age,
or weight or does not properly fit the child
may increase the risk of serious injury or
death.

WARNING: Do not allow a passenger

to hold a child on their lap when your
vehicle is moving. Failure to follow this
instruction could result in personal injury
or death in the event of a sudden stop or
crash.

WARNING: Do not use pillows, books

or towels to boost your child's height.
Failure to follow this instruction could result
in personal injury or death.

WARNING: Properly secure child

restraints or booster seats when they are
not in use. They could become projectiles
in a sudden stop or crash. Failure to follow
this instruction could result in personal
injury or death.

36

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

WARNING: Do not put the shoulder

section of the seatbelt or allow the child to
put the shoulder section of the seatbelt
under their arm or behind their back.

Failure to follow this instruction could
reduce the effectiveness of the seatbelt
and increase the risk of injury or death in
a crash.

WARNING: Do not leave children or

pets unattended in your vehicle. Failure to
follow this instruction could result in
personal injury or death.

Recommendations for Attaching Child Safety Restraints for Children

Use Any Attachment Method as Indicated Below by X

Combined Weight
of Child and Child

Restraint

Restraint Type

Seatbelt Only

Seatbelt and LATCH
(Lower Anchors and

Top Tether Anchor)

Seatbelt and Top

Tether Anchor

LATCH (Lower

Anchors Only)

LATCH (Lower

Anchors and Top

Tether Anchor)

X

X

Up to 65 lb

(29.5 kg)

Rear facing child

restraint

X

Over 65 lb

(29.5 kg)

Rear facing child

restraint

X

X

X

Up to 65 lb

(29.5 kg)

Forward facing

child restraint

X

X

Over 65 lb

(29.5 kg)

Forward facing

child restraint

37

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety

Note: The child restraint must rest tightly
against the vehicle seat upon which it is
installed. It may be necessary to lift or
remove the head restraint.  See Seats (page
158).

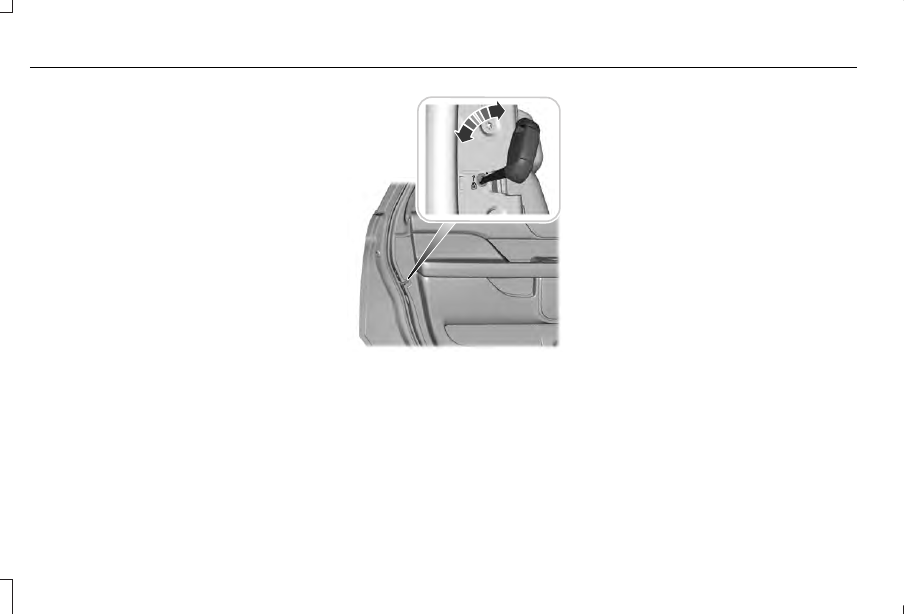

CHILD SAFETY LOCKS

When these locks are set, the rear doors
cannot be opened from the inside.

E249891

The locks are on the rear edge of each rear
door and must be set separately for each
door.

Left-Hand Side

Turn clockwise to lock and counterclockwise
to unlock.

Right-Hand Side

Turn counterclockwise to lock and clockwise
to unlock.

38

Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201808, First-Printing

Child Safety
